- Configures any Honeywell DE device: ST3000 pressure and STT3000 temperature transmitters.
- Configures any HART® device with a published HART Device Descriptions (DD), regardless of device manufacturer.
- Supports easy downloading of any new vendor’s DD files via a PC connection.
- Intuitive graphical user interface provides simple navigation and device configuration.
- Available in three versions handling almost any environmental condition: • Ruggedized versionEnvironmentally hardened with no approvals.
• Zone 2 approvals: Intrinsicallysafe version available with FM Class I, Div 2 and ATEX Zone 2 approvals.
• Zone 1 approvals: Intrinsically safe version available with FM Class I, Div 1 and ATEX Zone 1 approvals.
- Fully supports all HART 5.X commands and Universal commands for HART 6.X and utilizes DD-IDE/SDC 625 technology and “Open” Tools standard.
- Supports transmitter diagnostic and on-line monitoring as well as transmitter calibration.
- Standardizes both HART and DE field instrument configuration with one handheld device. Configuration of common, universal and specific device commands is supported.
- User interface provides detailed explanations and sub-menus during the configuration process for ease of operation for even the casual user.
- Supports communication with HART devices when the operator is performing the following functions:
• Initial device configuration
• Starting a method
• Changing a configuration parameter
• Determining the actual “state” or process variable of a particular device
• Activating a device’s internal diagnostic functions.
• Download new device descriptions from the HART website.
• Acquire the latest DD releases from the manufacture’s website including device descriptions not available from HART.
- Incorporates data reasonability checks. Under given conditions, the MC Toolkit configurator will not accept configurations beyond device ranges reducing the likelihood of costly mistakes.
- SDC625 application in the MCT 101/202 toolkit release 3.1 allows the user to capture one snapshot of the connected device’s configuration history. This history can be imported in to the FDM database. Available with FDM Release 301.1.1 and later. Benefits:
• Comprehensive Device database of all the on line and offline devices with FDM.
• Ability to Schedule Device calibration.
• Historization of Device testing and calibration result.

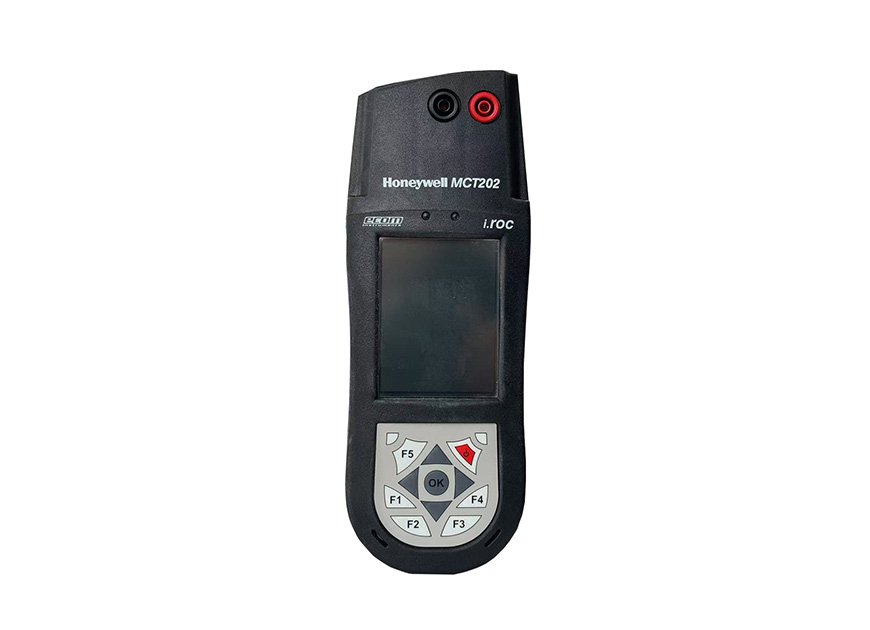

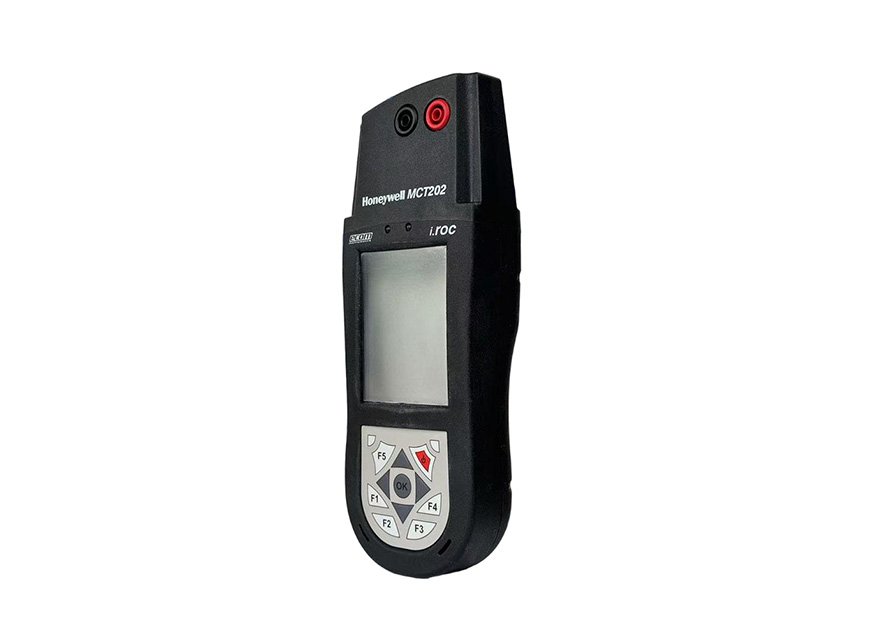

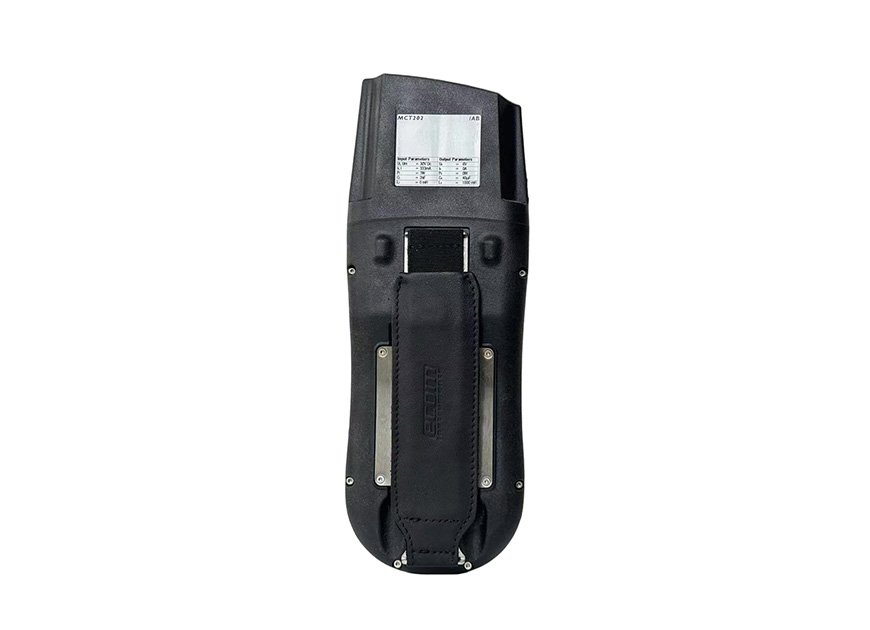

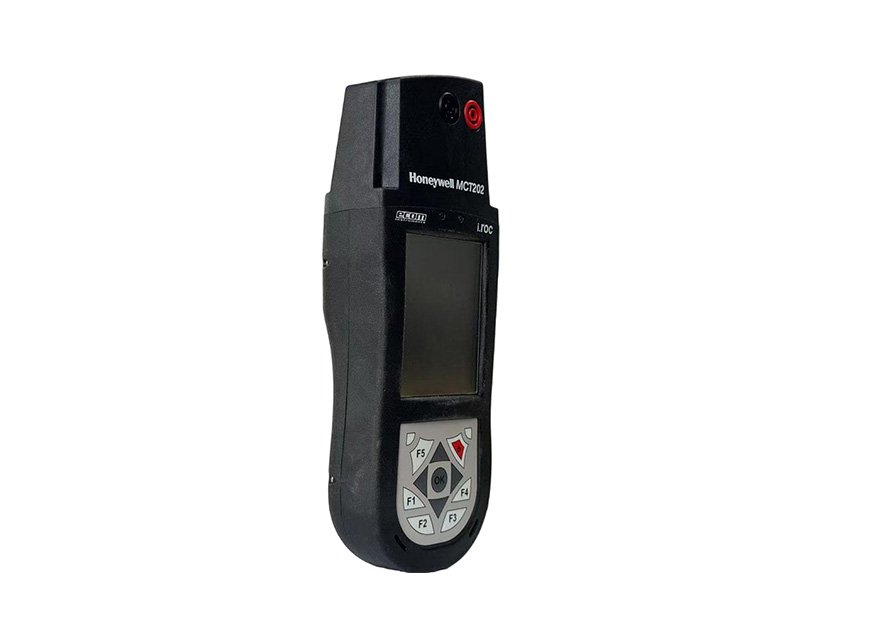

The Honeywell MC Toolkit Configurator is a Pocket PC-based engineering and maintenance tool used to configure, monitor, diagnose and manage smart field instruments/devices. Designed specifically for ease-of-use and increased productivity, this multipurpose tool supports both HART and Honeywell’s Digitally Enhanced (DE) communication protocols. The MC Toolkit allows easy access to instrument configuration database parameters without the need for prior training, user manuals or previous experience. Each MC Toolkit comes loaded with all registered HART Device Description (DD) files and may be supplemented with non-published DD files at any time – so any HART new device can be configured as long as a DD can be downloaded. New DD files are easily downloaded and installed using ActiveSync software and the USB cable provided. The MC Toolkit Configurator is loaded with two software applications: 1. The MC Toolkit software configures Honeywell DE and HART devices 2. The SDC 625 software configures non-Honeywell HART devices The combination of these two applications enables true “Universal” configuration of HART devices. The MCT202 is rated intrinsically safe for Zones 1& 2 for both FM C and ATEX.
Specifications | MCT-202 |
Pocket PC | i.roc 627 (HP iPAQ hx2490 or equivalent) |
Processor | Intel PXA270 520 MHz |
Memory
| 128 MB ROM and 64 MB SDRAM 1 GB San Disk Flash Memory card |
Operating System | Microsoft Windows Mobile 5.0 |
Display
| 3.5” Transflective TFT color with LED backlight 240 x 320 pixels, 64K color, touch screen |
Power Supply
| Rechargeable Lithium-Ion battery plus new charger options |
Dimensions | (6 x 2.875 x 1.5 in) (15.24 x 7.3025 x 3.81 cm) |
Weight | 200 g (.4409 lbs) |
Operating Temperature | -10 to +50°C (+14 to +122°F) |
Storage Temperature | -20 to +60°C (-4 to +140°F) |
Operating Humidity | 10 to 90% RH |
Memory Requirements
| Approximately 51MB (includes all HART registered device descriptions). MC Toolkit software, including SDC 625 and HART DD files, are loaded on flash memory card. The flash memory card in the MCT202 is not removable. |
HART Device Description
| Each MC Toolkit is loaded with a complete set of HART DD files available at the time of manufacture. If the device vendor has qualified their DD with the HART Foundation SDC 625 tool, the device description is assured of being compliant with the MC Toolkit. Additional DDs can be downloaded as new releases or new products become available through the ActiveSync connection.
|
Approvals
| European EMC Standards: EEC Directive 89/336 (EMC) CE Mark FM C-US: Intrinsically Safe – Class I, Div 1 Group A,B,C,D Non-incendive – Class I, Div 2 Group A,B,C,D ATEX: Intrinsically Safe – Ex II 2G EEx ia IIC T4 Type n – Ex II 3G EEx nL IIC T4 Dust ignition proof – Ex II 2D T99oC IP65; Ex II 3D T55oC IP65 |

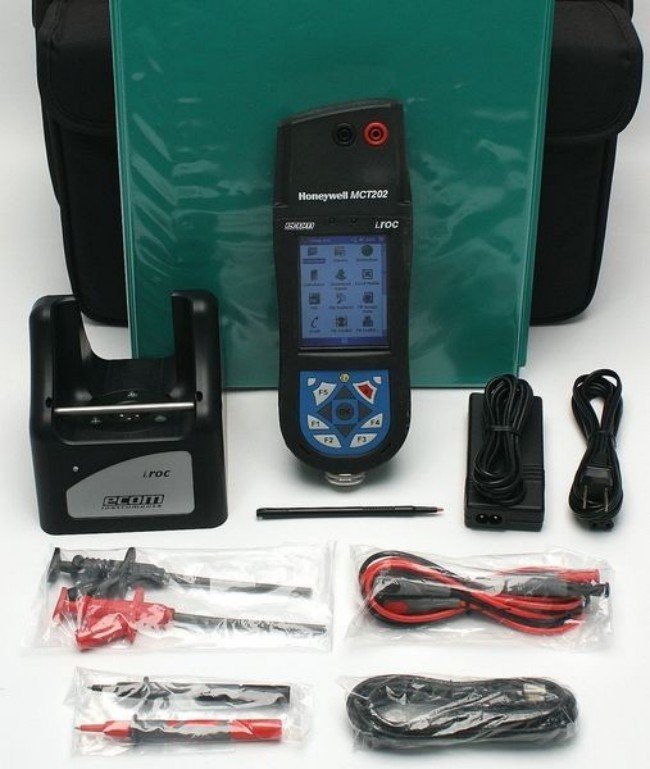

Packaging: Original bag and box
