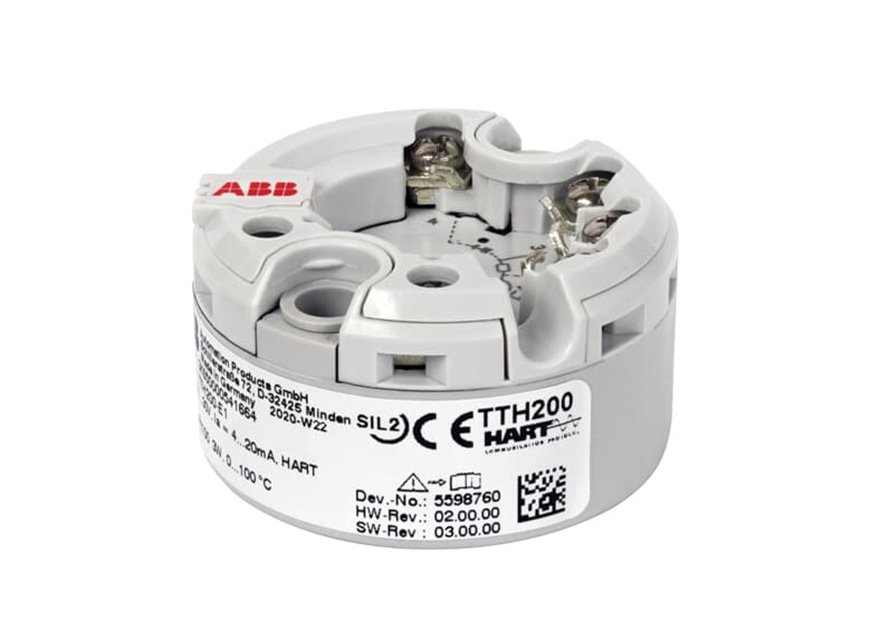

The TTH200 is provided for all HART standard applications in temperature measurement with one sensor input. The transmitter follows NAMUR Recommendations such as NE 89 and NE 107. The TTH200 supports the same functionality as the TTH300, but without sensor redundancy and sensor drift monitoring. As an option, an LCD indicator can be connected.
The transmitter can be configured with ABB-tools such as Field Information Manager (FIM), with DAT200 (Asset Vision Basic) via DTM, with a Handheld via EDD, or with any standard tool using FDI-/FDT-Technology.
Measurement made easy
Temperature transmitter for HART protocol.
Suitable for all standard requirements.
— Input circuit and communication
• Universal sensor input for resistance thermometers (RTD) and thermocouples
• Specific sensor linearization via Callendar-Van Dusen coefficients and with value pair table (32 points)
• Communication via 4 to 20 mA signal and HART protocol (switchable between HART 5 and HART 7) — Safety
• Global approvals for explosion protection up to Zone 0
• Functional safety SIL 2 / SIL 3 in accordance with IEC 61508
• Device versioning in accordance with NE 53
• Monitoring of the 4 to 20 mA loop current
• Wire break / corrosion monitoring in accordance with NE 89
• Device status signaling and freely configurable diagnostic categorization with diagnostic history according to NE 107 — Configuration and tracking
• Support of DTM, EDD and FDI standard (FIM)
• Event monitor for logging critical events
• Configuration monitor for configuration changes
• Turnable LCD indicator for optimal readability (option)
Item | Valve |
General | |
Model | TTH200 |
Communication Protocols | HART 5 and HART 7 (switchable) |
Input | |
Sensor Types | RTD, thermocouple, ohm, mV |
Number of Inputs | One universal sensor input |
Measurement Range | Varies according to sensor type |
Input Filter | 50/60 Hz |
Output | |
Signal | 4 - 20 mA (temperature - linear), HART signal |
Accuracy and Stability | |
Accuracy | 0.1% |
Long - term Stability | 0.05% per year |
Power Supply | |
Voltage | Typically 24 VDC (11 - 42 VDC range supported) |
Housing | |
Material | Polycarbonate |
Color | Gray RAL 9002 |
Sealing Compound | Hard sealing compound |

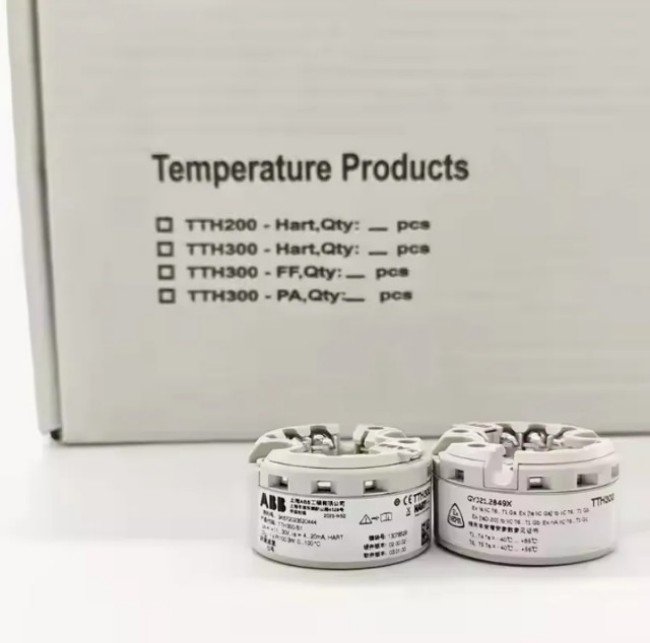

Packaging: Original bag and box
