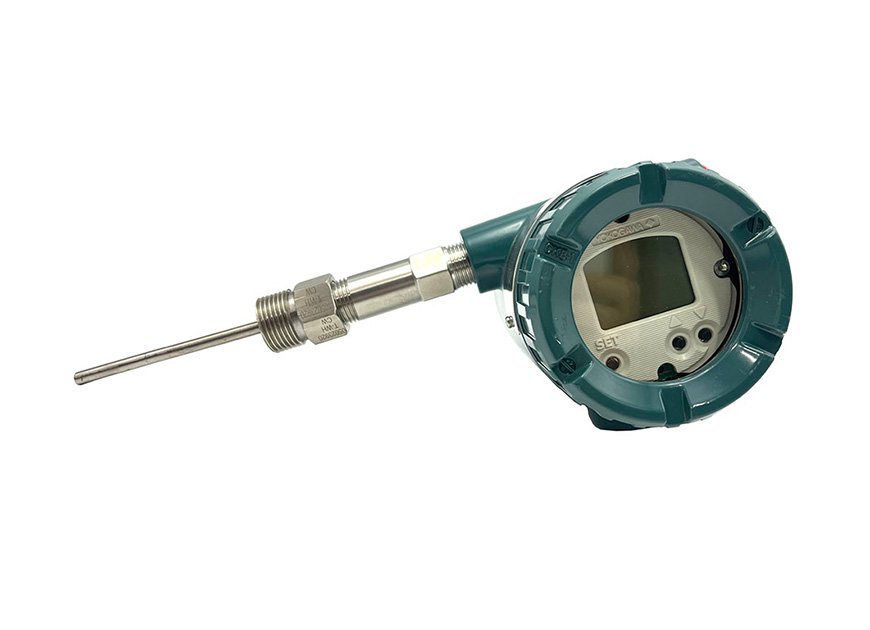

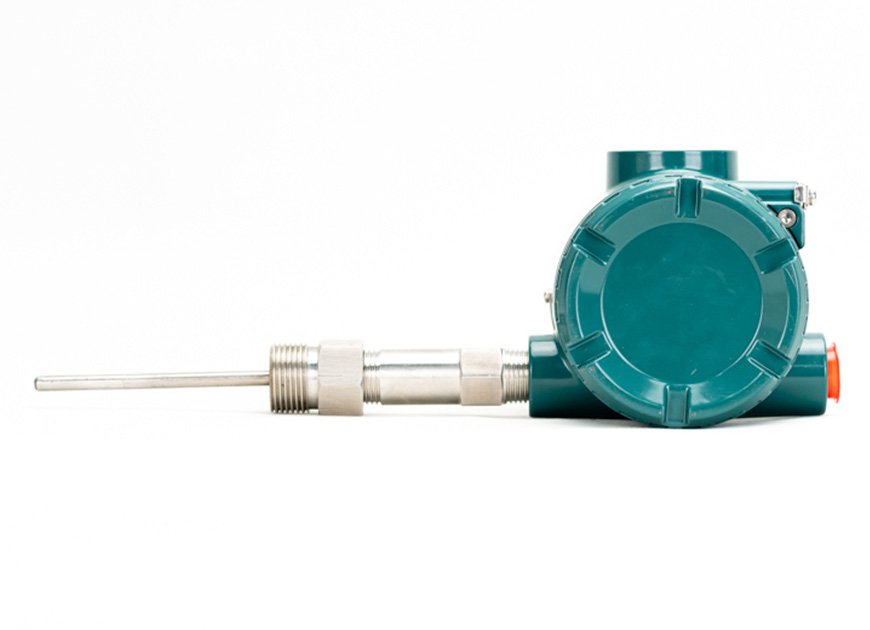

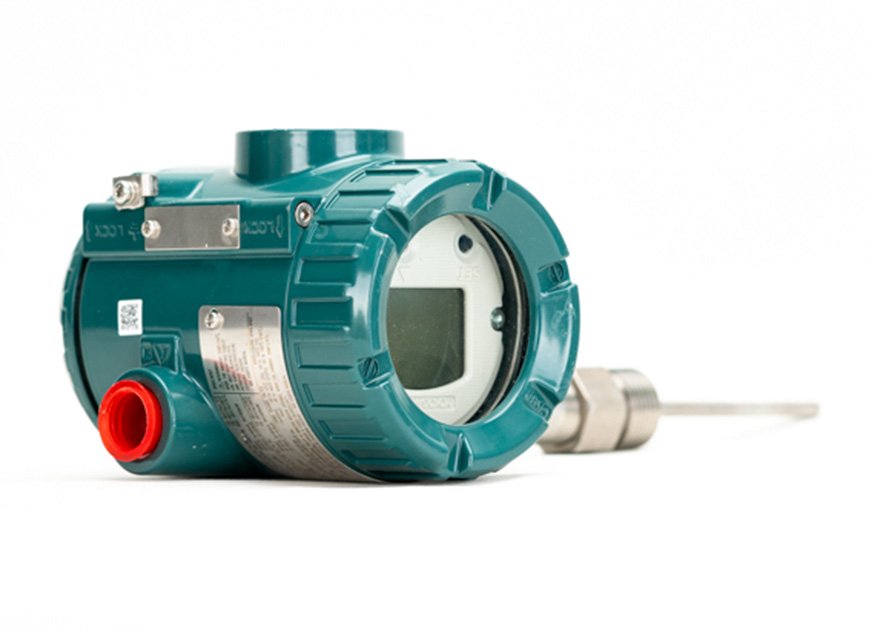

The YTA610 is the highly accurate temperature transmitter that accepts Thermocouple, RTD, ohms or DC millivolts inputs and converts it to a 4 to 20 mA DC or Fieldbus signal for transmission. The YTA610 supports HART and FOUNDATION Fieldbus communication protocols. HART type is certified as complying with SIL 2 for safety requirement.
High reliability
Dual-compartment housing realizes high resistance capability to harsh environments.
Variety of sensor inputs
The type of sensor input is user-selectable from thermocouples (T/C), RTDs, ohms, or DC millivolts.
Digital communication
HART protocol revision is 7 and FOUNDATION Fieldbus. The instrument configuration can be changed by the user with using the Fieldmate or Handheld terminal.
Local Parameter Setting
Parameter confi guration by the push button offers easy and quick setup for parameters.
Self-diagnostics function
Continuous self-diagnostics capability ensures longterm performance and lower cost of ownership.
Dual universal inputs
Dual input can accept two thermocouple, RTD, ohm or DC millivolt inputs. Diff erential or average temperature measurement is selectable. The sensor backup function for automatically switches-over from the primary to the backup upon sensor failure.
Item | valve |
Type | Temperature transmitter |
Input Signals | - Input number: Single and dual - input |
Output Signals | - Two - wire 4 - 20 mA DC type, output range: 3.68 to 20.8 mA DC, HART protocol is superimposed on the 4 - 20 mA signal |
Communication Protocols | HART 7, FOUNDATION Fieldbus |
Accuracy | - HART communication type: A/D accuracy / span + D/A accuracy |
Ambient Temperature Effect | See the relevant table in the specification document |
Stability | - At 23 ± 2 °C, RTD: ±0.1% of reading or ±0.1 °C per 2 years, whichever is greater; T/C: ±0.1% of reading or ±0.1 °C per year, whichever is greater |
Vibration Effect | Tested to IEC 60770 - 1, 10 to 60 Hz: 0.21 mm peak displacement; 60 to 2000 Hz: 3 g, with no effect on performance |
Power Supply Effect (HART type) | ±0.005% of calibrated span per volt |
Safety Requirements | - Standards: EN 61010 - 1, C22.2 No. 61010 - 1; EN 61010 - 2 - 030, C22.2 No. 61010 - 2 - 030 |
Normal Operating Conditions | - Ambient temperature limits: –40 to 85 °C (–40 to 185 °F); –30 to 80 °C (–22 to 176 °F) (with indicator model) |
Features | - Dual - compartment field - mount housing |
Certifications | Exida IEC 61508 certification, and has acquired various international certifications including FM, CSA, ATEX, IECEx, INMETRO, KOSHA, EAC, and NEPSI |
Packaging: Original bag and box
