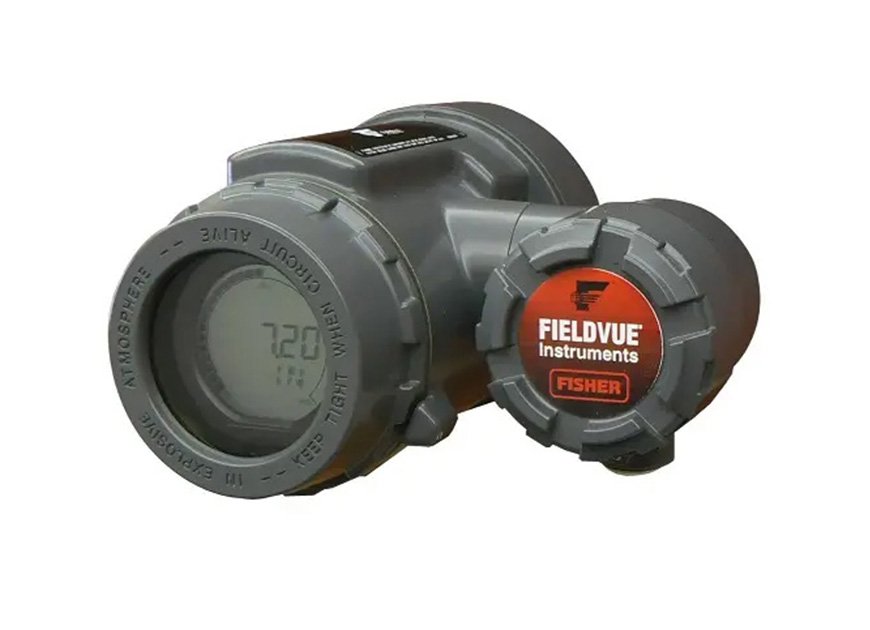

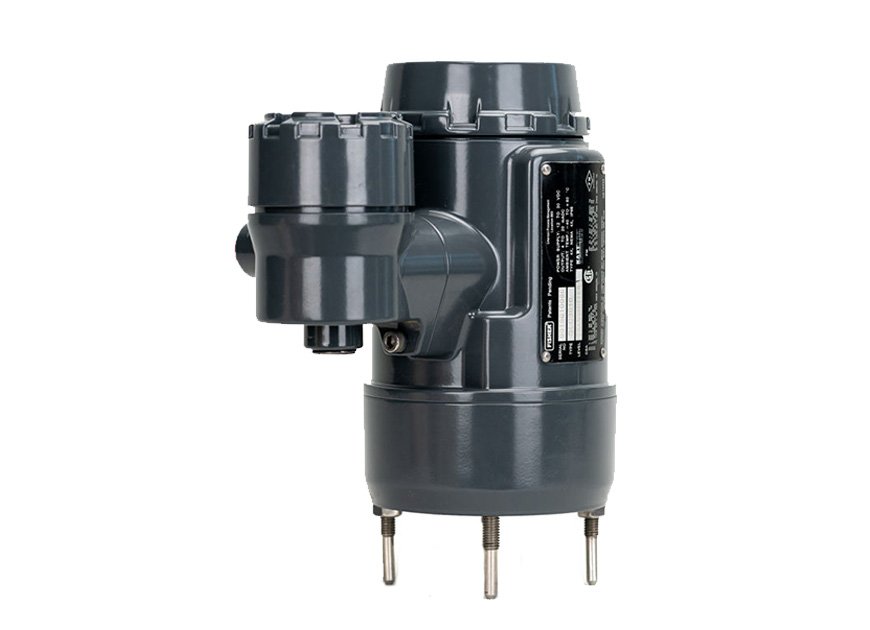

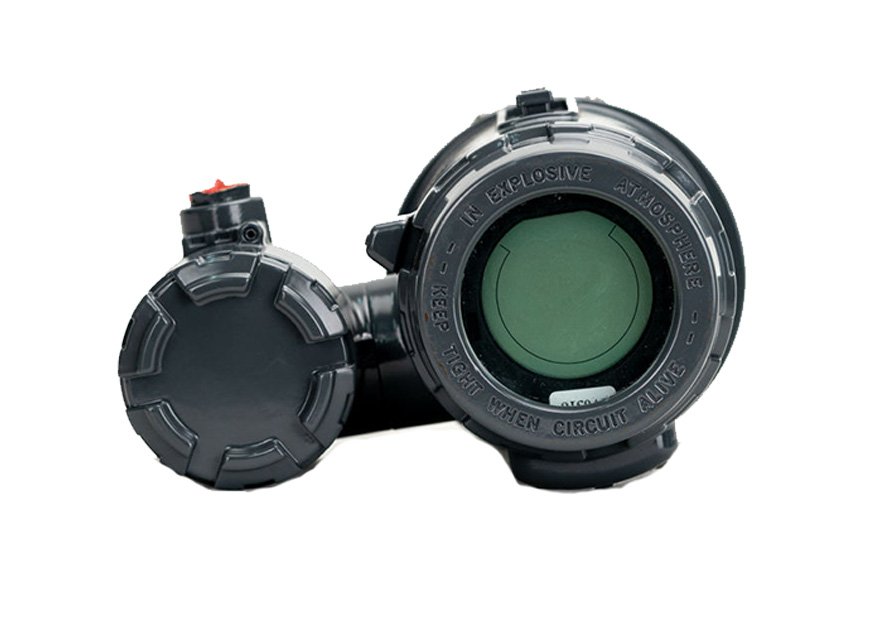

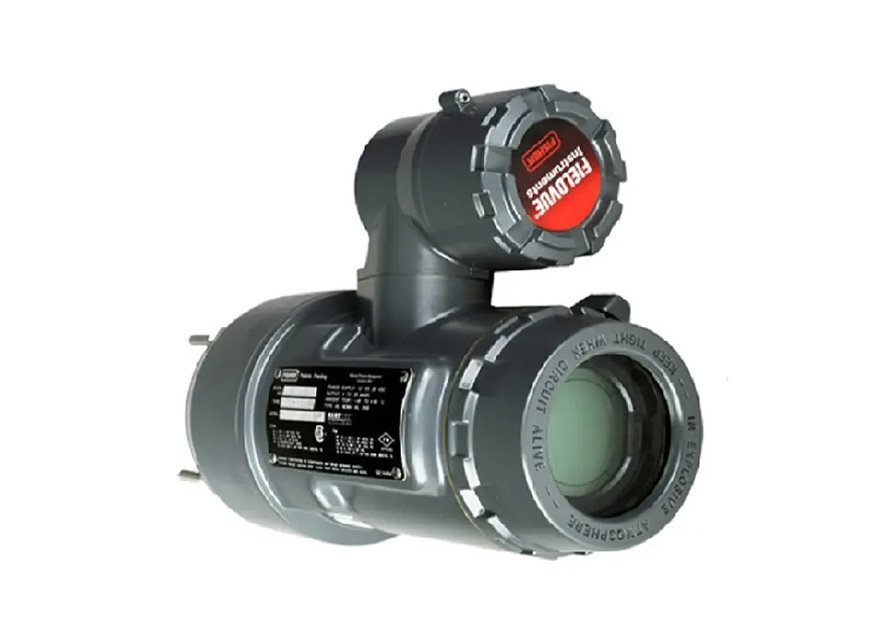

The FIELDVUE DLC3010 digital level controller is used with level sensors to measure liquid level, the level of the interface between two liquids, or liquid specific gravity (density). Changes in level or specific gravity exert a buoyant force on a displacer, which rotates a torque tube shaft. The digital level controller converts this rotational motion to an electronic signal.
The DLC3010 is a communicating, microprocessor-based instrument that can be configured to sense the level, interface level, or density of liquids. In addition to the normal function of providing a 4 to 20 milliampere current signal, the DLC3010, using HART® communications protocol, gives easy access to information critical to process operation. You can obtain information about the process, instrument, or sensor using the 475 or 375 Field Communicator. The DLC3010 can be used in analog or HART digital signaling mode with the Emerson Automation Solutions DeltaV™ system.

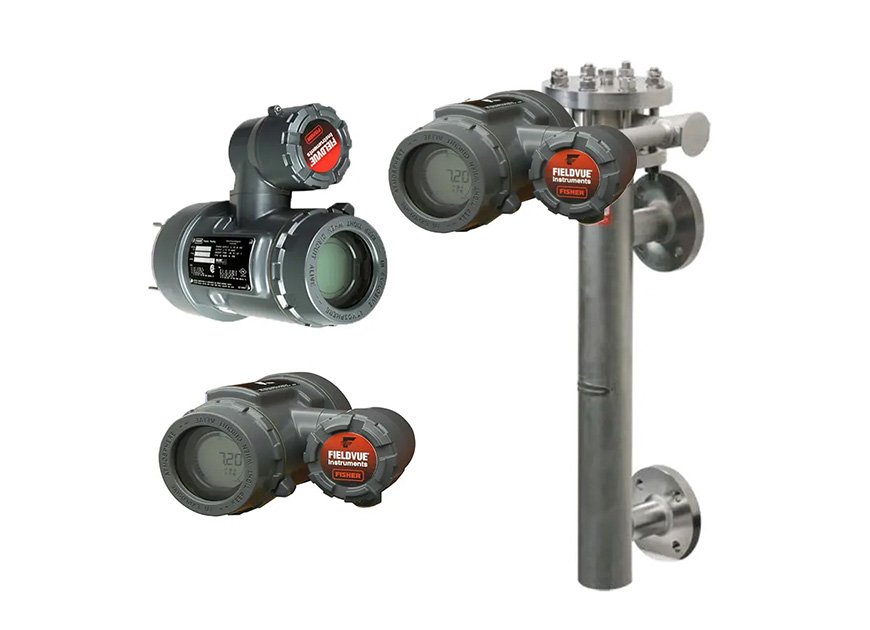

The connection for HART communication may be made at any point in the field wiring that meets the HART impedance requirements. Configuration, calibration, diagnostics, parameter review, signal monitoring and alert monitoring are all available through the HART protocol. Information from the field can be integrated into control systems or be received on a single loop basis. The DLC3010 digital level controller is designed to directly replace standard pneumatic and electronic level transmitters. It mounts on a wide variety of Fisher 249 caged and cageless level sensors.
Specification Category | Details |
Product Model | Fisher FIELDVUE DLC3010 Digital Level Controller |
Measurement Principle | Displacer based buoyancy; torque tube rotary motion converted to electrical signal |
Measured Variables | Liquid level, liquid liquid interface level, liquid density (specific gravity) |
Compatible Sensors | Mounts on all caged/cageless 249 series displacer sensors (249, 249B, 249C, 249K, 249L, 249BP, 249CP, 249P, 249VS, 249W) |
Output Signal | • Analog: 4–20 mA DC (direct/reverse action); high saturation: 20.5 mA; low saturation: 3.8 mA; alarm: 22.5 mA (Hi) / 3.7 mA (Lo) • Digital: HART 7 (1200 baud FSK); multi drop capable |
Power Supply | 12–30 V DC (2 wire loop powered); reverse polarity protection; min 17.75 V for HART |
Performance | • Linearity: 0.25% of span (standard sensors); 0.8% (249W) • Repeatability: 0.1% of full scale • Hysteresis: <0.2% of span • Dead band: <0.05% of input span |
Temperature Range | • Ambient: -40 to +80 °C (-40 to +176 °F) • Process: Sensor dependent (typically -196 to +450 °C) |
Pressure Rating | Sensor dependent (up to 414 bar / 6000 psi) |
Enclosure | Aluminum; NEMA 4X / IP66; CSA Type 4X |
Weight | Approx. 2.7 kg (6 lb) |
Display | Local LCD with bar graph; configurable for PV, % range, temperature |
Compensation | Ambient temperature; process temperature (via 2/3 wire 100Ω Pt RTD); density |
Diagnostics | Loop current, LCD, RTD reasonableness; Hi/Lo/Hi Hi/Lo Lo alarms; HART readable alerts |
Certifications | • Intrinsically Safe: ATEX/IECEx Ex ia IIC T5 Ga; FM/CSA Class I Div 1 • Explosion proof: ATEX Ex d; FM/CSA Class I Div 1 • Non incendive: ATEX Ex nA; FM Class I Div 2 • Other: NEPSI, INMETRO, CUTR, PESO, TIIS, CE |
Key Applications | Oil & gas, refining, chemical, petrochemical, storage tanks, process vessels, interface control |

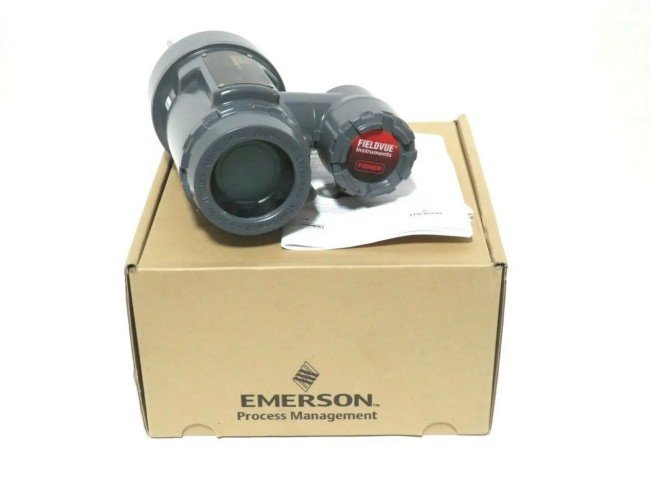

Packaging: Original box
