SITRANS LR200 is a 2-wire, 6 GHz pulse radar level transmitter for continuous monitoring of liquids and slurries in process vessels including high temperature, pressure, agitation, and turbulence to a range of 20 m (65 ft).
• Graphical local user interface (LUI) makes operation simple with plug-and-play setup using the intuitive Quick Start Wizard
• LUI displays echo profiles for diagnostic support
• Communication using HART or PROFIBUS PA
• Process Intelligence signal processing for improved measurement reliability and Auto False-Echo Suppression of fixed obstructions
• Programming using infrared Intrinsically Safe handheld programmer or SIMATIC PDM
SITRANS LR200’s unique design allows safe and simple programming using the Intrinsically Safe handheld programmer without having to open the instrument’s lid. It also features a built-in alphanumeric display in four languages.

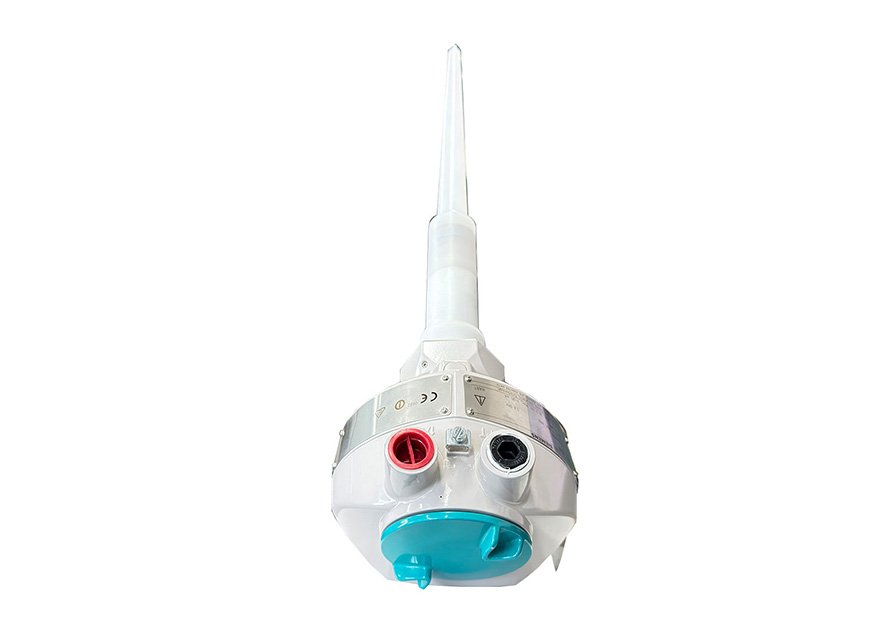

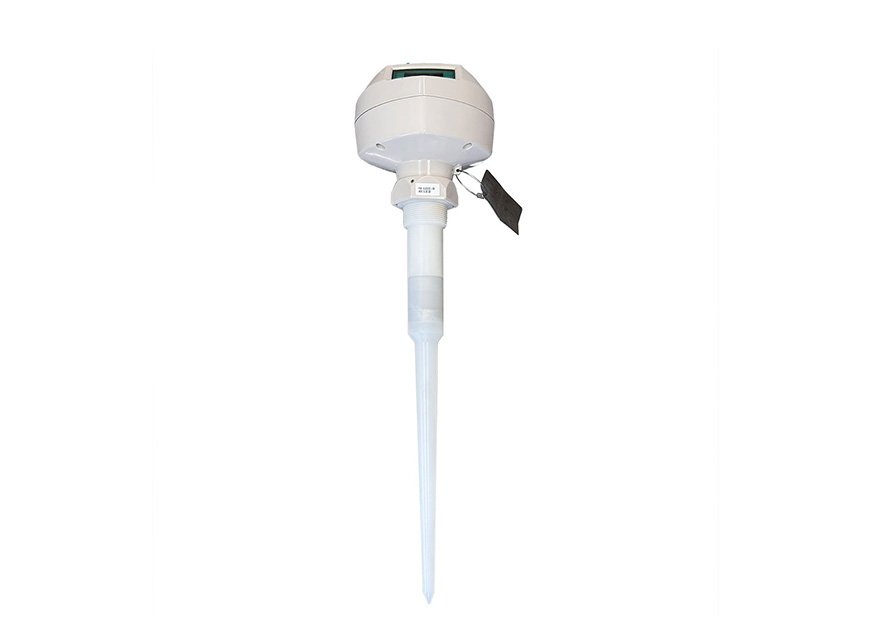

The SITRANS LR200 has a standard Uni-Construction polypropylene rod antenna that offers excellent chemical resistance and is hermetically sealed. The Uni-Construction antenna features an internal, integrated shield that eliminates vessel nozzle interference.

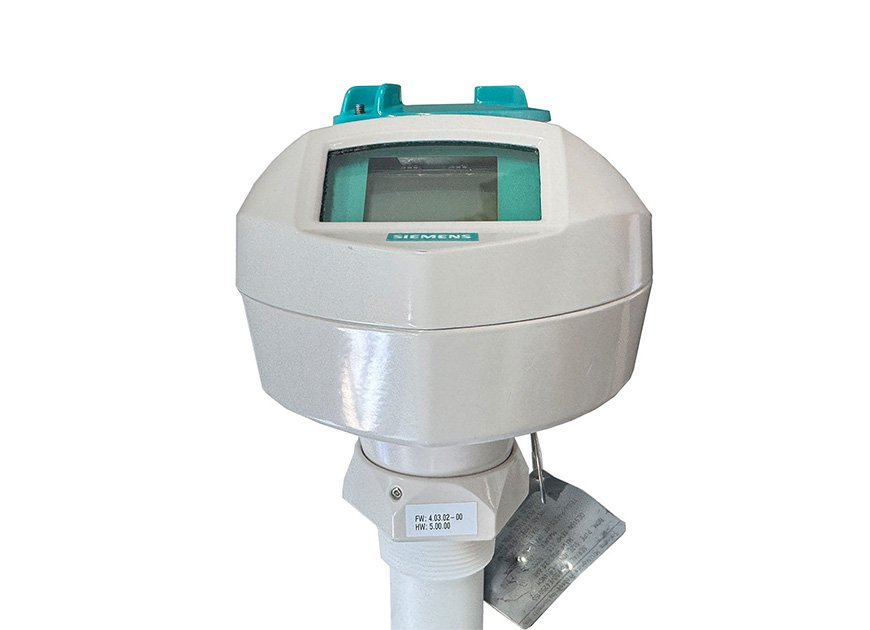

Startup is easy with as few as two parameters for basic operation. Installation is simplified as the electronics are mounted on a rotating head that swivels, allowing the instrument to line up with conduit or wiring connections or simply to adjust the position for easy viewing. SITRANS LR200 features Process Intelligence signal-processing technology for superior reliability.
• Key Applications: liquid process vessels with agitators, vaporous liquids, high temperatures, asphalt
Specification Category | Details |

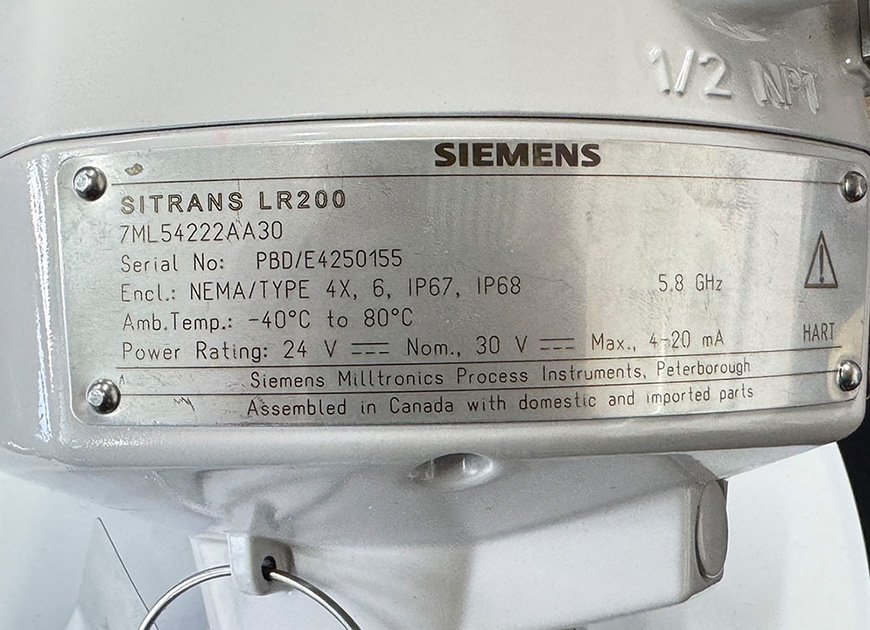

Product Model | Siemens SITRANS LR200 (2 wire pulse radar level transmitter) |
Measurement Principle | Non contact pulse radar (time of flight) |
Operating Frequency | 5.8 GHz (global); 6.3 GHz (North America) |
Measurement Range | 0.3–20 m (1.0–65 ft) |
Blanking Distance | 0.3 m (from reference point + shield length) |
Accuracy | ± greater of 0.1% of span or 10 mm |
Repeatability | ± 5 mm |
Temperature Influence | 0.003% / K |
Process Media | Liquids, slurries; dielectric constant εᵣ > 1.6 (εᵣ < 3: use stillpipe/waveguide) |
Process Temperature | -40 to +200 °C (-40 to +392 °F) (antenna dependent) |
Process Pressure | Up to 40 bar g (580 psi g) (connection dependent) |
Ambient Temperature | -40 to +80 °C (-40 to +176 °F) |
Power Supply | 24 V DC nominal (max 30 V DC); loop powered |
Output Signal | 4–20 mA analog; HART® 7 (standard); optional PROFIBUS PA (Profile 3.0, Class B) |
Fail Safe Mode | Programmable: high, low, or hold (on loss of echo) |
Antenna Options | • Standard: Uni Construction polypropylene rod (hermetically sealed) • Optional: PTFE rod, 316L stainless steel horn (3/4/6/8 in), waveguide |
Process Connections | • Threaded: 1½" NPT/BSPT/BSPP • Flanged: DN50/80/100/150 (PN16/40), ANSI 150/300 lb • Sanitary clamp (optional) |
Enclosure | Aluminum, polyester powder coated; IP67/IP68, NEMA 4X/6 |
Weight | < 2.0 kg (4.4 lb) (polypropylene rod antenna) |

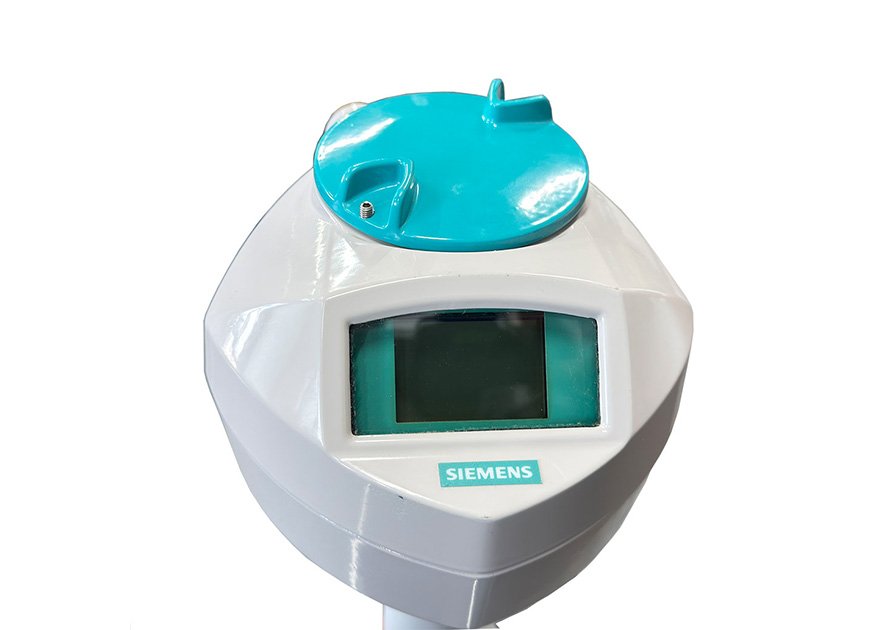

Display | Local alphanumeric LCD (4 languages) + bar graph; LUI graphical interface |
Signal Processing | Process Intelligence; auto false echo suppression; high SNR |
Certifications | • Intrinsically Safe: ATEX/IECEx Ex ia IIC T4 Ga; FM/CSA Class I Div 1 • Explosion proof: ATEX Ex d; FM/CSA Class I Div 1 • Non incendive: ATEX Ex nA; FM Class I Div 2 • Marine: ABS, Lloyd’s Register; CE, UKCA, FCC, RCM |
Key Applications | Liquid storage tanks, process vessels (agitated), vaporous liquids, asphalt, digesters, high temp/pressure services |

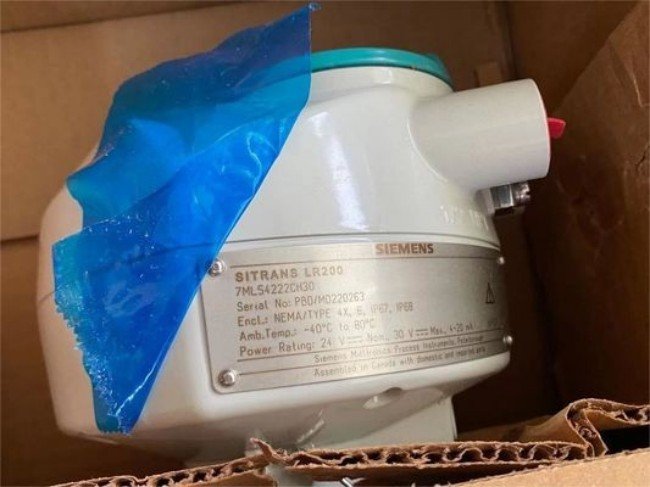

Packaging: Original box
