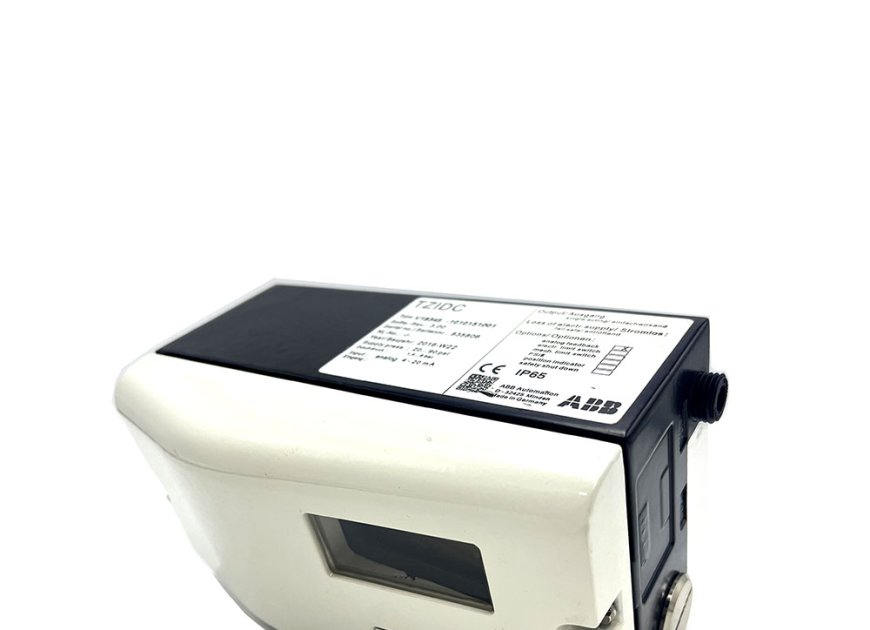

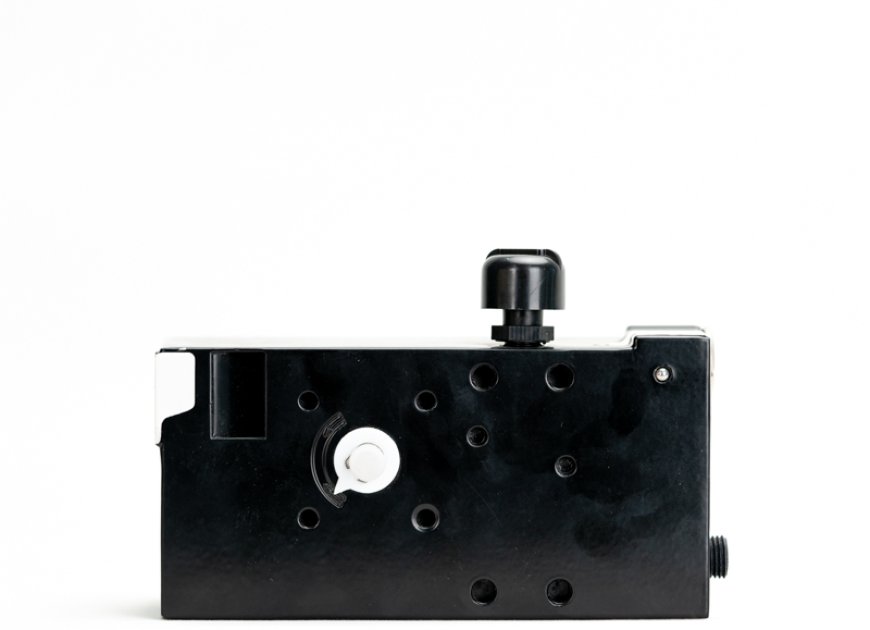

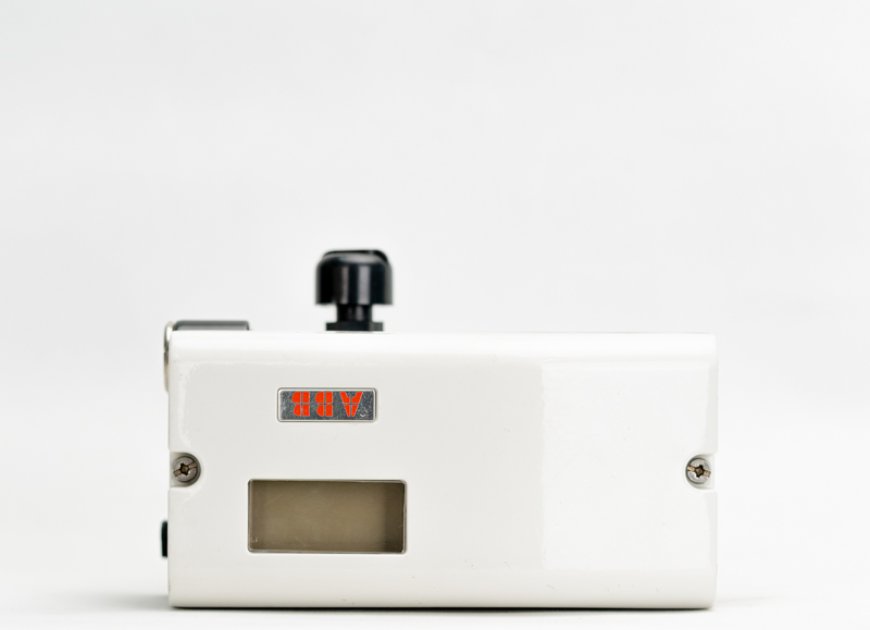

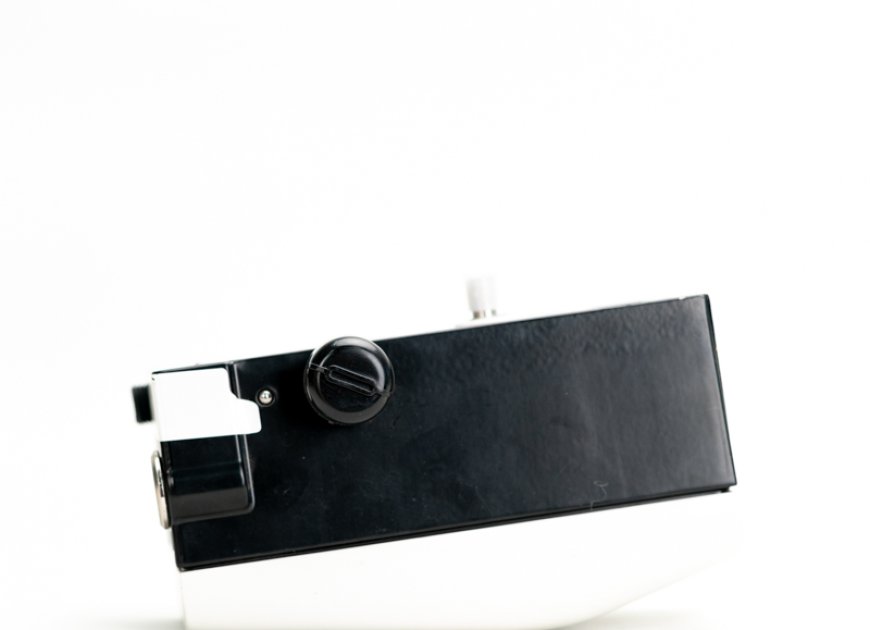

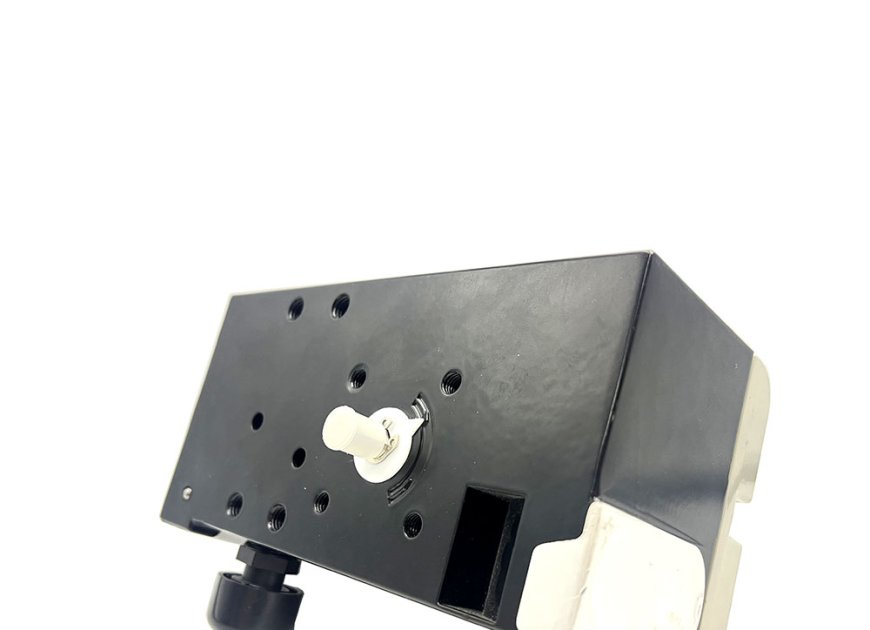

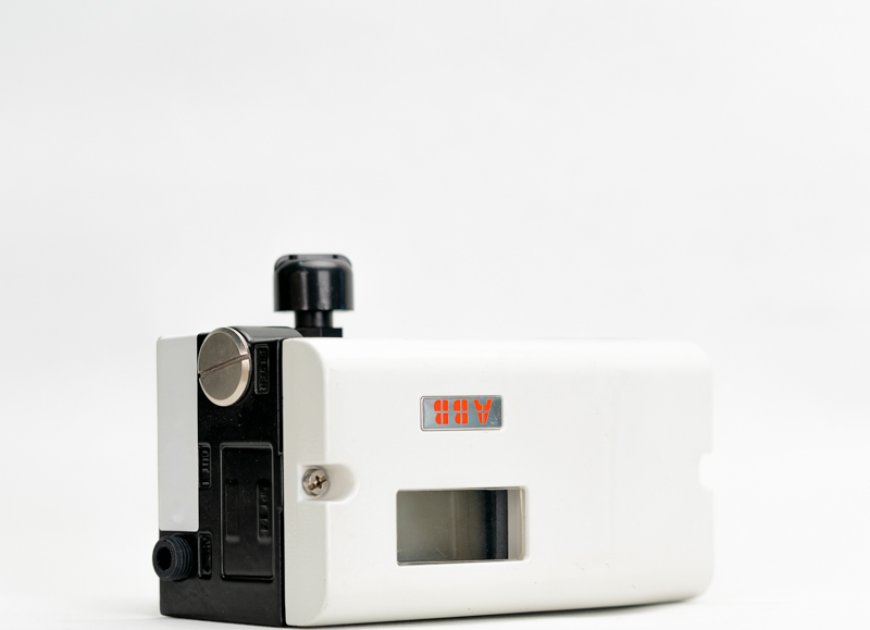

V18345 Digital positioner TZIDC
The TZIDC represents the digital, intelligent positioner for communication via HART within the positioner family. Unmatched shock and vibration immunity of 10g up to 80 Hz distinguishes the TZIDC from other‘s and guarantee reliable operation in almost all areas under harshest environmental conditions.
General specifications:
l Low operating cost
l Compact design
l Well-proven technology
l Robust and environmentally ruggedized
l Wide operating temperature range -40 ... 85 °C
l Easy to commission, “single pushbutton”
l operating philosophy
l Mechanical position indicator
l ATEX, FM, CSA, GOST and IECEx approvals
l For SIL2 safety loops
V18346 Digital positioner TZIDC-110
The TZIDC-110 represents the digital, intelligent positioner for communication via PROFIBUS PA within the positioner family. Unmatched shock and vibration immunity of 10g up to 80 Hz distinguishes the TZIDC-110 from other‘s and guarantee reliable operation in almost all areas under harshest environmental conditions.
General specifications:
l PROFIBUS PA communication, version 3.0, class B
l FDT/DTM-technology serves for central configuration, documentation, diagnosis as well as Asset Management
l Easiest commissioning and operation on site due to local operation and auto adjustment
l Worldwide Intrinsic Safety approvals
l Robust design and flexible in use with linear and rotary actuators
V18347 Digital positioner TZIDC-120
The TZIDC-120 represents the digital, intelligent positioner for communication via FOUNDATION Fieldbus within the positioner family. Unmatched shock and vibration immunity of 10 g up to 80 Hz distinguishes the TZIDC-120 from other‘s and guarantee reliable operation in almost all areas under harshest environmental conditions.
■ Low operating cost
■ Compact design
■ Well-proven technology
■ Robust and environmentally ruggedized
■ Wide operating temperature range -40...+85 °C
■ Easy to commission, “single push-button” operating philosophy
■ Mechanical position indicator
■ ATEX and IECEx approvals
V18348 Digital positioner TZIDC-200
The TZIDC-200 features a small and compact design, a modular construction, and an excellent cost-performance ratio. Fully automatic determination of the control parameters and adaptation to the final control element yield considerable time savings and an optimal control behavior.
General specifications:
l Worldwide approvals for Explosion Proof and Intrinsic Safety
l Vibration immunity up to 10 g
l Autostroke function serves for perfect adaption to valve - fully automatic
l HART protocol as standard for full access to smart functions, diagnostics, maintenance and fault detection; also designed for fieldbus communication
l One positioner for linear and rotary actuators
V18349 Digital positioner TZIDC-210
The TZIDC-210 features a small and compact design, a modular construction, and an excellent cost-performance ratio. Fully automatic determination of the control parameters and adaptation to the final control element yield considerable time savings and an optimal control behavior.
General specifications:
l Worldwide approvals for Explosion Proof and Intrinsic Safety
l FDT/DTM-technology serves for central configuration, documentation, diagnosis as well as Asset Management
l Easiest commissioning and operation on site due to local operation and auto adjustment
l Robust design and flexible in use with linear and rotary actuators
V18350 Digital positioner TZIDC-220
The TZIDC-220 is an electronically configurable positioner with communication capabilities, mounting to linear or rotary actuators. Standard performance, flameproof enclosure, with FOUNDATION Fieldbus.
■ Low operating cost
■ Compact design
■ Well-proven technology and intelligence
■ Robust and environmentally ruggedized
■ Wide operating temperature range -40...+85 °C
■ Easy to commission, “single push-button” operating philosophy
■ Mechanical position indicator
■ ATEX, FM, CSA and IECEx approvals – flameproof enclosure – intrinsically safe
Specification | V18345 (TZIDC-100) | V18346 (TZIDC-110) | V18347 (TZIDC-120) | V18348 (TZIDC-200) | V18349 (TZIDC-210) | V18350 (TZIDC-220) |
Product Series | TZIDC-100 Standard Intelligent Positioner | TZIDC-110 PROFIBUS PA Positioner | TZIDC-120 FOUNDATION Fieldbus Positioner | TZIDC-200 Flameproof Explosion-proof Positioner | TZIDC-210 Flameproof PROFIBUS PA Positioner | TZIDC-220 Flameproof FOUNDATION Fieldbus Positioner |
Core Communication Protocol | HART 7 (4-20mA two-wire with FSK) | PROFIBUS PA | FOUNDATION Fieldbus (FF) | HART 7 (4-20mA two-wire with FSK) | PROFIBUS PA | FOUNDATION Fieldbus (FF) |
Input Signal | 4...20 mA DC, two-wire | 4...20 mA DC, two-wire | 4...20 mA DC, two-wire | 4...20 mA DC, two-wire | 4...20 mA DC, two-wire | 4...20 mA DC, two-wire |
Explosion Protection Rating | Standard: Intrinsic Safety (Ex ia) | Standard: Intrinsic Safety (Ex ia) | Standard: Intrinsic Safety (Ex ia) | Flameproof (Ex d II C T4/T5/T6 Gb); Optional Intrinsic Safety (Ex ia) | Flameproof (Ex d II C T4/T5/T6 Gb); Optional Intrinsic Safety (Ex ia) | Flameproof (Ex d II C T4/T5/T6 Gb); Optional Intrinsic Safety (Ex ia) |
Applicable Actuators | Linear actuators (DIN/IEC 534 / NAMUR) & Rotary actuators (VDI/VDE 3845) | Linear actuators (DIN/IEC 534 / NAMUR) & Rotary actuators (VDI/VDE 3845) | Linear actuators (DIN/IEC 534 / NAMUR) & Rotary actuators (VDI/VDE 3845) | Linear actuators (DIN/IEC 534 / NAMUR) & Rotary actuators (VDI/VDE 3845) | Linear actuators (DIN/IEC 534 / NAMUR) & Rotary actuators (VDI/VDE 3845) | Linear actuators (DIN/IEC 534 / NAMUR) & Rotary actuators (VDI/VDE 3845) |
Enclosure Protection Rating | IP65 / IP66 (NEMA 4X) | IP65 / IP66 (NEMA 4X) | IP65 / IP66 (NEMA 4X) | IP66 / IP67 (NEMA 4X) | IP66 / IP67 (NEMA 4X) | IP66 / IP67 (NEMA 4X) |
Ambient Temperature Range | Standard: -20 °C ... +80 °C; Optional: -40 °C ... +85 °C | Standard: -20 °C ... +80 °C; Optional: -40 °C ... +85 °C | Standard: -20 °C ... +80 °C; Optional: -40 °C ... +85 °C | -40 °C ... +85 °C | -40 °C ... +85 °C | -40 °C ... +85 °C |
Control Air Supply Pressure Range | 1.4 bar ... 7 bar (20 psi ... 100 psi) | 1.4 bar ... 7 bar (20 psi ... 100 psi) | 1.4 bar ... 7 bar (20 psi ... 100 psi) | 1.4 bar ... 7 bar (20 psi ... 100 psi) | 1.4 bar ... 7 bar (20 psi ... 100 psi) | 1.4 bar ... 7 bar (20 psi ... 100 psi) |
Core Control & Diagnostic Functions | Auto-stroke calibration, adaptive control parameter tuning, basic valve diagnostics, local operation panel with display, bidirectional measurement | Auto-stroke calibration, adaptive control parameter tuning, advanced valve diagnostics, local operation panel with display, bidirectional measurement | Auto-stroke calibration, adaptive control parameter tuning, full-function valve diagnostics, local operation panel with display, bidirectional measurement | Auto-stroke calibration, adaptive control parameter tuning, full-function explosion-proof diagnostics, local operation panel with display, fail-safe/fail-freeze function | Auto-stroke calibration, adaptive control parameter tuning, full-function explosion-proof diagnostics, local operation panel with display, fail-safe/fail-freeze function | Auto-stroke calibration, adaptive control parameter tuning, full-function explosion-proof diagnostics, local operation panel with display, fail-safe/fail-freeze function |
Key Approvals & Certifications | CE, ATEX, IECEx, FM, CSA | CE, ATEX, IECEx, FM, CSA, PROFIBUS PA certified | CE, ATEX, IECEx, FM, CSA, FOUNDATION Fieldbus certified | CE, ATEX, IECEx, FM, CSA, EAC TR-CU-012 | CE, ATEX, IECEx, FM, CSA, EAC TR-CU-012, PROFIBUS PA certified | CE, ATEX, IECEx, FM, CSA, EAC TR-CU-012, FOUNDATION Fieldbus certified |
Typical Applications | General industrial process control, water treatment, power plants, standard chemical processes | Industrial automation systems with PROFIBUS PA network, large-scale process plants | Industrial automation systems with FOUNDATION Fieldbus network, high-end process control | Oil & gas, petrochemical, chemical industry Zone 1/2 hazardous areas, flammable media processes | Hazardous area applications with PROFIBUS PA network, oil & gas midstream/downstream | Hazardous area applications with FOUNDATION Fieldbus network, high-risk chemical processes |
Packaging & Shipping

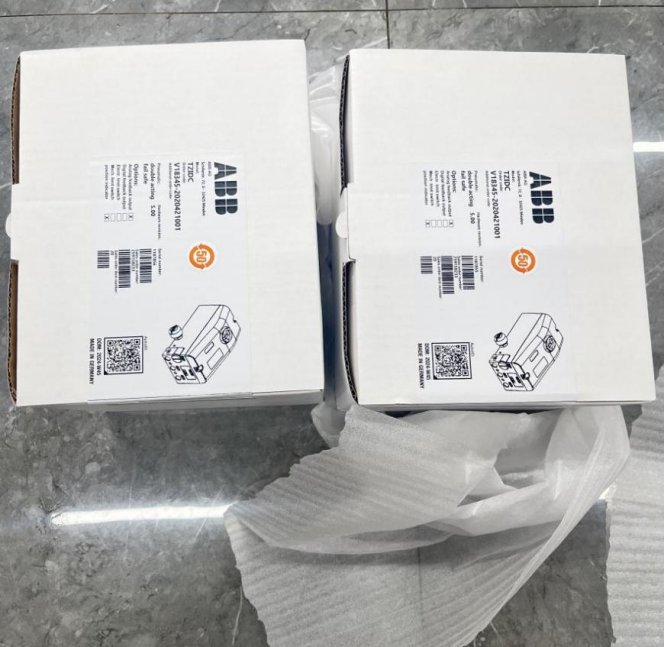

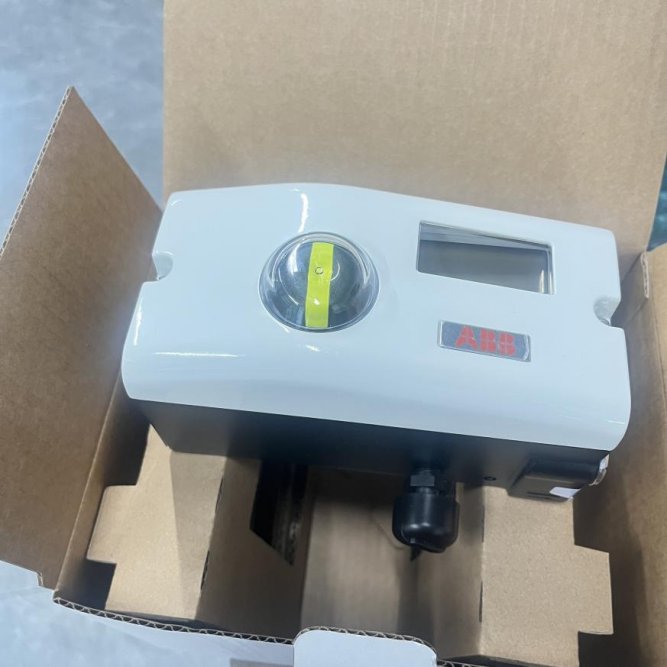

Packaging: Original box
