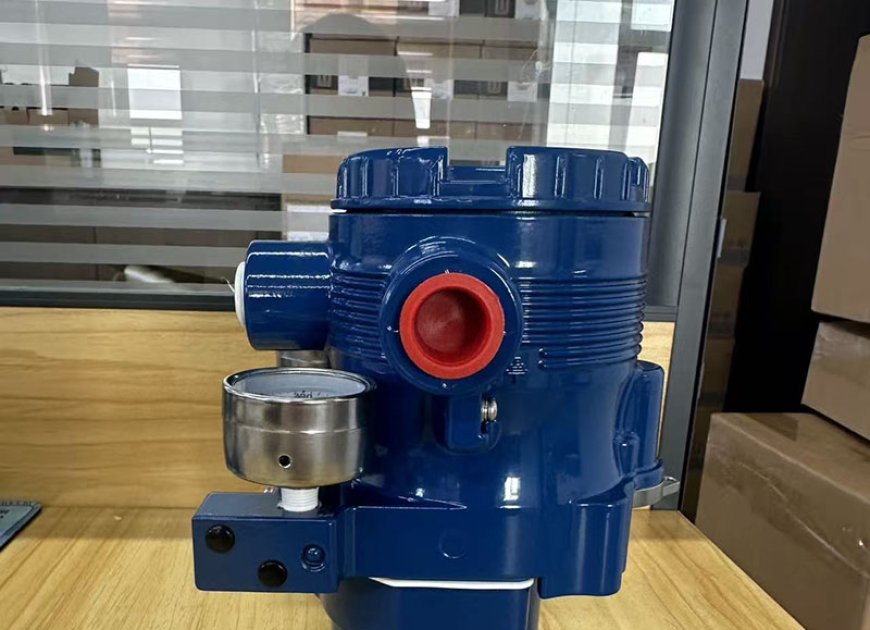

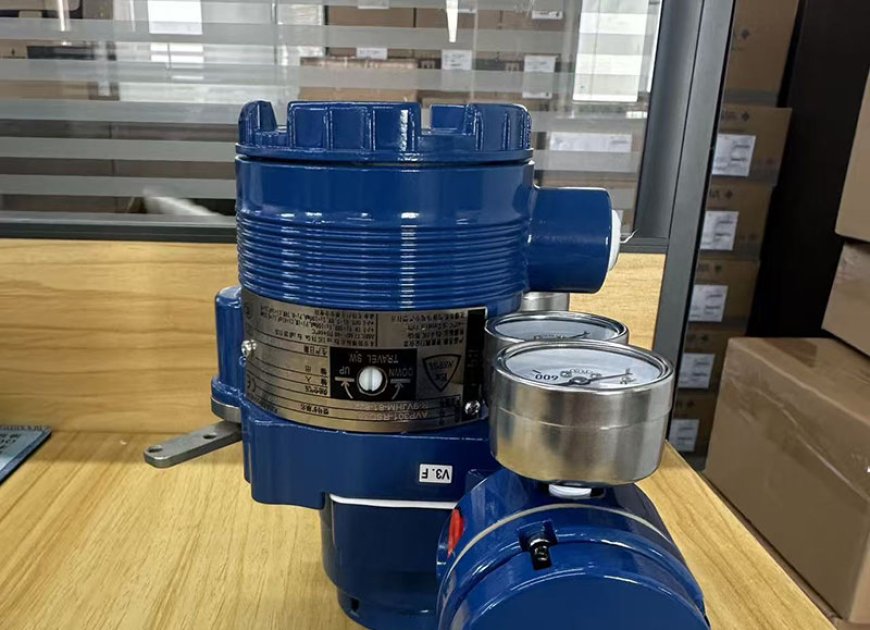

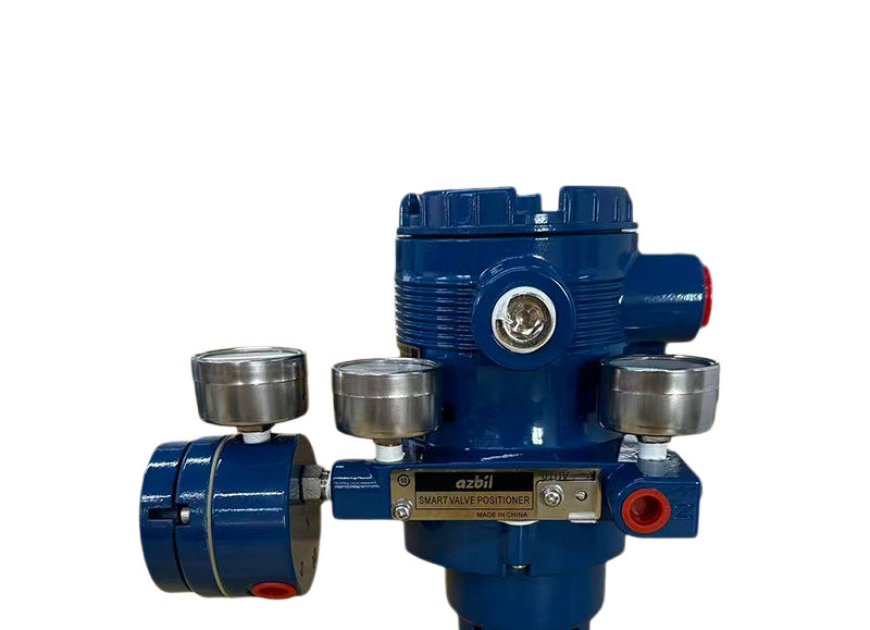

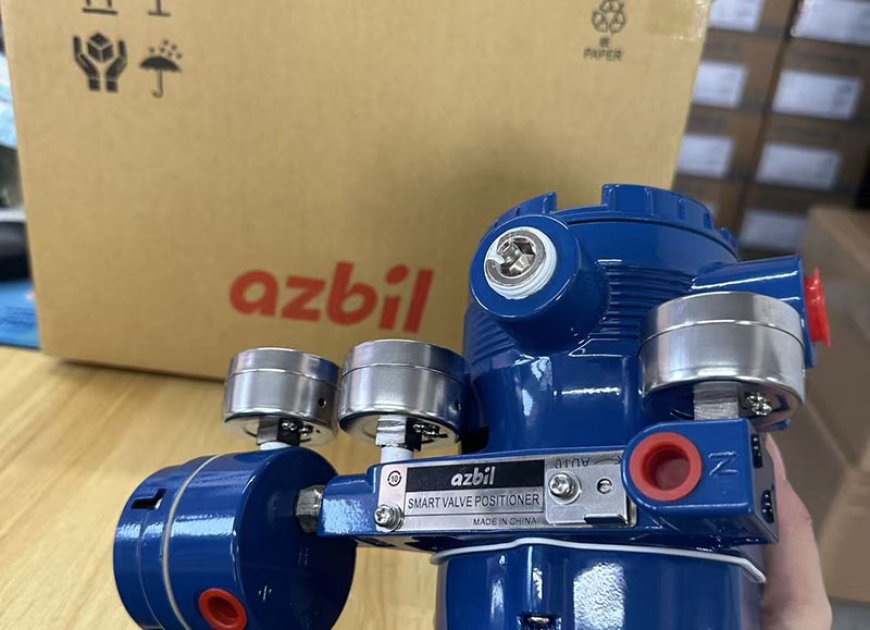

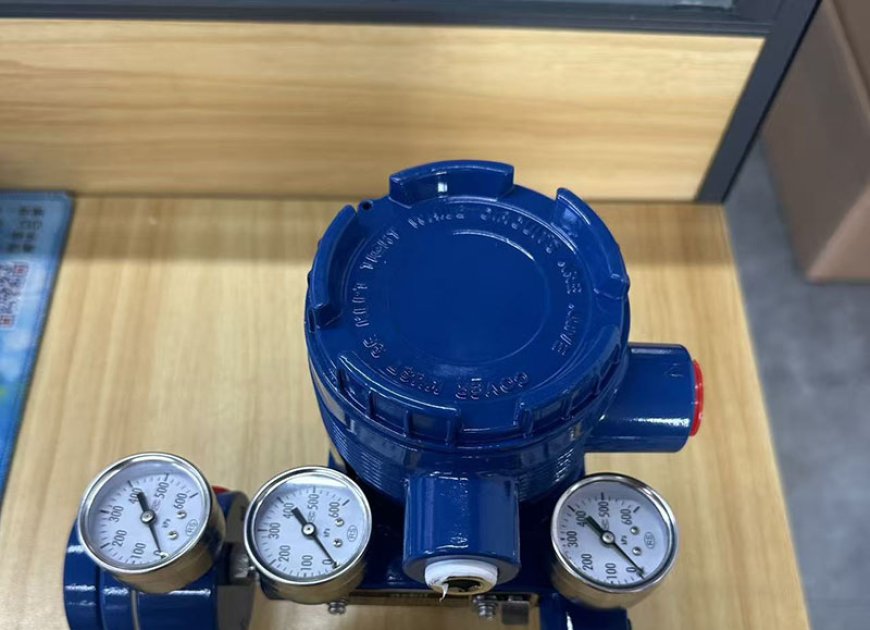

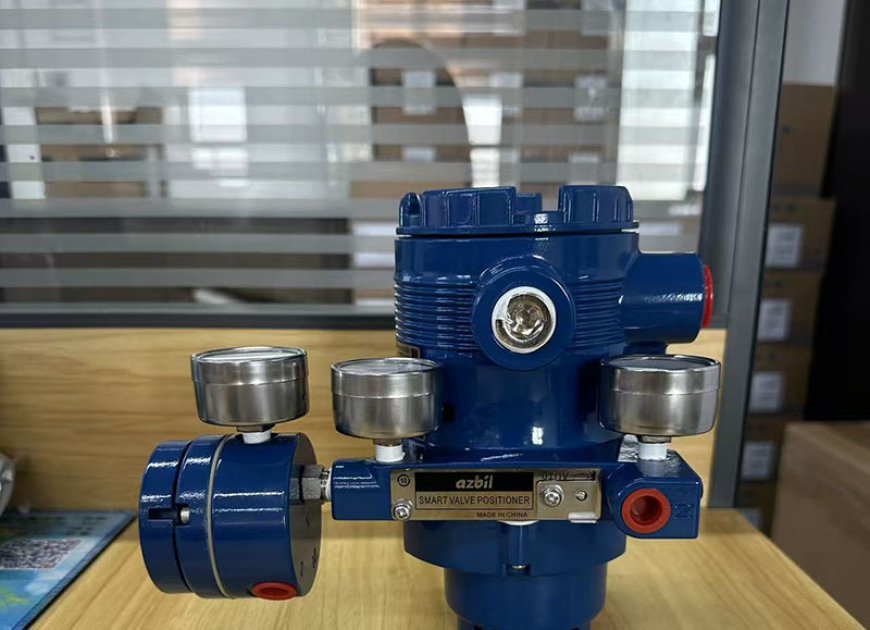

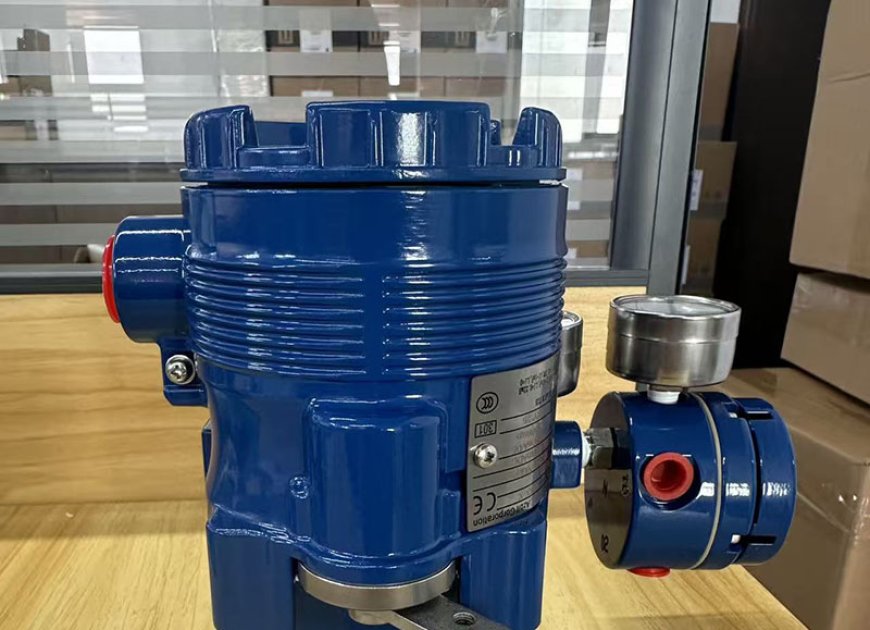

AVP300/AVP301/AVP302
Smart Valve Positioner 300 Series Models AVP300/AVP301/AVP302 are current-pneumatic smart valve positioners.The 300 Series receives a DC current signal from control devices and controls pneumatic valves. In addition to this basic function, the 300 Series has communication capabili-ties, automatic configuration program, and self diagnostics functions that will greatly increase productivity and the efficiency of plant operation.The model AVP301 has a valve travel transmitter function which transmits a 4-20 mA DC signal. The model AVP302 has a HART communication protocol.
FEATURES
1. Easy to use
.Auto setup
The auto-setup function is a fully-automatic configuration program which specifies the actuator and adjusts the zero and span of the valve. The program can be turned on simply from an external switch so that adjustments to the valve can be performed quickly and safely in hazardous areas.
2. Single model for multiple specifications
The 300 Series' settings can be changed without replacing any parts. A single model can be modified to suit any application.
Input range:Configurable to any required range for split range.
Flow characteristic:
Linear, EQ%, Quick opening or custom user characteris-tics
. Actuator type:
Single or double acting actuator (optional reversing relay required)
3. Valve diagnostic (Model AVP302 only)
Following parameters can be monitored by HART communicator or Control Valve Maintenance Support System"Valstaff"
Stick Slip
Total Stroke
Travel Histogram
Cycle Count
Shut-Off Count
Max.Travel Speed
4. Positive seating
The positive seating function completely shuts off the valve if the input signal becomes lower than previously set. This in turn enhances the full shut-off capabilities of the valves.
5.Easy maintenance
The electrical circuit section and air circuit section are completely separate, making the maintenance of the air circuit section at the work site easy. An Auto/Manual switch is standard equipment, so it is also easy to check the operation of the valve. (However, it is not available for the double-acting actuator.)
6. Travel transmission
The model AVP301 transmits a 4-20 mA signal proportional to the valve travel. The valve travel can be monitored from the control room.
7. Can be mounted on either a single or double-acting actuator.
On a double-acting actuator, a reversing relay is added at the output air pressure connector.
Specification | AVP300 (Standard Base Model) | AVP301 (with Travel Transmission) | AVP302 (with HART Communication) | AVP307 (HART + Travel Transmission) |
Product Model | AVP300 | AVP301 | AVP302 | AVP307 |
Core Function & Communication Protocol | Basic current-pneumatic position control; SFN communication | Basic position control + 4-20mA valve travel transmission; SFN communication | Basic position control + HART6 digital communication; SFN communication | HART6 digital communication + 4-20mA valve travel transmission; SFN communication |
Input Control Signal | 4–20 mA DC (configurable for split-range operation); Minimum driving current: 3.85 mA | 4–20 mA DC (configurable for split-range operation); Minimum driving current: 3.85 mA | 4–20 mA DC (configurable for split-range operation); Minimum driving current: 3.85 mA | 4–20 mA DC (configurable for split-range operation); Minimum driving current: 3.85 mA |
Output Signal | Pneumatic output to actuator; No electrical analog output | Pneumatic output to actuator; 4–20 mA DC valve travel transmission output | Pneumatic output to actuator; HART digital communication over 4-20mA loop | Pneumatic output to actuator; 4–20 mA DC travel transmission + HART digital communication |
Applicable Actuators | Pneumatic single-acting & double-acting, linear and rotary motion actuators | Pneumatic single-acting & double-acting, linear and rotary motion actuators | Pneumatic single-acting & double-acting, linear and rotary motion actuators | Pneumatic single-acting & double-acting, linear and rotary motion actuators |
Positioning Accuracy | ±1.0% of Full Scale (F.S.); ±2.5% F.S. with user-defined flow characteristics; ±3.0% F.S. if feedback lever angle is outside ±4° to ±20° range | ±1.0% of Full Scale (F.S.); ±2.5% F.S. with user-defined flow characteristics; ±3.0% F.S. if feedback lever angle is outside ±4° to ±20° range | ±1.0% of Full Scale (F.S.); ±2.5% F.S. with user-defined flow characteristics; ±3.0% F.S. if feedback lever angle is outside ±4° to ±20° range | ±1.0% of Full Scale (F.S.); ±2.5% F.S. with user-defined flow characteristics; ±3.0% F.S. if feedback lever angle is outside ±4° to ±20° range |
Travel Transmission Accuracy | Not available | ±1.0% F.S.; ±2.5% F.S. with user-defined flow characteristics | Not available | ±1.0% F.S.; ±2.5% F.S. with user-defined flow characteristics |
Configurable Flow Characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 16-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 16-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 16-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 16-point custom user-defined characteristics |
Supply Air Pressure Range | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) |
Steady-State Air Consumption | Single-acting actuator: ≤4 L/min (N) at 140 kPa supply pressure; Double-acting actuator: ≤10 L/min (N) at 400 kPa supply pressure | Single-acting actuator: ≤4 L/min (N) at 140 kPa supply pressure; Double-acting actuator: ≤10 L/min (N) at 400 kPa supply pressure | Single-acting actuator: ≤4 L/min (N) at 140 kPa supply pressure; Double-acting actuator: ≤10 L/min (N) at 400 kPa supply pressure | Single-acting actuator: ≤4 L/min (N) at 140 kPa supply pressure; Double-acting actuator: ≤10 L/min (N) at 400 kPa supply pressure |
Maximum Air Deliver Flowrate | Single-acting actuator: 110 L/min (N) max at 140 kPa; Double-acting actuator: 250 L/min (N) max at 400 kPa | Single-acting actuator: 110 L/min (N) max at 140 kPa; Double-acting actuator: 250 L/min (N) max at 400 kPa | Single-acting actuator: 110 L/min (N) max at 140 kPa; Double-acting actuator: 250 L/min (N) max at 400 kPa | Single-acting actuator: 110 L/min (N) max at 140 kPa; Double-acting actuator: 250 L/min (N) max at 400 kPa |
Enclosure Protection Rating | IP66, NEMA Type 4X, JIS C0920 Watertight | IP66, NEMA Type 4X, JIS C0920 Watertight | IP66, NEMA Type 4X, JIS C0920 Watertight | IP66, NEMA Type 4X, JIS C0920 Watertight |
Ambient Temperature Range | Standard general-purpose models: -40 °C to +80 °C; Flameproof models: -40 °C to +75 °C; TIIS flameproof models: -20 °C to +55 °C | Standard general-purpose models: -40 °C to +80 °C; Flameproof models: -40 °C to +75 °C; TIIS flameproof models: -20 °C to +55 °C | Standard general-purpose models: -40 °C to +80 °C; Flameproof models: -40 °C to +75 °C; TIIS flameproof models: -20 °C to +55 °C | Standard general-purpose models: -40 °C to +80 °C; Flameproof models: -40 °C to +75 °C; TIIS flameproof models: -20 °C to +55 °C |
Explosion Protection Options | Optional: Intrinsic Safety (Ex ia), Flameproof (Ex d IIC T6), FM Explosionproof/Intrinsically Safe, ATEX/IECEx/CCC/CNS/KOSHA/TIIS certified | Optional: Intrinsic Safety (Ex ia), Flameproof (Ex d IIC T6), FM Explosionproof/Intrinsically Safe, ATEX/IECEx/CCC/CNS/KOSHA/TIIS certified | Optional: Intrinsic Safety (Ex ia), Flameproof (Ex d IIC T6), FM Explosionproof/Intrinsically Safe, ATEX/IECEx/CCC/CNS/KOSHA/TIIS certified | Optional: Intrinsic Safety (Ex ia), Flameproof (Ex d IIC T6), FM Explosionproof/Intrinsically Safe, ATEX/IECEx/CCC/CNS/KOSHA/TIIS certified |
Core Diagnostic Functions | Basic self-diagnostic, auto-setup calibration, positive seating function | Basic self-diagnostic, auto-setup calibration, positive seating function, valve travel monitoring | Advanced valve diagnostics via HART: Stick Slip, Total Stroke, Travel Histogram, Cycle Count, Shut-Off Count, Max Travel Speed; auto-setup calibration, positive seating function | Advanced valve diagnostics via HART: Stick Slip, Total Stroke, Travel Histogram, Cycle Count, Shut-Off Count, Max Travel Speed; auto-setup calibration, positive seating function, valve travel monitoring |
Key Global Approvals | CE, ATEX, IECEx, FM, CSA, CCC, CNS, KOSHA, TIIS | CE, ATEX, IECEx, FM, CSA, CCC, CNS, KOSHA, TIIS | CE, ATEX, IECEx, FM, CSA, CCC, CNS, KOSHA, TIIS, HART Certified | CE, ATEX, IECEx, FM, CSA, CCC, CNS, KOSHA, TIIS, HART Certified |
Typical Applications | General industrial process control, water & wastewater treatment, thermal power plants, standard chemical processes | Industrial processes requiring valve travel position feedback, remote monitoring of valve status | Large-scale industrial automation systems with HART network, high-end process control requiring valve health diagnostics | Integrated automation systems requiring both HART communication and real-time valve travel feedback, critical process control |

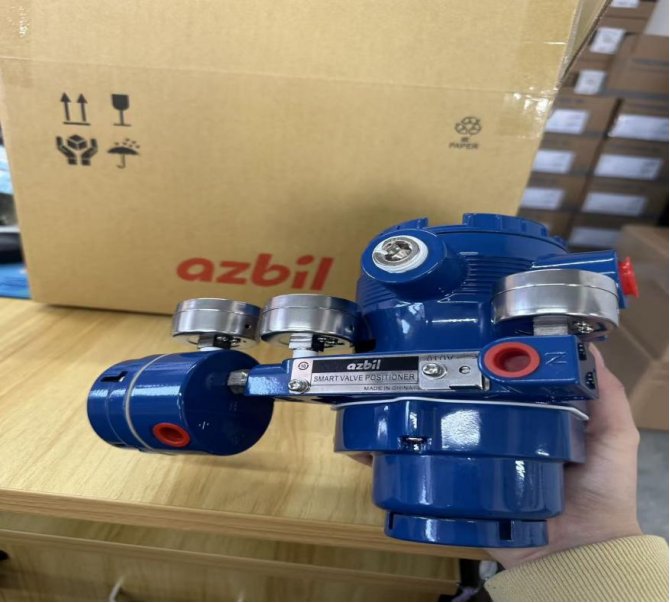

Packaging & Shipping
Packaging: Original box
