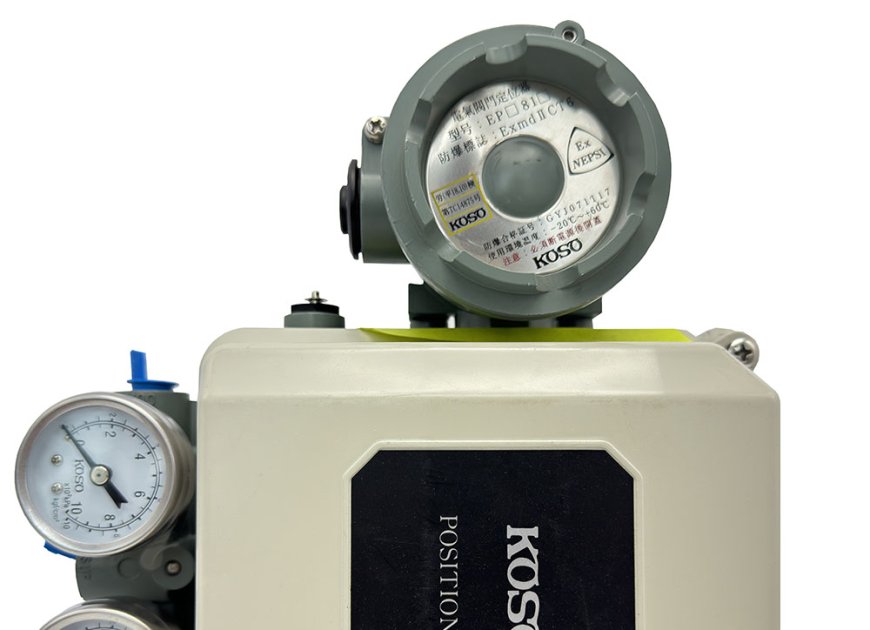

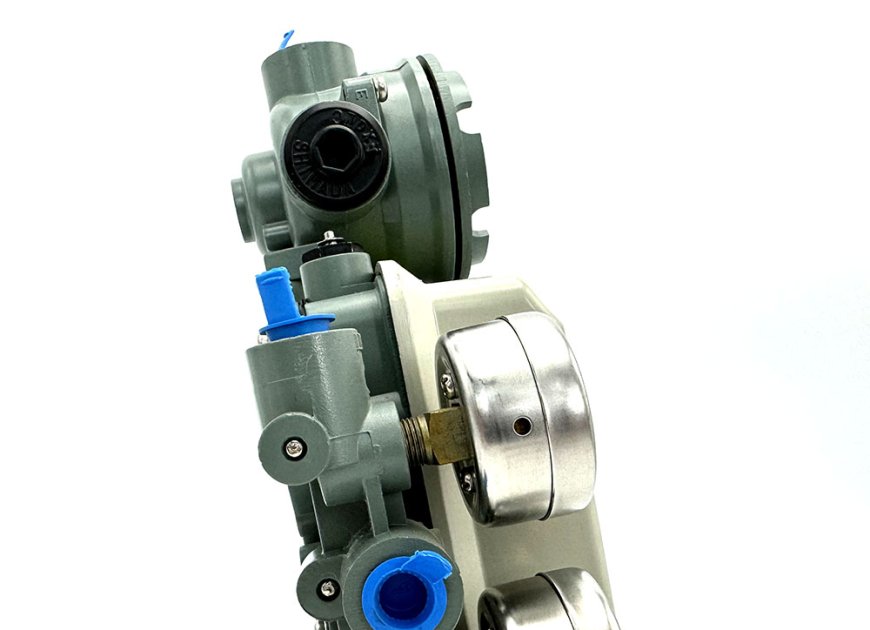

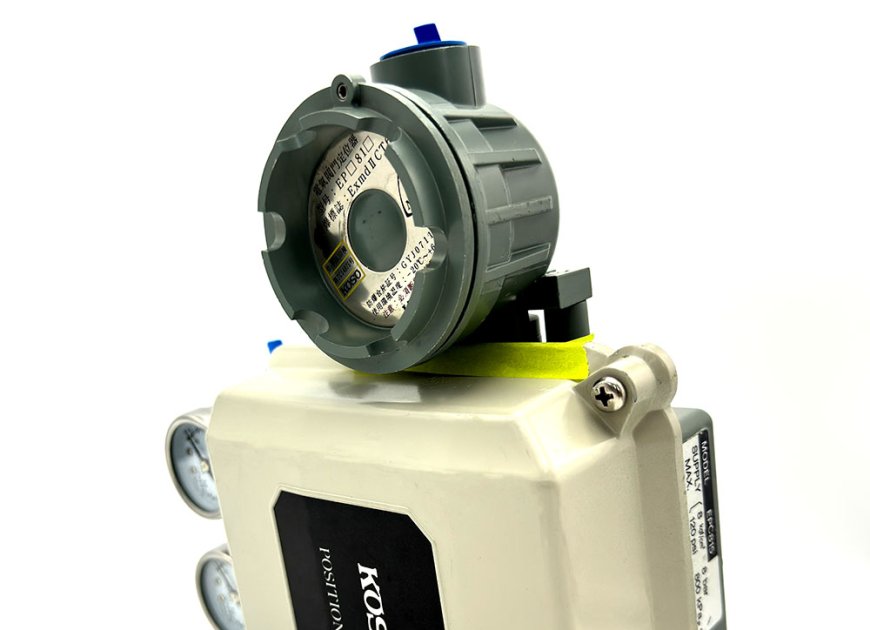

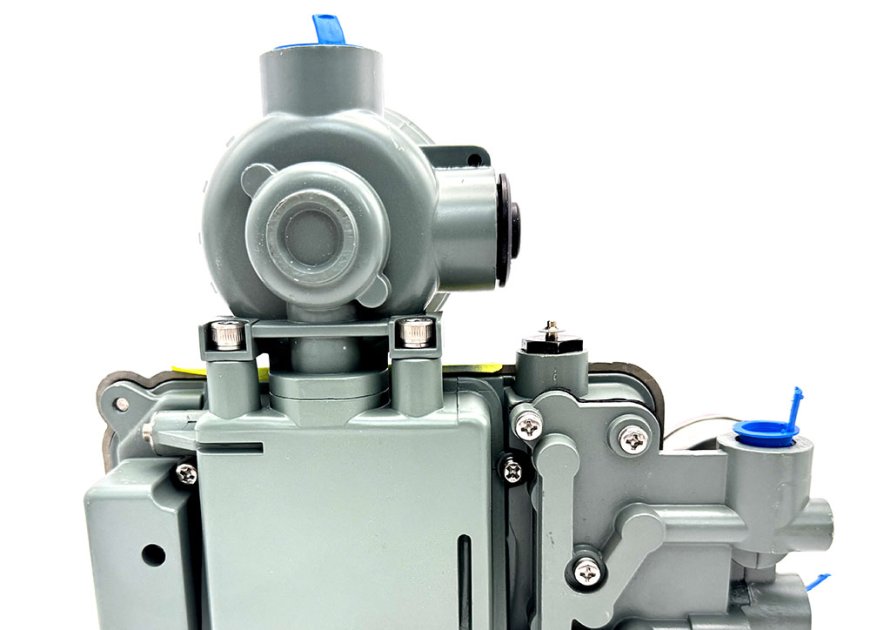

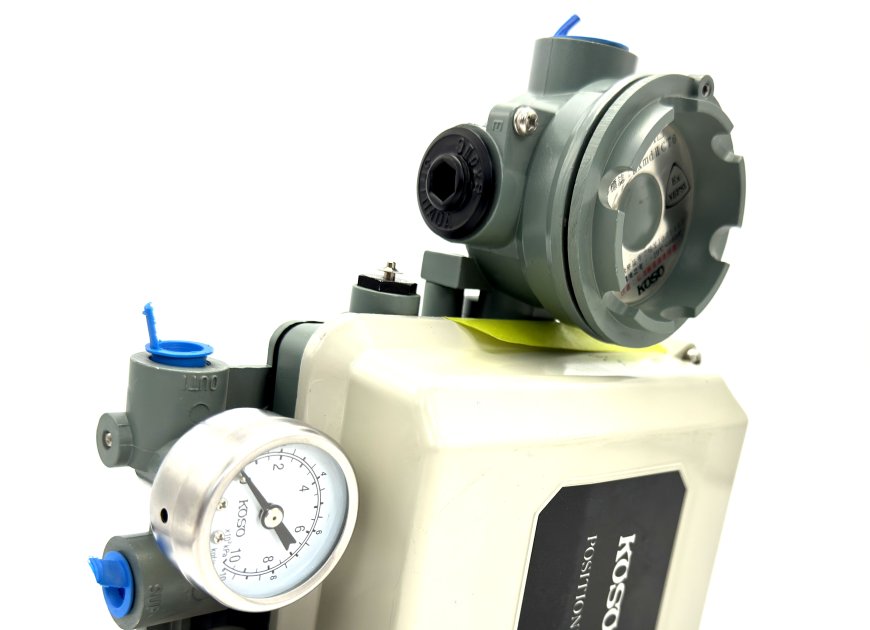

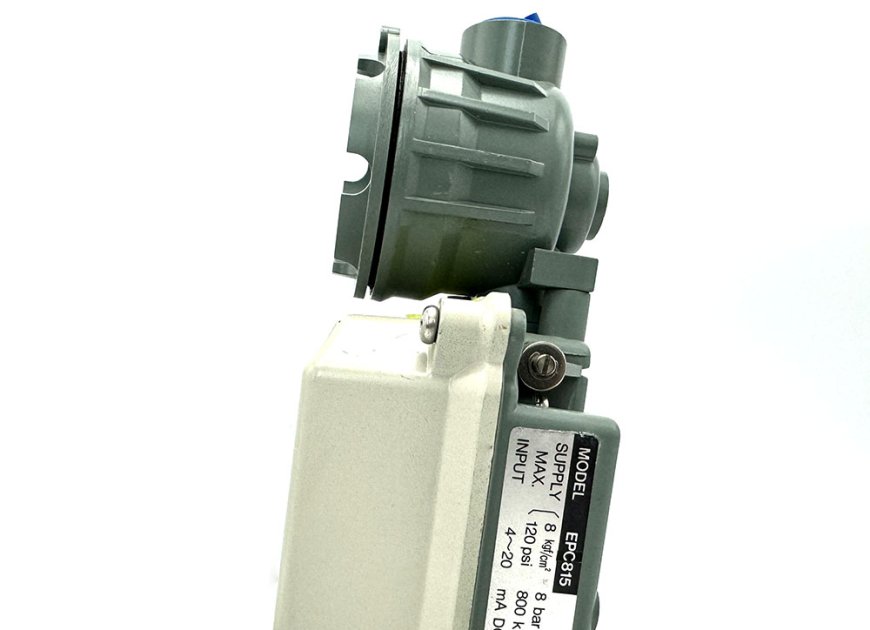

The EP800 Series Positioner, mounted on a pneumatic actuator,moves the actuator by receiving DC 4~20 mA signals from a controller. Also, the function of detecting and returning the actuator displacement provides accurate positioning in response to DC 4~20 mA signals.The EP800 can be used with both spring-return and double acting actuators.
EP800：Electro-Pneumatic Positioner
This series is for positioning of pneumatic actuator oper-ated cotrol valves. Input signal 4 to 20mA DC is changed to air pressure. Accurate positioning is achieved by having valve position feedback from valve stem.
Type | EPA800 for single acting | EPC800 for double acting | EPB800 for 5200LA actuator |
Input signal / Characteriatic | 4 to 20, 4 to 12, 12 to 20 mA DC / Linear | ||
Air supply | 140 to 700 kPa | ||
Single acting type | Double acting type | ||
Linearity/Hysteresis | +/-1.0% / 0.5% | +/-1.5% / 0.8% | |
Response level/Repeatability | 0.1% / 0.2% | 0.2% / 0.3% | |
Air consumption | Output air pressure(50%)5 Nl/min. at Sup. 140 kPa [gaug] | Output air pressure(50%)15 Nl/min. at Sup. 400 kPa [gaug] | |
Max. capacity | Output atomosphere175 Nl/min. at Sup. 140 kPa [gaug] | Output atomosphere400 Nl/min. at Sup. 400 kPa [gaug] | |
Enclosure | Weather proof type, Explosion proof type, Intrisically safe explosion proof type | ||
Air/Electric wiring connection | Rc. 1/4 / G1/2 | ||
Environment temp. | Standard model: -20 to +80°, Low temp.model: -50 to +60°, High Temp.model: 0 to +100° | ||

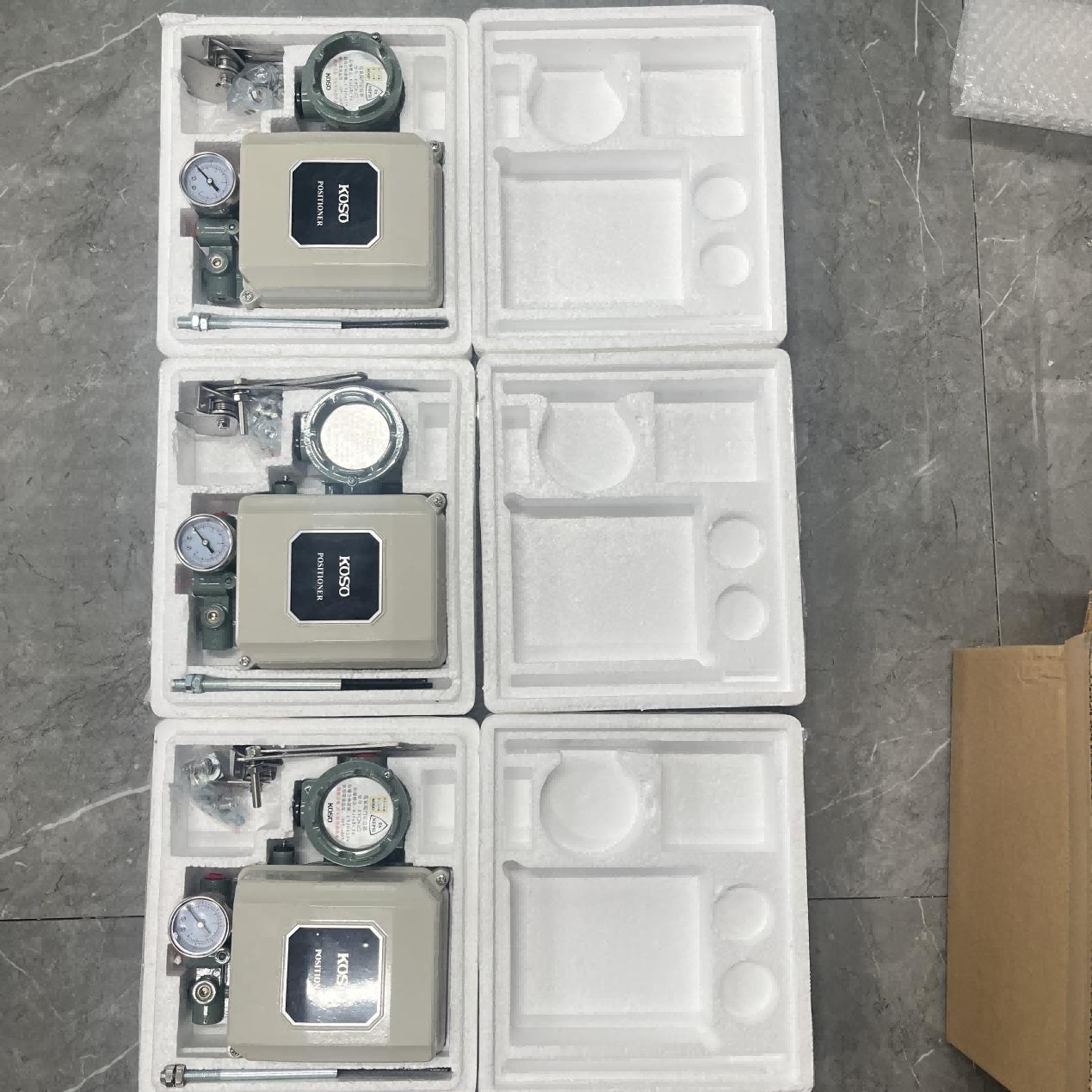

Packaging & Shipping
Packaging: Original box
