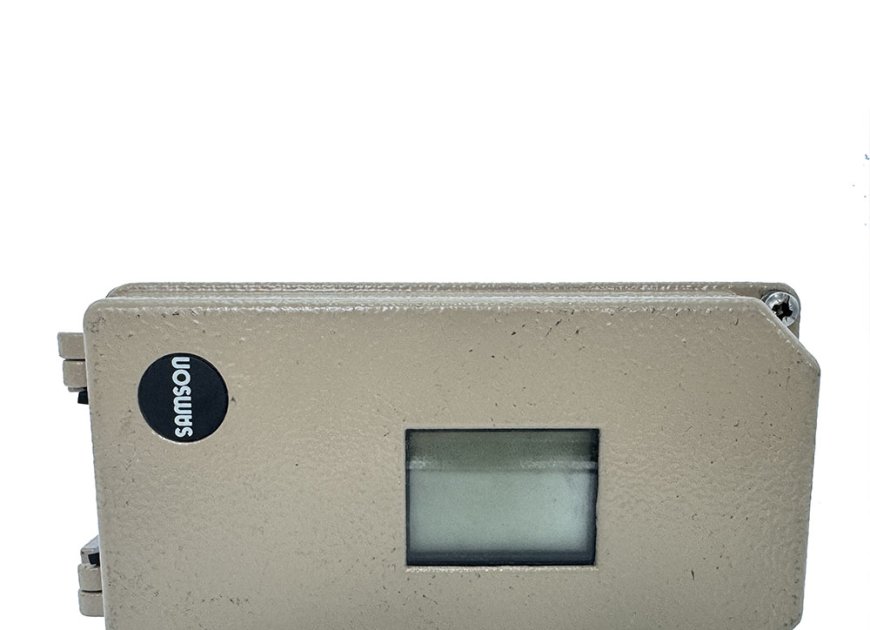

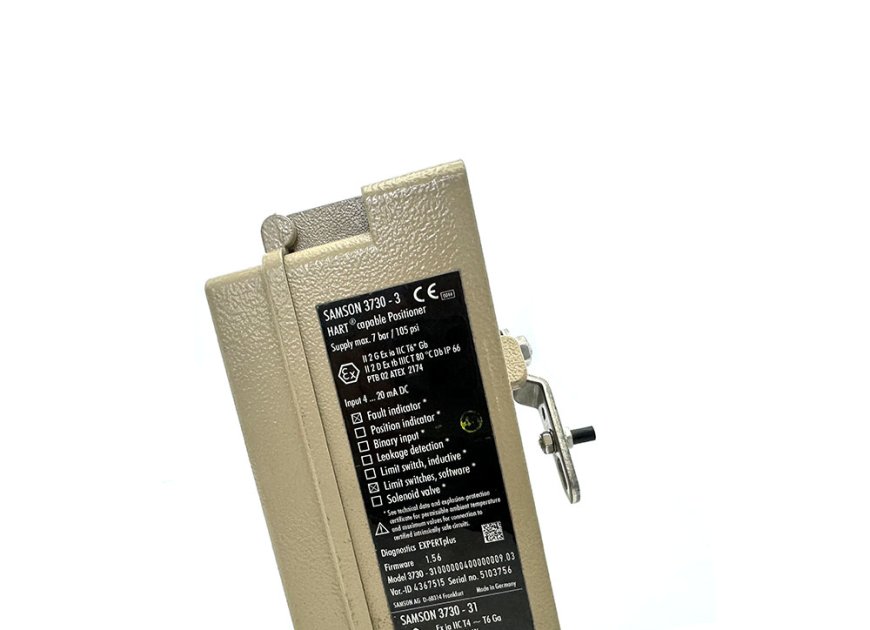

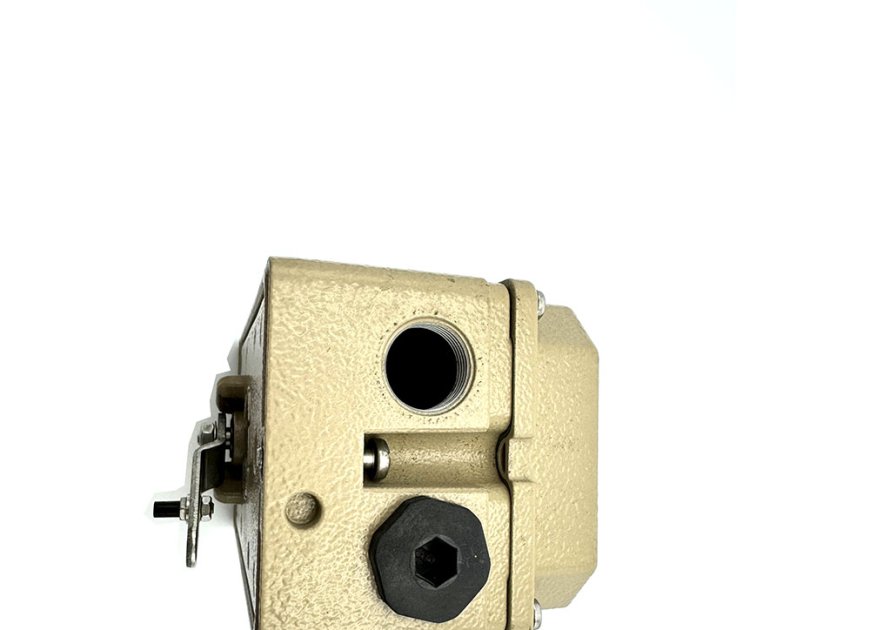

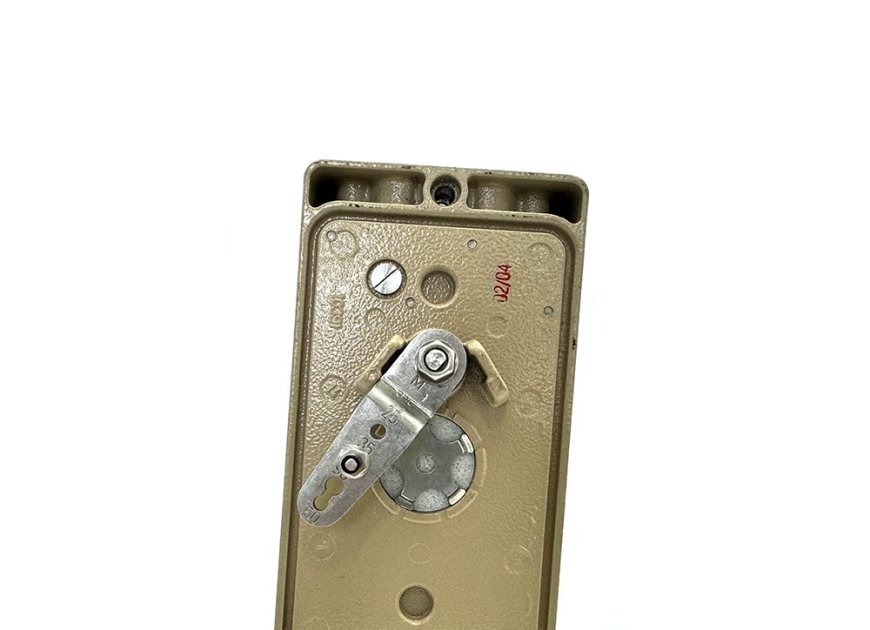

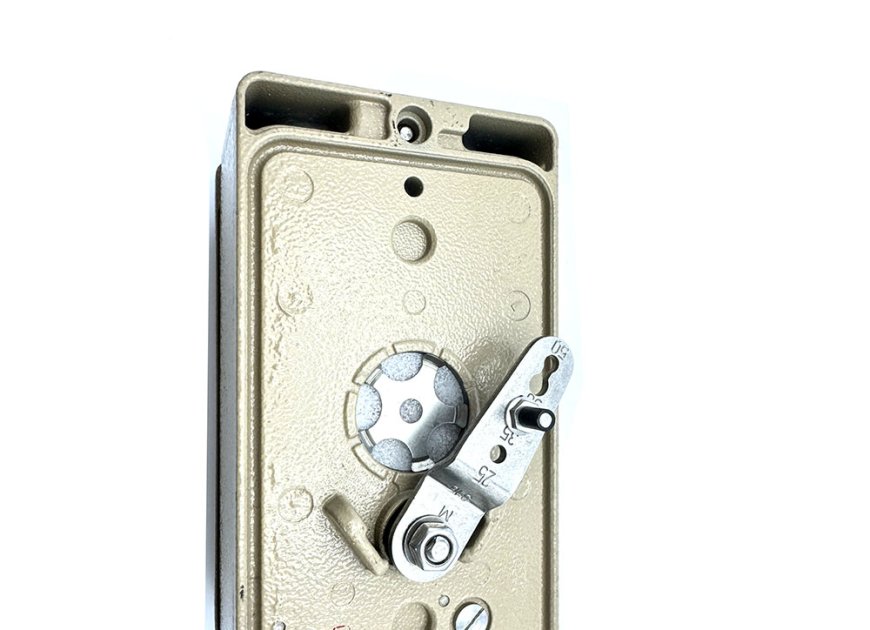

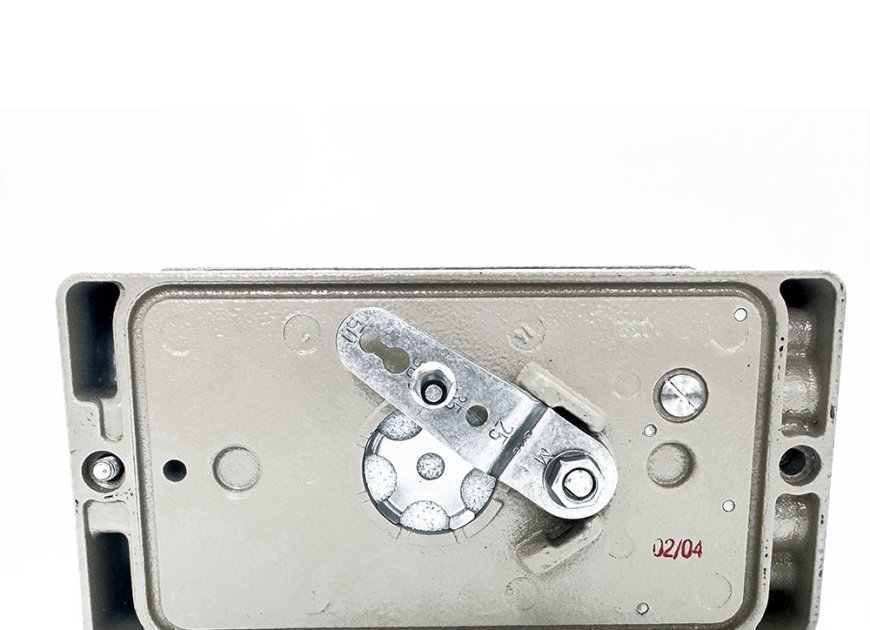

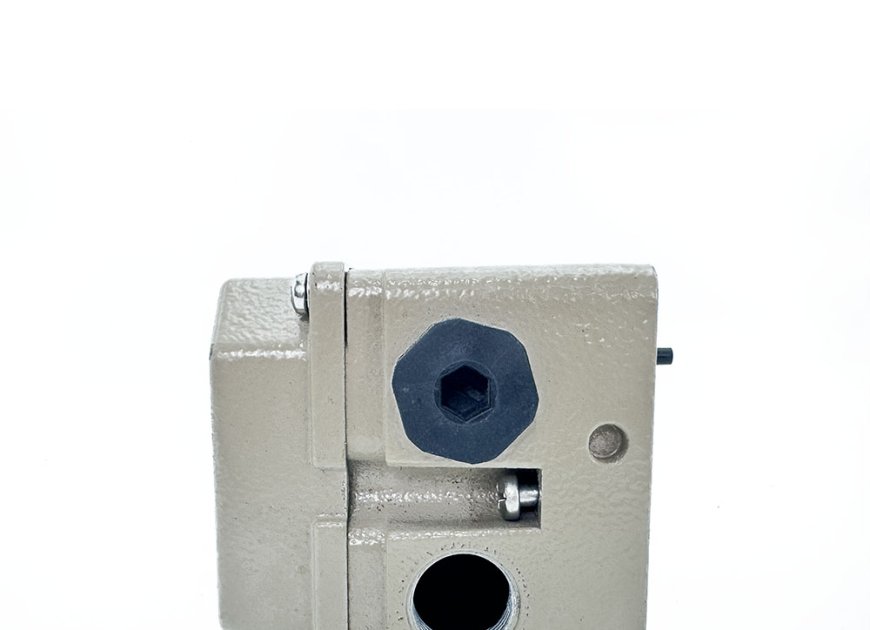

PRODUCT:Positioner
USAGE :1.Challenging transit times2.Challenging ambient conditions 3.Throttling service
ATTACHMENT TO:1.Linear actuator, single acting2.Linear actuator, double acting
EXPLOSION PROTECTION:1.Without certification2.Type of protection "Intrinsic safety"
COMMUNICATION: Without
CONTROL LOOP:4 to 20 mA
OPTIONAL SOLENOID VALVE:Without
VALVE DIAGNOSTICS:Without
PRODUCT:Positioner
USAGE:1.Challenging transit times2.Challenging ambient conditions3.Throttling service
ATTACHMENT TO
l Linear actuator, single acting
l Linear actuator, double acting
l Rotary actuator, single acting
l Rotary actuator, double acting
EXPLOSION PROTECTION:1.Without certification2.Type of protection "Intrinsic safety"
COMMUNICATION:Without
CONTROL LOOP:4 to 20 mA
OPTIONAL SOLENOID VALVE:Without
VALVE DIAGNOSTICS:Without
PRODUCT：Positioner
USAGE
· Challenging transit times
· Challenging ambient conditions
· Throttling service
· Use of an external travel sensor
ATTACHMENT TO
· Linear actuator, single acting
· Linear actuator, double acting
· Rotary actuator, single acting
· Rotary actuator, double acting
EXPLOSION PROTECTION
· Without certification
· Type of protection "Intrinsic safety"
COMMUNICATION：HART®
CONTROL LOOP：4 to 20 mA
OPTIONAL SOLENOID VALVE：With
VALVE DIAGNOSTICS：With
PRODUCT:Positioner
USAGE
· Challenging transit times
· Challenging ambient conditions
· Throttling service
· Use of an external travel sensor
ATTACHMENT TO
· Linear actuator, single acting
· Linear actuator, double acting
· Rotary actuator, single acting
· Rotary actuator, double acting
EXPLOSION PROTECTION
· Without certification
· Type of protection "Intrinsic safety"
COMMUNICATION:PROFIBUS®
CONTROL LOOP:Fieldbus
OPTIONAL SOLENOID VALVE:With
VALVE DIAGNOSTICS:With

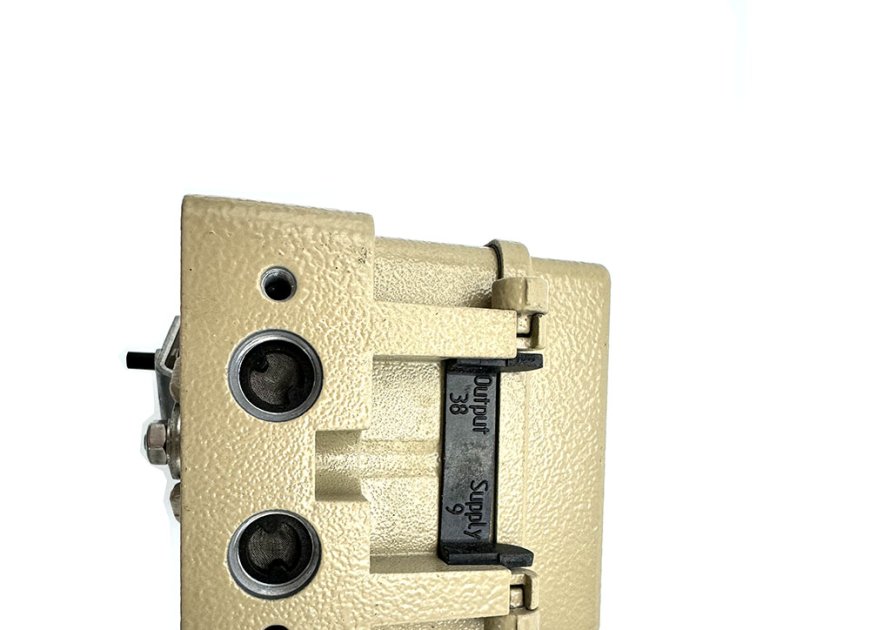

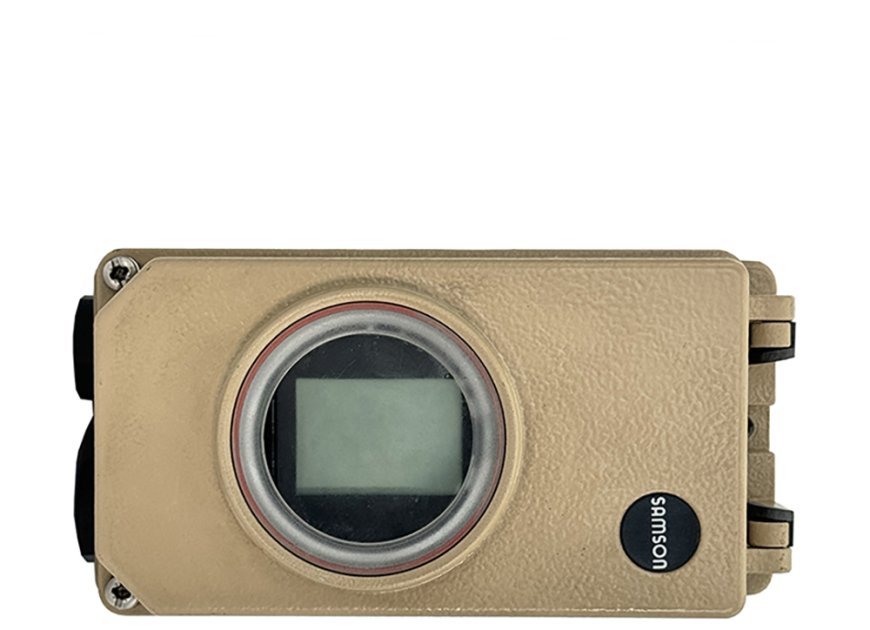

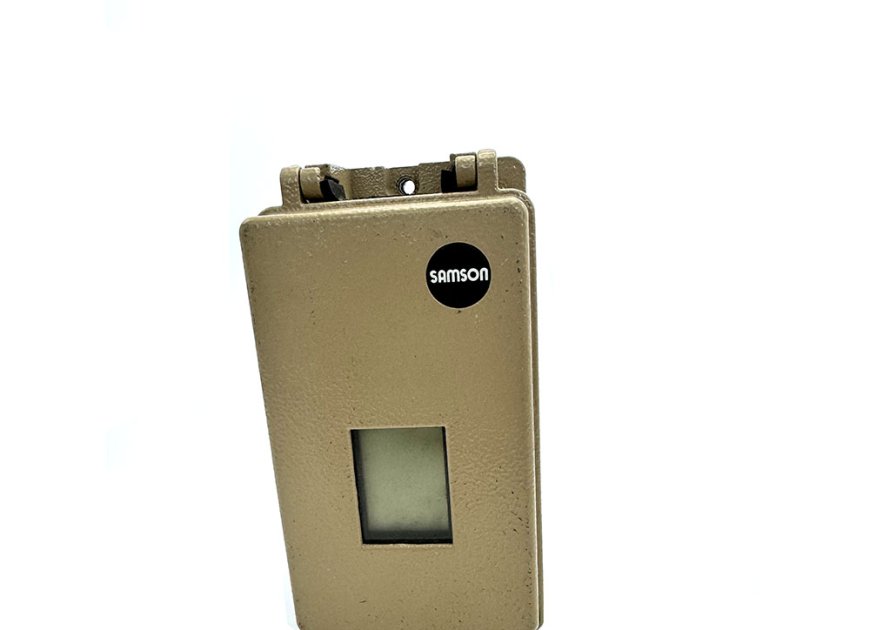

PRODUCT:Positioner
USAGE
· Challenging transit times
· Challenging ambient conditions
· Throttling service
· Use of an external travel sensor
ATTACHMENT TO
· Linear actuator, single acting
· Linear actuator, double acting
· Rotary actuator, single acting
· Rotary actuator, double acting
EXPLOSION PROTECTION
· Without certification
· Type of protection "Intrinsic safety"
COMMUNICATION:FOUNDATION™ fieldbus
CONTROL LOOP:Fieldbus
OPTIONAL SOLENOID VALVE:With
VALVE DIAGNOSTICS:With
PRODUCT:Positioner
USAGE
· Challenging transit times
· Challenging ambient conditions
· Use of an external travel sensor
· Throttling service
ATTACHMENT TO
· Linear actuator, single acting
· Linear actuator, double acting
· Rotary actuator, single acting
· Rotary actuator, double acting
EXPLOSION PROTECTION
· Without certification
· Type of protection "Intrinsic safety"
COMMUNICATION:HART®
CONTROL LOOP:4 to 20 mA
OPTIONAL SOLENOID VALVE:With
VALVE DIAGNOSTICS:With
Specification | 3730-0 (Standard Base Model) | 3730-1 (HART Communication Version) | 3730-2 (PROFIBUS PA Version) | 3730-3 (FOUNDATION Fieldbus Version) | 3730-4 (Position Feedback Version) | 3730-5 (SIL Safety Version) | 3730-6 (High-End Full-Feature Version) |
Product Model | Samson 3730-0 Digital Valve Positioner | Samson 3730-1 HART Digital Valve Positioner | Samson 3730-2 PROFIBUS PA Digital Valve Positioner | Samson 3730-3 FOUNDATION Fieldbus Digital Valve Positioner | Samson 3730-4 Position Feedback Digital Valve Positioner | Samson 3730-5 SIL Safety Digital Valve Positioner | Samson 3730-6 High-End Full-Feature Digital Valve Positioner |
Core Function & Communication Protocol | Basic current-pneumatic position control; local SFN communication | Basic position control + HART 6/7 digital communication; local SFN communication | Basic position control + PROFIBUS PA (IEC 61158-2) digital communication | Basic position control + FOUNDATION Fieldbus (FF) H1 digital communication | Basic position control + 4-20mA analog valve position feedback; local SFN communication | Safety-certified position control + HART 7 digital communication; IEC 61508 SIL 2/SIL 3 compliant | Full-function position control + multi-protocol communication (HART/PROFIBUS PA/FF optional); full diagnostic suite; optional safety functions |
Input Control Signal | 4–20 mA DC, two-wire loop-powered; configurable split-range operation; minimum driving current: 3.85 mA | 4–20 mA DC, two-wire loop-powered; configurable split-range operation; minimum driving current: 3.85 mA | 9–32 VDC bus-powered; PROFIBUS PA digital setpoint input; configurable split-range operation | 9–32 VDC bus-powered; FOUNDATION Fieldbus digital setpoint input; configurable split-range operation | 4–20 mA DC, two-wire loop-powered; configurable split-range operation; minimum driving current: 3.85 mA | 4–20 mA DC, two-wire loop-powered; configurable split-range operation; safety discrete input; minimum driving current: 3.85 mA | 4–20 mA DC, two-wire loop-powered; configurable split-range operation; optional fieldbus input; minimum driving current: 3.85 mA |
Input Resistance | 300 Ω typical at 20 mA DC | 300 Ω typical at 20 mA DC | 17.2 mA max basic current | 17.2 mA max basic current | 300 Ω typical at 20 mA DC | 300 Ω typical at 20 mA DC | 300 Ω typical at 20 mA DC |
Output Signal | Pneumatic output to actuator; no electrical analog output | Pneumatic output to actuator; HART digital communication over 4-20mA loop | Pneumatic output to actuator; PROFIBUS PA digital communication | Pneumatic output to actuator; FOUNDATION Fieldbus digital communication | Pneumatic output to actuator; 4–20 mA DC analog valve position feedback output | Pneumatic output to actuator; HART digital communication; safety discrete output | Pneumatic output to actuator; optional HART/fieldbus communication; optional analog position feedback |
Applicable Actuators | Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards | Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards | Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards | Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards | Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards | Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards; optimized for safety shutdown valves | Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards |
Valve Travel Range | Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95° | Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95° | Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95° | Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95° | Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95° | Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95° | Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95° |
Positioning Accuracy | ±0.5% of Full Scale (F.S.) | ±0.25% of Full Scale (F.S.) | ±0.25% of Full Scale (F.S.) | ±0.25% of Full Scale (F.S.) | ±0.5% of Full Scale (F.S.) | ±0.25% of Full Scale (F.S.) | ±0.25% of Full Scale (F.S.) |
Repeatability | ±0.2% of Full Scale (F.S.) | ±0.1% of Full Scale (F.S.) | ±0.1% of Full Scale (F.S.) | ±0.1% of Full Scale (F.S.) | ±0.2% of Full Scale (F.S.) | ±0.1% of Full Scale (F.S.) | ±0.1% of Full Scale (F.S.) |
Hysteresis | ≤0.2% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.2% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) |
Dead Band | ≤0.2% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.2% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) |
Configurable Flow Characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 16-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 16-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics; safety trip characterization | Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics |
Supply Air Pressure Range | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) |
Steady-State Air Consumption | ≤0.18 Nm³/h (10.6 scfh) at 140 kPa supply pressure | ≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure | ≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure | ≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure | ≤0.18 Nm³/h (10.6 scfh) at 140 kPa supply pressure | ≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure | ≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure |
Maximum Air Delivery Flowrate | 100 L/min (N) max at 140 kPa for single-acting actuators; 220 L/min (N) max at 400 kPa for double-acting actuators | 110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators | 110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators | 110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators | 100 L/min (N) max at 140 kPa for single-acting actuators; 220 L/min (N) max at 400 kPa for double-acting actuators | 110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators | 110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators |
Air Connections | 1/4 NPT internal thread (standard); optional Rc1/4 | 1/4 NPT internal thread (standard); optional Rc1/4 | 1/4 NPT internal thread (standard); optional Rc1/4 | 1/4 NPT internal thread (standard); optional Rc1/4 | 1/4 NPT internal thread (standard); optional Rc1/4 | 1/4 NPT internal thread (standard); optional Rc1/4 | 1/4 NPT internal thread (standard); optional Rc1/4 |
Electrical Connections | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 |
Enclosure Protection Rating | IP66, NEMA Type 4X | IP66 / IP67, NEMA Type 4X | IP66 / IP67, NEMA Type 4X | IP66 / IP67, NEMA Type 4X | IP66, NEMA Type 4X | IP66 / IP67, NEMA Type 4X | IP66 / IP67, NEMA Type 4X |
Ambient Temperature Range | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C |
Ambient Humidity Range | 5% to 95% RH (non-condensing) | 5% to 95% RH (non-condensing) | 5% to 95% RH (non-condensing) | 5% to 95% RH (non-condensing) | 5% to 95% RH (non-condensing) | 5% to 95% RH (non-condensing) | 5% to 95% RH (non-condensing) |
Explosion Protection Rating | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) |
Core Control & Diagnostic Functions | One-touch auto-calibration, adaptive PID control parameter tuning, basic valve health diagnostics, local LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation for high shock & vibration immunity | Auto-calibration, adaptive control parameter self-tuning, advanced valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, Partial Stroke Test (PST) capability, valve signature analysis, cycle counting, travel histogram, stick-slip detection | Auto-calibration, adaptive control parameter self-tuning, advanced valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, PST capability, valve signature analysis, native PROFIBUS PA function block integration | Auto-calibration, adaptive control parameter self-tuning, full-function valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, PST capability, valve signature analysis, native FOUNDATION Fieldbus function block integration | One-touch auto-calibration, adaptive PID control parameter tuning, basic valve health diagnostics, local LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation, real-time valve position feedback monitoring | Auto-calibration, adaptive control parameter self-tuning, safety-certified valve diagnostics, Partial Stroke Test (PST), safety trip function, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation, full compliance with IEC 61508 safety standards | Auto-calibration, adaptive control parameter self-tuning, full-suite advanced valve diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, PST capability, valve signature analysis, multi-protocol communication support, optional safety functions |
Configuration Tools | Local push-button panel, Samson PACTware™ Software | HART Communicator (Model 375/475), Samson PACTware™ Software | PROFIBUS PA Configuration Tool, Samson PACTware™ Software | FOUNDATION Fieldbus Configuration Tool, Samson PACTware™ Software | Local push-button panel, Samson PACTware™ Software | HART Communicator (Model 375/475), Samson PACTware™ Safety Software | HART Communicator (Model 375/475), Samson PACTware™ Software, fieldbus configuration tools |
Key Global Approvals & Certifications | CE, ATEX, IECEx, FM, CSA, CCC, CRN | CE, ATEX, IECEx, FM, CSA, CCC, CRN, HART Certified | CE, ATEX, IECEx, FM, CSA, CCC, CRN, PROFIBUS PA Certified | CE, ATEX, IECEx, FM, CSA, CCC, CRN, FOUNDATION Fieldbus Certified | CE, ATEX, IECEx, FM, CSA, CCC, CRN | CE, ATEX, IECEx, FM, CSA, CCC, CRN, HART Certified, IEC 61508 SIL 2/SIL 3 (TÜV Rheinland Certified) | CE, ATEX, IECEx, FM, CSA, CCC, CRN, HART Certified, optional PROFIBUS PA/FF Certified |
Typical Applications | General industrial process control, water & wastewater treatment, thermal power plants, standard chemical processes, oil & gas midstream/downstream, food & beverage industry | Large-scale industrial automation systems with HART network, high-end process control requiring valve health monitoring and diagnostics | Integrated process plants with PROFIBUS PA network, high-volume industrial automation, digital plant applications | High-end digital plant applications with FOUNDATION Fieldbus network, precision process control in oil & gas, petrochemical, and power generation industries | Industrial processes requiring real-time valve position feedback, remote monitoring of valve status, general process control | Safety Instrumented Systems (SIS), emergency shutdown (ESD) valves, critical safety applications in oil & gas, petrochemical, chemical industry, high-risk process facilities | High-precision process control, custody transfer, chemical dosing, food & beverage batching, pharmaceutical production, integrated digital plant applications |
Packaging & Shipping
Packaging: Original box
