Microprocessor-based field Communicator – connects to any wiring termination point – allows the user to configure, calibrate, rerange and troubleshoot the transmitter without going to the device – provides transmitter-PC standard interfacing for software upgrade and handling of new HART devices.
Comprehensive management of HART devices including the following – 2600T and 600T series pressure transmitters – TH and 600T series temperature transmitters – 2000T and AS800 series pressure transmitters – Deltapi K series pressure and temperature transmitters – other devices with HART operativity from ABB instrumentation range.
Generic communications with any HART compatible instrument.
Operates as a HART modem for a PC-based software communication.

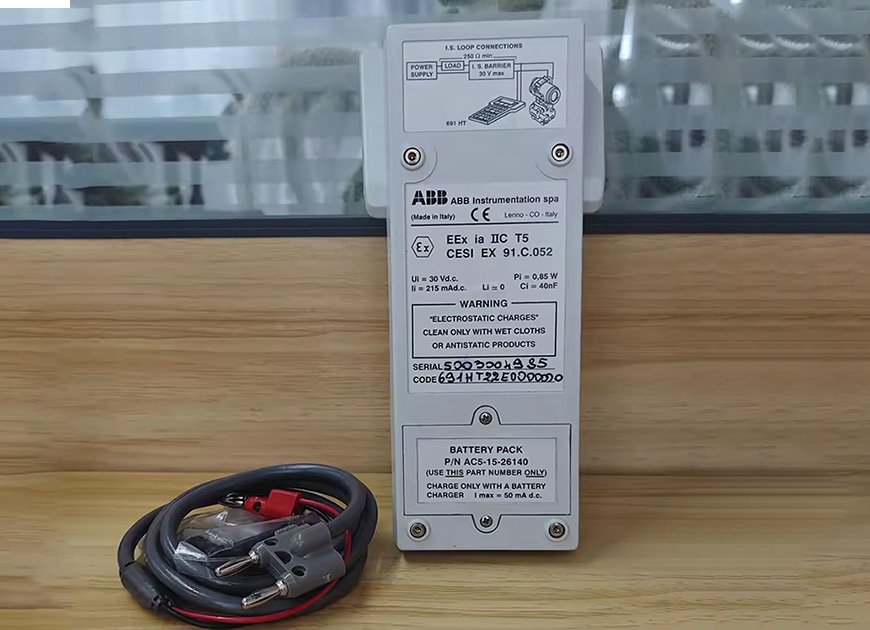

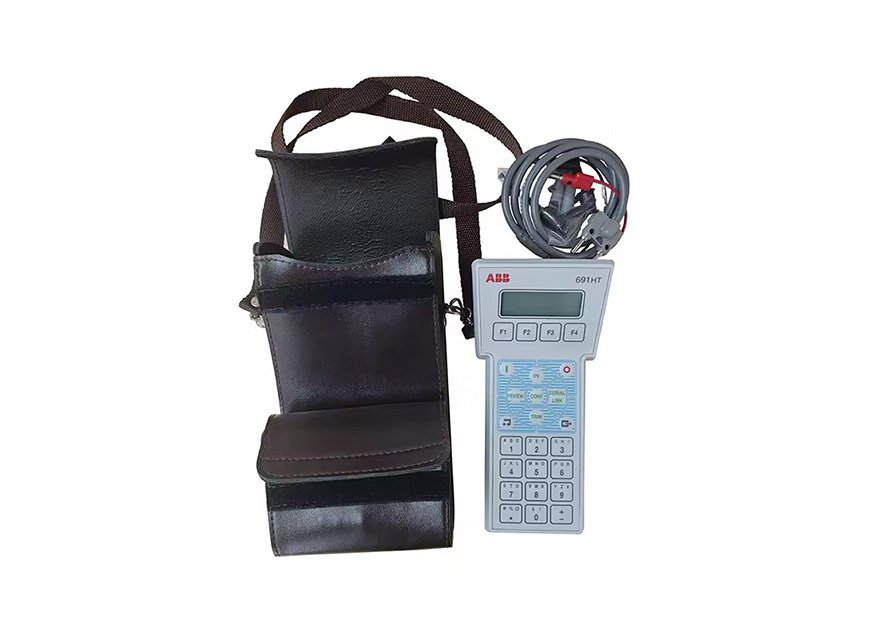

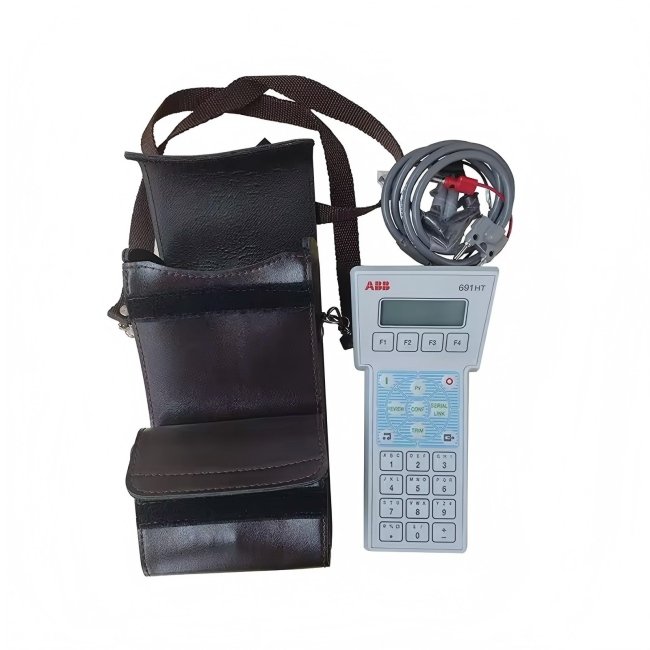

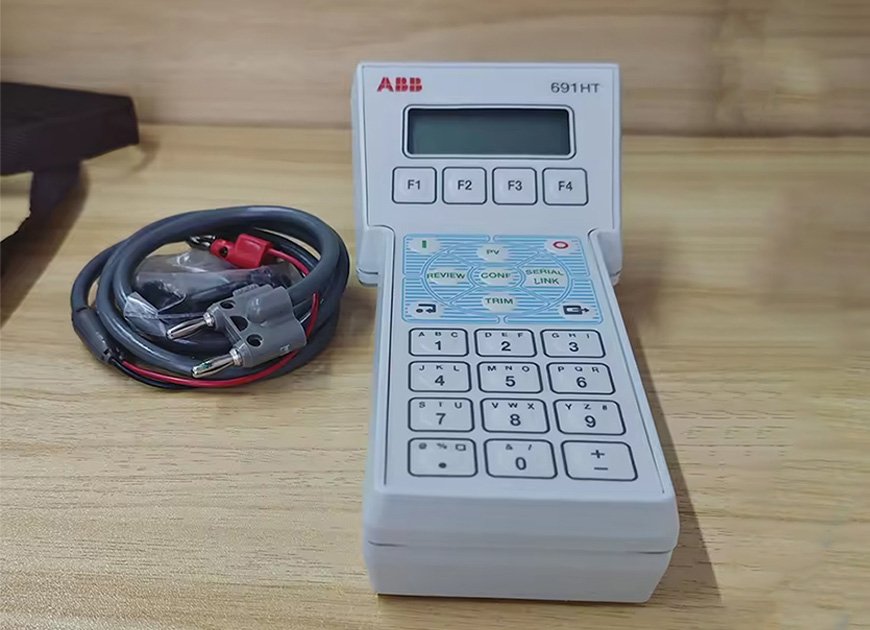

The ABB 691HT (or Model 691HT) is a handheld device designed for configuring, calibrating, and troubleshooting smart HART electronic transmitters in industrial process control applications.
· Function: It provides a smart interface to interact with HART compatible field devices, allowing engineers to monitor diagnostics, set parameters (like zero and span), and perform loop tests.
· Features: The device has a 4-line by 20-character LCD display, a 25-key keyboard, and can store up to 32 transmitter configurations in its non-volatile memory.
· Connectivity: It uses standard Bell 202 FSK (Frequency Shift Keying) current modulation superimposed on the 4 to 20 mA analog signal for communication with transmitters and an RS-232 serial link for connection to a PC.
· Safety: An intrinsically safe version is available for use in hazardous locations, powered by an internal rechargeable Ni-Cd battery pack or disposable AA batteries in general-purpose areas.
Feature | Specification |
Model | 691HT / 691HT-I (Intrinsically Safe) |
Protocol | HART (Highway Addressable Remote Transducer) |
Communication Mode | Bell 202 FSK (Frequency Shift Keying) |
Interface | RS-232 Serial Link for PC connection |
Display | LCD, 4 lines x 20 characters |
Keyboard | 25-key membrane keyboard |
Memory | Non-volatile, stores up to 32 transmitter configurations |
Power Supply | Internal Ni-Cd rechargeable battery pack or 5x AA batteries |
Battery Life | ~8 hours continuous use (rechargeable pack) |
Operating Temp | -10°C to +50°C (14°F to 122°F) |
Enclosure Rating | NEMA 4X / IP65 |
Certifications | FM, CSA, CENELEC (for Intrinsically Safe version) |

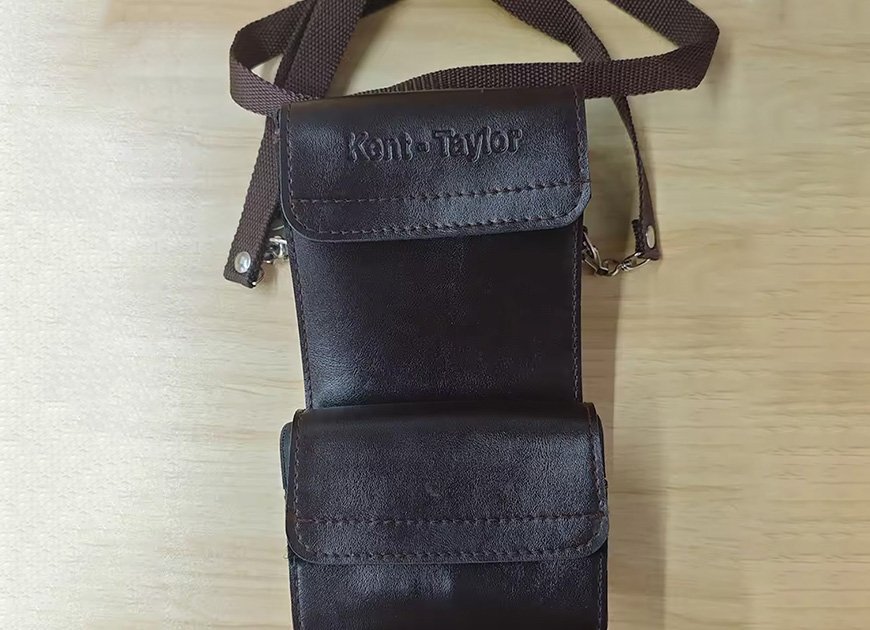

Packaging: Original bag
