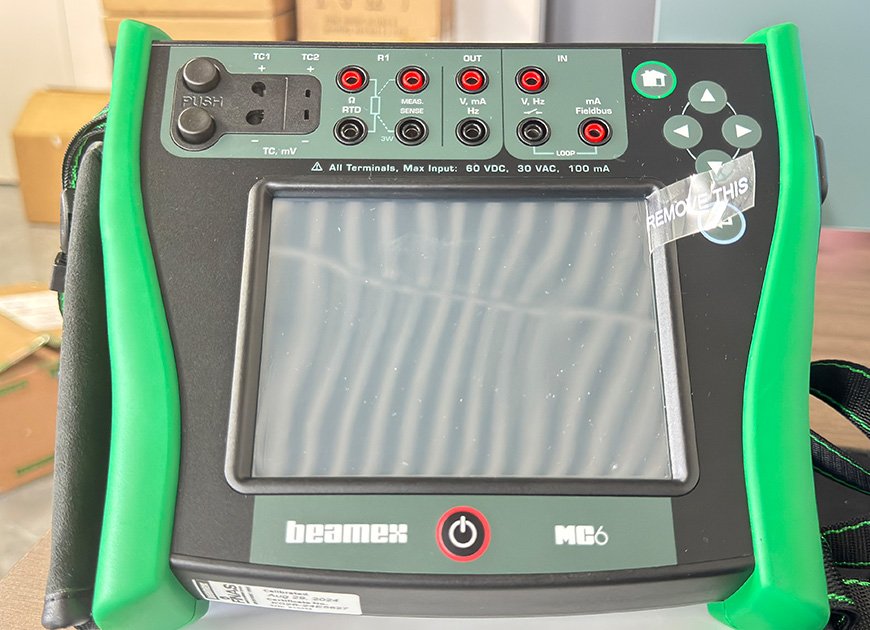

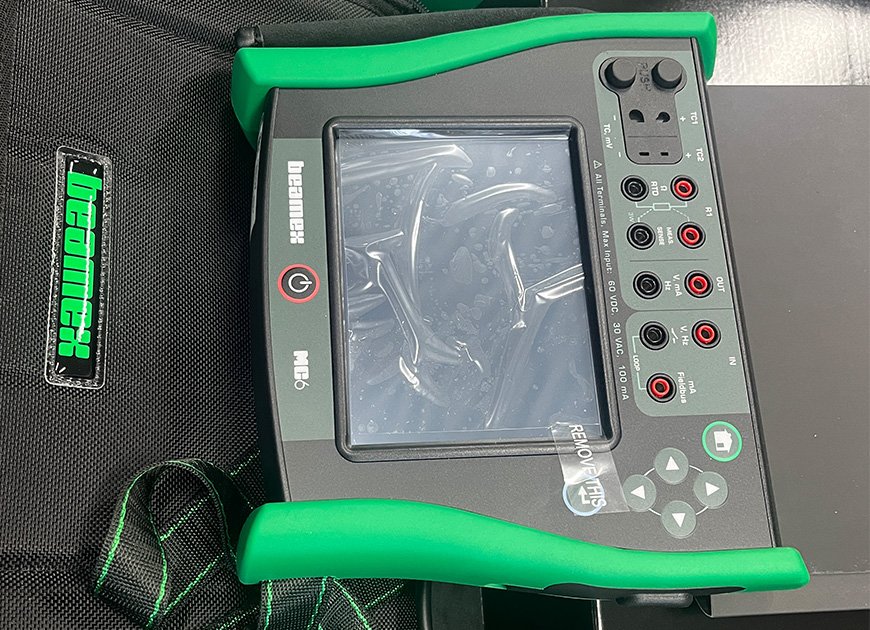

Beamex MC6 is an advanced, high-accuracy field calibrator and communicator. It offers calibration capabilities for pressure, temperature and various electrical signals. The MC6 also contains a fieldbus communicator for HART, FOUNDATION Fieldbus and Profibus PA instruments.
The usability and ease-of-use are among the main features of the MC6. It has a large 5.7" color touch-screen with a multilingual user interface. The robust IP65-rated dust- and water-proof casing, ergonomic design and light weight make it an ideal measurement device for field use in various industries, such as the pharmaceutical, energy, oil and gas, food and beverage, service as well as the petrochemical and chemical industries.
The MC6 is one device with five different user interface modes, which means that it is fast and easy to use, and you can carry less equipment in the field. The user interface modes are: Meter, Calibrator, Data Logger, Documenting Calibrator and Communicator. In addition, the MC6 communicates with Beamex CMX and LOGiCAL Calibration Management Software, enabling fully automated and digitalized calibration and documentation. Data can even be transferred wirelessly over Bluetooth. In conclusion, the MC6 is more than a calibrator.
User-friendly interface
The MC6 has a large 5.7" color touch-screen with high resolution and an effective adjustable backlight. In addition, the MC6 has a membrane keypad. A soft number keypad and alphabetical QWERTY text keypad will appear whenever necessary for easy number/text entries.
Robust, lightweight and ergonomic design
The MC6 is equipped with a durable rechargeable battery with up to two working days of operating time. The user interface keeps you up to date on the remaining operation time in hours and minutes, making it easy to follow how long the battery will last. Once the unit is switched on, it is ready to use in just a few seconds. The case is ergonomic and water-/dust-proof (IP65)
High accuracy
The MC6 is a reliable and stable calibrator with unmatched accuracy for demanding industrial conditions. Each MC6 is delivered with a traceable, accredited calibration certificate as standard as proof of its accuracy.
Advanced functionality
The MC6 is a multifunction calibrator and multi-bus communicator with calibration capabilities for pressure, temperature, and various electrical signals. The MC6 offers a lot of useful features that support your calibration process and it can even perform fully automatic calibrations. It also offers versatile functionalities beyond traditional calibration applications.
Enhanced usability
The MC6 offers several intuitive user interface modes that are optimized for different use cases and available in multiple languages. The calibrator guides you step-by-step in your calibration work.
Field communicator
The MC6 contains a multi-bus field communicator for HART, FOUNDATION Fieldbus, and Profibus PA protocols to calibrate, configure, and trim your smart instruments. All three protocols can be enabled simultaneously.
Digital data flow.
The MC6 is a documenting calibrator that communicates with Beamex calibration management software, enabling a fully digitalized calibration process.
| FEATURE | VALUE |
| Display | 5.7” Diagonal 640 x 480 TFT LCD module |
| Touch panel | 5-wire resistive touch screen |
| Keyboard | Membrane keyboard |
| Backlight | LED backlight, adjustable brightness |
| Weight | Extended case: 1.5…2.0 kg (3.3…4.4 lb) Flat case: 1.5 kg (3.3 lb) |
| Dimensions | Extended case: 200 mm × 230 mm × 70 mm (D × W × H) ( 7.87 in × 9.06 in × 2.76 in) |
| Flat case: 200 mm × 230 mm × 57 mm (D × W × H) ( 7.87 in × 9.06 in × 2.24 in) | |
| Battery type | Rechargeable lithium-ion polymer, 4200 mAh, 11.1V |
| Charging time | Approximately 4 hours |
| Charger supply | 100…240 VAC, 50–60 Hz |
| Battery operation | 10…16 hours |
| Operating temperature | −10…45 °C (14…113 °F) |
| Operating temperature while charging batteries | 0…30 °C (32…86 °F) |
| Storage temperature | −20…60 °C (−4…140 °F) |
| Specifications valid | −10…45 °C, unless other mentioned |
| Humidity | 0…80% R.H. non condensing |
| Warmup time | Specifications valid after a 5 minute warmup period. |

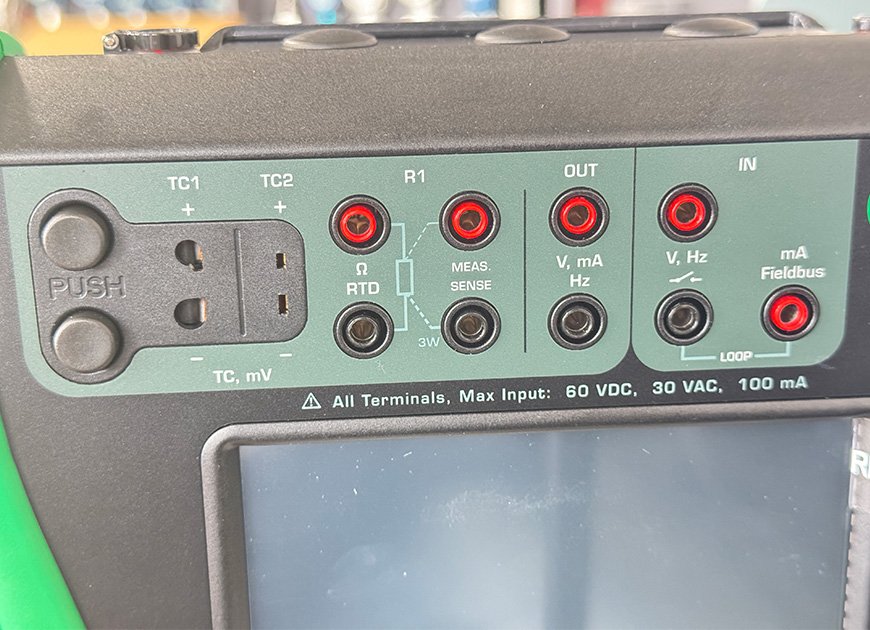

| Max. input voltage | 30 V AC, 60 V DC |
| Humidity | 0…80% R.H. non condensing |
| Display update rate | 3 readings/second |
| Safety | Directive 2014/35/EU, EN 61010-1:2010 + A1:2019 + AC:2019-04 |
| EMC | Directive 2014/30/EU, EN IEC 61326-1:2021 |
| Ingress protection | IP65 |
| RoHS compliance | ROHS II Directive 2011/65/EU, EN IEC 63000:2018 |
| Drop | IEC 60068-2-32. 1 meter (3.28 ft) |
| Vibration | IEC 60068-2-64. Random, 2 g, 5…500 Hz |
| Max altitude | 3,000 m (9,842 ft) |
| Warranty | Warranty 3 years. 1 year for battery pack. |
• Pressure measurement (internal/external pressure modules)
• Voltage measurement (±1 V and −1…60 VDC)
• Current measurement (±100 mA) (internal or external supply)
• Frequency measurement (0…50 kHz)
• Pulse counting (0…10 Mpulse)
• Switch state sensing (dry/wet switch)
• Built-in 24 VDC loop supply (low impedance, HART impedance or FF/PA impedance)
• Voltage generation ( ±1 V and −3…24 VDC)
• Current generation (0…55 mA) (active/passive, i.e. Internal or external supply)
• Resistance measurement, two simultaneous channels (0…4 kΩ)
• Resistance simulation (0…4 kΩ)
• RTD measurement, two simultaneous channels
• RTD simulation • TC measurement, two simultaneous channels (universal connector/mini-plug)
• TC simulation • Frequency generation (0…50 kHz)
• Pulse queue generation (0…10 Mpulse)
• HART communicator
• FOUNDATION Fieldbus communicator
• Profibus PA communicator (Some of the above functions are optional)

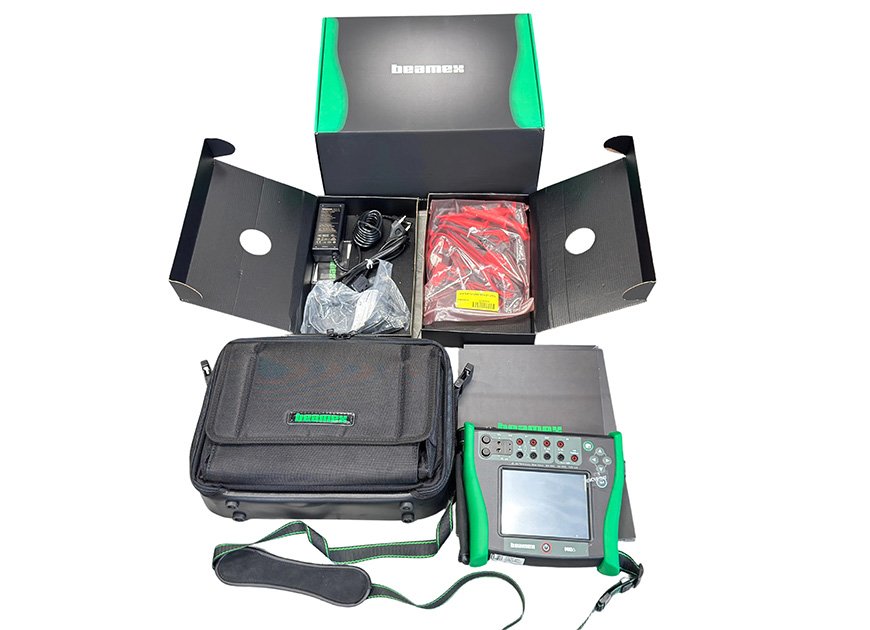

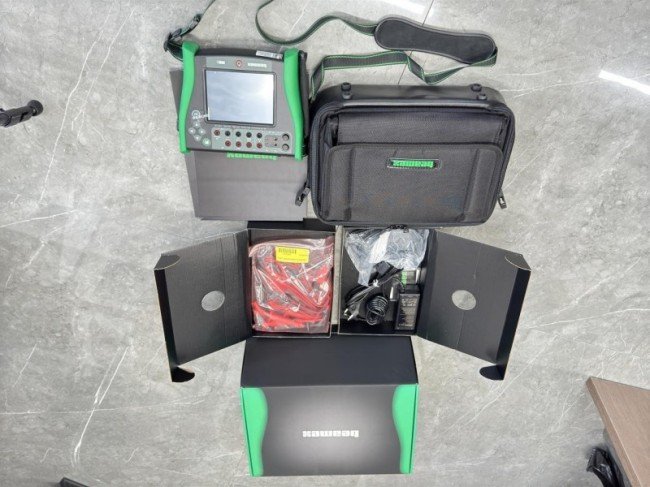

Packaging: Original cardboard box packaging

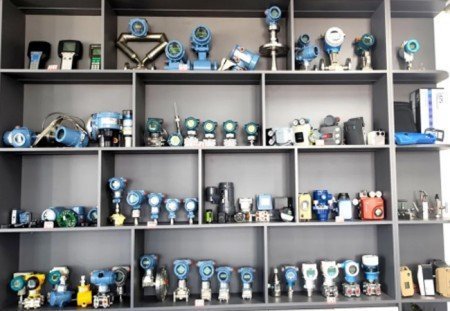

Esito (weifang) Automation Equipment Co., Ltd. specializes in industrial automation instrument development, production and sales, technical services, and supporting equipment supply of specialized companies. The main products are flow meters, level meters, temperature meters, pressure meters, electrical meters, thermal intelligent meters, programmable controllers (PLC), DCS distributed control systems, and eight series of more than 1,000 specifications. Its products and technologies are widely used in electric power, metallurgy, petrochemicals, environmental protection, plastics, food, printing, tobacco, textile, dyeing, and other fields.
