Delivers a colorful user interface and faster operation for all HART and FOUNDATION fieldbus devices.
Full-color graphical user interface
Powerful field diagnostics
Bluetooth® communication
Long-lasting Lithium-Ion power module
Universal support for HART® and Foundation™ Fieldbus devices
What you get is the most powerful handheld available - universal, user upgradeable, intrinsically safe, rugged and reliable. Only the 475 Field Communicator can deliver all this in a single handheld communicator.
The 475 Field Communicator builds on the industry-leading technology of the 375 Field Communicator while adding innovative new capabilities including color display, Bluetooth communication, and advanced field diagnostics with applications like ValveLink™ Mobile.
What you get is the most powerful handheld available – universal, user upgradeable, intrinsically safe, rugged and reliable. Only the 475 Field Communicator can deliver all this in a single handheld communicator.
The 475 Field Communicator is designed to simplify your work in the field. The intuitive full color user interface allows you to leverage the same practices for both HART and Foundation Fieldbus devices. It includes a larger touch screen than PDAs or Pocket PCs, supports HART versions 5, 6, and 7 (including WirelessHART™) devices, and allows you to upgrade your 475 Field Communicator onsite using the Internet.
· Universal Support: Works with HART, WirelessHART, and Foundation Fieldbus devices.
· Color Display: A full-color graphical interface for charts, graphs, and gauges, making data easier to read
· Advanced Diagnostics: Provides troubleshooting and diagnostic capabilities beyond basic configuration, including AMS Suite integration.
· Long Battery Life: Uses a powerful Lithium-Ion battery for extended operation.
· Rugged Design: Built to withstand harsh industrial environments and normal field use.
· Easy Upgrades: Offers on-site updates for software and device descriptions via the web.
· Bluetooth: Optional for faster data transfer and connection.
· Configure, calibrate, and troubleshoot smart field instruments.
· Perform device diagnostics and advanced troubleshooting.
· Transfer device information and configurations between the communicator and a PC.
· Operating System: Runs on Windows CE.
· Memory: Includes significant application and system card memory for future expansion.
Specification | |
· Processor And Memory | |
· Microprocessor | · 80 MHz Hitachi® SH3 |
· Memory Internal Flash | · 32 MB |
· System Card | · 1 GB secure digital card |
· RAM | · 32 MB |
· Physical | |
· Weight | · Approximately 1.65 lb. (0.75kg) with battery |
· Display | · 1/4 VGA (240 by 320 pixels) color, 3.5 in. (8.9 cm) transflective display with touchscreen · Anti-glare coated |
· Keypad | · 25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key, backlight key, power key, and 4 cursor-control (arrow) keys; membrane design with tactile feedback |
· Power Supply / Charger | |

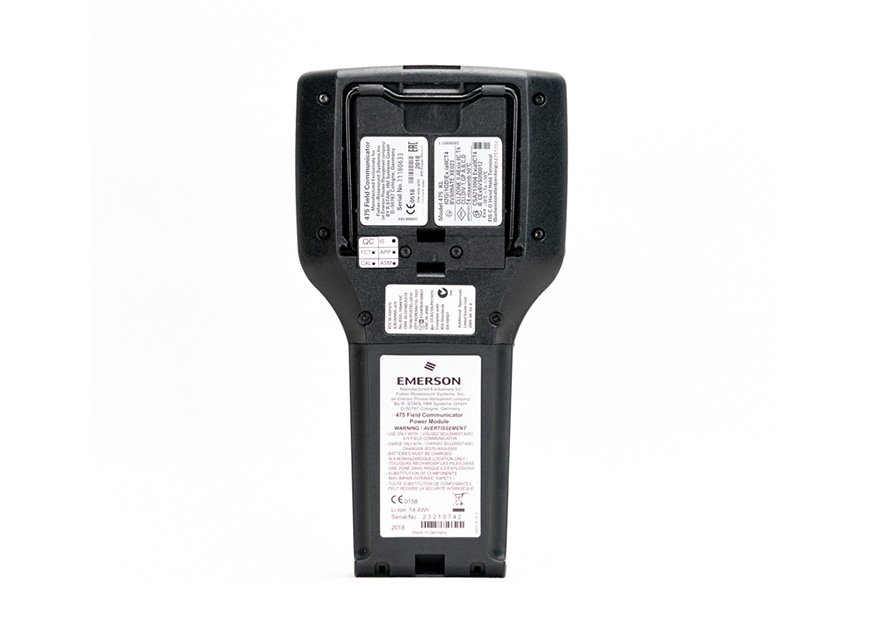

· Battery | · Rechargeable Lithium-Ion power module |
· Battery Operating Time | · 20 hours – continuous use · 40 hours – typical use · 80 hours – standby mode |
· Battery Charger Options | · Input voltage 100-240 VAC, 50-60 Hz · Cables included with U.S., Europe, and U.K. plugs |
· Connection | |
· Battery Charger | · Mini DIN 6-pin jack |
· HART and Fieldbus | · Three 4mm banana jacks (one common to HART and Foundation Fieldbus) |
· IrDA Port | · IrDA (Infrared Data Access) port supporting up to 115 Kbps · ±15 degrees recommended maximum angle from center line · Approximately 18 in. (45.7 cm) recommended maximum distance |
· Bluetooth | · Up to 32.8 ft. (10 m) communication distance · Uses standard Windows drivers · FCC, IC, and CE approvals · Certified for use in over 60 countries |
· Environmental | |
· Usage | · -10°C (14°F) to +50°C (122°F) |
· Battery | · 0% to 95% RH (non-condensing) for 0°C (32°F) to +50°C (122°F) |
· Charge | · 10°C (50°F) to +40°C (104°F) |
· Storage With Batteries | · -20°C (-4°F) to +55°C (131°F) |
· Storage Without Batteries | · -20°C (-4°F) to +60°C (140°F) |
· Enclosure Rating | · IP51 (from front) |
· Shock | · Tested to survive a 1-meter drop test onto concrete |
· Easy Upgrade Requirements | |
· Usage | · PC with Internet access |
· CD Rom driveor | |
· IrDA port (or adapter) Bluetooth (or adapter) | |
· SD Card Reader (required for some upgrades) | |
· Windows XP (SP2 or SP3), Windows Vista Business (SP1), or Windows 7 | |
The 475 Field Communicator is no longer be available for sale. Existing communicators will be supported through October 2020. For long-term support of your program or new handheld requirements, see Emerson’s next generation field communicator - the AMS Trex Device Communicator.

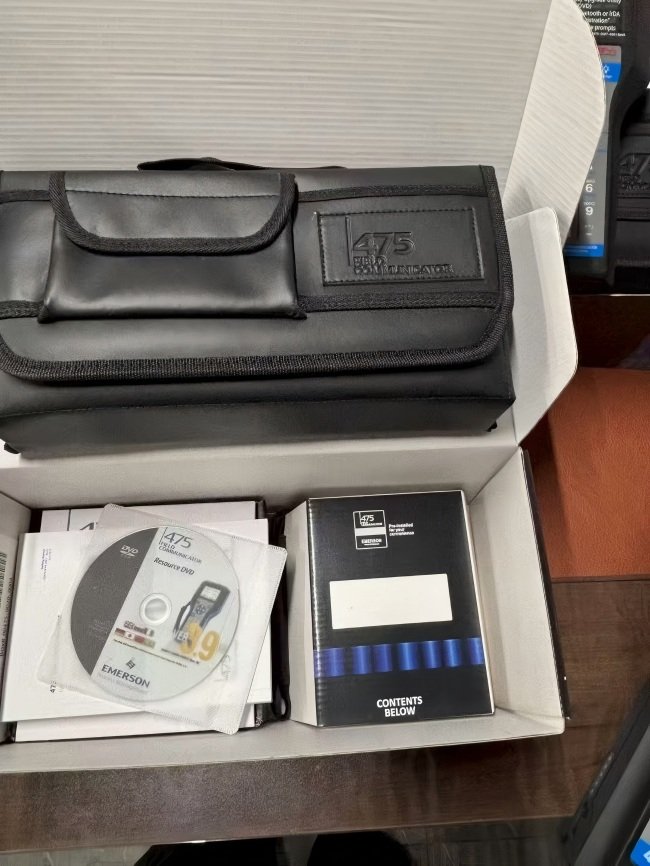

Packaging: Original bag and box
Esito (weifang) Automation Equipment Co., Ltd. specializes in industrial automation instrument development, production and sales, technical services, and supporting equipment supply of specialized companies. The main products are flow meters, level meters, temperature meters, pressure meters, electrical meters, thermal intelligent meters, programmable controllers (PLC), DCS distributed control systems, and eight series of more than 1,000 specifications. Its products and technologies are widely used in electric power, metallurgy, petrochemicals, environmental protection, plastics, food, printing, tobacco, textile, dyeing, and other fields.

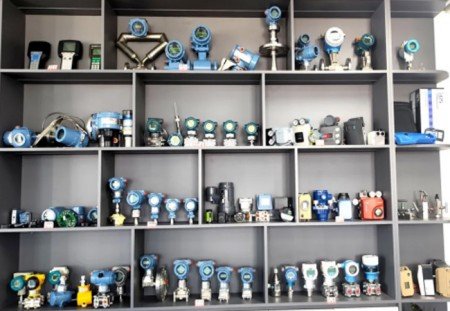

We can offer rosemount, Endress+Hauser, yokogawa, Siemens, ABB,Fisher,Koso, Samson, Abzil, NELES,UE etc, Brands.
