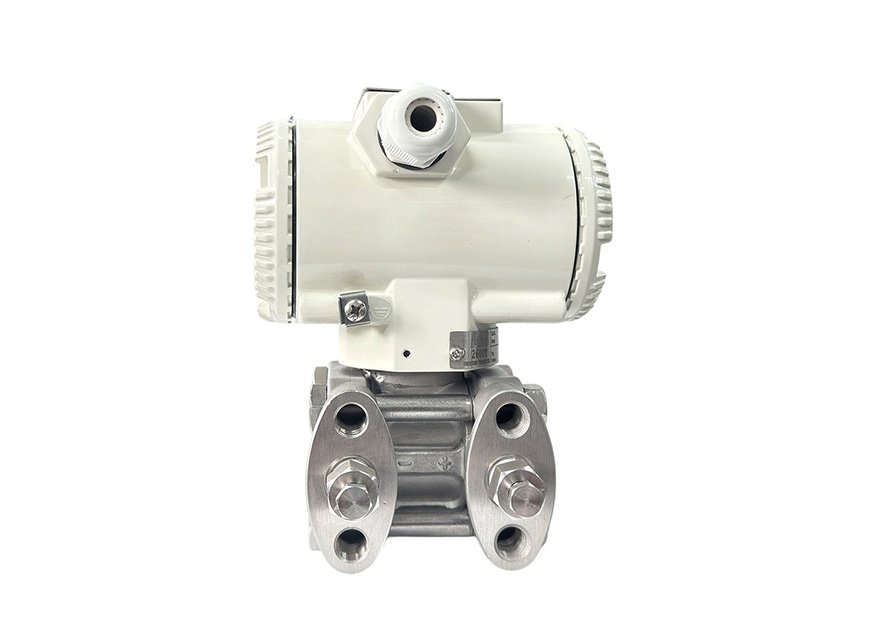

The 2600T Series Pressure Transmitter Model 264DS Differential Pressure Transmitter
The ABB 264DS Differential Pressure Transmitter measures a wide range of differential pressures. Ranges are available from .54 in H2O to 2320 psi. The diaphragm material along with process flanges are available in several different materials such as 316 stainless steel, Hastelloy C276, Tantalum and Monel 400. Several choices of fill fluids and process connections are offered and there are all the 2600T

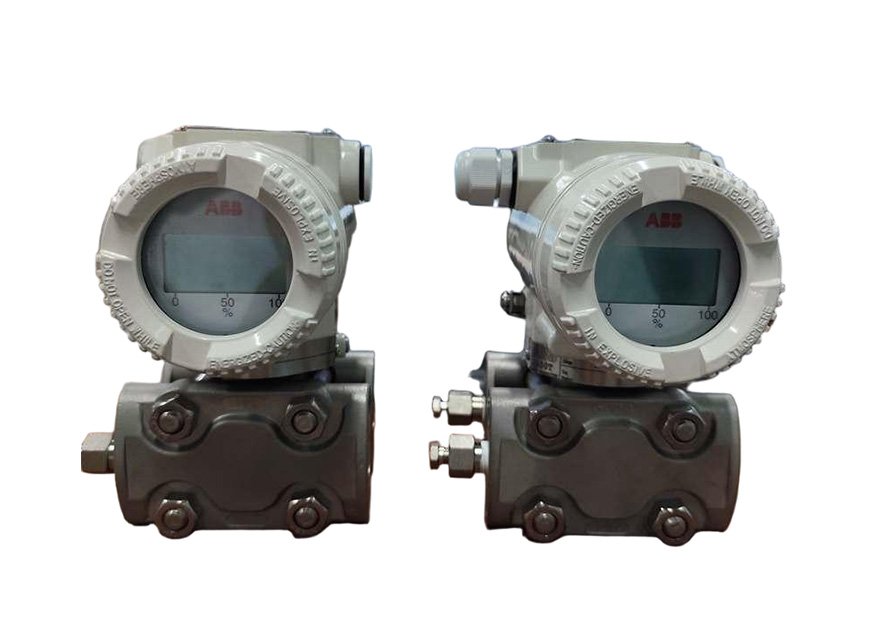

options to choose from such as HART / 4-20 mA, PROFIBUS PA, and FOUNDATION Fieldbus communications. There are also optional output meters and a new integral digital LCD display which allows configuration ability at the transmitter. The 264DS is backed by a 5 year stability warranty which guarantees long term performance.
Sensor code | Upper range limit | Lower range limit | Minimum measuring span |
B | 4kPa 40mbar 16inH2O | -4kPa -40mbar -16inHO | 0.134kPa 1.34mbar 0.54inH2O |
E | 16kPa 160mbar 64inH2O | -16kPa -160mbar -64inH2O | 0.27kPa 2.7mbar 1.08inH2O |
F | 40kPa 400mbar 160inH2O | -40kPa -400mbar -160inHO | 0.4kPa 4mbar 1.6inH2O |
G | 85kPa 650mbar 260inH2O | -65kPa -650mbar -260inH2O | 0.65kPa 6.5mbar 2.6inH2O |
H | 160kPa 1600mbar 642inH2O | -160kPa -1600mbar -642inHO | 1.6kPa 16mbar 6.4inH2O |
M | 600kPa 6bar 87psi | -600kPa -6bar -87psi
| 6kPa 0.06bar 0.87psi |
P | 2400kPa 24bar 348psi | -2400kPa -24bar -348psi | 24kPa 0.24bar 3.5psi |
Q | 3000kPa 30bar 1160psi | -8000kPa -80bar -1160psi | 80kPa 0.8bar 11.6psi |
S | 16000kPa 160bar 2320psi | -16000kPa -160bar -2320psi | 160kPa 1.6bar 23.2psi |
Item | Details |
Model | 264DS |
Transmitter Type | Differential Pressure Transmitter |
Maximum Working Pressure | 21 Mpa (3045 psi) |
Base Accuracy | ±0.075% |
Span Limits | – 0.134 to 16000kPa; 0.54inH2O to 2320psi – 0.27 to 16000kPa abs; 2mmHg to 2320psia |
Turn - down Ratio | Up to 100:1 |
Stability | 5 - year stability |
Communication Protocols | Supports HART®, Profibus PA, and Foundation Fieldbus platforms |
Configuration Methods | Local keys combined with LCD indicator, handheld terminal, or PC configuration platform |
Power Supply | Usually 24V DC |
Output Signal | 4 - 20mA DC, with HART communication protocol, and can also support Profibus PA, Foundation Fieldbus, etc |
Protection Level | IP67 |
Ambient Temperature Range | - 40℃ - + 85℃ |
Storage Temperature Range | - 50℃ - + 85℃ |
The ABB 264DS is a high - performance differential pressure transmitter. It has a reliable sensing system combined with advanced digital technologies. The maximum working pressure can reach up to 21 Mpa (3045 psi). It offers a wide turn - down ratio of up to 100:1, and the span limits are from 0.05 to 16000 kpa (0.2 in H2O to 2320 psi). With a base accuracy of ±0.075%, it supports integration with HART®, Profibus PA, and Foundation Fieldbus platforms, providing interchangeability and transmitter upgrade capabilities. Configuration can be done locally through local keys in combination with an LCD indicator, or via a handheld terminal or PC configuration platform. Moreover, it is fully compliant with PED category IV, making it suitable for safety - related accessory applications.
The ABB 264DS differential pressure transmitter is suitable for a variety of industries and applications, such as power, chemical, petrochemical, paper - making, building materials, water treatment, and other industries3. It can be used to accurately measure the pressure, liquid level, and flow rate of various media, and is especially suitable for occasions that require high - accuracy measurement and reliable operation, such as in the process control of chemical production lines and the monitoring of water treatment systems.

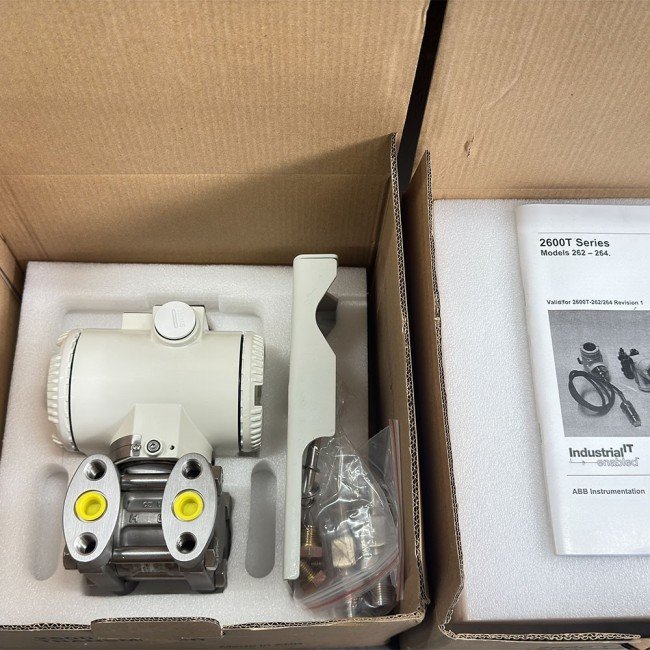

Packaging: Original cardboard box packaging
