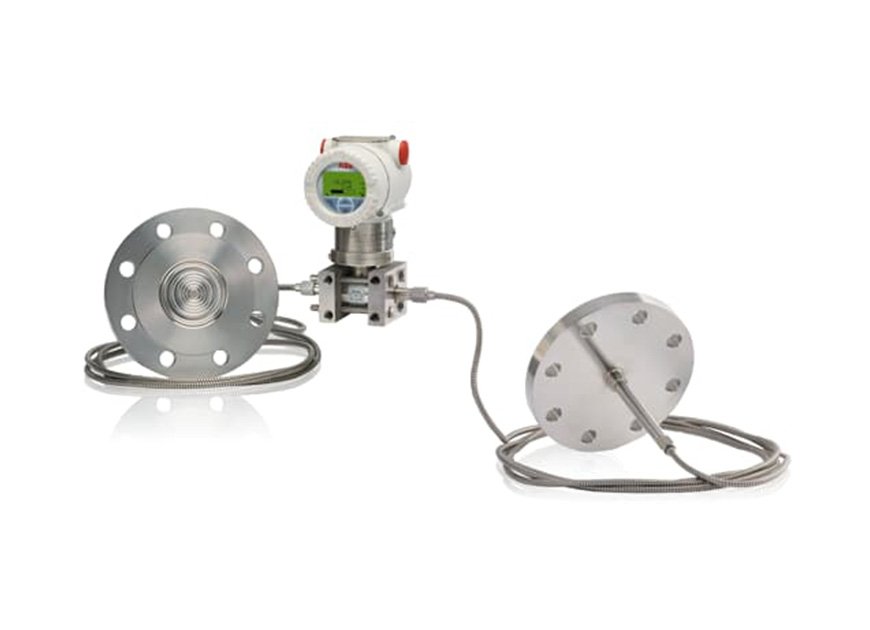

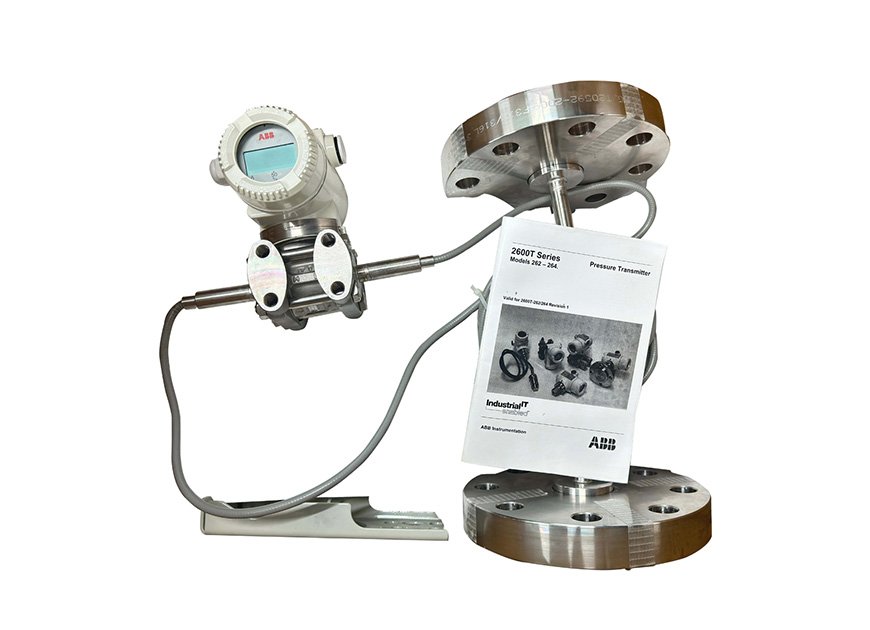

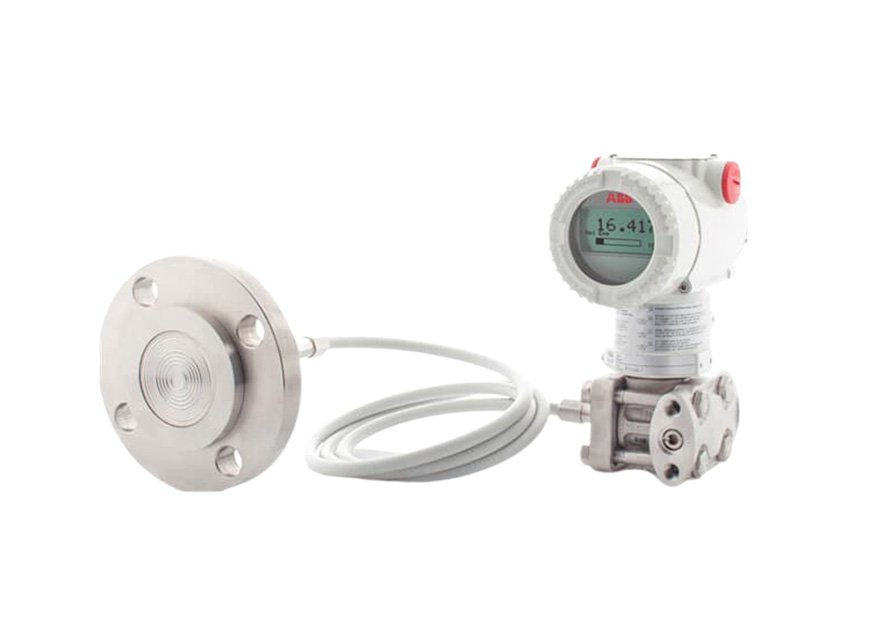

Model 266MRT is the top performace differential pressure transmitter with “multisensor technology” suitable for measuring liquid, gas or steam flow as well as level, pressure and density characterized by the remote seal construction. The unique combination of several sensor systems in a single device allows simultaneous measurement of differential pressure and absolute pressure. The sensor temperature and the absolute pressure are also used for eliminating environmental effects on the sensor.
Thanks to Taylor’s “All-Welded” technology in remote seal manufacturing as well as to the longstanding expertise, 266MRT can offer unmatched total performances and a wide selection of options such as fill fluid, diaphragm material, capillary protection and mounting connections. ABB, leader in severe process measurements, is able to provide the right solution for the most critical process media at extreme ambient and process conditions.
In addition to the plug-in terminal block, this transmitter features in-field replaceable electronics module that thanks to the auto-configuration functionality dramatically improves plant productivity. Its intuitive plug-and-play display with easy setup procedure really helps users by saving time and lowering maintenance and inventory costs. Moreover, the innovative TTG (Through The Glass) technology allows users to configure the instruments in the field without removing the windowed front cover and consequently to save a lot of time.
The 266MRT is certified by TUV NORD for use in safety instrumented systems as per the requirements of IEC61508. The transmitters meet the requirements for SIL2 applications in a single transmitter configuration (1oo1) and for SIL3 applications in a redundant configuration (1oo2).
Sensor code | Upper range limit | Lower range limit | Minimum measuring span |
C | 6 kPa 60 mbar 24 inH2O | –6 kPa –60 mbar –24 inH2O | 0.6 kPa 6 mbar 2.41 inH2O |
F | 40kPa 400mbar 160 inH2O | –40 kPa –400 mbar –160 inH2O | 0.67 kPa 6.7 mbar 2.67 inH2O |
L | 250 kPa 2500mbar 1000 inH2O | –250 kPa –2500mbar –1000 inH2O | 4.17 kPa 41.67 mbar 16.73 inH2O |
N | 2000kPa 20bar 290 psi | –2000 kPa –20 bar –290 psi | 33.3 kPa 333 mbar 4.83 psi |
R | 10000 kPa 100 bar 1450 psi | –10000kPa –100 bar –1450 psi | 167 kPa 1.67 bar 24.17 psi |
Item | valve |
Measuring principle | Differential pressure |
Span Limits | 0.6 kPa ~ 10,000 kPa (2.41 in H₂O ~ 1450 psia) |
Maximum Working Pressure | 41 MPa (5945 psi) |
Process Temperature Range | -40 °C ~ 85 °C (-40 °F ~ 185 °F) |
Output Signal | • 4-20 mA, HART• PROFIBUS PA 3.01• Foundation Fieldbus ITK 5.1/6.x |
Display | LCD with TTG (Through the Glass) technology (configurable without removing the front cover) |
Safety Certifications | • TÜV Nord certified for SIS per IEC 61508• SIL 2 (1oo1 configuration)• SIL 3 (1oo2 redundant configuration) |
Compliance | Full compliance with PED Category III |
Electrical Connection | • HART version: 3 terminals (up to 2.5 mm² / 14 AWG), test & communication points• Fieldbus versions: 2 terminals (up to 2.5 mm² / 14 AWG)• M12 x 1 or 7/8 in for Foundation Fieldbus & PROFIBUS PA |
Grounding | Internal and external 6 mm² (10 AWG) ground termination points |
Mounting | Any position; electronics housing rotatable with positive stop |
Weight (Without Options) | Approx. 3.7 kg (8.2 lb); +1.5 kg (3.3 lb) for AISI housing; +650 g (1.5 lb) for packing |
Key Features | • Taylor's "All-Welded" remote seal technology• In-field replaceable electronics module with auto-configuration• Plug-and-play operation• Simultaneous measurement of differential & absolute pressure• Wide selection of fill fluids, diaphragm materials & capillary protection |
Seal Options | Flanged flush/extended diaphragm (ASME, EN, JIS, Ring Joint ASME), threaded off-line flanged, union nut, sanitary/aseptic, pulp & paper specific seals |
Packaging: Original cardboard box packaging
