Span (infinitely adjustable) or measuring range, max. permissible operating pressure (in accordance with Pressure Equipment Directive 2014/68/EU) and max. test pressure (pursuant to DIN 16086) (for oxygen measurement, max. 100 bar/ 10 MPa/1450 psi and 60 °C (140 °F) ambient temperature/process temperature)
Gauge pressure span | Max.permissible operating pressure MAWP (PS) | Maximum permissible test pressure |
8.3 ... 250 mbar | 4bar | 6bar |
0.83 ... 25 kPa | 0.4 MPa | 0.6 MPa |
0.12 … 3.6 psi | 58 psi | 87 psi |
0.01 ... 1 bar | 6 bar | 9 bar |
1 ... 100 kPa | 0.6 MPa | 0.9 MPa |
0.15 … 14.5 psi | 87 psi | 130 psi |
0.04 ... 4 bar | 20 bar | 30 bar |
4 ... 400 kPa | 2 MPa | 3 MPa |
0.58 … 58 psi | 290 psi | 435 psi |
0.16 ... 16 bar | 45 bar | 70 bar |
0.016 ... 1.6 MPa | 4.5 MPa | 7 MPa |
2.3 … 232 psi | 652 psi | 1015 psi |
0.63 ... 63 bar | 80 bar | 120 bar |
0.063 ... 6.3 MPa | 8 MPa | 12 MPa |
9.1 … 914 psi | 1160 psi | 1740 psi |
1.6 ... 160 bar | 240 bar | 380 bar |
0.16 ... 16 MPa | 24 MPa | 38 MPa |
23 … 2321 psi | 3480 psi | 5511 psi |
4 ... 400 bar | 400 bar | 600 bar |
0.4 ... 40 MPa | 40 MPa | 60 MPa |
58 … 5802 psi | 5802 psi | 8702 psi |
7 ... 700 bar | 800 bar | 800 bar |
0.7 ... 70 MPa | 80 MPa | 80 MPa |
102 … 10153 psi | 11603 psi | 11603 psi |
item | Specifacation |
Model | 7MF4033 |
Measurement Principle | Piezoresistive |
Measured Variable | Relative pressure (gauge pressure), can also be used for differential pressure and flow measurement in some cases |
Measuring Range | 0 - 10 mbar (0 - 0.4 inchH2O) to 0 - 400 bar (0 - 5800 psi), specific ranges like 0.01 - 1 bar, 0.04 - 4 bar, etc. are also available, with a range ratio of 100:1 |
Accuracy | ≤ 0.075% |
Long - term Stability | ≤ 0.25% / 5 years, actual measurement < 0.1% / 5 years |
Output Signal | 4 - 20 mA, voltage output signal (only when measuring range ≥ 1 bar (14.5 psi)) is 0 - 10 V DC |
Power Supply | For current output, the terminal voltage is 10 - 36 V DC |
Communication Options | HART, PROFIBUS PA, PROFIsafe or FF |
Diagnostic Function | Has extensive diagnostics and simulation functions |
Safety Certification | Suitable for installation in SIL 2 applications in accordance with IEC 61508 / IEC 61511, with certifications such as ATEX EEx ia, EEx ib, dust protection, FM, CS, etc. |
Nominal Pressure | There are specifications of 470 psi, 2325 psi, 6090 psi, etc. |
Process Temperature Range | For process temp. - 20 °C < < 60 °C; for process temp. +60 °C < < 100 °C (maximum + 85 °C for 435 psi measuring cell) |

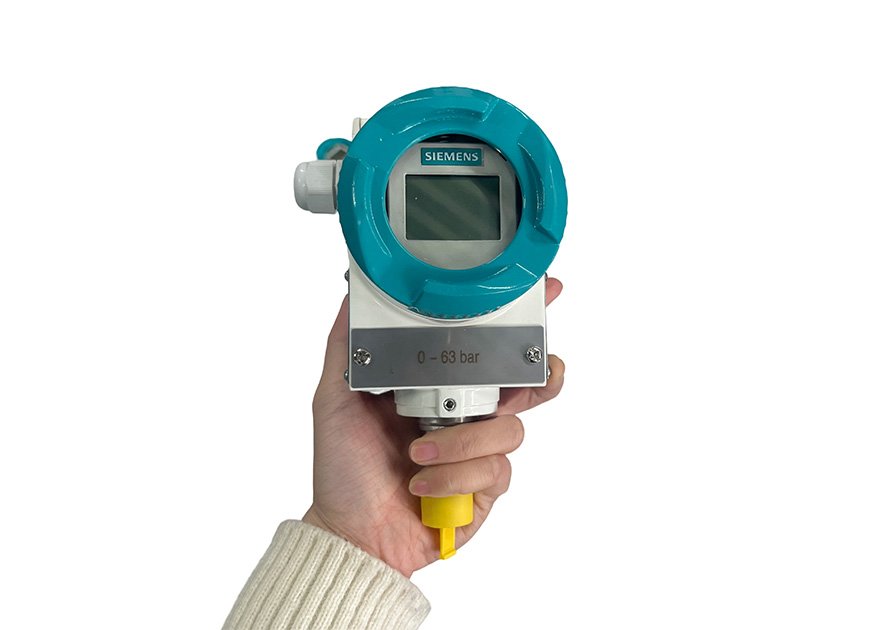

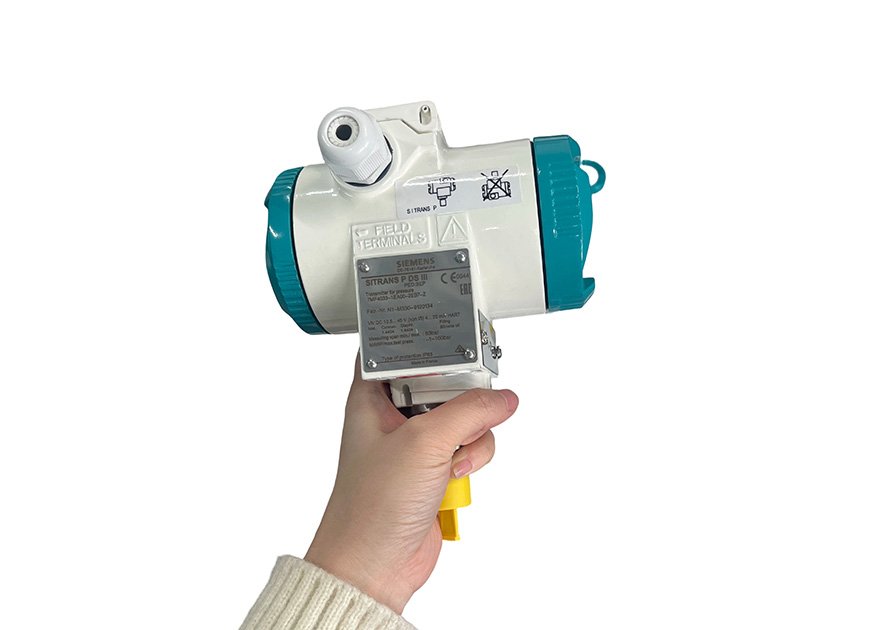

SITRANS P DS III pressure transmitters are digital pressure transmitters featuring extensive user-friendliness and high accuracy. The parameterization is performed using control keys or via
HART, PROFIBUS-PA or FOUNDATION Fieldbus interface. Extensive functionality enables the pressure transmitter to be precisely adapted to the plant’s requirements. Operation is very simple in spite of the numerous setting options.
Transmitters with type of protection "Intrinsic safety" and "Explosion-proof" may be installed within potentially explosive atmospheres (zone 1) or in zone 0. The transmitters are provided with an EC type examination certificate and comply with the corresponding harmonized European standards (ATEX).
The transmitters can be equipped with various designs of remote seals for special applications such as the measurement of highly viscous substances.
• Gauge pressure
• Absolute pressure
• Differential pressure
• Level
• Volume level
• Mass level
• Volume flow
• Mass flow
• High quality and service life
• High reliability even under extreme chemical and mechanical loads
• For aggressive and non-aggressive gases, vapors and liquids
• Extensive diagnosis and simulation functions
• Separate replacement of measuring cell and electronics without recalibration
• Minimum conformity error
• Good long-term stability
• Wetted parts made of high-grade materials (e.g. stainless steel, Hastelloy, gold, Monel, tantalum
• Infinitely adjustable span from 0.01 bar to 700 bar (0.15 psi to 10153 psi) for DS III with HART interface
• Nominal measuring range from 1 bar to 700 bar (14.5 psi to 10153 psi) for DS III with PROFIBUS PA and FOUNDATION Fieldbus interface
• High measuring accuracy
• Parameterization over control keys and HART or PROFIBUS PA, or FOUNDATION Fieldbus interface.
The pressure transmitters of the DS III series, can be used in industrial areas with extreme chemical and mechanical loads.
Electromagnetic compatibility in the range 10 kHz to 1 GHz makes the DS III pressure transmitters suitable for locations with high electromagnetic emissions.
Pressure transmitters with type of protection "Intrinsic safety" and "Explosion-proof" may be installed within potentially explosive atmospheres (zone 1) or in zone 0. The pressure transmitters are provided with an EC type examination certificate and comply with the corresponding harmonized European standards (ATEX).
Pressure transmitters with the type of protection "Intrinsic safety" for use in zone 0 may be operated with power supply units of category "ia" and "ib".
The transmitters can be equipped with various designs of remote seals for special applications such as the measurement of highly viscous substances.
The pressure transmitter can be programmed locally using the 3 control buttons or externally via HART or PROFIBUS PA or FOUNDATION Fieldbus interface.
Packaging: Original cardboard box packaging
