Span (infinitely adjustable) or measuring range, max. permissible operating pressure (in accordance with Pressure Equipment Directive 2014/68/EU) and max. test pressure (pursuant to DIN 16086) (for oxygen measurement, max. 100 bar/ 10 MPa/1450 psi and 60 °C (140 °F) ambient temperature/process temperature)
Gauge pressure span | Max.permissible operating pressure MAWP (PS) | Maximum permissible test pressure |
8.3 ... 250 mbar | 4bar | 6bar |
0.83 ... 25 kPa | 0.4 MPa | 0.6 MPa |
0.12 … 3.6 psi | 58 psi | 87 psi |
0.01 ... 1 bar | 6 bar | 9 bar |
1 ... 100 kPa | 0.6 MPa | 0.9 MPa |
0.15 … 14.5 psi | 87 psi | 130 psi |
0.04 ... 4 bar | 20 bar | 30 bar |
4 ... 400 kPa | 2 MPa | 3 MPa |
0.58 … 58 psi | 290 psi | 435 psi |
0.16 ... 16 bar | 45 bar | 70 bar |
0.016 ... 1.6 MPa | 4.5 MPa | 7 MPa |
2.3 … 232 psi | 652 psi | 1015 psi |
0.63 ... 63 bar | 80 bar | 120 bar |
0.063 ... 6.3 MPa | 8 MPa | 12 MPa |
9.1 … 914 psi | 1160 psi | 1740 psi |
1.6 ... 160 bar | 240 bar | 380 bar |
0.16 ... 16 MPa | 24 MPa | 38 MPa |
23 … 2321 psi | 3480 psi | 5511 psi |
4 ... 400 bar | 400 bar | 600 bar |
0.4 ... 40 MPa | 40 MPa | 60 MPa |
58 … 5802 psi | 5802 psi | 8702 psi |
7 ... 700 bar | 800 bar | 800 bar |
0.7 ... 70 MPa | 80 MPa | 80 MPa |
102 … 10153 psi | 11603 psi | 11603 psi |
Parameter | Specification |
Model Series | 7MF4433 (SITRANS P DS III) |
Measured Variable | Differential pressure (compatible with gas, liquid, and vapor media) |
Measuring Span Range | Standard: 6 mbar ~ 600 mbar; Variant: 2.5 mbar ~ 250 mbar; Full range: 0.01 kPa ~ 3 MPa |
Accuracy | Typical: ≤ ±0.075% of span; High-precision option: ≤ ±0.065% of span |
Long-term Stability | ≤ 0.1% of span per 5 years (typical); ≤ 0.25% of span per 5 years (maximum) |
Rangeability | 100:1 (configurable) |
Maximum Static Pressure | PN 160 (160 bar, at 20°C ambient temperature) |
Output Signal | Standard: 4-20 mA HART (two-wire system); Optional: PROFIBUS-PA, FOUNDATION Fieldbus |
Power Supply | Non-intrinsically safe version: 10.5 V DC ~ 45 V DC; Intrinsically safe version: Compliant with related explosion-proof standards |
Operating Temperature | Ambient: -40°C ~ 85°C (T4), -40°C ~ 60°C (T6); Medium: -90°C ~ 350°C (with proper process connection) |
Wetted Materials | Diaphragm: 1.4404 (316L equivalent) stainless steel; O-ring: FPM (FKM); Filling liquid: Food-grade silicone oil |
Process Connection | Standard: 1/4-18 NPT female thread; Compatible with PMC-style process connection |
Electrical Connection | Cable gland: 1/2-14 NPT or M20 x 1.5 (IP-rated) |
Ingress Protection | Standard: IP65; Optional: IP66/IP68 (for harsh environment) |
SITRANS P DS III pressure transmitters are digital pressure transmitters featuring extensive user-friendliness and high accuracy. The parameterization is performed using control keys or via
HART, PROFIBUS-PA or FOUNDATION Fieldbus interface.
Extensive functionality enables the pressure transmitter to be precisely adapted to the plant’s requirements. Operation is very simple in spite of the numerous setting options.
Transmitters with type of protection "Intrinsic safety" and "Explosion-proof" may be installed within potentially explosive atmospheres (zone 1) or in zone 0. The transmitters are provided with an EC type examination certificate and comply with the corresponding harmonized European standards (ATEX).
The transmitters can be equipped with various designs of remote seals for special applications such as the measurement of highly viscous substances.
• Gauge pressure
• Absolute pressure
• Differential pressure
• Level
• Volume level
• Mass level
• Volume flow
• Mass flow
• High quality and service life
• High reliability even under extreme chemical and mechanical loads
• For aggressive and non-aggressive gases, vapors and liquids
• Extensive diagnosis and simulation functions
• Separate replacement of measuring cell and electronics without recalibration
• Minimum conformity error
• Good long-term stability
• Wetted parts made of high-grade materials (e.g. stainlesssteel, Hastelloy, gold, Monel, tantalum
• Infinitely adjustable span from 0.01 bar to 700 bar (0.15 psi to 10153 psi) for DS III with HART interface
• Nominal measuring range from 1 bar to 700 bar (14.5 psi to 10153 psi) for DS III with PROFIBUS PA and FOUNDATION Fieldbus interface
• High measuring accuracy
• Parameterization over control keys and HART or PROFIBUS PA, or FOUNDATION Fieldbus interface.
The pressure transmitters of the DS III series, can be used in industrial areas with extreme chemical and mechanical loads.
Electromagnetic compatibility in the range 10 kHz to 1 GHz makes the DS III pressure transmitters suitable for locations with high electromagnetic emissions.
Pressure transmitters with type of protection "Intrinsic safety" and "Explosion-proof" may be installed within potentially explosive atmospheres (zone 1) or in zone 0. The pressure transmitters are provided with an EC type examination certificate and comply with the corresponding harmonized European standards (ATEX).
Pressure transmitters with the type of protection "Intrinsic safety" for use in zone 0 may be operated with power supply units of category "ia" and "ib".
The transmitters can be equipped with various designs of remote seals for special applications such as the measurement of highly viscous substances.
The pressure transmitter can be programmed locally using the 3 control buttons or externally via HART or PROFIBUS PA or FOUNDATION Fieldbus interface.

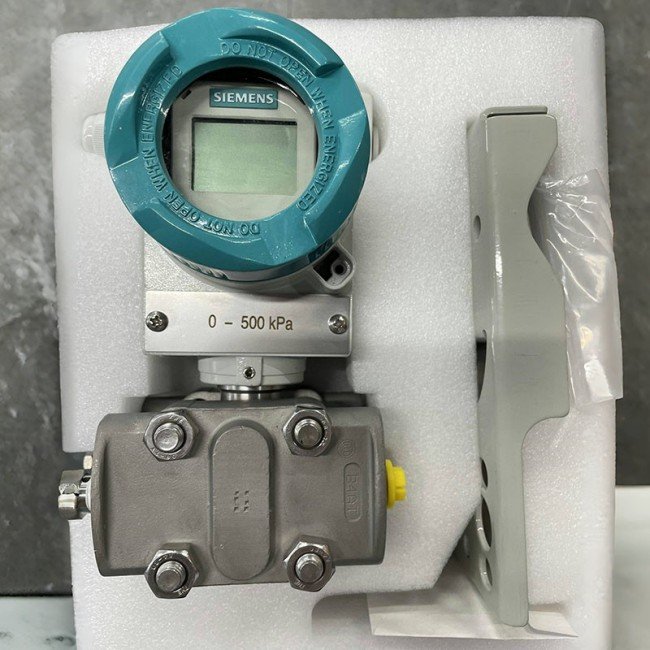

Packaging: Original cardboard box packaging
