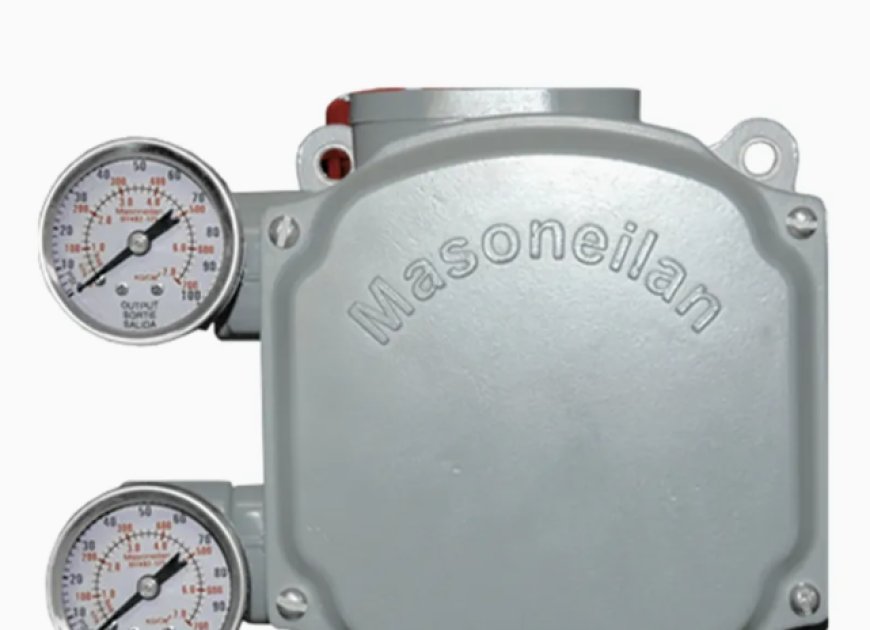

Masoneilan SVi 1000 Digital Valve Positioner

Product Model

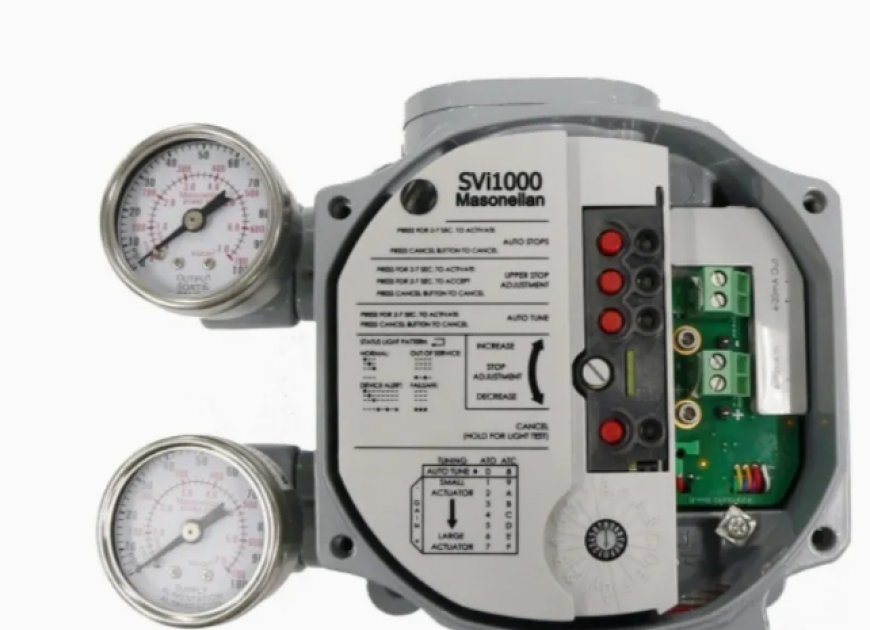

Masoneilan SVi1000-H Digital Valve Controller

Masoneilan SVi1000-P PROFIBUS PA Digital Valve Controller

Masoneilan SVi1000-F FOUNDATION Fieldbus Digital Valve Controller

Masoneilan SVi1000-SIS Safety Instrumented System Digital Valve Controller

Core Communication Protocol

HART 7 (FSK over 4-20mA two-wire loop)

PROFIBUS PA (IEC 61158-2)

FOUNDATION Fieldbus (FF) H1 (IEC 61158-2)

HART 7 (FSK over 4-20mA two-wire loop)

Input Control Signal

4–20 mA DC, two-wire loop-powered; configurable split-range operation

4–20 mA DC, two-wire loop-powered; configurable split-range operation

4–20 mA DC, two-wire loop-powered; configurable split-range operation

4–20 mA DC, two-wire loop-powered; configurable split-range operation; safety discrete input

Input Resistance

300 Ω typical at 20 mA DC

300 Ω typical at 20 mA DC

300 Ω typical at 20 mA DC

300 Ω typical at 20 mA DC

Output Signal

Pneumatic output to actuator; HART digital communication

Pneumatic output to actuator; PROFIBUS PA digital communication

Pneumatic output to actuator; FOUNDATION Fieldbus digital communication

Pneumatic output to actuator; HART digital communication; safety discrete output

Applicable Actuators

Masoneilan pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with IEC 534 / VDI/VDE 3845 standards

Masoneilan pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with IEC 534 / VDI/VDE 3845 standards

Masoneilan pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with IEC 534 / VDI/VDE 3845 standards

Masoneilan pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with IEC 534 / VDI/VDE 3845 standards; optimized for safety shutdown valves

Positioning Accuracy

±0.25% of Full Scale (F.S.)

±0.25% of Full Scale (F.S.)

±0.25% of Full Scale (F.S.)

±0.25% of Full Scale (F.S.)

Repeatability

±0.1% of Full Scale (F.S.)

±0.1% of Full Scale (F.S.)

±0.1% of Full Scale (F.S.)

±0.1% of Full Scale (F.S.)

Hysteresis

≤0.1% of Full Scale (F.S.)

≤0.1% of Full Scale (F.S.)

≤0.1% of Full Scale (F.S.)

≤0.1% of Full Scale (F.S.)

Configurable Flow Characteristics

Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics

Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics

Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics

Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics; safety trip characterization

Supply Air Pressure Range

140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi)

140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi)

140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi)

140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi)

Steady-State Air Consumption

≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure

≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure

≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure

≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure

Maximum Air Delivery Flowrate

110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators

110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators

110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators

110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators

Air Connections

1/4 NPT internal thread (standard); optional Rc1/4

1/4 NPT internal thread (standard); optional Rc1/4

1/4 NPT internal thread (standard); optional Rc1/4

1/4 NPT internal thread (standard); optional Rc1/4

Electrical Connections

1/2 NPT internal thread (standard); optional M20×1.5, G1/2

1/2 NPT internal thread (standard); optional M20×1.5, G1/2

1/2 NPT internal thread (standard); optional M20×1.5, G1/2

1/2 NPT internal thread (standard); optional M20×1.5, G1/2

Enclosure Protection Rating

IP66 / IP67, NEMA Type 4X

IP66 / IP67, NEMA Type 4X

IP66 / IP67, NEMA Type 4X

IP66 / IP67, NEMA Type 4X

Ambient Temperature Range

Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C

Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C

Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C

Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C

Ambient Humidity Range

5% to 95% RH (non-condensing)

5% to 95% RH (non-condensing)

5% to 95% RH (non-condensing)

5% to 95% RH (non-condensing)

Explosion Protection Rating

Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc)

Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc)

Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc)

Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc)

Core Control & Diagnostic Functions

Auto-calibration, adaptive control parameter self-tuning, basic valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation for high shock & vibration immunity

Auto-calibration, adaptive control parameter self-tuning, advanced valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation

Auto-calibration, adaptive control parameter self-tuning, full-function valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation

Auto-calibration, adaptive control parameter self-tuning, safety-certified valve diagnostics, Partial Stroke Test (PST), safety trip function, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation, compliance with IEC 61508

Configuration Tools

HART Communicator (Model 375/475), Masoneilan ValveSight™ Software

PROFIBUS PA Configuration Tool, Masoneilan ValveSight™ Software

FOUNDATION Fieldbus Configuration Tool, Masoneilan ValveSight™ Software

HART Communicator (Model 375/475), Masoneilan ValveSight™ Safety Software

Key Global Approvals & Certifications

CE, ATEX, IECEx, FM, CSA, CCC, CRN, HART Certified

CE, ATEX, IECEx, FM, CSA, CCC, CRN, PROFIBUS PA Certified

CE, ATEX, IECEx, FM, CSA, CCC, CRN, FOUNDATION Fieldbus Certified

CE, ATEX, IECEx, FM, CSA, CCC, CRN, HART Certified, IEC 61508 SIL 3, TÜV Rheinland Safety Certified

Typical Applications

General industrial process control, water & wastewater treatment, thermal power plants, standard chemical processes, oil & gas midstream/downstream

Large-scale industrial automation systems with PROFIBUS PA network, integrated process plants, high-end process control

High-end industrial automation systems with FOUNDATION Fieldbus network, precision process control, digital plant applications

Safety Instrumented Systems (SIS), emergency shutdown (ESD) valves, critical safety applications in oil & gas, petrochemical, chemical industry, high-risk process facilities
