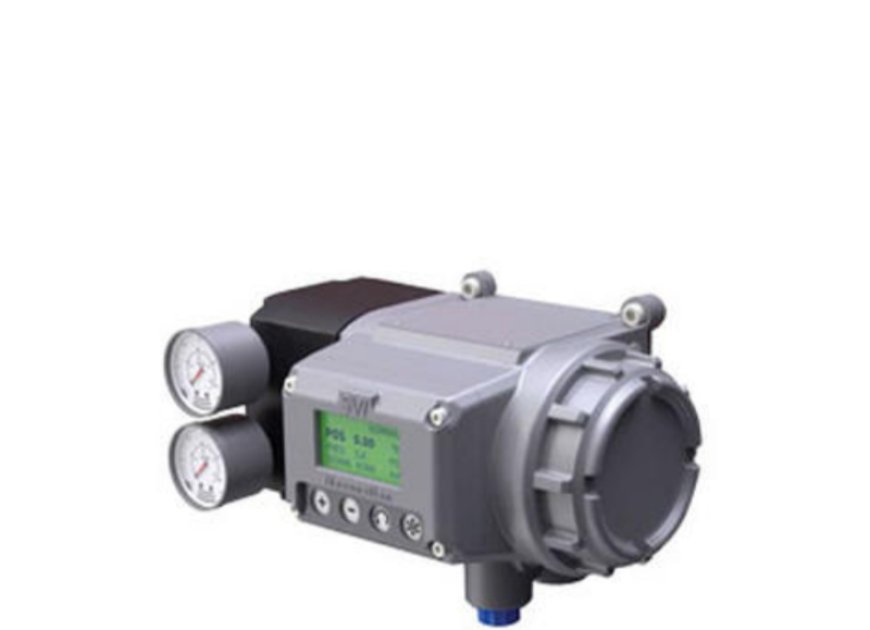

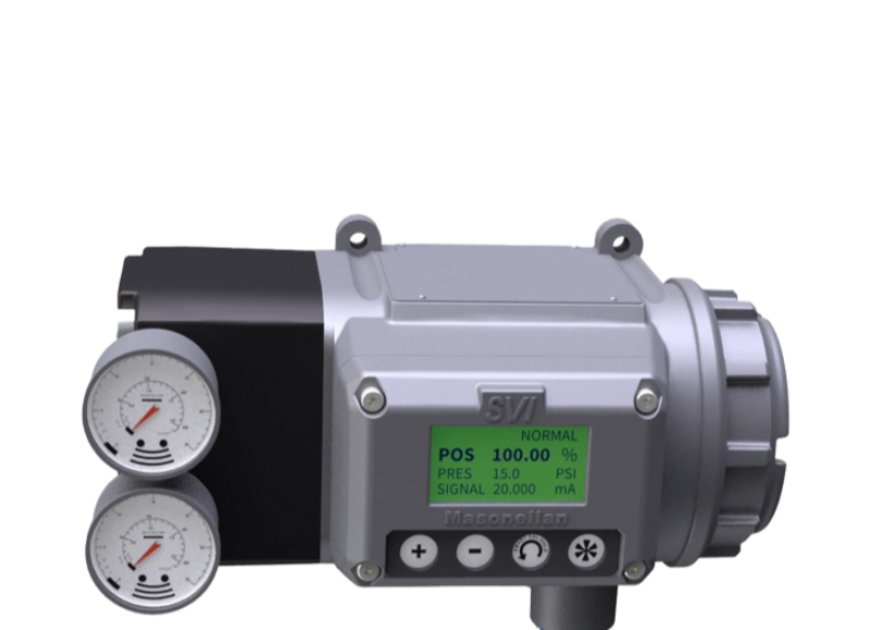

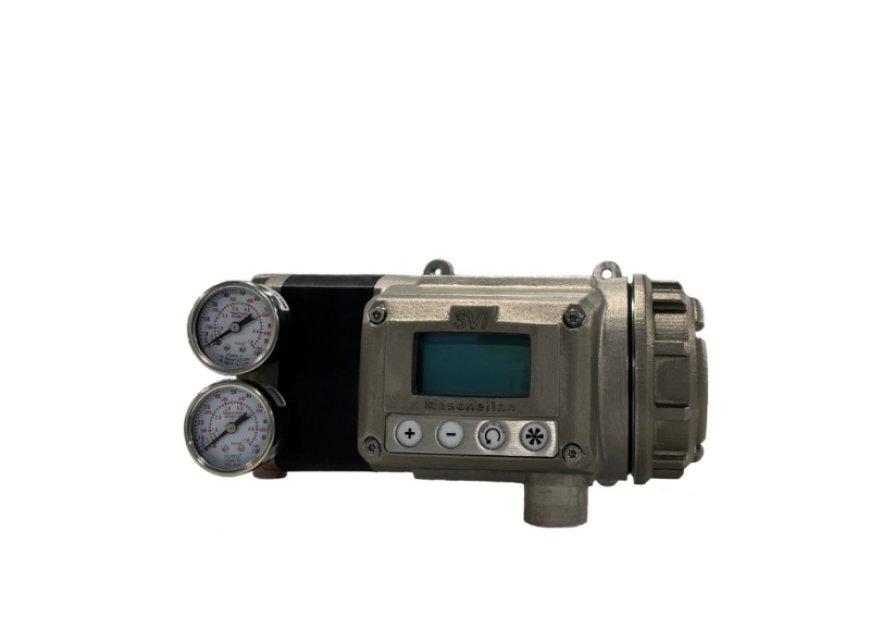

The third generation Baker Hughes Masoneilan™ SVI™ is a user friendly digital valve positioner for pneumatic control valves. Utilizing advanced control and diagnostic algorithms, along with field-proven non-contact position sensing technology, the SVI delivers accurate, responsive, and reliable positioning performance.
Features / Benefits :
· Build on 20+ years and billions of hours of field proven valve position sensing technology, control algorithms, and advance performance pneumatic design
· Extended temperature range down to -55 degC
· Online Valve diagnostics – 19 new diagnostics to continuously monitor valve health while the valve is in operation
· Data Storage – up to 1 year of diagnostic data stored within the device – trend and identify valve problems before they impact plant operation
· Improved pneumatic performance – 40% reduction in steady state air consumption, with 15% increase in air delivery
· Simplified commissioning - “SMART CAL” single button setup and calibration
· Improved user interfaces and integration software to all major control systems
· One device – modular platform to support future upgrades
Specification | SVI3-H (HART Standard Version) | SVI3-P (PROFIBUS PA Version) | SVI3-F (FOUNDATION Fieldbus Version) | SVI3-SIS (Safety Instrumented System Version) |
Product Model | Masoneilan SVI3-H Digital Valve Controller | Masoneilan SVI3-P PROFIBUS PA Digital Valve Controller | Masoneilan SVI3-F FOUNDATION Fieldbus Digital Valve Controller | Masoneilan SVI3-SIS Safety Instrumented System Digital Valve Controller |
Core Communication Protocol | HART 7 (FSK over 4-20mA two-wire loop) | PROFIBUS PA (IEC 61158-2) | FOUNDATION Fieldbus (FF) H1 (IEC 61158-2) | HART 7 (FSK over 4-20mA two-wire loop) |
Input Control Signal | 4–20 mA DC, two-wire loop-powered; configurable split-range operation | 4–20 mA DC, two-wire loop-powered; configurable split-range operation | 4–20 mA DC, two-wire loop-powered; configurable split-range operation | 4–20 mA DC, two-wire loop-powered; configurable split-range operation; safety discrete input |
Input Resistance | 300 Ω typical at 20 mA DC | 300 Ω typical at 20 mA DC | 300 Ω typical at 20 mA DC | 300 Ω typical at 20 mA DC |
Output Signal | Pneumatic output to actuator; HART digital communication | Pneumatic output to actuator; PROFIBUS PA digital communication | Pneumatic output to actuator; FOUNDATION Fieldbus digital communication | Pneumatic output to actuator; HART digital communication; safety discrete output |
Applicable Actuators | Masoneilan pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with IEC 534 / VDI/VDE 3845 international standards | Masoneilan pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with IEC 534 / VDI/VDE 3845 international standards | Masoneilan pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with IEC 534 / VDI/VDE 3845 international standards | Masoneilan pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with IEC 534 / VDI/VDE 3845 international standards; optimized for safety shutdown valves |
Positioning Accuracy | ±0.25% of Full Scale (F.S.) | ±0.25% of Full Scale (F.S.) | ±0.25% of Full Scale (F.S.) | ±0.25% of Full Scale (F.S.) |
Repeatability | ±0.1% of Full Scale (F.S.) | ±0.1% of Full Scale (F.S.) | ±0.1% of Full Scale (F.S.) | ±0.1% of Full Scale (F.S.) |
Hysteresis | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) |
Configurable Flow Characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics; safety trip characterization |
Supply Air Pressure Range | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) |
Steady-State Air Consumption | ≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure | ≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure | ≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure | ≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure |
Maximum Air Delivery Flowrate | 110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators | 110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators | 110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators | 110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators |
Air Connections | 1/4 NPT internal thread (standard); optional Rc1/4 | 1/4 NPT internal thread (standard); optional Rc1/4 | 1/4 NPT internal thread (standard); optional Rc1/4 | 1/4 NPT internal thread (standard); optional Rc1/4 |
Electrical Connections | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 |
Enclosure Protection Rating | IP66 / IP67, NEMA Type 4X | IP66 / IP67, NEMA Type 4X | IP66 / IP67, NEMA Type 4X | IP66 / IP67, NEMA Type 4X |
Ambient Temperature Range | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C |
Ambient Humidity Range | 5% to 95% RH (non-condensing) | 5% to 95% RH (non-condensing) | 5% to 95% RH (non-condensing) | 5% to 95% RH (non-condensing) |
Explosion Protection Rating | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) |
Core Control & Diagnostic Functions | Auto-calibration, adaptive control parameter self-tuning, advanced valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation for high shock & vibration immunity, Partial Stroke Test (PST) capability, valve signature analysis, cycle counting, travel histogram, stick-slip detection | Auto-calibration, adaptive control parameter self-tuning, advanced valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation, PST capability, valve signature analysis, native PROFIBUS PA function block integration | Auto-calibration, adaptive control parameter self-tuning, full-function valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation, PST capability, valve signature analysis, native FOUNDATION Fieldbus function block integration | Auto-calibration, adaptive control parameter self-tuning, safety-certified valve diagnostics, Partial Stroke Test (PST), safety trip function, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation, full compliance with IEC 61508 safety standards |
Configuration Tools | HART Communicator (Model 375/475), Masoneilan ValveSight™ Software | PROFIBUS PA Configuration Tool, Masoneilan ValveSight™ Software | FOUNDATION Fieldbus Configuration Tool, Masoneilan ValveSight™ Software | HART Communicator (Model 375/475), Masoneilan ValveSight™ Safety Software |
Key Global Approvals & Certifications | CE, ATEX, IECEx, FM, CSA, CCC, CRN, HART Certified | CE, ATEX, IECEx, FM, CSA, CCC, CRN, PROFIBUS PA Certified | CE, ATEX, IECEx, FM, CSA, CCC, CRN, FOUNDATION Fieldbus Certified | CE, ATEX, IECEx, FM, CSA, CCC, CRN, HART Certified, IEC 61508 SIL 3, TÜV Rheinland Safety Certified |
Typical Applications | General industrial process control, water & wastewater treatment, thermal power plants, standard chemical processes, oil & gas midstream/downstream, food & beverage, pharmaceutical industry | Large-scale industrial automation systems with PROFIBUS PA network, integrated process plants, high-end process control | High-end industrial automation systems with FOUNDATION Fieldbus network, precision process control, digital plant applications | Safety Instrumented Systems (SIS), emergency shutdown (ESD) valves, critical safety applications in oil & gas, petrochemical, chemical industry, high-risk process facilities |
