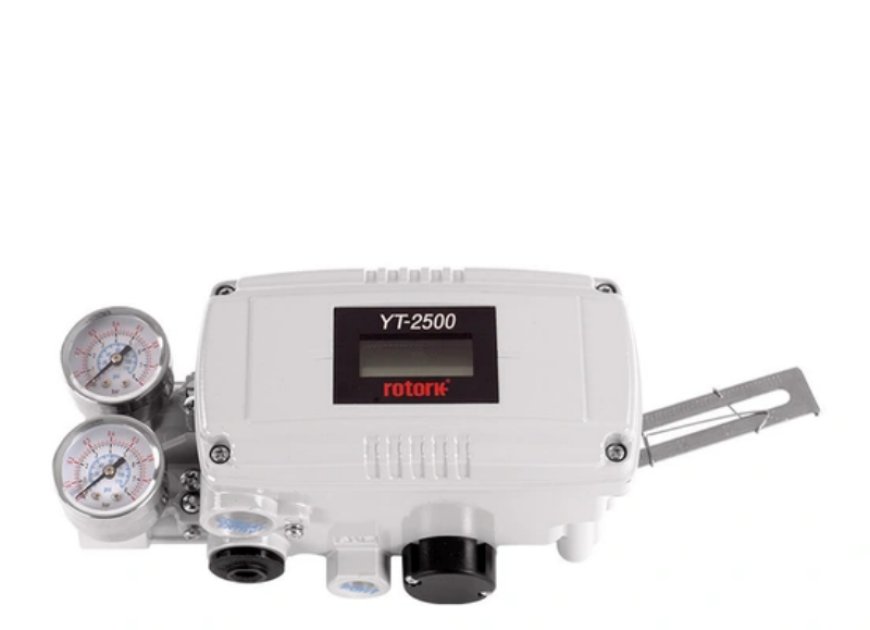

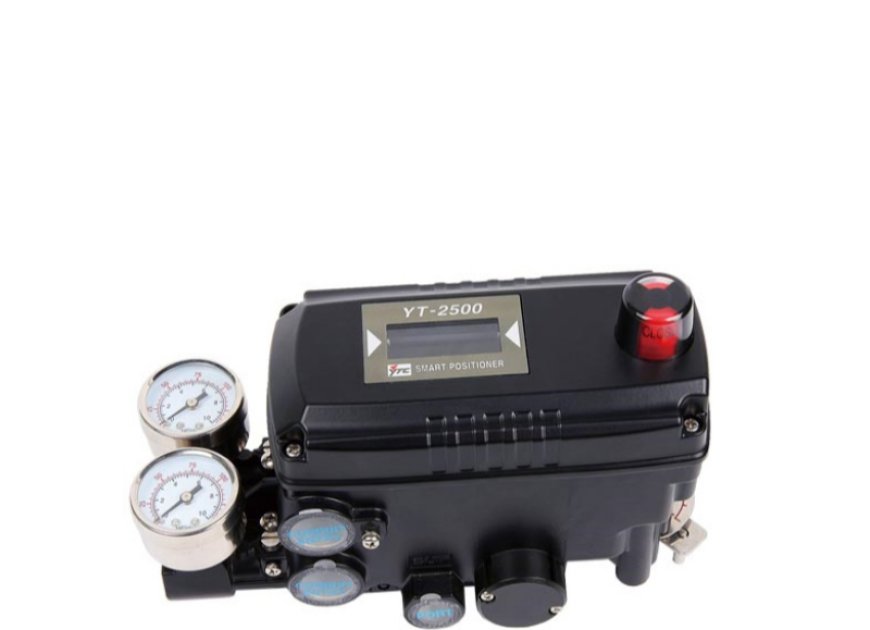

Main Features and Functions
➢ When Input signal or supply pressure fails, Positioner keeps the current position of the valve stroke without any additional device. (Fail Freeze option)
➢ LCD display enables users to monitor the positioner status.
➢ User will easily understand the method of using 4 buttons because it work same in all versions of firmware interfaces.
➢ Positioner operates normally even there are sudden changes in supply pressure and / or high vibration environment.
➢ YT-2501 is stronger on high temperature and vibration environment because it is separated into remote sensor and positioner.
➢ The method of Auto Calibration is very simple.
➢ As an advantage of having very low air consumption, it could greatly reduce operating costs in large-scale plants.
➢ It is compatible with most of controllers.
➢ Variable orifices can be used to minimize the hunting occurrence and optimize operating conditions.
➢ Various information about positioner can be processed by HART communication. (option)
➢ Valve system becomes more stable by using 4-20 mA analog output function (option).
➢ Different valve characteristics can be adjusted – Linear, Quick Open, Equal Percentage, and User Set which user can make 5 points or 18 points characterizations.
➢ Tight Shut – Close and Shut - Open can be set.
➢ PD parameters can be adjusted in the field without any additional communicator.
➢ Split range 4 to 12 mA or 12 to 20 mA can be set.
➢ Operating temperature for remote sensor of YT-2501 series is -40 to 120 °C. Operating temperature for positioners is -30 to 80 °C (Please check certified explosion proof temperature)
➢ Hand calibration function can set Zero point or End point manually.
➢ It has IP66 protection grade. (excluding the pressure gauges)

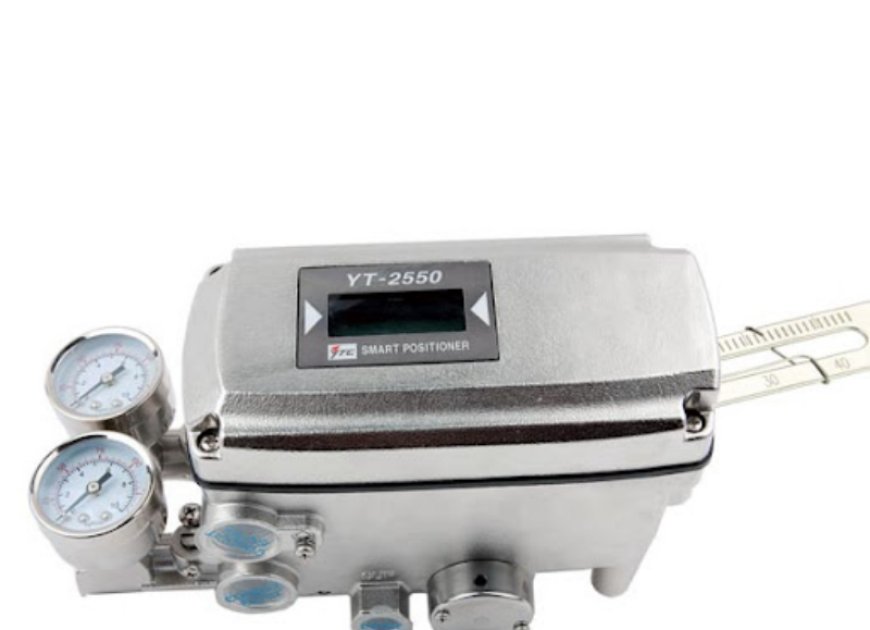

➢ Polyester powder coating resists the corrosion process. (except YT-2550)
➢ Maintenance of the positioner is easy because of modularized inner structure.
Specification | YT2500 (Standard Base Model) | YT2501 (HART Communication Version) | YT2502 (PROFIBUS PA Version) | YT2503 (FOUNDATION Fieldbus Version) |
Product Model | Rotork YT2500 Digital Valve Controller | Rotork YT2501 HART Digital Valve Controller | Rotork YT2502 PROFIBUS PA Digital Valve Controller | Rotork YT2503 FOUNDATION Fieldbus Digital Valve Controller |
Core Communication Protocol | Basic current-pneumatic control; SFN local communication | HART 6/7 (FSK over 4-20mA two-wire loop) | PROFIBUS PA (IEC 61158-2) | FOUNDATION Fieldbus (FF) H1 (IEC 61158-2) |
Input Control Signal | 4–20 mA DC, two-wire loop-powered; configurable split-range operation; minimum driving current: 3.85 mA | 4–20 mA DC, two-wire loop-powered; configurable split-range operation; minimum driving current: 3.85 mA | 9–32 VDC bus-powered; PROFIBUS PA digital setpoint input; configurable split-range operation | 9–32 VDC bus-powered; FOUNDATION Fieldbus digital setpoint input; configurable split-range operation |
Input Resistance | 300 Ω typical at 20 mA DC | 300 Ω typical at 20 mA DC | 17.2 mA max basic current | 17.2 mA max basic current |
Output Signal | Pneumatic output to actuator; no electrical analog output | Pneumatic output to actuator; HART digital communication; optional 4-20 mA valve position feedback output | Pneumatic output to actuator; PROFIBUS PA digital communication | Pneumatic output to actuator; FOUNDATION Fieldbus digital communication |
Applicable Actuators | Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards | Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards | Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards | Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards |
Valve Travel Range | Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95° | Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95° | Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95° | Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95° |
Positioning Accuracy | ±0.5% of Full Scale (F.S.) | ±0.25% of Full Scale (F.S.) | ±0.25% of Full Scale (F.S.) | ±0.25% of Full Scale (F.S.) |
Repeatability | ±0.2% of Full Scale (F.S.) | ±0.1% of Full Scale (F.S.) | ±0.1% of Full Scale (F.S.) | ±0.1% of Full Scale (F.S.) |
Hysteresis | ≤0.2% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) |
Dead Band | ≤0.2% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) | ≤0.1% of Full Scale (F.S.) |
Configurable Flow Characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 16-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics | Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics |
Supply Air Pressure Range | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) | 140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi) |
Steady-State Air Consumption | ≤0.18 Nm³/h (10.6 scfh) at 140 kPa supply pressure | ≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure | ≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure | ≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure |
Maximum Air Delivery Flowrate | 100 L/min (N) max at 140 kPa for single-acting actuators; 220 L/min (N) max at 400 kPa for double-acting actuators | 110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators | 110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators | 110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators |
Air Connections | 1/4 NPT internal thread (standard); optional Rc1/4 | 1/4 NPT internal thread (standard); optional Rc1/4 | 1/4 NPT internal thread (standard); optional Rc1/4 | 1/4 NPT internal thread (standard); optional Rc1/4 |
Electrical Connections | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 | 1/2 NPT internal thread (standard); optional M20×1.5, G1/2 |
Enclosure Protection Rating | IP66, NEMA Type 4X | IP66 / IP67, NEMA Type 4X | IP66 / IP67, NEMA Type 4X | IP66 / IP67, NEMA Type 4X |
Ambient Temperature Range | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C | Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C |
Ambient Humidity Range | 5% to 95% RH (non-condensing) | 5% to 95% RH (non-condensing) | 5% to 95% RH (non-condensing) | 5% to 95% RH (non-condensing) |
Explosion Protection Rating | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) |
Core Control & Diagnostic Functions | One-touch auto-calibration, adaptive PID control parameter tuning, basic valve health diagnostics, local LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation for high shock & vibration immunity | Auto-calibration, adaptive control parameter self-tuning, advanced valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, Partial Stroke Test (PST) capability, valve signature analysis, cycle counting, travel histogram, stick-slip detection | Auto-calibration, adaptive control parameter self-tuning, advanced valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, PST capability, valve signature analysis, native PROFIBUS PA function block integration | Auto-calibration, adaptive control parameter self-tuning, full-function valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, PST capability, valve signature analysis, native FOUNDATION Fieldbus function block integration |
Configuration Tools | Local push-button panel, Rotork FieldTalk™ Software | HART Communicator (Model 375/475), Rotork FieldTalk™ Software | PROFIBUS PA Configuration Tool, Rotork FieldTalk™ Software | FOUNDATION Fieldbus Configuration Tool, Rotork FieldTalk™ Software |
Key Global Approvals & Certifications | CE, ATEX, IECEx, FM, CSA, CCC, CRN | CE, ATEX, IECEx, FM, CSA, CCC, CRN, HART Certified | CE, ATEX, IECEx, FM, CSA, CCC, CRN, PROFIBUS PA Certified | CE, ATEX, IECEx, FM, CSA, CCC, CRN, FOUNDATION Fieldbus Certified |
Typical Applications | General industrial process control, water & wastewater treatment, thermal power plants, standard chemical processes, oil & gas midstream/downstream, food & beverage industry | Large-scale industrial automation systems with HART network, high-end process control requiring valve health monitoring and diagnostics | Integrated process plants with PROFIBUS PA network, high-volume industrial automation, digital plant applications | High-end digital plant applications with FOUNDATION Fieldbus network, precision process control in oil & gas, petrochemical, and power generation industries |
Packaging & Shipping
Packaging: Original box
