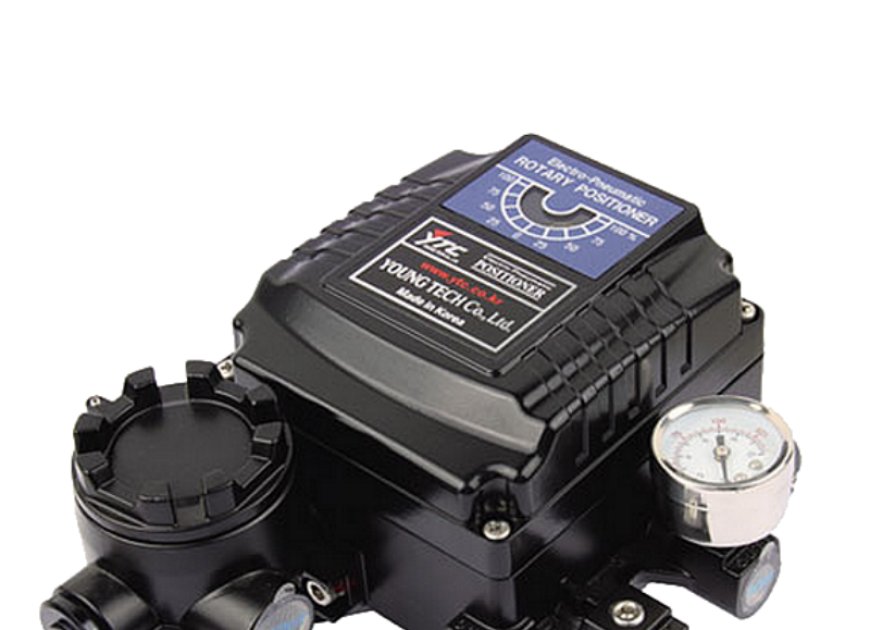

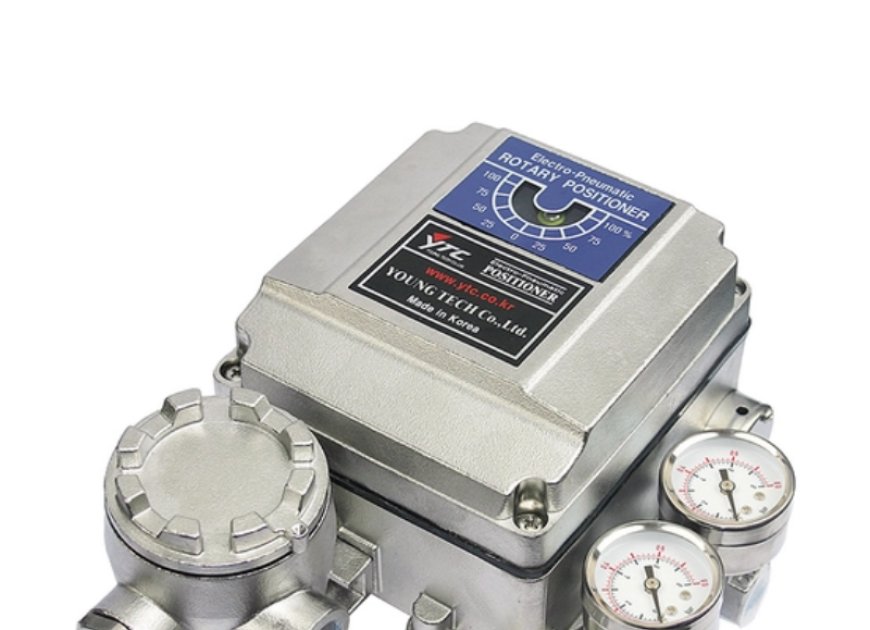

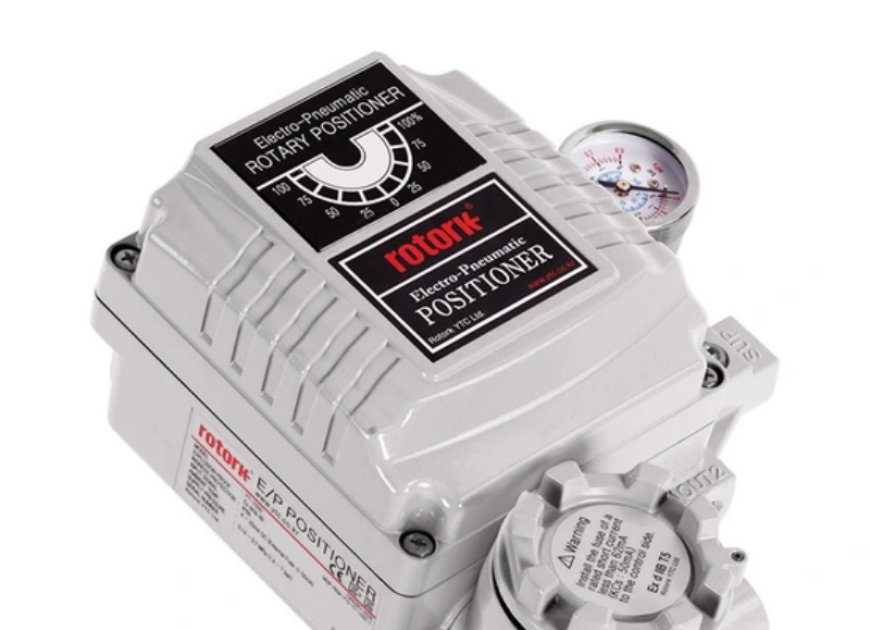

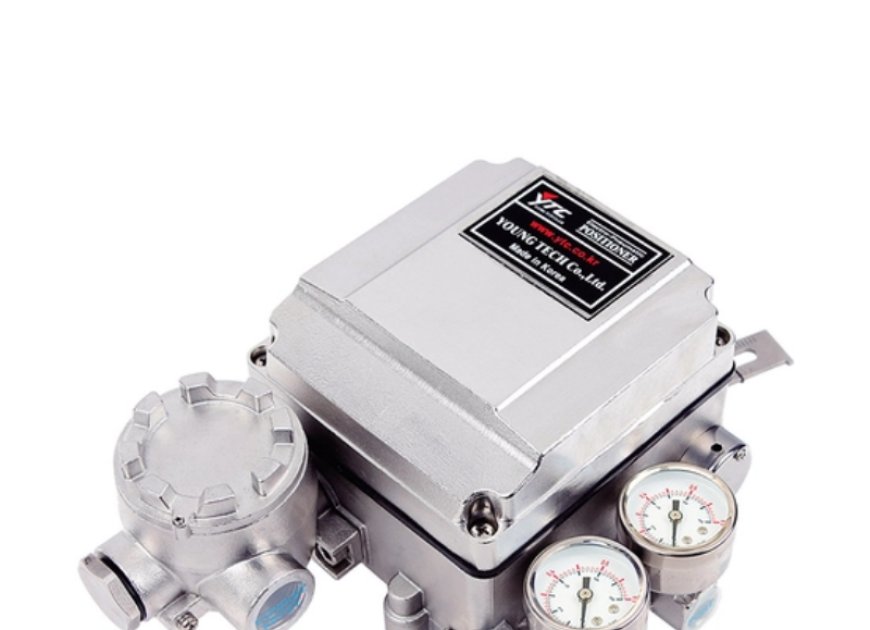

Rotork YT-1000 Valve Positioners

PRODUCT DESCRIPTION

Main Features and Functions

➢ It is compatible with most of controllers.

➢ Response time is very fast and accurate.

➢ Split range 4~12mA or 12~20mA can be set by simple operating. (Inform us when ordering as the parts are different.)

➢ Low air consumption.

➢ Simple Direct / Reverse Action change.

➢ Simple Zero & Span adjustment.

➢ Position transmitter or limit switch is available as internal or external option on the positioner.

However, positioner is non-explosion type when internal option has been selected. In case of external option, both the positioner and the external products can be selected with explosion-proof certified products.

➢ Orifices can be installed even in the field to minimize the hunting occurrence and optimize operating conditions.

➢ A/M switch can be used to direct supply air to the actuator or to manually operate the positioner or valve without any signal.

➢ It has IP66, Type 4X (FM) ingress protection grade.

➢ Polyester powder coating resists the corrosion process. (except YT-1050).

➢ Maintenance of the positioner is easy because of modularized inner structure

下·

Specification	YT1000 (Standard Base Model)	YT1001 (HART Communication Version)	YT1002 (PROFIBUS PA Version)	YT1003 (FOUNDATION Fieldbus Version)
Product Model	Rotork YT1000 Digital Valve Controller	Rotork YT1001 HART Digital Valve Controller	Rotork YT1002 PROFIBUS PA Digital Valve Controller	Rotork YT1003 FOUNDATION Fieldbus Digital Valve Controller
Core Communication Protocol	Basic current-pneumatic control; SFN local communication	HART 6/7 (FSK over 4-20mA two-wire loop)	PROFIBUS PA (IEC 61158-2)	FOUNDATION Fieldbus (FF) H1 (IEC 61158-2)
Input Control Signal	4–20 mA DC, two-wire loop-powered; configurable split-range operation; minimum driving current: 3.85 mA	4–20 mA DC, two-wire loop-powered; configurable split-range operation; minimum driving current: 3.85 mA	9–32 VDC bus-powered; PROFIBUS PA digital setpoint input; configurable split-range operation	9–32 VDC bus-powered; FOUNDATION Fieldbus digital setpoint input; configurable split-range operation
Input Resistance	300 Ω typical at 20 mA DC	300 Ω typical at 20 mA DC	17.2 mA max basic current	17.2 mA max basic current
Output Signal	Pneumatic output to actuator; no electrical analog output	Pneumatic output to actuator; HART digital communication; optional 4-20 mA valve position feedback output	Pneumatic output to actuator; PROFIBUS PA digital communication	Pneumatic output to actuator; FOUNDATION Fieldbus digital communication
Applicable Actuators	Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards	Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards	Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards	Pneumatic single-acting & double-acting, linear and rotary motion actuators; compliant with VDI/VDE 3845 and IEC 60534-6 international standards
Valve Travel Range	Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95°	Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95°	Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95°	Linear: 10–120 mm (0.4–4.7 in); Rotary: 45–95°
Positioning Accuracy	±0.5% of Full Scale (F.S.)	±0.25% of Full Scale (F.S.)	±0.25% of Full Scale (F.S.)	±0.25% of Full Scale (F.S.)
Repeatability	±0.2% of Full Scale (F.S.)	±0.1% of Full Scale (F.S.)	±0.1% of Full Scale (F.S.)	±0.1% of Full Scale (F.S.)
Hysteresis	≤0.2% of Full Scale (F.S.)	≤0.1% of Full Scale (F.S.)	≤0.1% of Full Scale (F.S.)	≤0.1% of Full Scale (F.S.)
Dead Band	≤0.2% of Full Scale (F.S.)	≤0.1% of Full Scale (F.S.)	≤0.1% of Full Scale (F.S.)	≤0.1% of Full Scale (F.S.)
Configurable Flow Characteristics	Linear, Equal Percentage (EQ%), Quick Opening, 16-point custom user-defined characteristics	Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics	Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics	Linear, Equal Percentage (EQ%), Quick Opening, 20-point custom user-defined characteristics
Supply Air Pressure Range	140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi)	140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi)	140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi)	140 kPa to 700 kPa (1.4 bar to 7 bar / 20 psi to 100 psi)
Steady-State Air Consumption	≤0.18 Nm³/h (10.6 scfh) at 140 kPa supply pressure	≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure	≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure	≤0.15 Nm³/h (9 scfh) at 140 kPa supply pressure
Maximum Air Delivery Flowrate	100 L/min (N) max at 140 kPa for single-acting actuators; 220 L/min (N) max at 400 kPa for double-acting actuators	110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators	110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators	110 L/min (N) max at 140 kPa for single-acting actuators; 250 L/min (N) max at 400 kPa for double-acting actuators
Air Connections	1/4 NPT internal thread (standard); optional Rc1/4	1/4 NPT internal thread (standard); optional Rc1/4	1/4 NPT internal thread (standard); optional Rc1/4	1/4 NPT internal thread (standard); optional Rc1/4
Electrical Connections	1/2 NPT internal thread (standard); optional M20×1.5, G1/2	1/2 NPT internal thread (standard); optional M20×1.5, G1/2	1/2 NPT internal thread (standard); optional M20×1.5, G1/2	1/2 NPT internal thread (standard); optional M20×1.5, G1/2
Enclosure Protection Rating	IP66, NEMA Type 4X	IP66 / IP67, NEMA Type 4X	IP66 / IP67, NEMA Type 4X	IP66 / IP67, NEMA Type 4X
Ambient Temperature Range	Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C	Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C	Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C	Standard: -40 °C to +85 °C; Optional low-temperature: -55 °C to +85 °C
Ambient Humidity Range	5% to 95% RH (non-condensing)	5% to 95% RH (non-condensing)	5% to 95% RH (non-condensing)	5% to 95% RH (non-condensing)
Explosion Protection Rating	Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc)	Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc)	Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc)	Standard: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga); Optional: Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc)
Core Control & Diagnostic Functions	One-touch auto-calibration, adaptive PID control parameter tuning, basic valve health diagnostics, local LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, gearless non-contact sensor activation for high shock & vibration immunity	Auto-calibration, adaptive control parameter self-tuning, advanced valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, Partial Stroke Test (PST) capability, valve signature analysis, cycle counting, travel histogram, stick-slip detection	Auto-calibration, adaptive control parameter self-tuning, advanced valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, PST capability, valve signature analysis, native PROFIBUS PA function block integration	Auto-calibration, adaptive control parameter self-tuning, full-function valve health diagnostics, local backlit LCD operation panel, bidirectional position measurement, selectable fail-safe (open/close) / fail-freeze function, PST capability, valve signature analysis, native FOUNDATION Fieldbus function block integration
Configuration Tools	Local push-button panel, Rotork FieldTalk™ Software	HART Communicator (Model 375/475), Rotork FieldTalk™ Software	PROFIBUS PA Configuration Tool, Rotork FieldTalk™ Software	FOUNDATION Fieldbus Configuration Tool, Rotork FieldTalk™ Software
Key Global Approvals & Certifications	CE, ATEX, IECEx, FM, CSA, CCC, CRN	CE, ATEX, IECEx, FM, CSA, CCC, CRN, HART Certified	CE, ATEX, IECEx, FM, CSA, CCC, CRN, PROFIBUS PA Certified	CE, ATEX, IECEx, FM, CSA, CCC, CRN, FOUNDATION Fieldbus Certified
Typical Applications	General industrial process control, water & wastewater treatment, thermal power plants, standard chemical processes, oil & gas midstream/downstream, food & beverage industry	Large-scale industrial automation systems with HART network, high-end process control requiring valve health monitoring and diagnostics	Integrated process plants with PROFIBUS PA network, high-volume industrial automation, digital plant applications	High-end digital plant applications with FOUNDATION Fieldbus network, precision process control in oil & gas, petrochemical, and power generation industries
