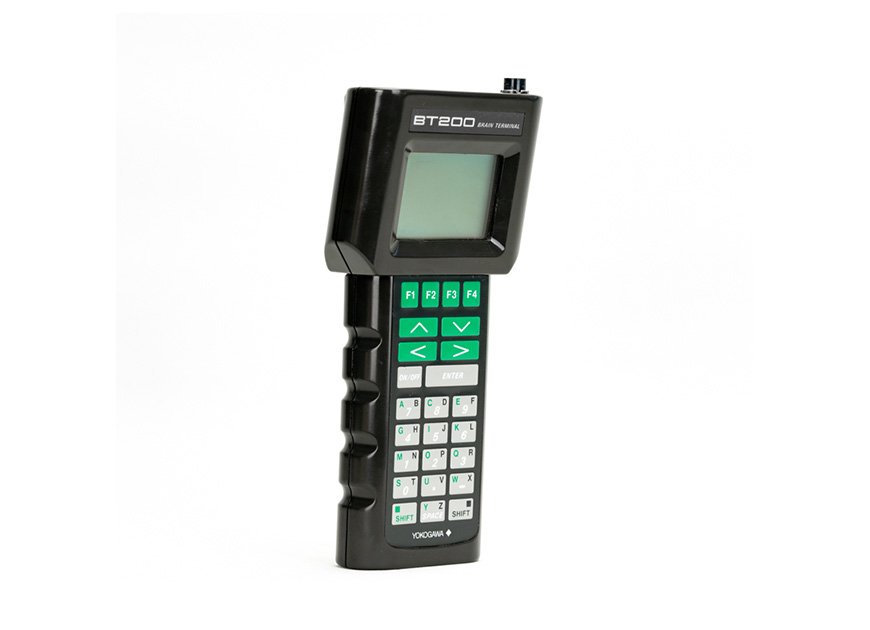

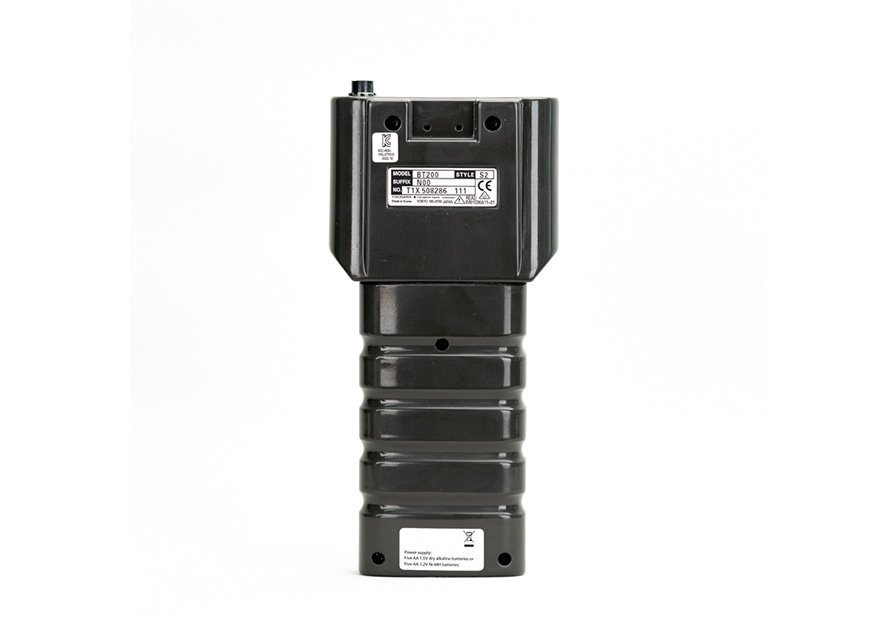

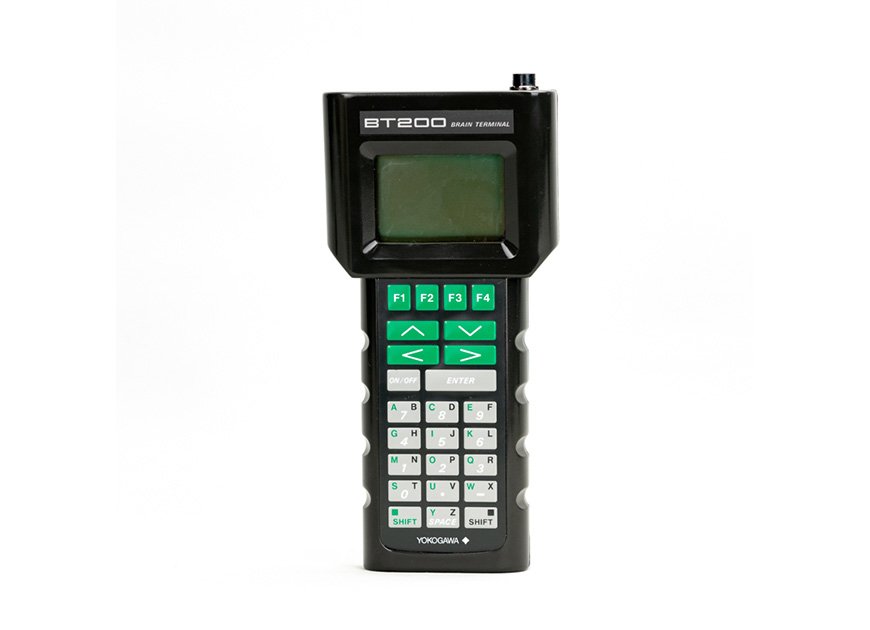

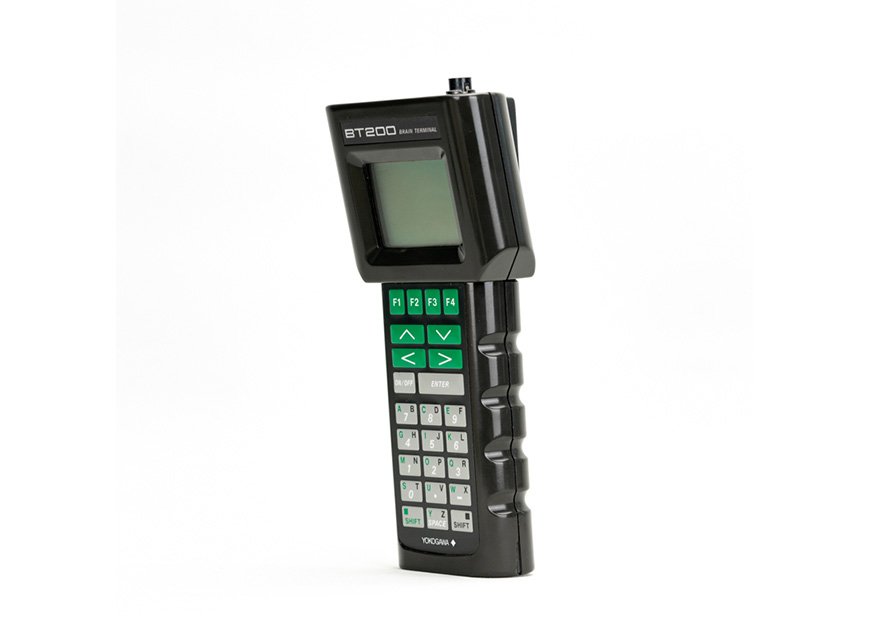

As a portable terminal, the Model BT200 BRAIN TERMINAL is used in combination with equipment using brain communication for setting, changing, displaying and printing out parameters such as tag number, output mode, and range, through simultaneous communication. It also monitors I/O values and self-check results, sets constant-current output , and allows zero adjustments. The Model BT200 BRAIN TERMINAL is used by connecting it between 4 to 20 mA DC signal transmission lines of the equipment or to a dedicated connector on the ESC (Signal Conditioner Communication Card) when the system is started up or maintained.
• Online monitoring and communication The modulated communication signal does not interrupt the 4 to 20 mA DC signals during communication.
• Common to all Yokogawa’s equipment The Model BT200 BRAIN TERMINAL works with all equipment that uses BRAIN communication.
• Easy of use A large display (21 characters by 8 lines) eases setup and alteration procedures in English prompting interactive sequences. •Diagnostics/security with error messages
• Self-check function • Security code protection of setpoints
• Low battery voltage alarm
• Automatic power-off l
•Printer (BT200-P00)
Printer prints out tag numbers and other parameters on the spot.
Wide Compatibility: It can communicate with multiple Yokogawa devices that use the BRAIN protocol, reducing the need for different configuration tools for different devices.
Comprehensive Functions: It integrates parameter setting, monitoring, diagnosis, and printing functions, which can meet various needs in the process of device operation and maintenance.
High Reliability: With functions such as self - diagnosis and setpoint protection, it can ensure the stable operation of the device and the security of data.
Portability: It is lightweight and easy to carry, which is convenient for on - site operation and maintenance personnel to use.
Display | LCD dot matrix, 21 characters × 8 lines |
Control | Membrane switches (4 function keys, 20 general keys, and 1 power switch) |
Printing (BT200 - P00) | Thermal printing |
Power Supply | Five 1.5V AA dry alkaline batteries |
Communication Line | Length: up to 2 km |
Dimensions | BT200 - N00: 228×110×51 mm |
Approximate Weight | BT200 - N00: 510 g |
Ambient Temperature | BT200 - N00: - 15 - + 55℃ |
Ambient Humidity | BT200 - N00: 5 - 95% at 40℃ (to avoid condensation) |
EMC Conformity Standards | EN 61326 - 1 Class A, Table 2 (for use in industrial locations), EN 61326 - 2 - 3 |

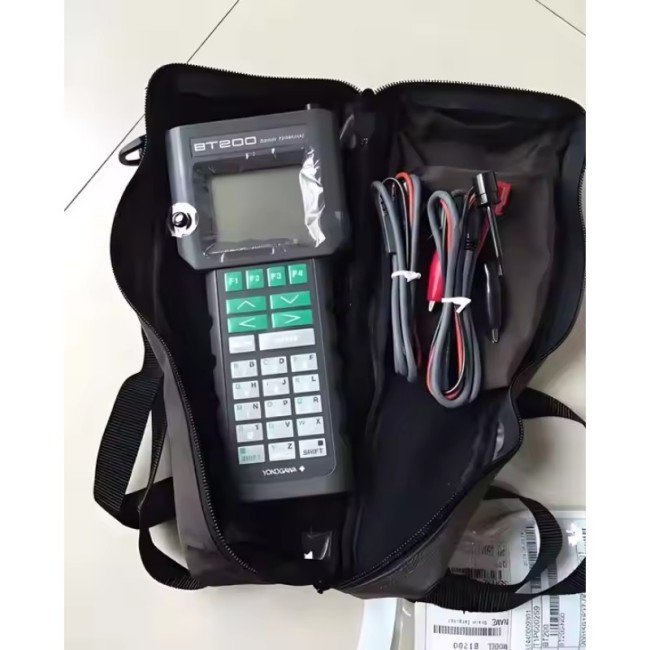

Packaging: Original bag and box
