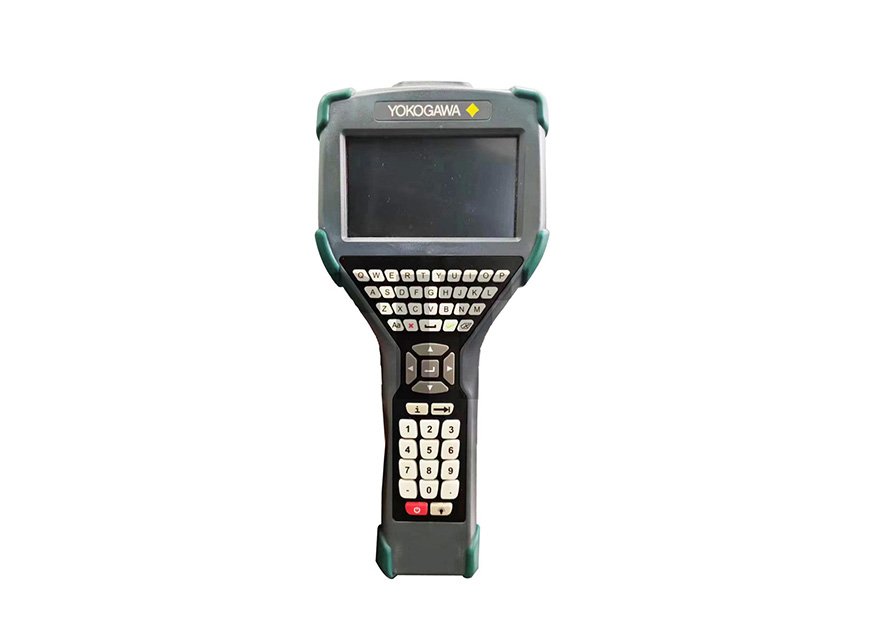

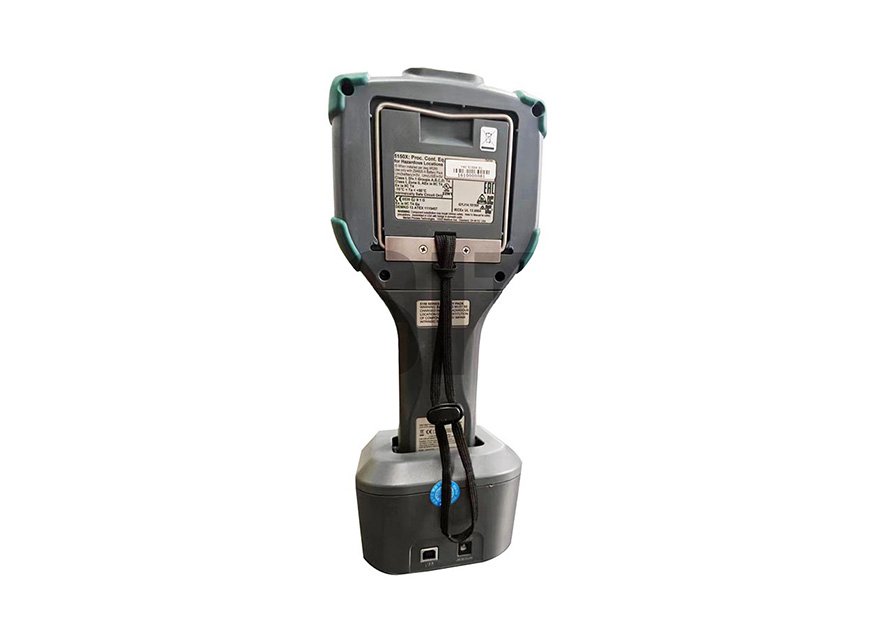

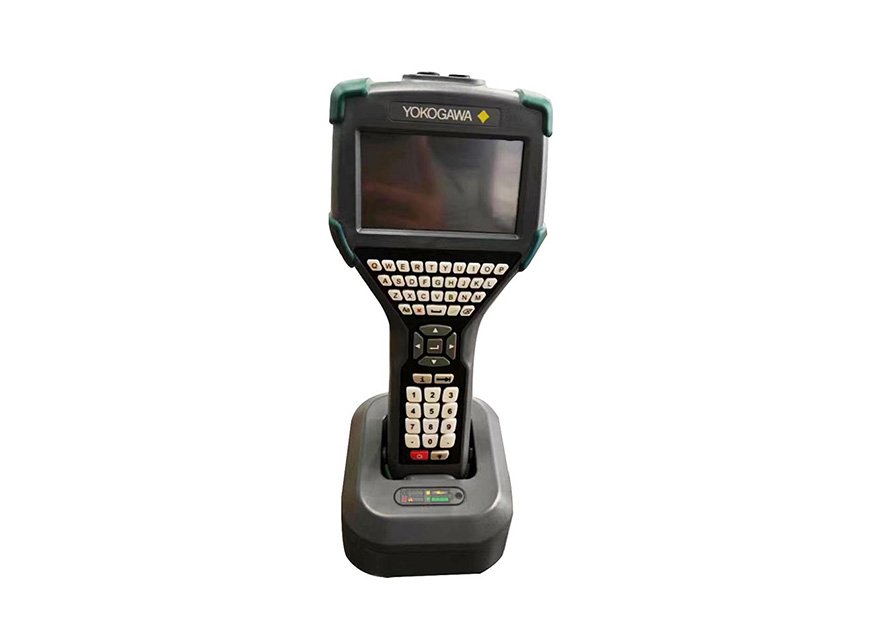

The YHC5150X FieldMate Handheld Communicator is the latest Intrinsically Safe HART® communicator from Yokogawa Corporation of America. All HART® field devices can be configured, polled, and trimmed utilizing a Windows-Embedded CE™ based system for faster processing and greater storage capacity. In addition, all options are standard, and no subscription is required. The YHC5150X is a full function, DD Direct, HART® Communicator supporting Universal, Common Practice and Device Specific commands for commissioning, configuration, and maintenance operations.
• Reads manufacturers’ DDs in their native format without the need for translations
• HART® -compliant modem communicates with any registered or unregistered HART® Device, including HART® 6 and 7
• Features an ergonomic, handheld design
• Enhanced 4.3” diagonal anti-glare touchscreen with color graphic display (no stylus required)
• Full QWERTY keyboard for commissioning new transmitters
• On Demand Help Menus and teachable device-specific short cuts
• More than twice the battery capacity of any handheld communicator
• Manage device information
• Integrated multi-language support
Processor | 1 GHz microprocessor |
Memory | Internal flash: 512 MB |
Display | 4.3 - inch diagonal anti - glare enhanced touch - screen |
Keypad | 52 keys including QWERTY keys, 12 alphanumeric keys, tab key, backlight key, power key, and 4 cursor - control (arrow) keys; Membrane design with tactile feedback |
Weight | Approx. 2.1 lbs (0.91 kg) with battery |
Size | 303×142×48 mm (11.9×5.6×1.9 inches) |
Power Supply | Rechargeable lithium - ion power module |
Connection | HART: Two 4 - mm banana plugs (one common to HART) |
Environmental Conditions | Usage: +14°F (-10°C) to +122°F (+50°C), 0% to 95% RH (non - condensing) |
Certification | Class I, Division 1: Groups A, B, C, D; T4 (Culus) |

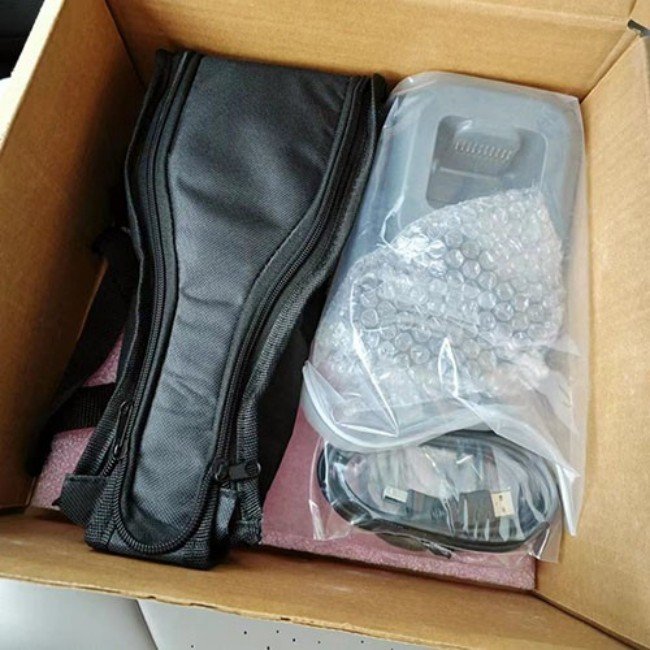

Packaging: Original bag and box
