The CA500 and CA550, are the new high-performance and multi-function calibrators from Yokogawa. These newer models offer useful functions for field work and provide improved source and measurement accuracy, sufficient for calibrating field instruments with higher accuracy and confidence.
The CA500/550 delivers Versatility – Multi-function support allows accurate inspection of various field devices. Its robust and ruggedized body allows operation even in severe environmental conditions. Usability – New features provide powerful measurement functions to support field inspection. Durability – Energy efficient design allows for longer battery life, up to 16 hours, for long term field use.
Multi-function
• Sources and measures DC voltage, DC current, RTD, TC, resistance, frequency and pulse signals
• Corresponds to 17 types of TC standard (JIS/IEC/DIN/ASTM/GOST R)
• Corresponds to 14 types of RTD standard (JIS/IEC/GOST R)
Multiple source patterns
Linear sweep function
Continuously Source from 0% to 100%
Step sweep function
Change output in a staircase (step) pattern by specifying the number of steps. (The number of steps can be set from 2 to 20)
Program sweep function
Users can set the desired output value (%) and number of steps.
(10 steps for CA500, 20 steps for CA550)
Versatility – Multi-functionsupport allows accurate inspection of various field devices. Its robust and ruggedized body allows operation even in severe environmental conditions.
Usability – New features provide powerful measurement functions to support field inspection.
Durability – Energy efficient design allows for longer battery life, up to 16 hours, for long term field use.
Model | CA500 | CA550 |
Measurement functions | DC voltage (100 mV, 5 V, 50 V), | |
Source unit | DC voltage (100 mV, 1...5 V, 5 V, 30 V), | |
Supported sensor types | Thermocouples types K, E, J, T, N, L, U, R, S, B, C, KX, A, D, G, PLATINELII, PR20-40 | |
Accuracy DC voltage | ±0.015% | ±0.015% |
Accuracy DC current | ±0.015% | ±0.010% |
Accuracy resistance | ±0.020% | ±0.015% |
Accuracy RTD | ±0.3°C (typ. Pt100) | ±0.1°C (typ. Pt100) |
Accuracy thermocouple | ±0.5°C (typ. type K) | ±0.5°C (typ. type K) |
Display | Monochrome dot matrix LCD, built-in light | |
Interface | USB device | USB device and mass storage, HART communication mode |
Power supply | DC 5 V ±10%, max. 500 mA, 4 alkaline AA batteries, battery life approx. 16 h (measurement ON, 5 V output/10 kΩ or more) | |
Dimensions (mm) | 130 x 260 x 53; approx. 900 g (including batteries) | |

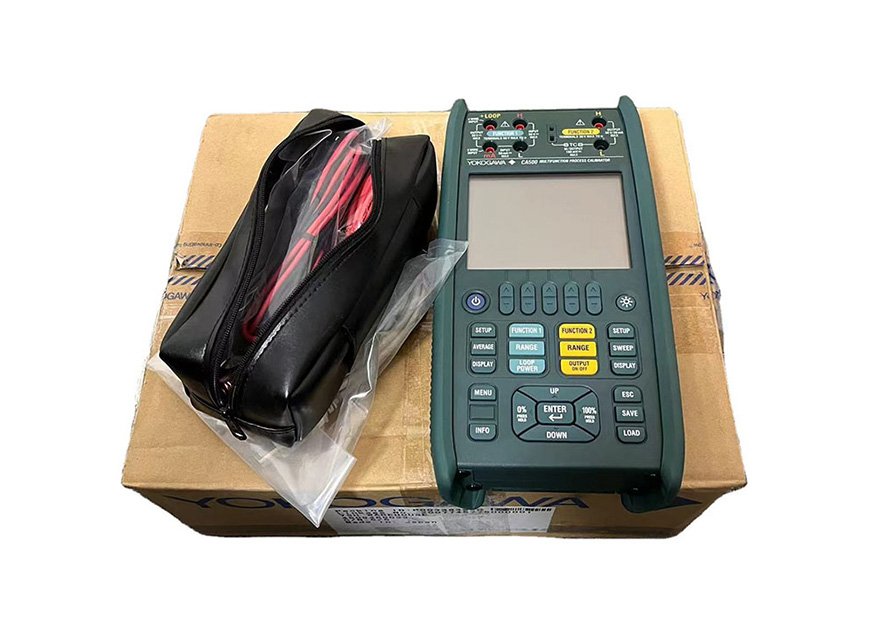

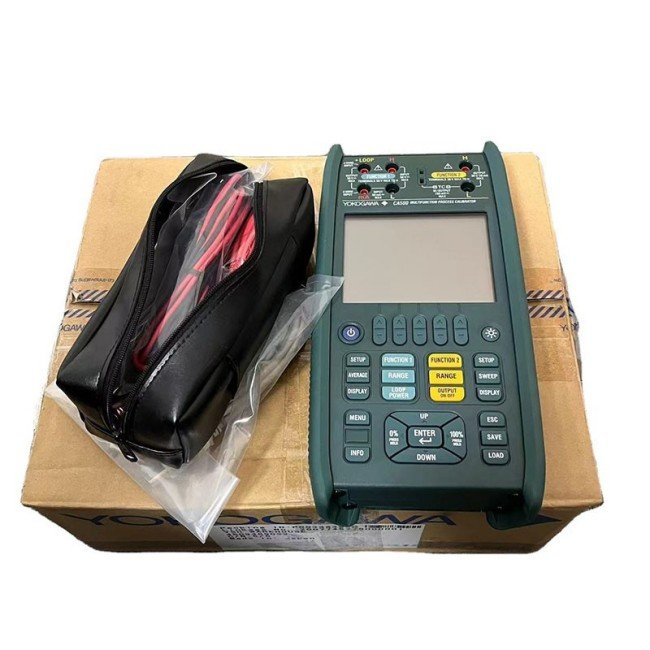

Packaging: Original bag and box
