■ Accurate, direct level measurement virtually unaffected by process conditions
■ Minimized maintenance with no moving parts and no re-calibration required
■ Fewer process penetrations and reduced installation costs with a MultiVariable™ level and interface transmitter
■ Easy installation and commissioning through two-wire technology and user-friendly configuration
■ Versatile and easy-to-use transmitter with field proven reliability
■ High application flexibility with a wide range of process connections, probe styles, and accessories
■ Direct level measurement means no compensation needed for changing process conditions (i.e. density, conductivity, temperature, and pressure)
■ No moving parts and no re-calibration result in minimized maintenance
■ Handles vapor and turbulence well
■ Suitable for small tanks, difficult tank geometry, internal obstacles, and unaffected by the mechanical design of
chambers
■ Allows for easy upgrade
■ Top down installation minimizes risk for leakages
Proven high reliability increases uptime
■ First 2-wire level and interface transmitter with field proven reliability
■ More than 120,000 units installed
■ Advanced signal processing for reliable measurement
■ Accurate level unaffected by changing process conditions
High application flexibility
■ Suitable for most liquid storage and monitoring level and interface applications
■ A wide selection of process connections and probe styles
■ Remote mounting, mounting bracket, Emerson Wireless 775 THUM™
Adapter, HART®Tri-Loop™, and probe centering discs accessories
■ Easy retrofit in existing chambers or available as complete assembly with high quality Rosemount chambers
Robust design reduces costs and increases safety
■ Leakage prevention and reliable performance under challenging conditions
■ Detachable transmitter head allows tank to remain sealed

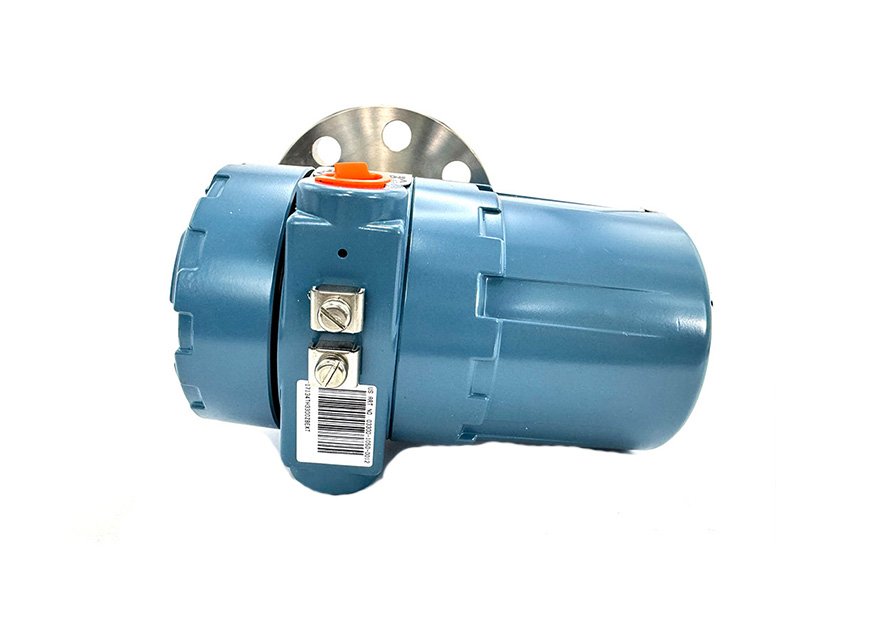

■ Dual Compartment housing separates cable connections and electronics
Easy installation and plant integration
■ Seamless system integration with HART, Modbus®, or IEC 62591 (WirelessHART®) with the THUM adapter
■ Allows for easy swap by matching existing tank connections
■ Cut-to-fit probes
■ Long lengths of rigid probes for robust measurements becomes cost-effective and practical to ship, store and install with the segmented probe option (code 4S)
■ Pre-configured or user-friendly configuration with wizard, autoconnect, dielectric calculator, and on-line help
■ MultiVariable – measures simultaneously level and interface, resulting in fewer process penetrations and reduces installation and wiring cost Minimized maintenance reduces cost
■ No mechanical moving parts that require maintenance
■ User-friendly software provides easy on-line troubleshooting with echo curve tool and logging
■ Adjustments without opening tank
■ No re-calibration or compensation needed due to changing process conditions
Easy replacement of old technology and best fit for chambers
■ Less need for maintenance reduces costs and improves measurement availability
■ Reliable measurement, independent of density, turbulence, and vibrations
■ Unaffected by the mechanical configuration of the chamber
■ Wide range of options to find the best fit in existing chamber or a complete assembly with Rosemount CMB high quality chambers
Specification Category | Details |

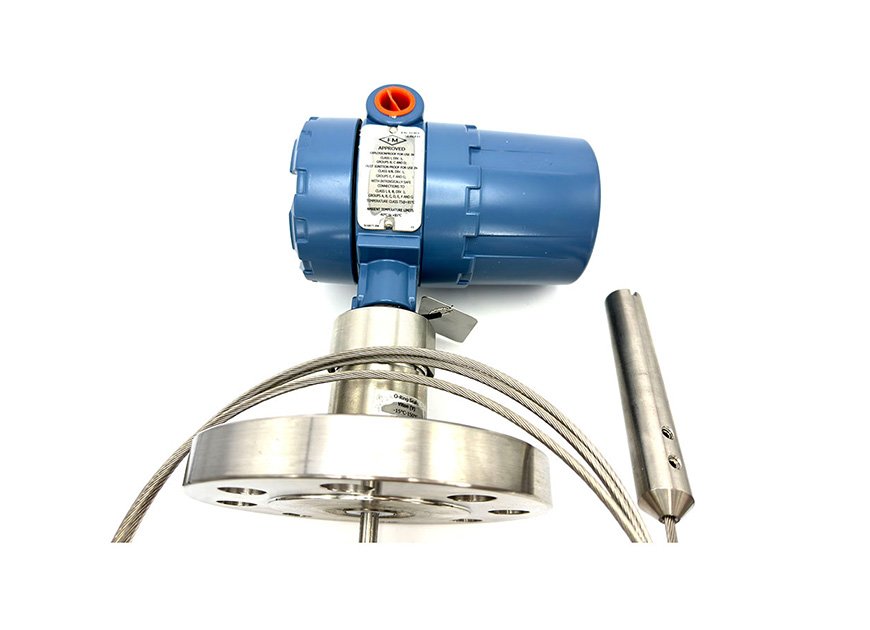

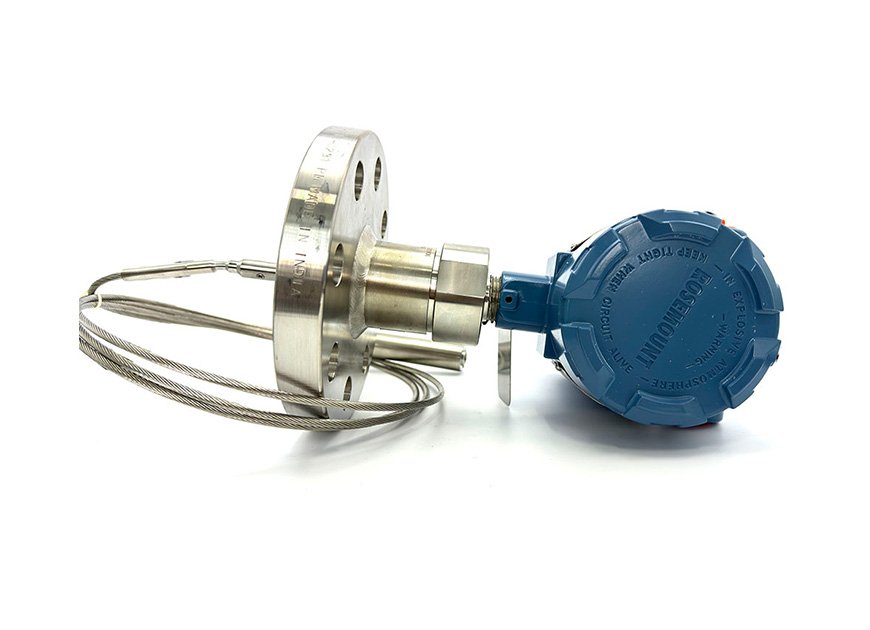

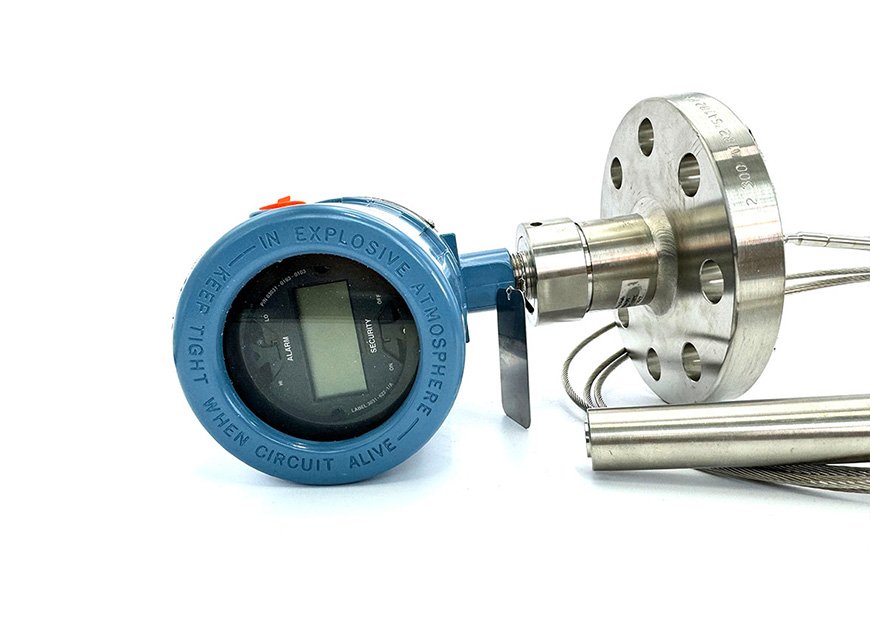

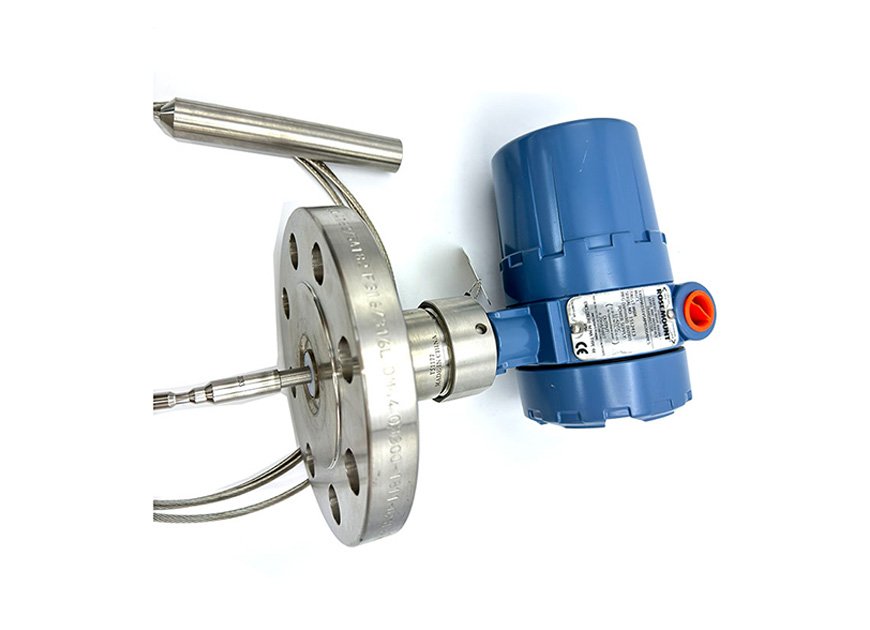

Product Model | Rosemount™ 3301 Guided Wave Radar Level Transmitter |
Measurement Principle | Time Domain Reflectometry (TDR) |
Application | Liquid level measurement; interface measurement available with fully submerged probe |
Measurement Range (Probe Lengths) | • Rigid single lead (8 mm): 0.4 m (1.3 ft) – 3 m (9.8 ft)• Rigid single lead (13 mm): 0.4 m (1.3 ft) – 6 m (19.7 ft)• Segmented rigid single lead: 0.4 m (1.3 ft) – 6 m (19.7 ft)• Flexible single lead: 1 m (3.3 ft) – 23.5 m (77.1 ft)• Flexible twin lead: 1 m (3.3 ft) – 23.5 m (77.1 ft)• Coaxial: 0.4 m (1.3 ft) – 6 m (19.7 ft) |
Accuracy | • ±5 mm (0.2 in) for probes ≤5 m (16.4 ft)• ±0.1% of measured distance for rigid probes >5 m• ±0.15% of measured distance for flexible probes >5 m |
Repeatability | ±1 mm (0.04 in) |
Operating Pressure | Full vacuum to 40 bar (580 psi) |
Process Temperature | -40 °C to 150 °C (-40 °F to 302 °F) |
Ambient Temperature | -40 °C to 80 °C (-40 °F to 176 °F) |
Power Supply | • Two wire loop powered: 11–42 Vdc• Intrinsically Safe: 11–30 Vdc• Explosion proof/Flameproof: 16–42 Vdc |
Output Signal | • 4–20 mA with HART® Revision 5• RS 485 Modbus® (RTU/ASCII) (requires 8–30 Vdc external power) |
Communication Protocols | HART®, Modbus®, WirelessHART® (with THUM adapter) |
Housing Material | • A: Polyurethane coated aluminum• S: Stainless steel CF8M (ASTM A743) |
Ingress Protection | NEMA 4X, IP66, IP67 |
Process Connection Materials | • 316L SST (EN 1.4404) (standard)• Alloy C 276, Alloy 400, PTFE coated (options) |
Process Connections | Flange (ANSI/ASME, DIN), 1–2 in NPT/BSPP thread, Tri Clamp |

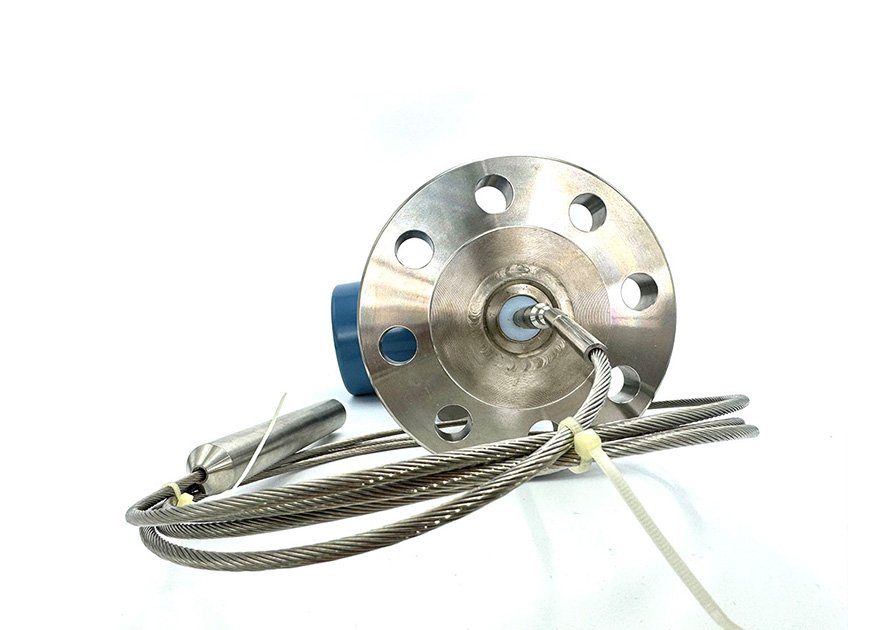

Probe Types | Rigid single lead, segmented rigid single lead, flexible single lead, flexible twin lead, coaxial, PTFE coated |
Weight | • Aluminum head: 2.5 kg (5.5 lb)• Stainless steel head: 5 kg (11 lb) |
Certifications | ATEX, CSA, FM, IECEx, CE (pending) |
Update Rate | Minimum 1 update per second |
Start up Time | <10 seconds |
Packaging: Original box
