l Easy to install and virtually unaffected by process conditions
l Increased safety, overfill prevention and safety integrated system suitability
l High application flexibility, including solids
l Minimized maintenance and no re-calibration required
Measurement principle
The distance to the surface is measured by short radar pulses. When a radar pulse reaches a media, part of the energy is reflected back to the Rosemount 5400 Level Transmitter. Based on the time difference between the transmitted and the reflected pulse; level, volume, and level rate are calculated.
Applications with, for example, turbulence, foam and long measuring ranges can reduce the reflected energy. The Rosemount 5400 from Emerson™ has the special dual port technology and can thereby detect the surface in challenging applications.
Non-contacting radar technology benefits
No compensation needed for changing process conditions
No moving parts and no re-calibration needed
Non-contacting technology is ideal for dirty, coating and corrosive applications
Storage and buffer tanks
Use Rosemount 5400 for highly reliable and accurate level readings with no moving parts or product contact, eliminating costly maintenance and improving safety.
Reactor and mixing tanks
Rosemount 5400 can help you withstand the rigors of reactor and mixing tanks. Easy to install and commission, it's also unaffected by virtually any fluid property change.
Solids measurement

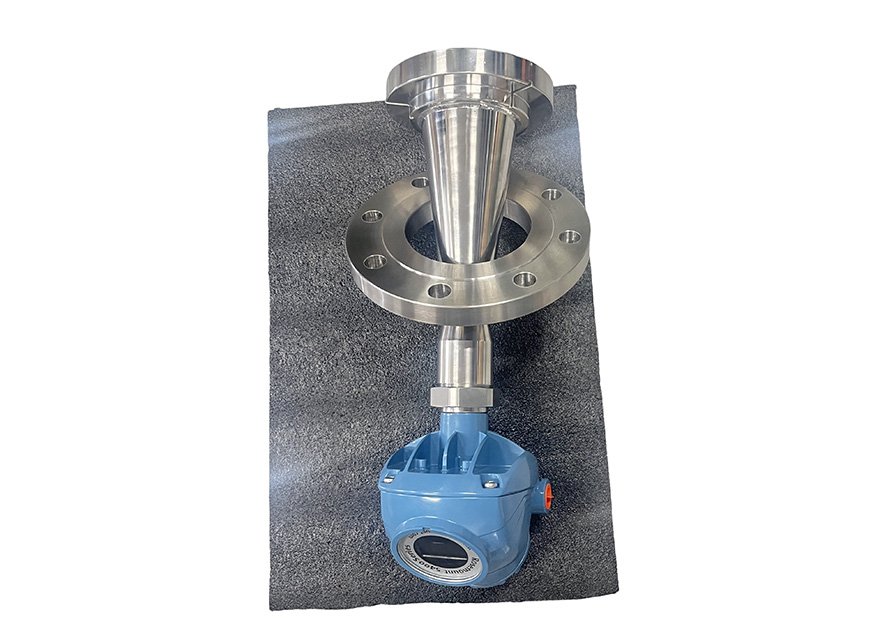

Rosemount 5402 for solids is the ideal solution for silos with rapid level changes. The narrow beam can avoid internal obstructions yet still keep good level measurement.
Best performance and uptime
Dual port technology ensures reliability, even with disturbing factors and longer measuring ranges
Condensation- and dirt-resistant antennas maximize uptime
Robust design reduces costs and increases safety
Robust, shock-resistant and vibration-proof design
Detachable head allows the tank to remain sealed
Easy installation and plant integration
Circular polarization minimizes installation constraints
Seamless system integration with HART®, FOUNDATION™ Fieldbus, Modbus®, or IEC 62591 (WirelessHART®) with the Emerson Smart Wireless THUM™ Adapter
Minimized maintenance reduces cost
Easy online troubleshooting with user friendly software, utilizing powerful echo curve and logging tools n
Predictive maintenance with advanced diagnostics and PlantWeb™ alerts
Specification Category | Details |
Product Model | Rosemount™ 5300 Series (5301: Liquid Level/Interface; 5302: Liquid Level + Interface) |
Measurement Principle | Time Domain Reflectometry (TDR) |
Applications | Liquids, slurries, solids; liquid interface measurement (submerged probe) |
Measurement Range | Up to 50 m (164 ft) |
Accuracy | ± 3 mm (0.12 in) or ± 0.03% of measured distance (whichever is greater) |
Repeatability | ± 1 mm (0.04 in) |
Operating Pressure | Full vacuum to 345 bar (5000 psi) |
Process Temperature | -196 °C to 400 °C (-320 °F to 752 °F) |
Ambient Temperature | -40 °C to 80 °C (-40 °F to 176 °F) |
Power Supply | 11–42 VDC (two wire loop powered); 8–30 VDC for Modbus |
Output Signals | 4–20 mA with HART® 7 (default)/HART® 5; FOUNDATION™ Fieldbus; RS 485 Modbus® (RTU/ASCII) |
Communication Protocols | HART®, FOUNDATION™ Fieldbus, Modbus®, WirelessHART® (with THUM adapter) |
Housing Material | Polyurethane coated aluminum (A); Stainless steel CF8M (S) |
Ingress Protection | NEMA 4X, IP66, IP67 |
Process Connection Materials | 316L SST (EN 1.4404) (standard); Alloy C 276, Alloy 400, PTFE coated (options) |
Process Connections | Flange (ANSI/ASME, DIN), 1–2 in NPT/BSPP thread, Tri Clamp |
Probe Types | Rigid single lead, Segmented rigid single lead, Flexible single lead, Rigid/flexible twin lead, Coaxial/large coaxial, PTFE coated, Vapor probe |
Probe Lengths | Rigid: 0.4 m (1.3 ft) – 6 m (19.7 ft); Flexible: 1 m (3.3 ft) – 50 m (164 ft); Coaxial: 0.4 m – 6 m |
Weight | Aluminum head: ~2.5 kg (5.5 lb); Stainless steel head: ~5 kg (11 lb) |
Certifications | SIL 2 (IEC 61508), ATEX, CSA, FM, IECEx, CE, TÜV, WHG (overfill prevention) |
Update Rate | Minimum 1 update per second |
Start up Time | < 40 seconds |
Warranty | Up to five years |

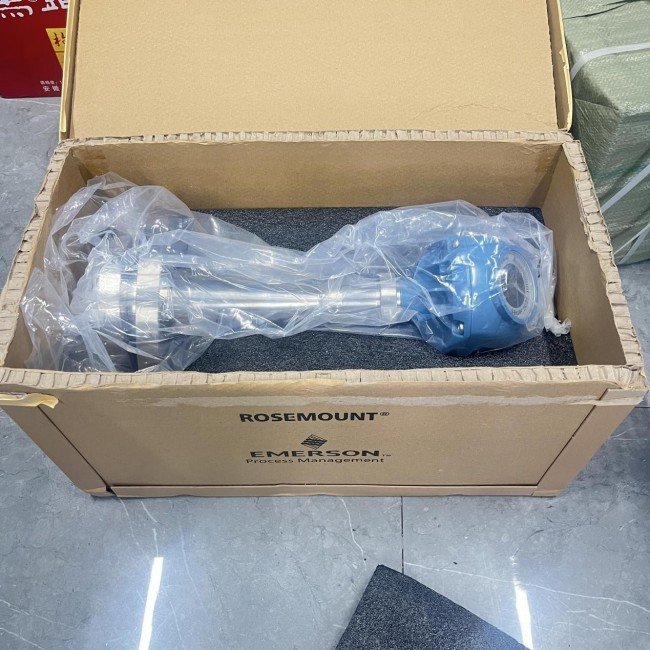

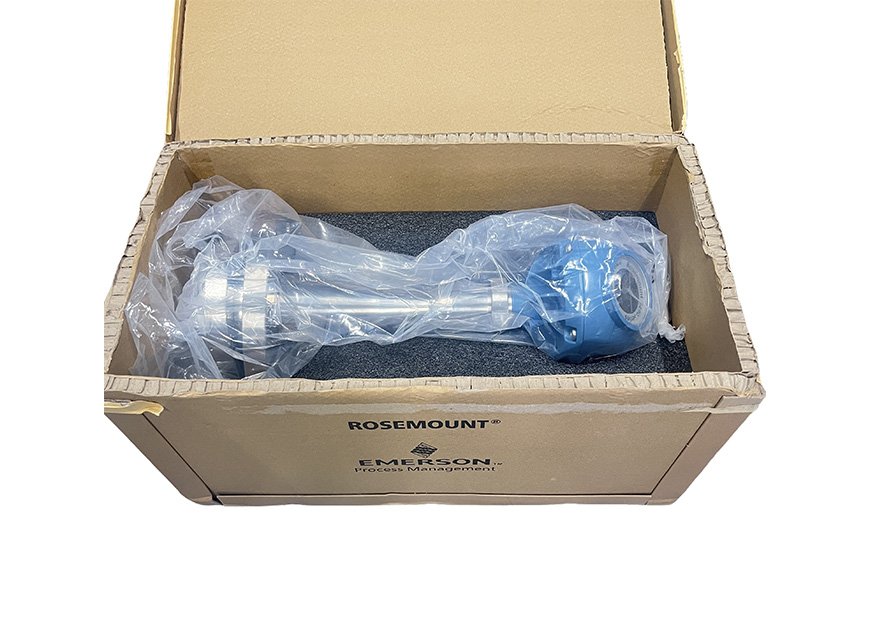

Packaging: Original box
