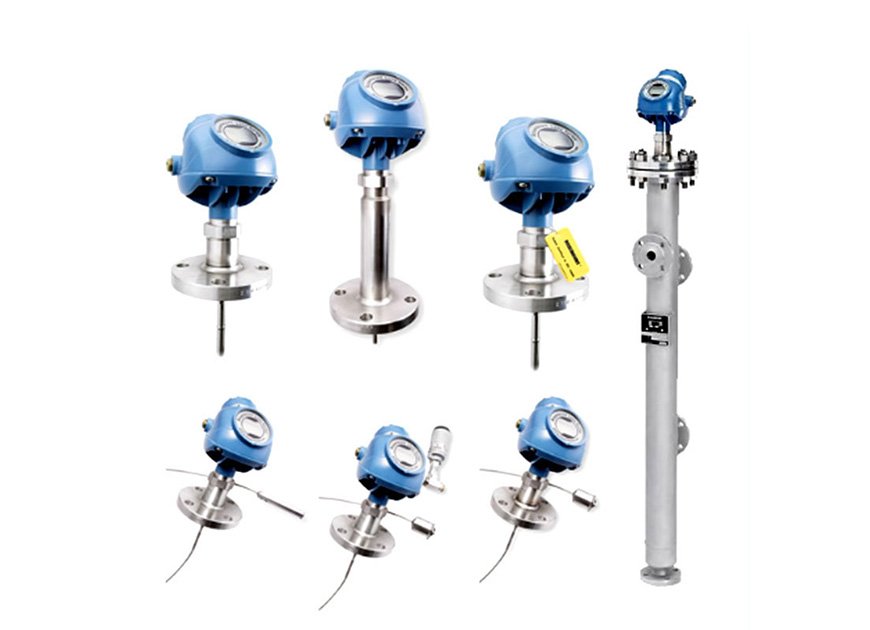

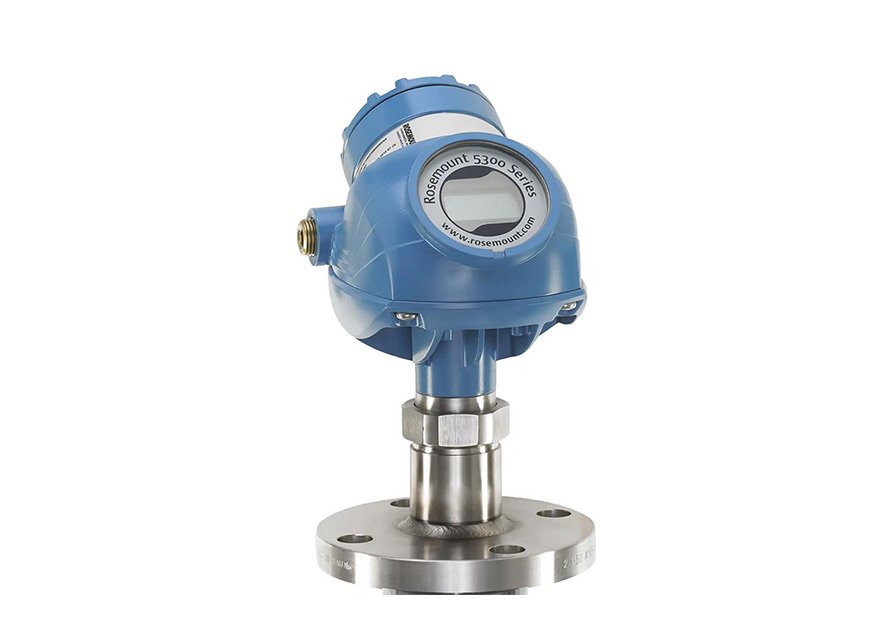

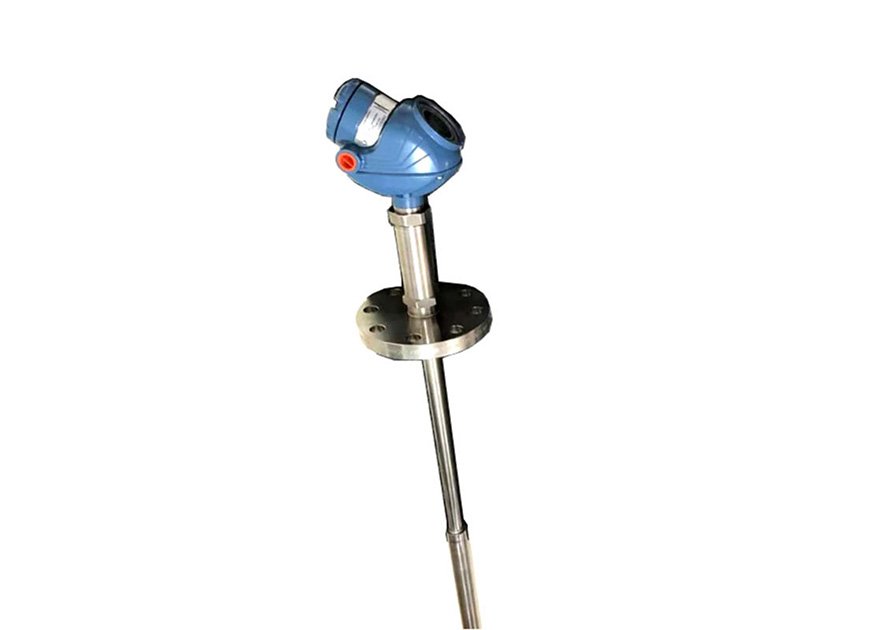

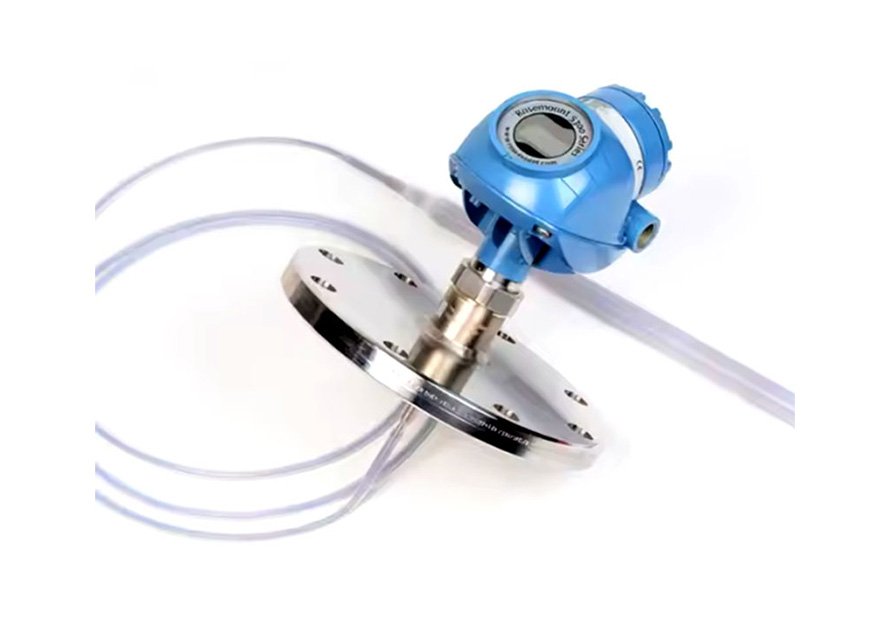

Rosemount 5300 Level Transmitter - Guided Wave Radar

■Industry leading measurement capability and reliability

■ Safety certified to IEC 61508 for SIL2 applications

■ Increased plant availability with predictive maintenance and easy troubleshooting

■ Reduced instrument count and process penetrations with a multivariable transmitter

Guided wave radar technology benefits

■ Highly accurate and reliable direct level measurement with no compensation needed for changing process conditions (such as density, conductivity, viscosity, pH, temperature, and pressure)

■ No moving parts and no re-calibration result in minimized maintenance

■ Handles vapor, dust, turbulence, and foam well

■ Suitable for small tanks, difficult tank geometry, internal obstacles, and unaffected by the mechanical design of chambers

■ Top down installation minimizes risk for leakages

Special Rosemount 5300 features

Optimized to suit more applications

■ Suitable for most liquid and solids level applications and liquid interface applications

■ Handles even the most challenging applications reliably, including process vessels, control, and safety systems

■ Easy retrofit in existing chambers or available as complete assembly with high quality Rosemount chambers

■ Dynamic Vapor Compensation assures accuracy also in saturated steam

■ Large coaxial probe optimized for interface applications were there is a need to measure level and interface level all the way up to flange

Best performance and uptime

■ Unique Direct Switch Technology and Probe End Projection improve capability and reliability particularly in challenging applications

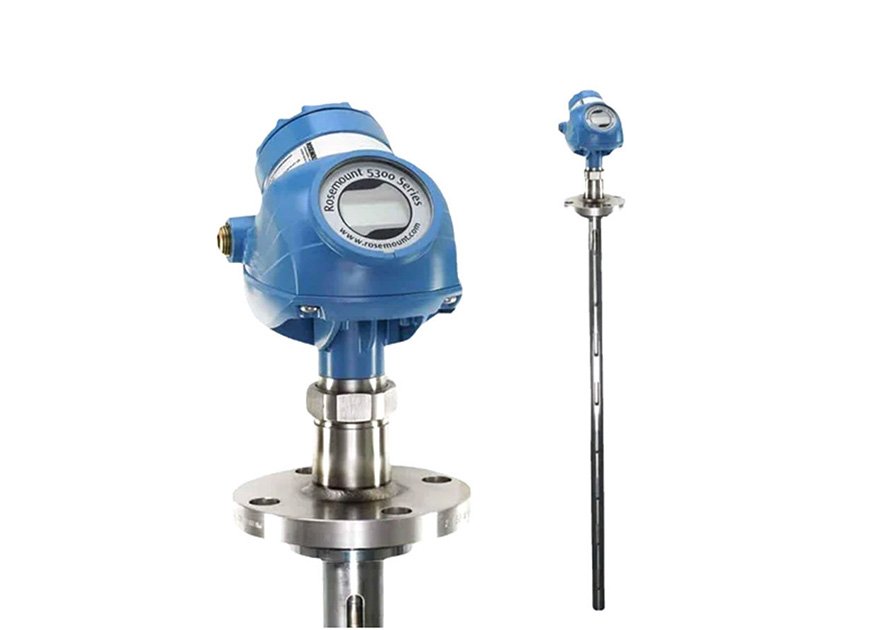

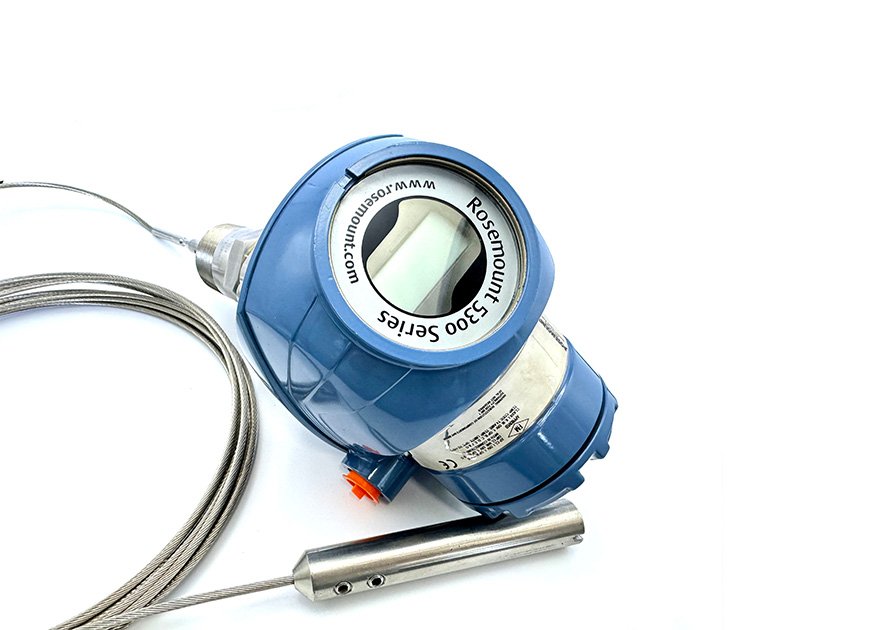

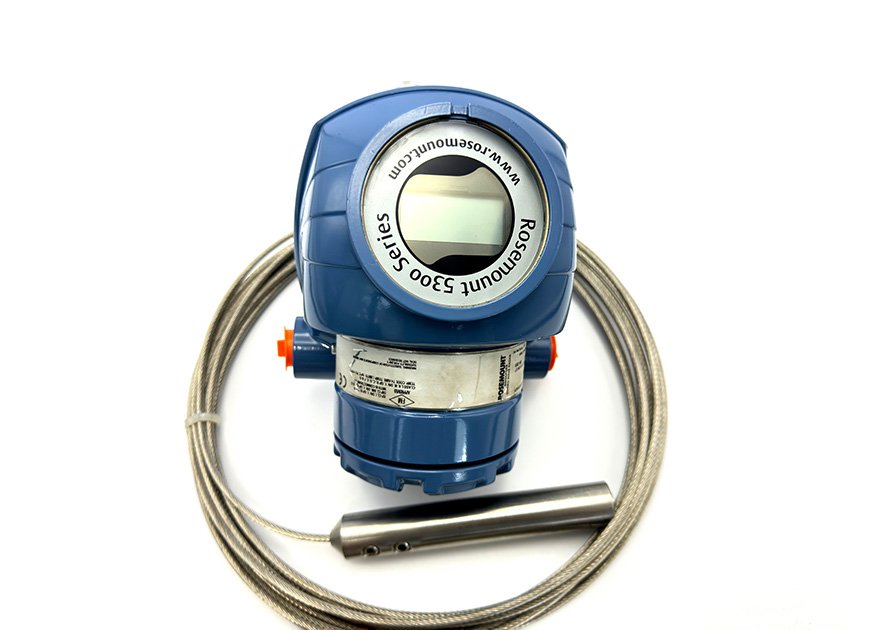

■ Single lead probe for long measuring ranges, obstructions and low dielectrics ensures reliability in more applications, such as viscous media

■ Signal processing algorithm makes it possible to distinguish between two liquids with a top layer down to 1 in. (2.5 cm).

■ Smart Galvanic Interface results in a more stable microwave and EMI performance with minimized effects from outside disturbances

Robust design and increased safety

■ Heavy-duty unique hardware for extreme temperature and pressures with multiple layers of protection

■ EchoLogics® and smart software functions provide enhanced ability to keep track of the surface and detect a full vessel situation

■ Third party approved for overfill prevention and Safety Integrated System SIL3 suitability

■ Electronics and cable connections in separate compartments provides safer handling and improved moisture protection

■ Online device verification and reliable detection of high level conditions with the verification reflector

Easy installation and plant integration

■ Easy upgrade by matching existing tank connections and cut-to-fit probes

■ Long lengths of rigid probes for robust measurements become cost-effective and practical to ship, store and install with the segmented probe option (code 4S)

■ Multivariable device reduces the number of process penetrations

■ Seamless system integration with HART® , FOUNDATION™ Fieldbus, Modbus® , or IEC 62591 (WirelessHART® ) with the Emerson Wireless 775 THUM™ Adapter October 2025 Rosemount 5300 Level Transmitter

■ FDI package with support for AMS Device Configurator, provides interfaces for saving and restoring configurations, expert options, configuration report, and echo curve.

■ Enhanced DD with step-by-step configuration and echo curve capability in tools such as AMS Device Manager, and handheld communicator

■ DTM™ with echo curve capability for use in FDT® /DTM compatible configuration tools

■ Pre-configured or easy configuration in Rosemount Radar Master with a five-step wizard, auto connect, and online help

Minimized maintenance reduces cost

■ Easy online troubleshooting with user friendly software, utilizing powerful echo curve and logging tools

■ Signal Quality Metrics diagnostics detect product build-up on probe to monitor turbulence, boiling, foam, and emulsions

■ Predictive maintenance with advanced diagnostics and Plantweb™ alerts

■ Modular design for reduced spare parts and easy replacement of the transmitter housing without opening the tank

Packaging & Shipping

Packaging: Original box
