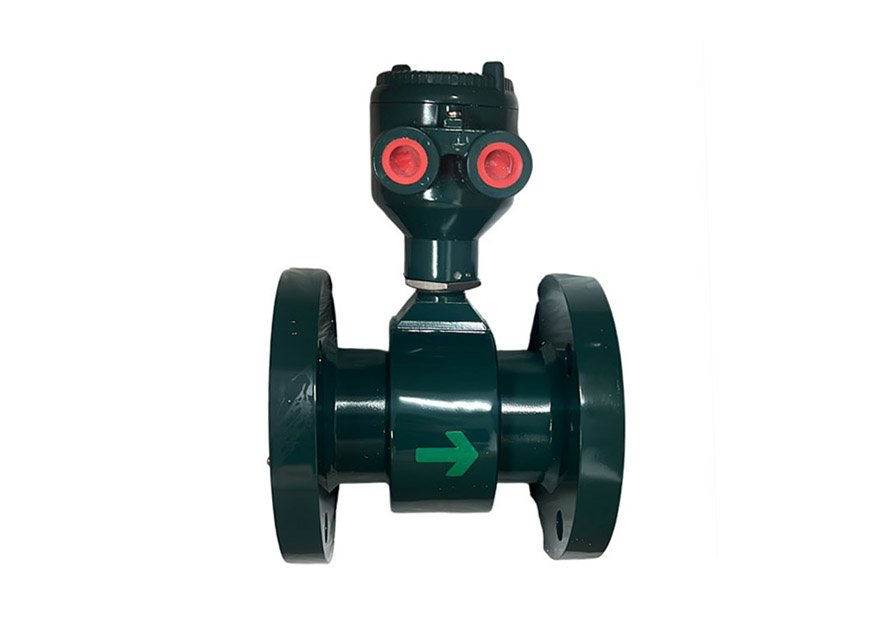

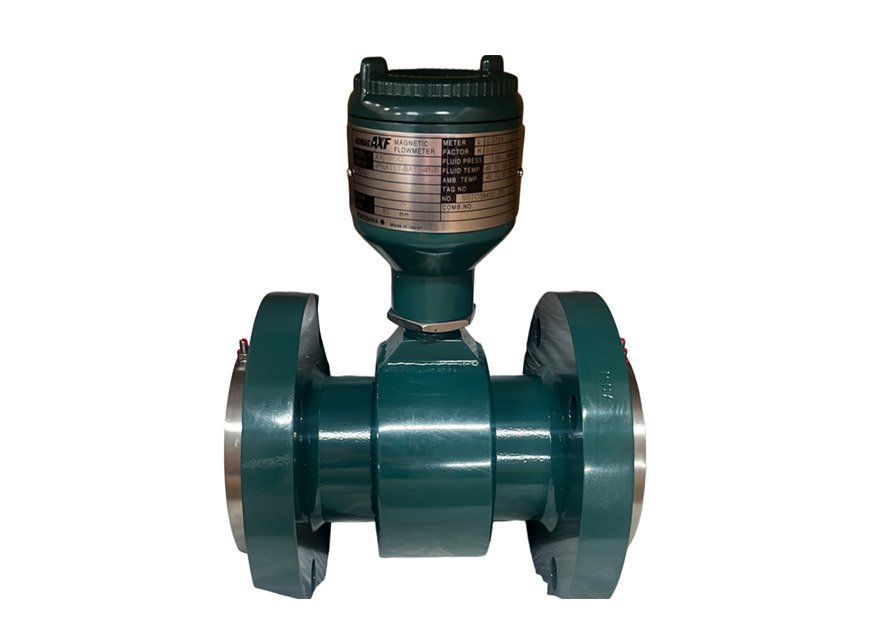

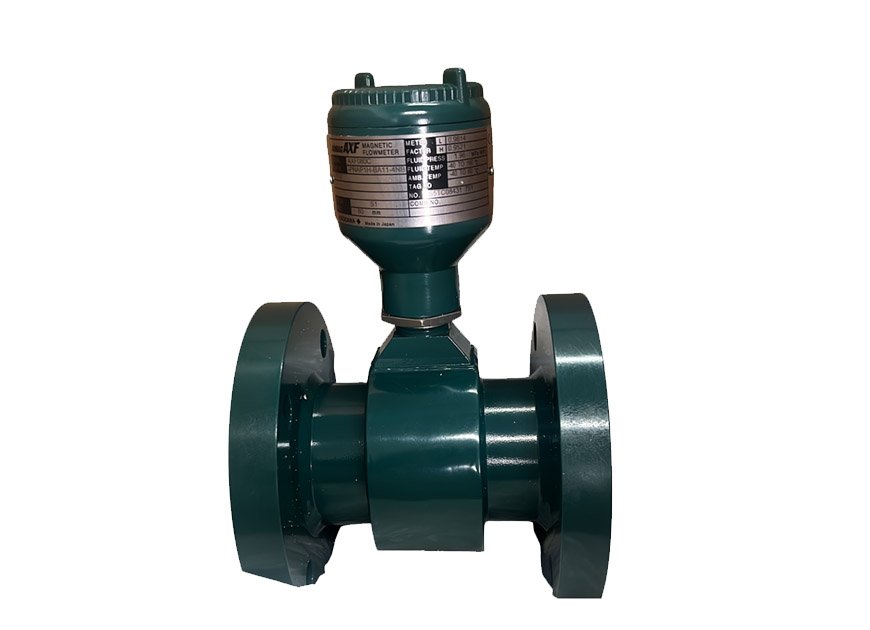

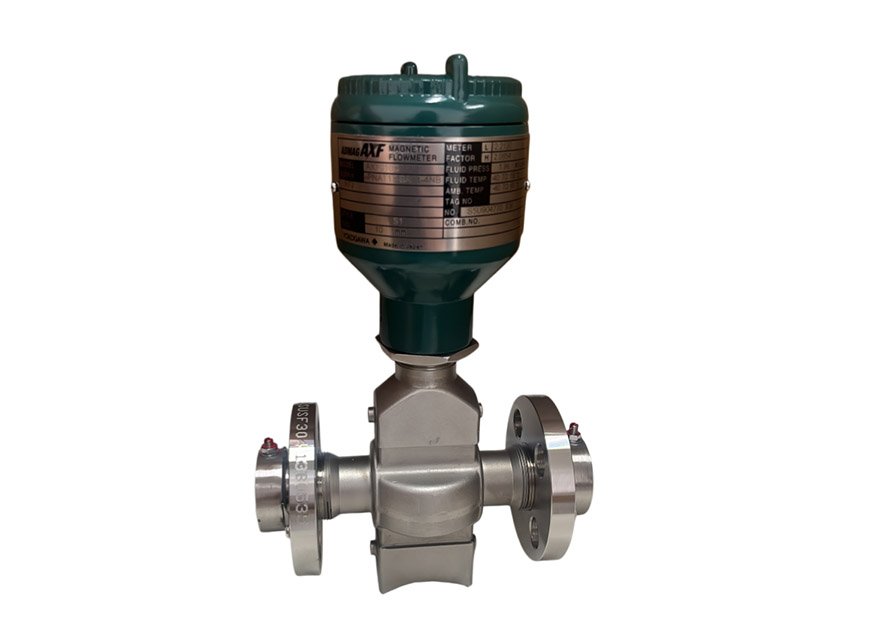

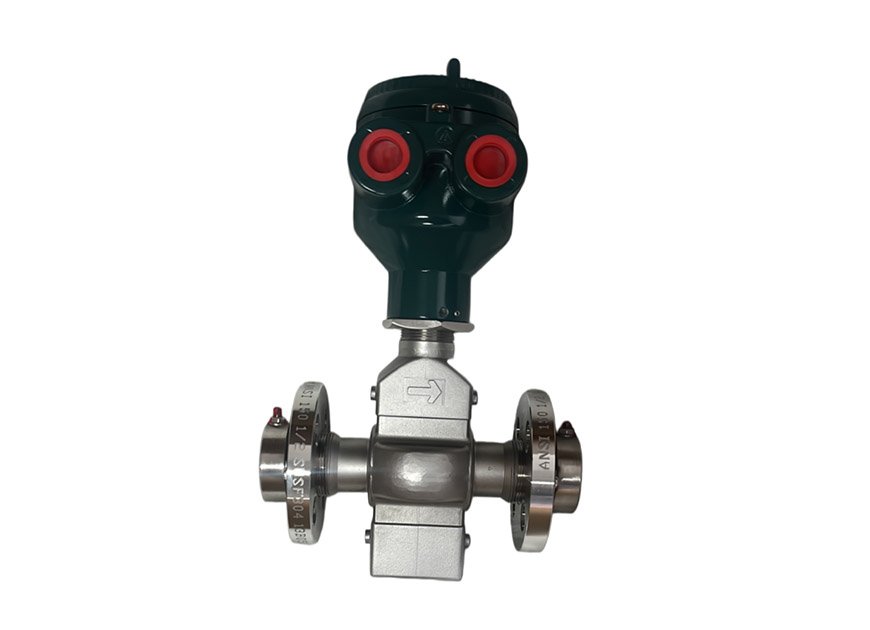

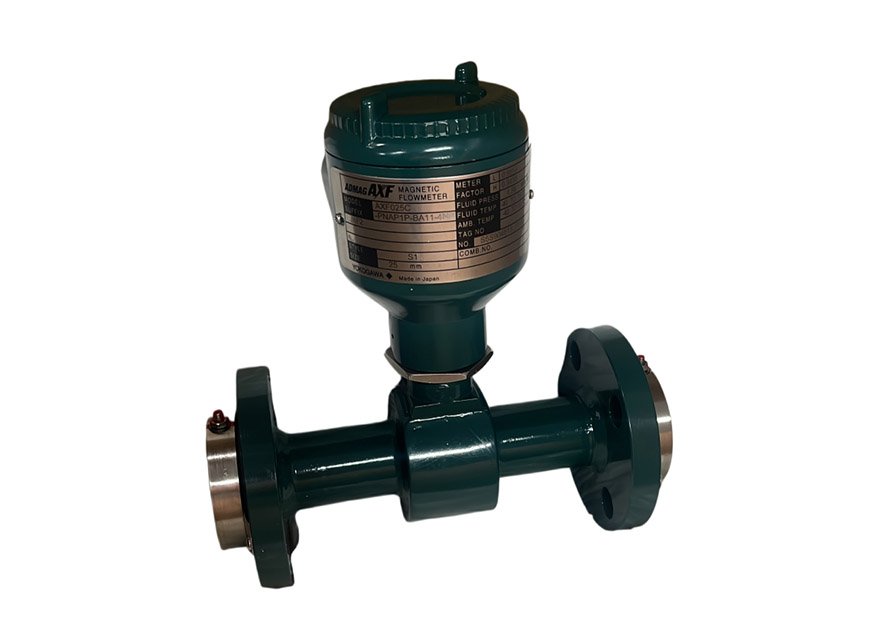

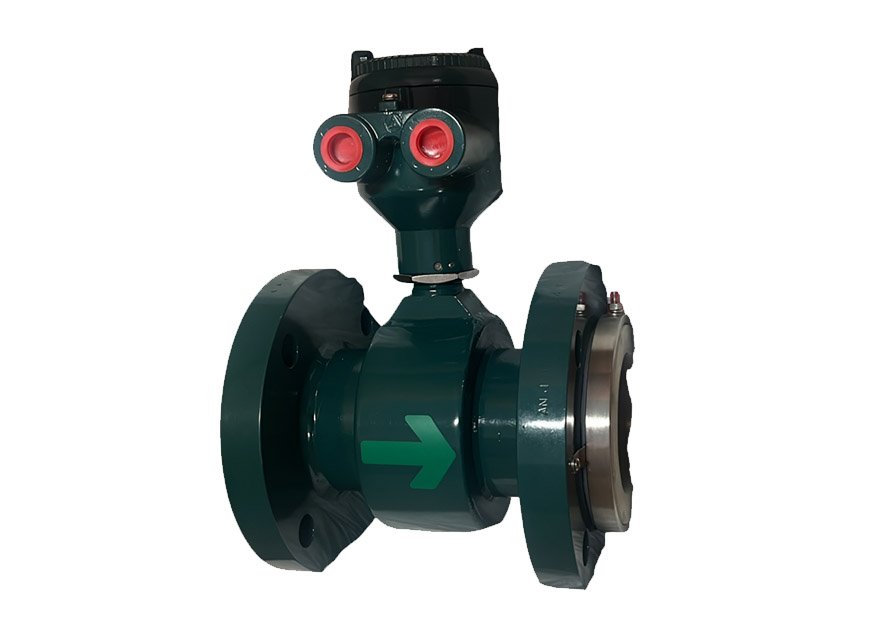

The AXF magnetic flowmeter series are sophisticated products with outstanding reliability and ease of operation, developed on the basis of decades of fieldproven experience.
The combination of a replaceable electrode and the diagnostic to defect adhesion level on the electrodes dramatically improves maintainability.
The AXF employs the fluid noise free “Dual Frequency Excitation Method” and the newly added “Enhanced Dual Frequency Excitation Method” as an option for more difficult applications to ensure greater stability and quicker response.
●User-oriented Functionality
Fluid Adhesion Level Diagnosis
By constantly monitoring the level of insulating substance on the electrodes, it is possible to determine when maintenance is required.
With the utilization of an optional replaceable electrode, the electrodes can be easily removed from the flowmeter and cleaned.
Flexible Electrical Connection Direction
The converter or the terminal box can be rotated arbitrarily to change the directions of electrical connection on the site.
Clear and Versatile Indications
The LCD indicator employs a large, backlit full dotmatrix, that can facilitate various displays. One to three lines are available. When there is an alarm condition, a full description of the countermeasure is
indicated.
“Easy Setup” Parameters ”
The most frequently used parameters are arranged in a group at the top.
The infra-red switches enable the users to set parameters without opening the cover.
●Expansion of Product Lineup
Improved Accuracy Specification
The standard accuracy is 0.35% of reading. Also available is an optional high accuracy calibration rated at 0.2% of reading.
Extra Small Size Flange Type
The flange type is now available from a 2.5 mm size.
Various Sanitary Connections
A variety of sanitary connections are available, such as Tri-Clamp, ISO, DIN and SMS.
● Enhanced Performance and Specifications
Enhanced Dual Frequency Excitation Method
The “Enhanced Dual Frequency Excitation Method” can be optionally selected.
For difficult applications such as for high concentration slurries or low conductivity fluid, extremely stable measurements can be realized.
Improved Minimum Conductivity
The newly designed AXF converter permits the
measurement of fluids with conductivity as low as 1µS/cm.
High-Speed Pulse Output
The pulse rate now goes up to 10,000 pps (pulse/ second) for use with high speed applications such as in short time batch processes
Versatile Input/Ouput Function for Integral Flowmeter
Integral type is also equipped with versatile input/output function.
Specification | Details |
Product Type | Integral / Remote mount magnetic flow meter (4-wire) |
Nominal Size | 2.5 to 400 mm (0.1 to 16 in) |
Excitation Method | • Standard: Dual Frequency Excitation (2.5–400 mm) • Optional: Enhanced Dual Frequency Excitation (25–200 mm) |
Accuracy | ±0.2% of reading (standard)±0.35% of reading (optional) |
Flow Velocity Range | 0.5 to 12 m/s (1.6 to 39.4 ft/s) |
Fluid Conductivity | ≥ 1 µS/cm (depends on size & fluid condition) |
Process Temperature | -40°C to 160°C (-40°F to 320°F) |
Pressure Rating | ANSI Class 150, 300; JIS 10K, 16K, 20K, 40K; PN10–PN40 |
Wetted Materials | • Liner: PFA, Ceramic, Polyurethane, EPDM, Natural rubber• Electrode: SUS316L, Hastelloy C, Titanium, Tantalum, Platinum |
Power Supply | • 100–240 VAC, 50/60 Hz• 24 VAC / 24 VDC |
Output Signals | • 4–20 mA DC (max load 750 Ω) • Pulse: 0.0001–10,000 pps • Alarm / Status (open collector) • Comm: HART 7, BRAIN, Modbus, FOUNDATION Fieldbus, PROFIBUS PA, EtherNet/IP |
Display | Multi-line backlit dot-matrix LCD |
Environmental Rating | IP66, IP67 |
Ambient Temperature | -40°C to +60°C (-40°F to +140°F) |
Remote Cable Length | Up to 100 m (330 ft) / 200 m (660 ft) |
Hazardous Approvals | ATEX, FM, CSA, IECEx, TIIS |
Key Features | Electrode adhesion diagnosis, replaceable electrode, rotatable terminal box, empty pipe detection |
Packaging: Original box
