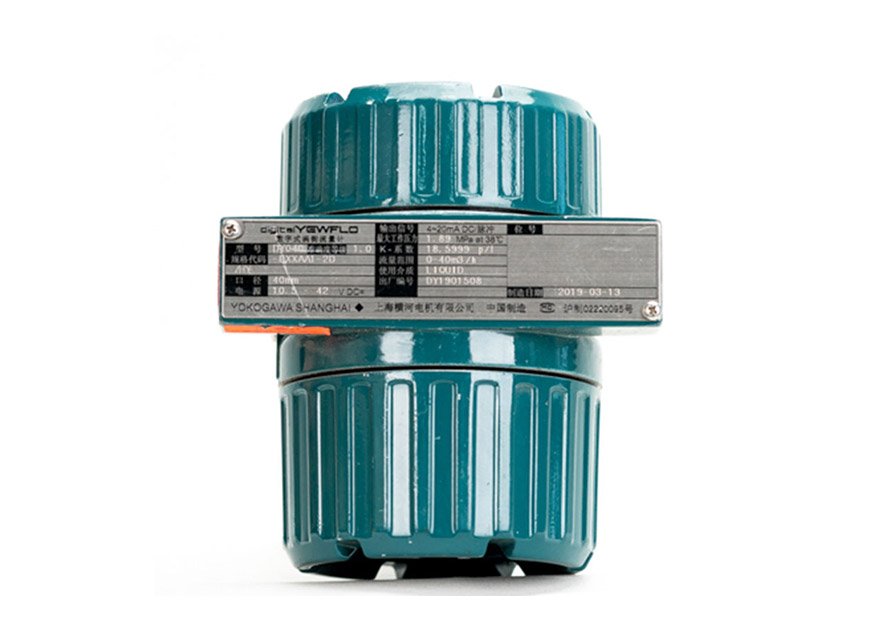

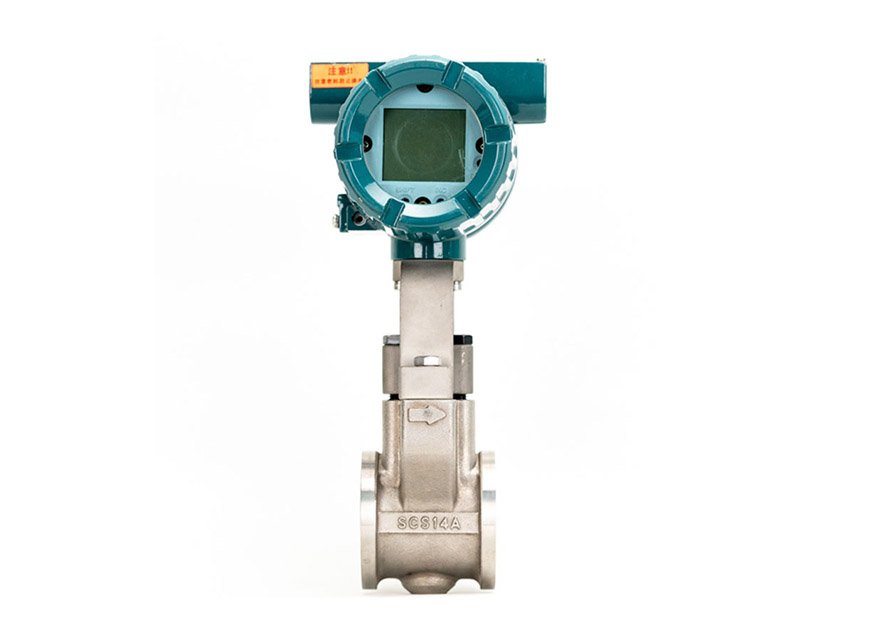

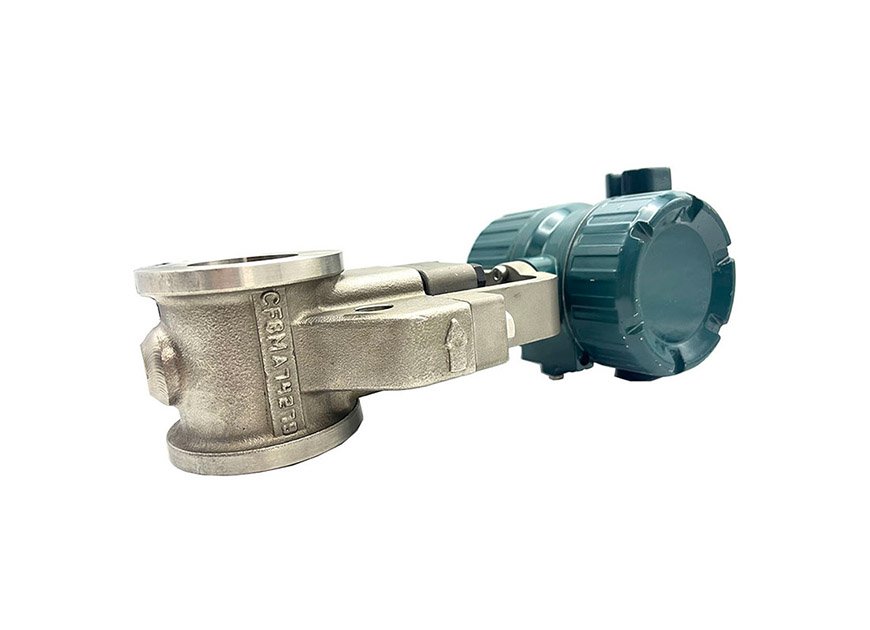

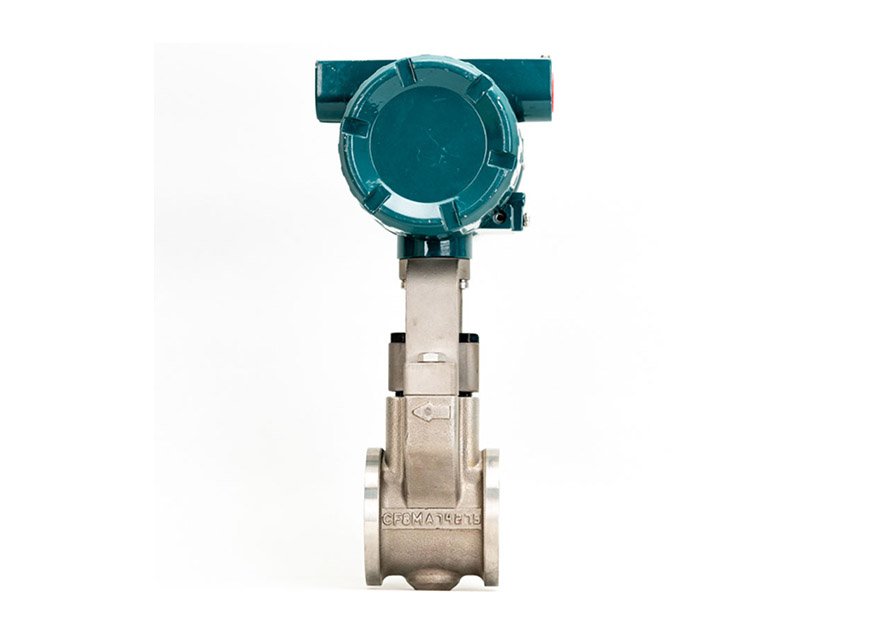

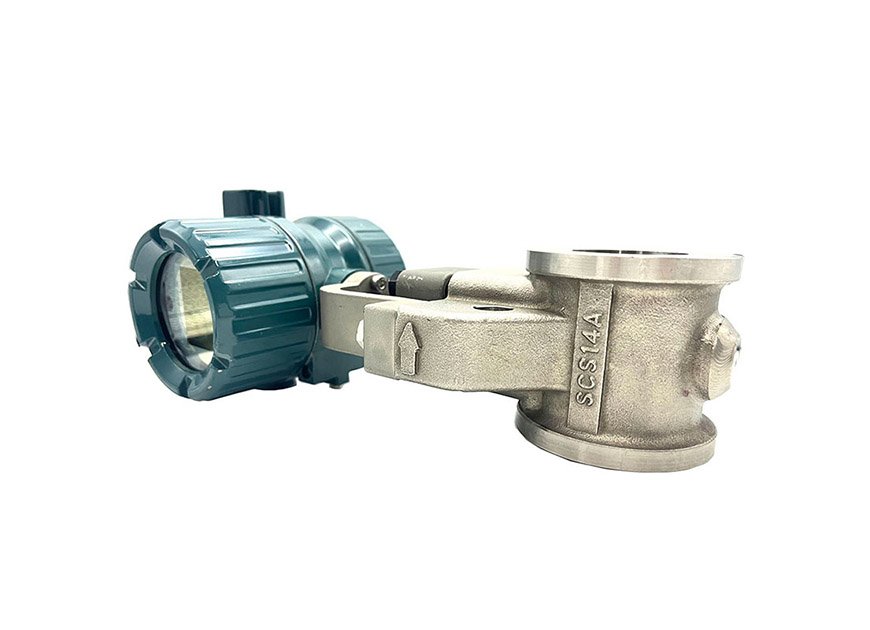

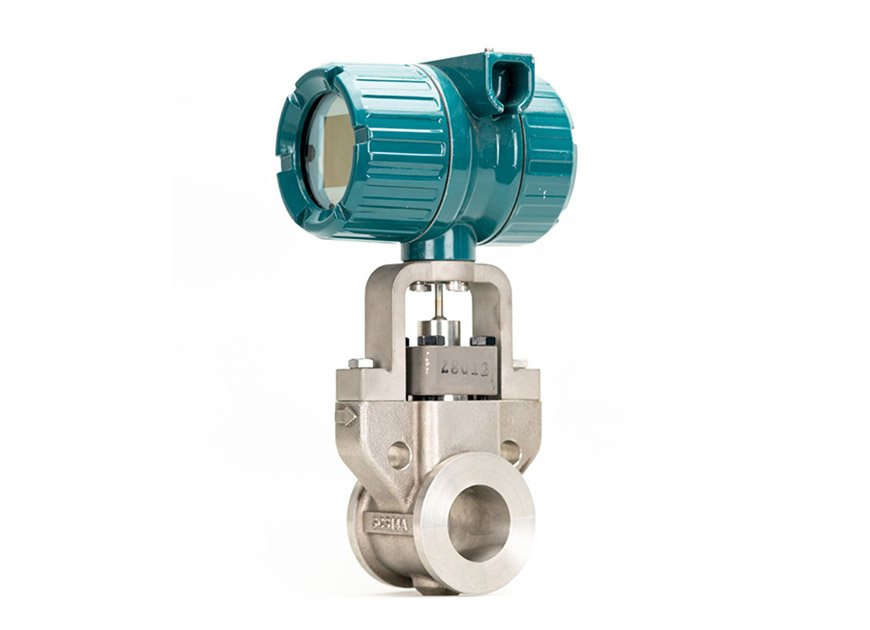

The digital YEWFLO vortex flowmeter combines the field proven sensor and body assembly used in more than 450,000 units installed worldwide with a unique and powerful combination of digital technology that includes spectral signal processing (SSP), a Yokogawa innovation. The digitalYEWFLO vortex flowmeter is accurate and stable, even in harsh process conditions, and has a highly reliable and robust design that delivers improvements in plant efficiency and reduced operating costs.
The digital YEWFLO vortex flowmeter combines the field proven sensor and body assembly used in more than 450,000 units installed worldwide with a unique and powerful combination of digital technology that includes spectral signal processing (SSP), a Yokogawa innovation. The digital YEWFLO vortex flowmeter is accurate and stable, even in harsh process conditions, and has a highly reliable and robust design that delivers improvements in plant efficiency and reduced operating costs.
SSP (Spectral Signal Processing) technology:
SSP is built into the powerful electronics of digital YEWFLO. SSP analyses the fluid conditions inside digital YEWFLO and uses the data to automatically select the optimum adjustment for the application, providing features never before realized in a vortex flowmeter.SSP accurately senses vortices in the low flow range,providing outstanding flow stability.
Self-diagnostics:
The application condition, such as high vibration of the piping and pulsating flow, is predicted and indicated.
High Accuracy:
+0.75% of Reading (Liquid)(+0.5% of Reading: Typical Accuracy/ Non-Guaranteed)+1% of Reading (Gas, Steam)
Wide Process Temperature Range:
High temperature version up to +450°C
Cryogenic version minimum -196°C
Simple Parameter settings:
Frequently-used selections grouped together in aquick-access format decreases commissioning time.
Clear, Concise Indicator:
Simultaneous flow rate or temperature (Option: /MV)and total flow rate along with process diagnosis conveniently displayed.
Dual output for Analog / Pulse:
Simultaneous output for flow rate or temperature(Option: /MV) and pulse.
Alarm output, Status output (Flow switch)An alarm signal output, in case alarm occurs.
No moving parts stainless steel detector: High durable and safety.
Signal cable length is up to 30m.
Explosion proof construction, TIIlS / FM / ATEX/ CSA/ SAA (Intrinsically safe), IECEx.
Specification | Details |
Model Series | DY (Integral / Remote Detector)；DYA (Remote Converter) |
Measurement Principle | Vortex shedding (von Kármán effect) + Spectral Signal Processing (SSP) |
Measured Fluids | Liquid, Gas, Saturated Steam, Superheated Steam(Not for multi-phase / adhesive fluids) |
Nominal Size (DN) | • Wafer: DN15 ~ DN100 (1/2" ~ 4") • Flanged: DN15 ~ DN400 (1/2" ~ 16") |
Flow Velocity Limit | ≤ 35 m/s (standard)；35 ~ 80 m/s (high velocity) |
Accuracy | • Liquid: ±0.75% of reading • Gas / Steam: ±1.0% of reading • (Gas/Steam 35–80 m/s): ±1.5% of reading |
Repeatability | ±0.2% of reading |
Process Temperature | • Standard: -29°C ~ +250°C • Cryogenic (Option): -196°C ~ +100°C • High Temp (HT): -29°C ~ +450°C • Multi-Variable (MV): -29°C ~ +400°C |
Process Pressure | -0.1 MPa ~ flange rating ANSI 150/300/600/900/1500/2500；JIS 10K/20K/40K；PN10/16/25/40 |
Wetted Materials | • Body: CF8M (316SS) • Shedder Bar: Duplex Stainless Steel • Gasket: SUS316 + PTFE coating |
Power Supply | 10.5 ~ 42 VDC (loop-powered) |
Output Signals | • Analog: 4–20 mA (HART 5/7) • Pulse / Status: Transistor open collector • Digital: BRAIN, HART 7, FOUNDATION Fieldbus |
Ambient Temp | • Detector: -29°C ~ +85°C • Converter: -40°C ~ +85°C |
Ambient Humidity | 5 ~ 100% RH (non-condensing @ 40°C) |
Enclosure Rating | IP66, NEMA 4X |
Mounting | • Integral / Remote Detector: Flange or Wafer • Remote Converter: 2" pipe mount |
Electrical Connection | 1/2 NPT, G1/2, M20×1.5 female |
Hazardous Approvals | ATEX, FM, CSA, IECEx, TIIS, SAA |
Special Versions | • Multi-Variable (/MV): Temp sensor + mass/energy flow • Reducer (/R1, /R2): Concentric reduced bore • High Pressure (900/1500/2500#) • Hygienic / Cryogenic |
Key Features | • SSP anti-vibration noise cancellation • Onboard self-diagnostics • Replaceable shedder bar • Empty pipe / low flow detection |

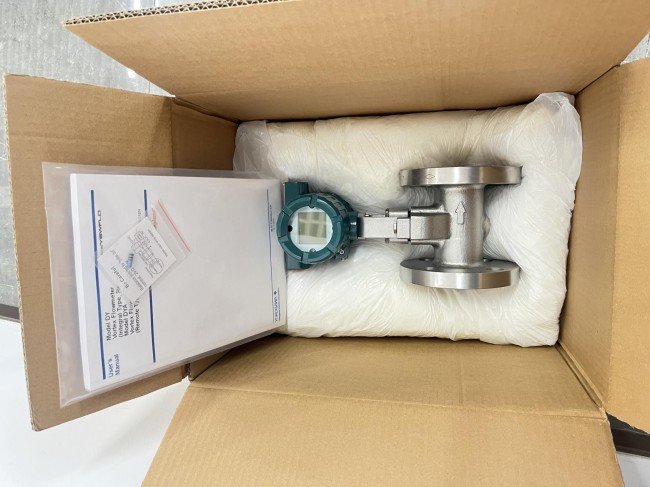

Packaging: Original box
