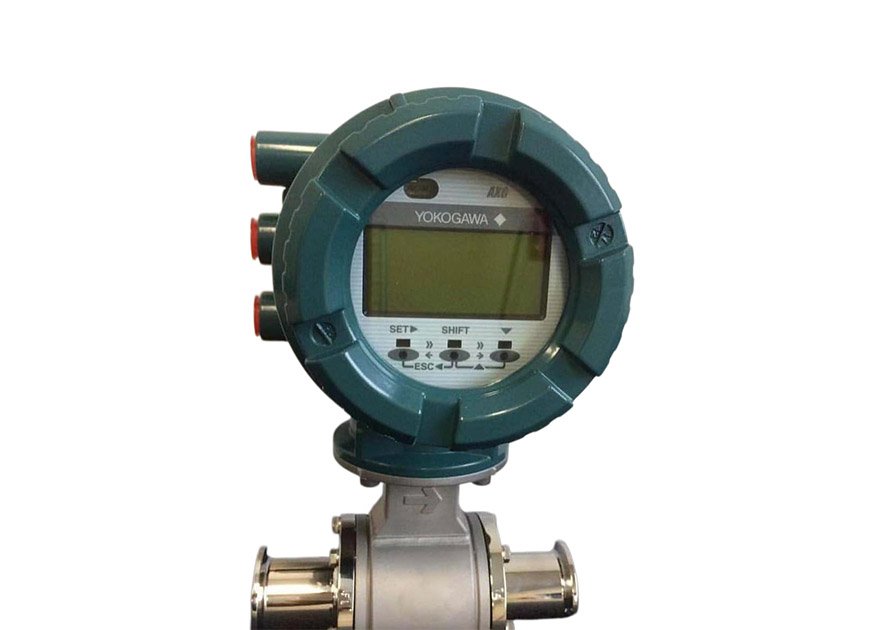

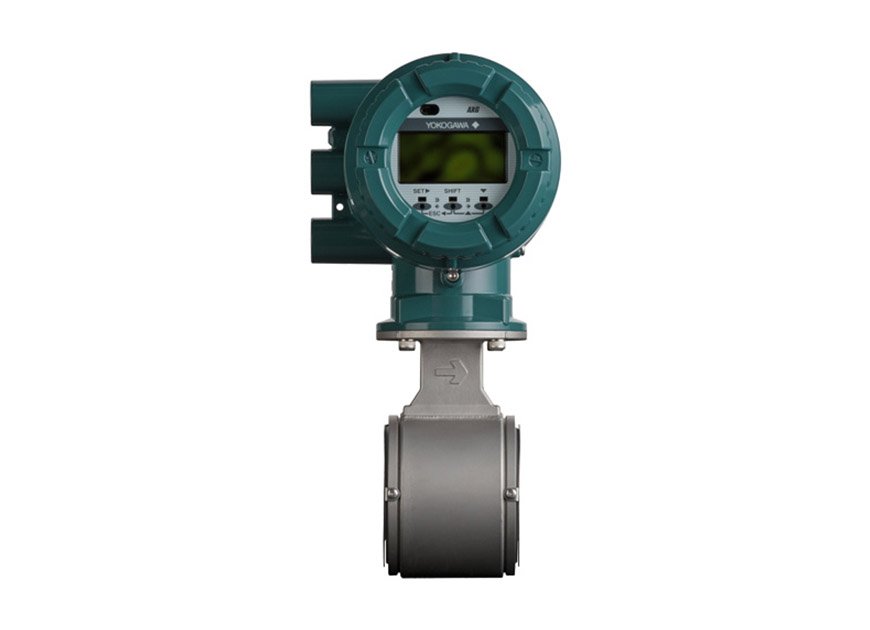

The ADMAG TI (Total Insight) series AXG magnetic flowmeter is a high-quality and highly reliable product developed based on years of experience and achievement, such as enhancement of application by our proprietary dual frequency excitation method.
The AXG magnetic flowmeter is ideal for industrial process lines like oil & gas, chemical, pulp & paper, food & beverage, or metal & mining applications.
With outstanding reliability and ease of operation and maintenance, developed on decades of field-proven experience, the AXG will increase user benefits while reducing total cost of ownership.
• Size: 2.5 to 500 mm (0.1 to 20 in.)
• Lining: Fluorocarbon PFA, Ceramics tube
• Process connection: ASME, EN, AS, and JIS
Stable Measurement
Our own dual frequency excitation method realizes stable flow measurement even under high fl ow noise in the fluid with highly concentrated slurry.
Multiple Inputs and Outputs
Maximum four inputs/outputs of current, pulse, and status signals can be selected. Mass or calorie calculation using temperature input is available.
Improved Operation and Monitoring
Function
Operation authority level setting for ensuring safety, process data trend display, display backlight fl ashing (Squawk) function, and data store / restore function
with display unit internal memory or microSD card are available.
Improved Maintainability
Diagnostic functions that contribute to preventive maintenance of the plant are installed. Diagnosis of the device (verification function) that can be executed
without demounting from piping, detection of the process condition by monitoring the fl ow noise and electric conductivity of the fluid, electrode insulation
deterioration diagnosis, electrode adhesion diagnosis, and wiring connection diagnosis are available.
Communication Protocol
HART, BRAIN, Modbus, FOUNDATION Fieldbus, PROFIBUS PA

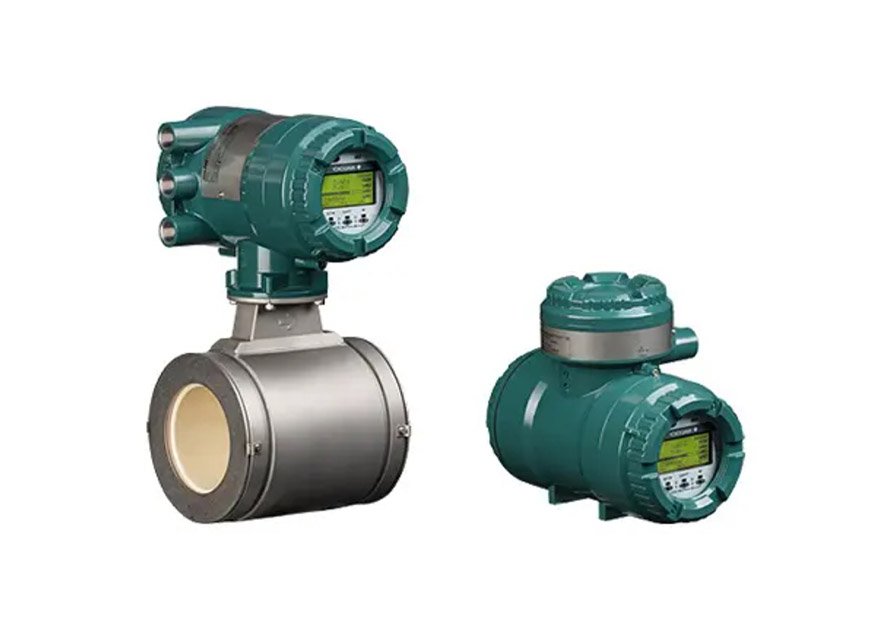

Specification | Details |
Product Series | ADMAG TI (Total Insight) AXG Magnetic Flow Meter (Integral / Remote) |
Nominal Size | 2.5 to 500 mm (0.1 to 20 in) |
Measurement Principle | Faraday's Law of Electromagnetic Induction |
Excitation Method | Dual Frequency Excitation (patented) |
Accuracy | ±0.3% of reading (standard) ±0.15% of reading (high accuracy, 25–200 mm) |
Flow Velocity Range | 0.1 to 15 m/s (0.33 to 49.2 ft/s) |
Fluid Conductivity | ≥ 1 µS/cm (stable measurement) |
Process Temperature | -40°C to 160°C (-40°F to 320°F) |
Pressure Rating | ANSI Class 150, 300, 600EN (PN10, PN16, PN25, PN40)JIS 10K, 16K, 20K, 40K |
Wetted Parts | Liners: PFA, Ceramic Electrodes: SUS316L, Hastelloy C, Titanium, Tantalum, Platinum |
Process Connections | Flanged, Wafer, Hygienic (Tri-Clamp), Submersible |
Power Supply | 100–240 VAC 50/60 Hz24 VAC / 24 VDC |
Output Signals | • Analog: 4–20 mA (2 channels, active/passive) • Pulse: 0.0001–10,000 pps (2 channels) • Status/Alarm: Open collector (2 channels) • Digital: HART 7, BRAIN, Modbus, PROFIBUS PA, FOUNDATION Fieldbus, EtherNet/IP |
Input Signals | 1-channel analog (active), 2-channel dry contact |
Display | Multi-line backlit LCD with trend, data log, microSD support |
Environmental Rating | IP66, IP67, NEMA 4X |
Ambient Temperature | -40°C to +65°C (-40°F to +149°F) |
Remote Cable Length | Up to 200 m (660 ft) |
Hazardous Approvals | ATEX, IECEx, FM, CSA, TIIS, KCs |
Functional Safety | IEC 61508 SIL 2 (optional) |
Key Features | • On-board verification (no removal) • Electrode adhesion/insulation diagnosis • Empty pipe, bubble, noise detection • Mass/Calorie calculation (temp input) • Data store/restore via microSD |
Applications | Oil & Gas, Chemical, Pulp & Paper, Food & Beverage, Metal & Mining |

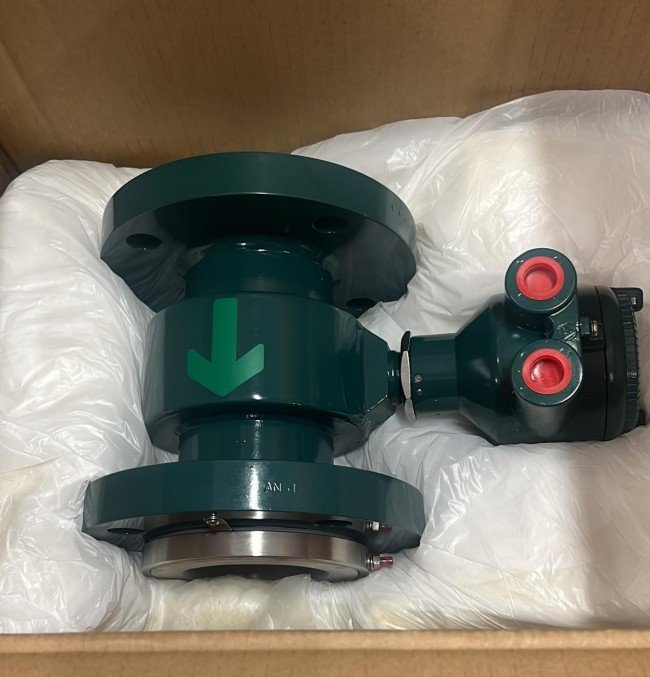

Packaging: Original box
