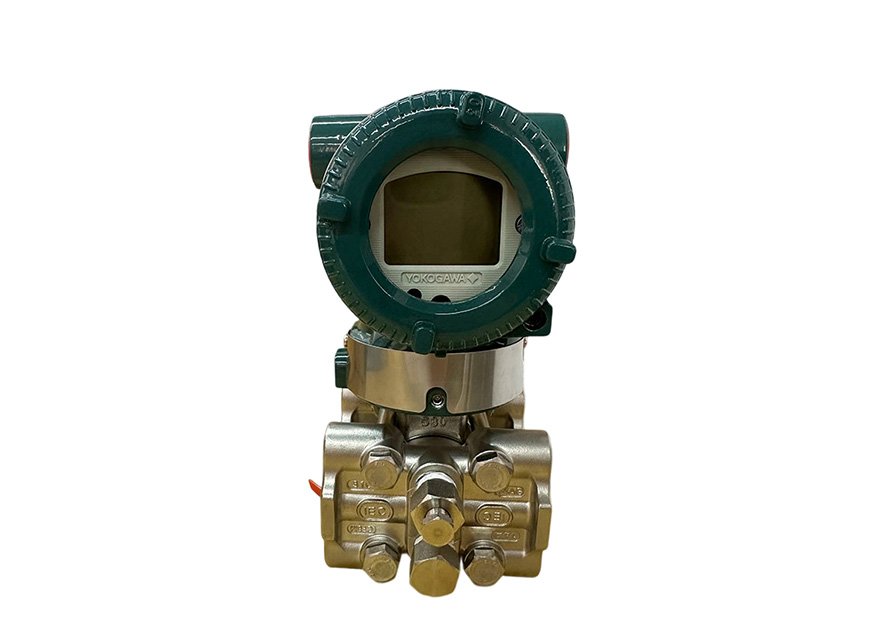

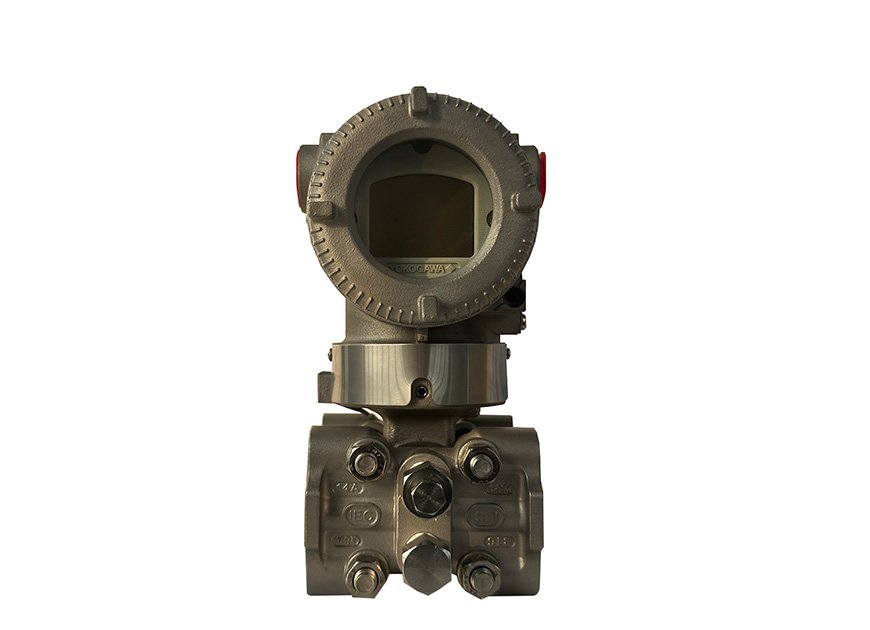

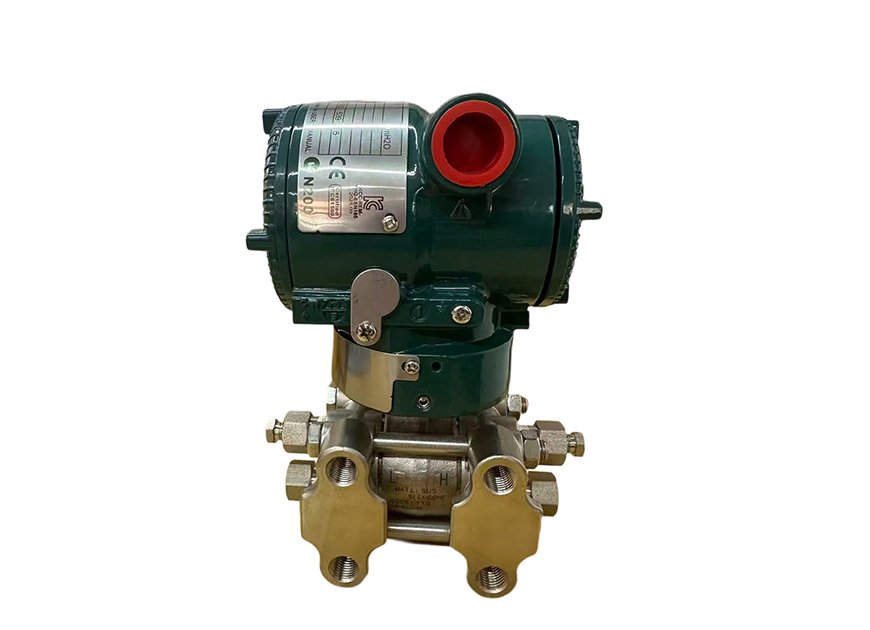

The high performance diff erential pressure transmitter EJA110E features single crystal silicon resonant sensor and is suitable to measure liquid, gas, orsteam flow as well as liquid level, density and pressure. EJA110E outputs a 4 to 20 mA DC signal corresponding to the measured diff erential pressure.
Its accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. EJA-E series models in their standard confi guration, with the exception of the Fieldbus, PROFIBUS and Low Power types,are certified as complying with SIL 2 for safety requirement.
The EJA110E is a high - performance differential pressure transmitter by Yokogawa Electric Corporation. It features a single - crystal silicon resonant sensor and is designed to measure liquid, gas, or steam flow, as well as liquid level, density, and pressure. The transmitter outputs a 4 - 20 mA DC signal corresponding to the measured differential pressure. It can also measure static pressure, which can be displayed on the integral indicator or remotely monitored via BRAIN or HART communications.
Measurement Span/Range | kPa | inH2O (/D1) | mbar (/D3) | mmH2O (/D4) | |
F* | Span | 0.5 to 5 | 2.0 to 20 | 5 to 50 | 50 to 500 |
Range | -5 to 5 | -20 to 20 | -50 to 50 | -500 to 500 | |
L* | Span | 0.5 to 10 | 2.0 to 40 | 5 to 100 | 50 to 1000 |
Range | -10 to 10 | -40 to 40 | -100 to 100 | -1000 to 1000 | |
M | Span | 1 to 100 | 4 to 400 | 10 to 1000 | 100 to 10000 |
Range | -100 to 100 | -400 to 400 | -1000 to 1000 | -10000 to 10000 | |
H | Span | 5 to 500 | 20 to 2000 | 50 to 5000 | 0.05 to 5 kgf/cm2 |
Range | -500 to 500 | -2000 to 2000 | -5000 to 5000 | -5 to 5 kgf/cm2 | |
V | Span | 0.14 to 14 MPa | 20 to 2000 psi | 1.4 to 140 bar | 1.4 to 140 kgf/cm2 |
Range | -0.5 to 14 MPa | -71 to 2000 psi | -5 to 140 bar | -5 to 140 kgf/cm2 | |
Output Signal | 4 - 20 mA HART/BRAIN (output signal code D&J), two - wire system with digital communication. The signal can be set to linear or square - root. The BRAIN or HART FSK protocol is superimposed on the 4 - 20 mA signal, and the output range is 3.6 mA - 21.6 mA. There is also a 1 - 5 V HART (output signal code Q) option, which is a three - wire or four - wire low - power type that can be set to linear or square - root. |
Response Time | Primary variable (differential pressure): 90 ms; Secondary variable (static pressure): 360 ms |
Accuracy | Primary variable: ±0.055% of span; Secondary variable: ±0.5% of span |
Stability | ±0.1% of URL per 10 years |
Over - pressure Effect | ±0.03% of URL for the primary variable |
Rangeability | 100:1 for the primary variable |
Measurement Span | F range: 0.5 - 5 kPa (2 - 20 inH2O), - 5 - 5 kPa (- 20 - 20 inH2O); |
Wetted Parts Material | Cover flange and process connector: ASTM CF - 8M; Bolts and nuts material: 316L SST |
Process Connections | Without process connector (1/4 NPT female on the cover flanges) |
Installation | Horizontal piping and left side high pressure |
Amplifier Housing | Cast aluminum alloy |
Electrical Connection | M20 female, two electrical connections and a blind plug |
Integral Indicator | Digital indicator |
Mounting Bracket | 304 SST 2 - inch pipe mounting, flat type (for horizontal piping) |
Safety Certification | Exida and TÜV SIL 2/SIL 3 certified |
Maximum Working Pressure | 2,300 psi (3,600 psi option) |
Packaging: Original cardboard box packaging
