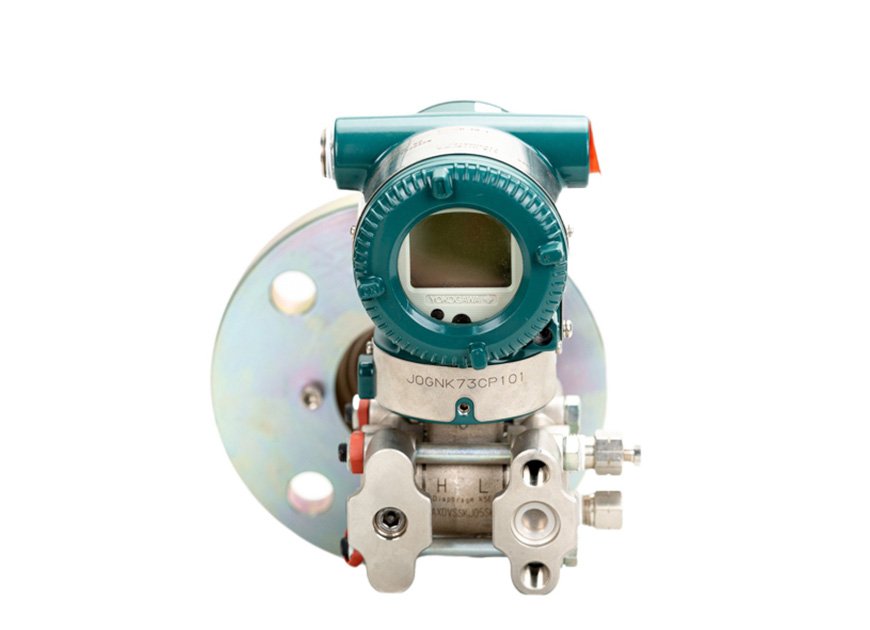

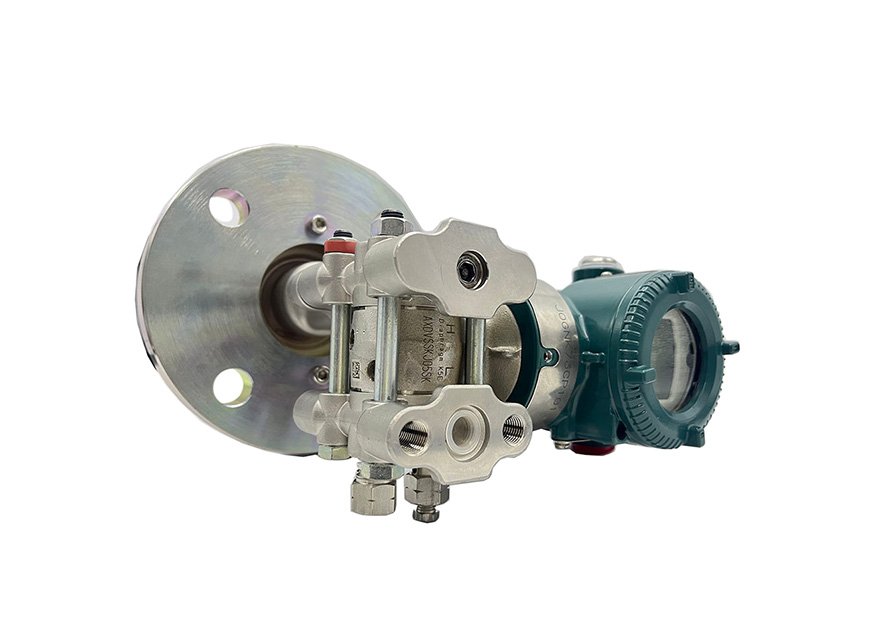

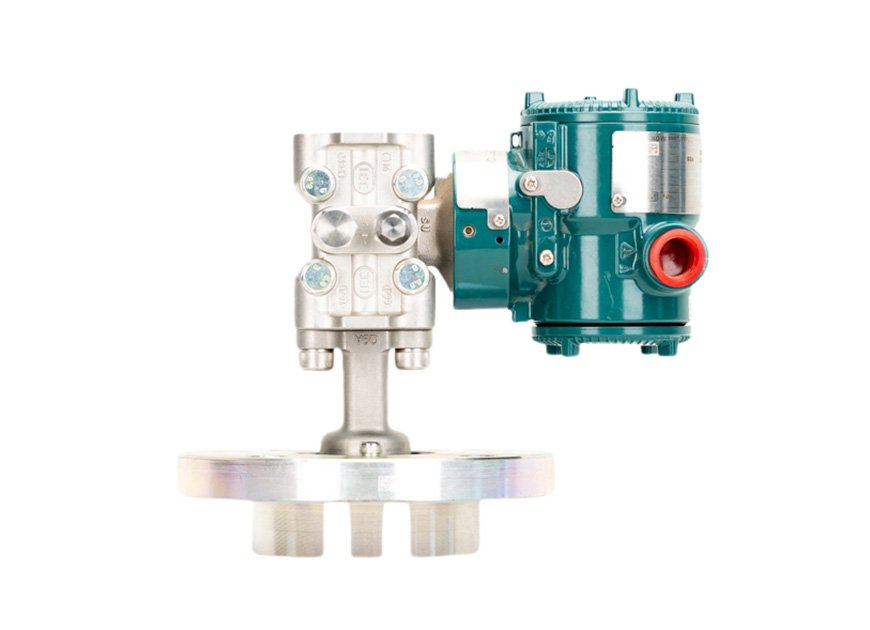

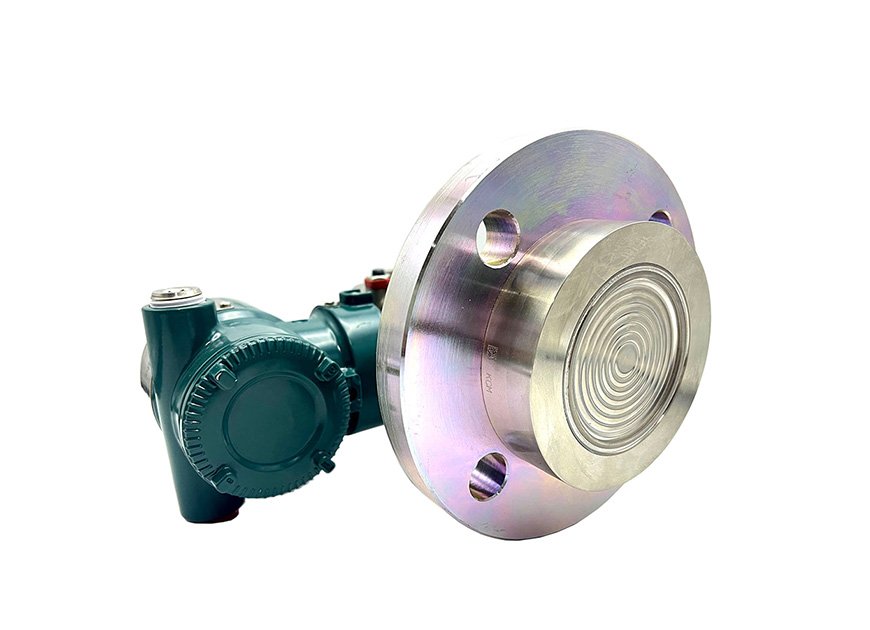

Model The high performance flange mounted differential pressure transmitter EJA210E can be used to measure levels of densities of solidifying or precipitating liquids. EJA210E outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure. Its accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications.
Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.
Measurement Span/Range | kPa | inH2O (/D1) | mbar (/D3) | mmH2O (/D4) | |
M | Span | 1 to 100 | 4 to 400 | 10 to 1000 | 100 to 10000 |
Range | -100 to 100 | -400 to 400 | -1000 to 1000 | -10000 to 10000 | |
H | Span | 5 to 500 | 20 to 2000 | 50 to 5000 | 0.05 to 5 kgf/cm2 |
Range | -500 to 500 | -2000 to 2000 | -5000 to 5000 | -5 to 5 kgf/cm2 | |
Cost - saving: The compound sensing function of the DPharp digital sensor allows a single transmitter to measure two process variables, differential pressure and static pressure, without the need to set up separate transmitters, saving up to 20% of the capital expenditure (CAPEX). In addition, due to its long - term stability, the calibration interval can be extended, reducing maintenance costs.
High - reliability: With 40 self - diagnostic functions, including the unique Back - Check technology and active sensor characteristics, it can detect sensor failures in a timely manner, improving the reliability and safety of equipment. And it has passed the certification of international independent third - party institutions TÜV Rheinland and EXIDA, and its performance and reliability are guaranteed.
Easy to Integrate: It supports a variety of communication protocols, such as HART 5/7, HART (1 - 5V DC) low - power type, FF field - bus, PROFIBUS PA, and BRAIN. This makes it easy to communicate with a variety of control systems and instruments, facilitating system integration and data transmission
Item | valve |
Model | EJA210E |
Type | Flange-mounted differential pressure transmitter |
Measurement Parameters | - Differential pressure (DP) |
Measuring Range | - Differential pressure: 0.5 to 100 kPa |
Rangeability | 100:1 |
Accuracy | - Reference accuracy: ±0.075% |
Response Time | - 120 ms (fast mode) |
Output Signal | - 4-20 mA DC with HART 5/7 |
Communication Protocols | HART 5/7, HART (low-power), FOUNDATION Fieldbus, PROFIBUS PA, BRAIN |
Power Supply | - 10.5-42 V DC (HART, BRAIN) |
Protection Class | IP66/IP67, NEMA 4X |
Temperature Range | - Ambient: -40°C to +85°C |
Pressure Rating | - Flange pressure class: ANSI 150/300/600, JIS 10/20/40K, DIN PN10/16/25/40 |
Material | - Diaphragm: 316L stainless steel, Hastelloy C-276, Monel, Tantalum (optional) |
Self-Diagnosis Functions | 40+ functions, including Back-Check technology, sensor failure detection, and communication diagnostics |
Safety Certifications | - IEC 61508:2010 (SIL2/SIL3) |
Mounting | Flange-mounted (DIN, ANSI, JIS standards), vertical/horizontal installation |
Display | Optional built-in LCD display (shows measured values, alarm codes, bar graphs), independent circuit design |
Signal Characterization | 10-segment curve characterization for non-linear applications |
Packaging: Original cardboard box packaging
