The high performance absolute and gauge pressure transmitter EJA510E and EJA530E feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure. EJA510E and EJA530E output a 4 to 20 mA DC signal corresponding to the measured pressure. It also features quick response, remote setup and monitoring via BRAIN or HART communications and self diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.
Measurement Span/Range | MPA | psi(/D1) | bar (/D3) | kgf/cm2(/D4) | |
A | Span | 10 to 200 kPa | 1.45 to 29 | 0.1 to 2 | 0.1 to 2 |
Range | −100 to 200 kPa | -14.5 to 29 | -1 to 2 | -1 to 2 | |
B | Span | 0.02 to 2 | 2.9 to 290 | 0.2 to 20 | 0.2 to 20 |
Range | 0.1 to 2 | −14.5 to 290 | 1 to 100 | 1 to 100 | |
C | Span | 0.1 to 10 | 14.5 to 1450 | -1 to 100 | -1 to 100 |
Range | -0.1 to 10 | −14.5 to 1450 | 5 to 500 | 5 to 500 | |
D | Span | 0.1 to 10 | 72.5 to 7200 | 50 to 500 | 50 to 500 |
Range | -0.1 to 10 | −14.5 to 7200 | −1 to 500 | −1 to 500 | |

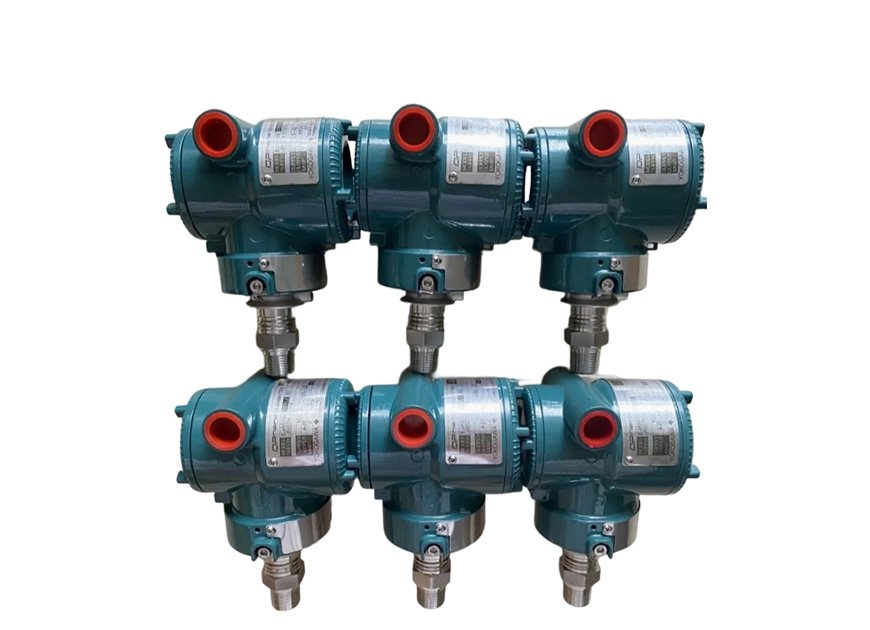

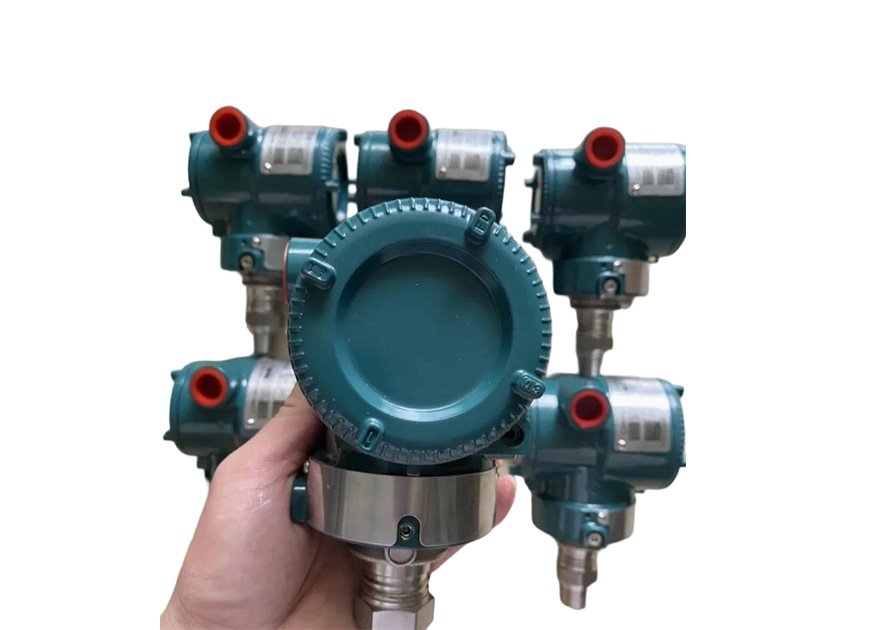

The EJA510E is a high-performance in-line mount absolute pressure transmitter that represents the latest evolution of the renowned DPharp sensor technology. Launched in 2012, this transmitter seamlessly combines the rugged reliability of the proven EJA-E series with the superior performance of the premium EJX-A series, delivering the precision and durability that industrial users have come to expect from Yokogawa's OpreX Measurement product lineup.
At the core of the EJA510E lies Yokogawa's proprietary DPharp digital sensor, which utilizes advanced single-crystal silicon resonance technology. Unlike traditional analog sensors, the DPharp sensor directly outputs digital signals, eliminating the need for analog-to-digital conversion and significantly reducing measurement errors. This cutting-edge sensor technology ensures twice the performance and stability of competing analog sensors, providing consistent, reliable, and accurate pressure measurements for critical industrial processes.
Item | valve |
Type | In - line mount absolute pressure transmitter |
Measuring Principle | Monocrystalline silicon resonant sensor technology |
Measurable Media | Liquids, gases, vapors |
Accuracy | ±0.055% of span (±0.04% optional for /HAC specification) |
Stability | ±0.2% URL/10 years |
Pressure Range | A, B and C capsules: 0 - 30 MPa (4350 psi); D capsule: 0 - 132 MPa (19100 psi) |
Response Time | 90 ms |
Output Signal | 4–20 mA DC (with HART 5/7, BRAIN protocol); HART (1–5V DC) low - power type; FF fieldbus; PROFIBUS PA |
Power Supply | 10.5–42 V DC for general and explosion - proof types; 10.5–32 V DC with surge arrester (option code /A); 10.5–30 V DC for intrinsically safe, n - type, non - flammable types |
Communication Protocols | HART 5/7, HART (1–5V DC) low - power, FF fieldbus, PROFIBUS PA, BRAIN |
Temperature Range | Operating: - 40°C to +120°C; Storage: - 40°C to +150°C |
Temperature Effect | ±(0.15% of span + 0.15% of URL) per 28°C change for A, B and C capsules; ±(0.15% of span + 0.15% of 50 MPa) per 28°C change for D capsule |
Protection Level | IP66/IP67, NEMA 4X |
Explosion Protection | Certified for ATEX, FM, CSA, IECEx, etc. |
Process Connections | Threaded connections, flanges, etc. (specific types refer to model and specification code table) |
Diaphragm Materials | Refer to model and specification code table |
Self - Diagnosis Functions | 40 self - diagnosis functions, including patented real - time reverse check |
Display | Built - in display, can show measured data, alarm codes, bar charts, etc., 5 - digit number display, 6 - digit unit display |
Mounting | Direct mounting on process pipes |
Packaging: Original cardboard box packaging
