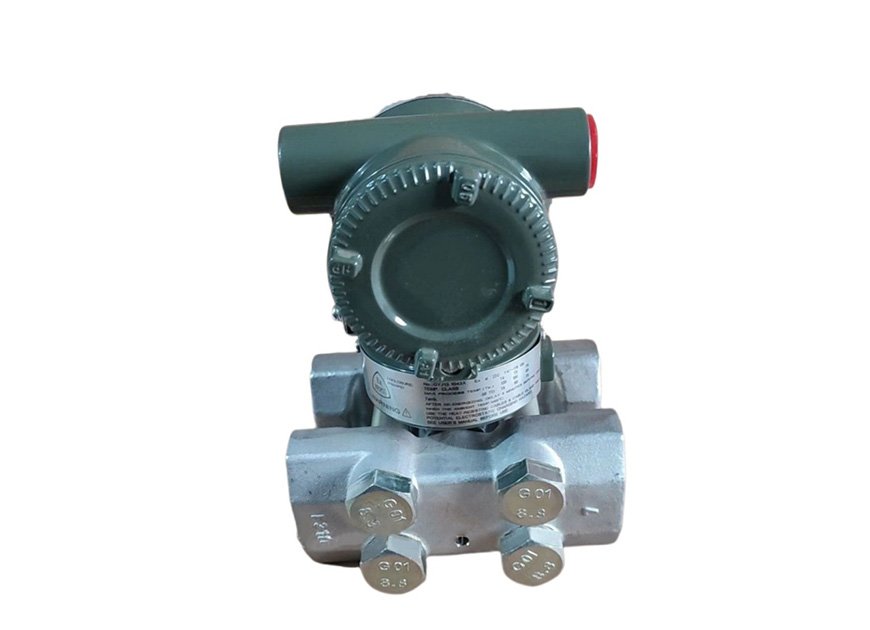

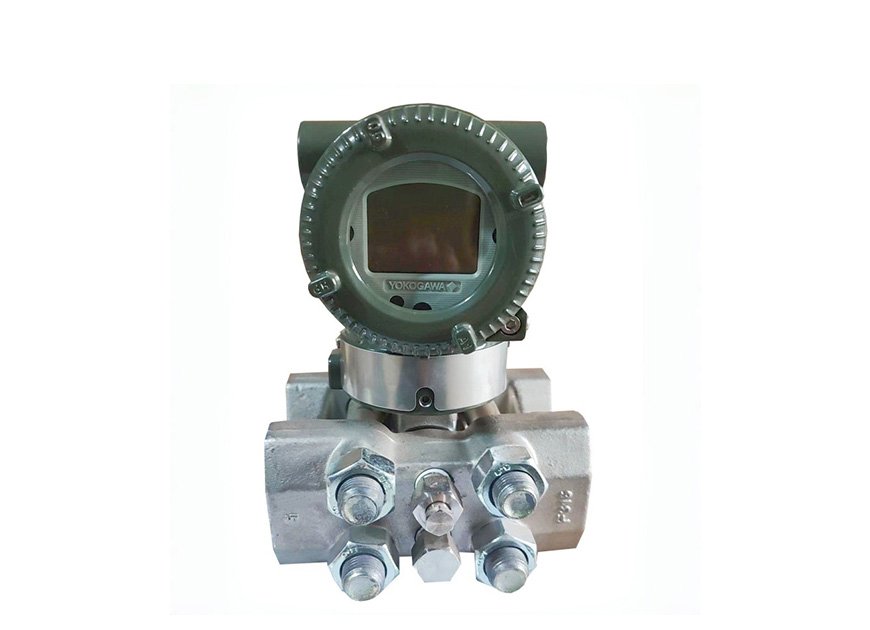

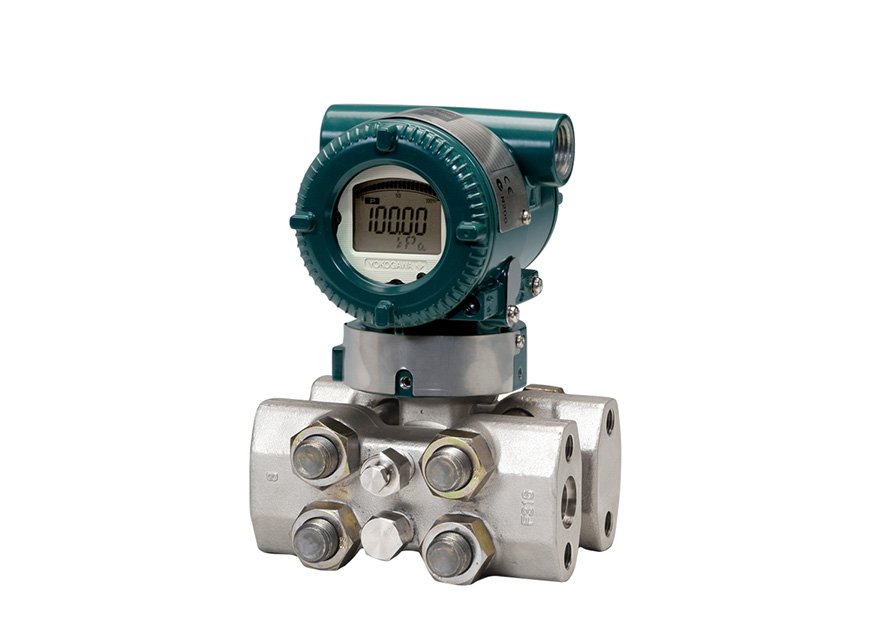

The high performance gauge pressure transmitter EJA440E features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam pressure. The EJA440E outputs a 4 to 20 mA DC signal corresponding to the measured pressure.
It also features quick response, remote setup and monitoring via BRAIN or HART communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available.
EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.
Measurement Span/Range | MPA | psi(/D1) | bar (/D3) | kgf/cm2(/D4) | |
C | Span | 5 to 32 | 720 to 4500 | 50 to 320 | 50 to 320 |
Range | −0.1 to 32 | −14.5 to 4500 | −1 to 320 | −1 to 320 | |
D | Span | 5 to 50 | 720 to 7200 | 50 to 500 | 50 to 500 |
Range | −0.1 to 50 | −14.5 to 7200 | −1 to 500 | −1 to 500 | |
The Yokogawa EJA440E is a high-performance gauge pressure transmitter that represents the evolution of Yokogawa's renowned DPharp (Digital Phased Array Resonant Pressure) sensor technology. Engineered to deliver precise and reliable pressure measurement for liquids, gases, and steam in industrial processes, this transmitter integrates the robustness of the EJA-E series with the superior performance of the EJX-A series, making it a trusted choice for critical process control applications worldwide. Equipped with advanced features such as rapid response, remote configuration, comprehensive self-diagnostics, and multiple communication protocol options, the EJA440E ensures optimal process visibility, operational efficiency, and safety compliance.
Parameter | Specification |
Long-Term Stability | ±0.1% of URL per 10 years under normal operating conditions |
Response Time | 90ms (differential pressure); refresh time: 45ms (differential pressure) |
Output Signal | • 4~20mA DC with BRAIN/HART (2-wire, range: 3.6~21.6mA)• 1~5V DC with HART (3/4-wire, low power, range: 0.9~5.4V DC)• Fault alarm: High (110% of full scale) or Low (-5% of full scale) selectable |
Operating Temperature | • Environment: -40~85°C (-40~185°F); -30~80°C (-22~176°F) with LCD display• Process: -40~120°C (-40~248°F) |
Environmental Humidity | 0~100% RH |
Maximum Overpressure | • Capsule C: 48 MPa (6750 psi)• Capsule D: 60 MPa (8700 psi) |
Vibration Resistance | • Housing code 1/3: <0.1% URL (10~60Hz, 0.21mm displacement; 60~2000Hz, 3g)• Housing code 2: <±0.1% URL (10~60Hz, 0.15mm displacement; 60~500Hz, 2g) |
Power Supply | 21.6~32V DC (for 4~20mA output with D/J code); power supply effect: ±0.005%/V |
Wetted Parts | Material code "S" (standard); filled with silicone oil |
Measurement Range (Span/Range) | • Span C: 5~32 MPa (720~4500 psi); Range C: -0.1~32 MPa (-14.5~4500 psi)• Span D: 5~50 MPa (720~7200 psi); Range D: -0.1~50 MPa (-14.5~7200 psi) |
Reference Accuracy (Calibrated Span) | • Span C (URL=32 MPa): ±0.055% of span (X≤span); ±(0.015+0.01 URL/span)% (X>span)• Span D (URL=50 MPa): ±0.055% of span (X≤span); ±(0.015+0.0064 URL/span)% (X>span)• With option /XA1: ±0.05% of span (X≤span) for both spans |
Packaging: Original cardboard box packaging
