Nominal value | Maximum measuring range | Smallest calibratable measuring span | MWP | OPL | Vacuum resistance | Option | |
lower (LRL) | upper (URL) | Silicone oil/Inert oil | |||||
bar | bar | bar | bar | bar | [bar abs] | ||
100 mbar | -0.1 | +0.1 | 0.005 | 2.7 | 4 | 0.7 | 1C |
250 mbar | -0.25 | +0.25 | 0.005 | 3.3 | 5 | 0.5 | 1E |
400 mbar | -0.4 | +0.4 | 0.005 | 5.3 | 8 | 0 | 1F |
1 bar | -1 | +1 | 0.01 | 6.7 | 10 | 0 | 1H |
2 bar | -1 | +2 | 0.02 | 12 | 18 | 0 | 1K |
4 bar | -1 | +4 | 0.04 | 16.7 | 25 | 0 | 1M |
10bar | -1 | +10 | 0.1 | 26.7 | 40 | 0 | 1P |
40bar | -1 | +40 | 0.4 | 40 | 60 | 0 | 1S |
Nominal value | Maximum measuring range | Smallest calibratable measuring span | MWP | OPL | Option | |
lower (LRL) | upper (URL) | |||||
bar | bar | bar | bar | bar | ||
100 mbar | -0.1 | +0.1 | 0.005 | 2.7 | 4 | 2C |
250 mbar | -0.25 | +0.25 | 0.005 | 3.3 | 5 | 2E |
400 mbar | -0.4 | +0.4 | 0.005 | 5.3 | 8 | 2F |
1 bar | -1 | +1 | 0.01 | 6.7 | 10 | 2H |
2 bar | -1 | +2 | 0.02 | 12 | 18 | 2K |
4 bar | -1 | +4 | 0.04 | 16.7 | 25 | 2M |
10bar | -1 | +10 | 0.1 | 26.7 | 40 | 2P |
40bar | -1 | +40 | 0.4 | 40 | 60 | 2S |
Pressure transmitter with ceramic measuring cells
The Cerabar S pressure transmitter is used for the following measuring tasks:
• Absolute pressure and gauge pressure in gases, steams or liquids in all areas of process engineering and process measurement technology
• Level, volume or mass measurement in liquids
• High process temperature – without diaphragm seals up to 150°C (302°F) – with typical diaphragm seals up to 400°C (752°F)
• High pressure up to 700 bar
• International usage thanks to a wide range of approvals
• Very good reproducibility and long-term stability
• High reference accuracy: up to ±0.075%, as PLATINUM version: ±0.05%
• Turn down 100:1, higher on request
• Used for process pressure monitoring up to SIL3, certified according to IEC 61508 by TÜV SÜD
• HistoROM®/M-DAT memory module
• Function-monitored from the measuring cell to the electronics
• Continuous modularity for differential pressure, hydrostatic and pressure (Deltabar S – Deltapilot S – Cerabar S), e.g.
– replaceable display
– universal electronic
• Quick commissioning thanks to quick setup menu
• Easy and safe menu-guided operation on-site, via 4...20 mA with HART, via PROFIBUS PA or via FOUNDATION Fieldbus
• Extensive diagnostic functions
• Device versions in conformity with ASME-BPE

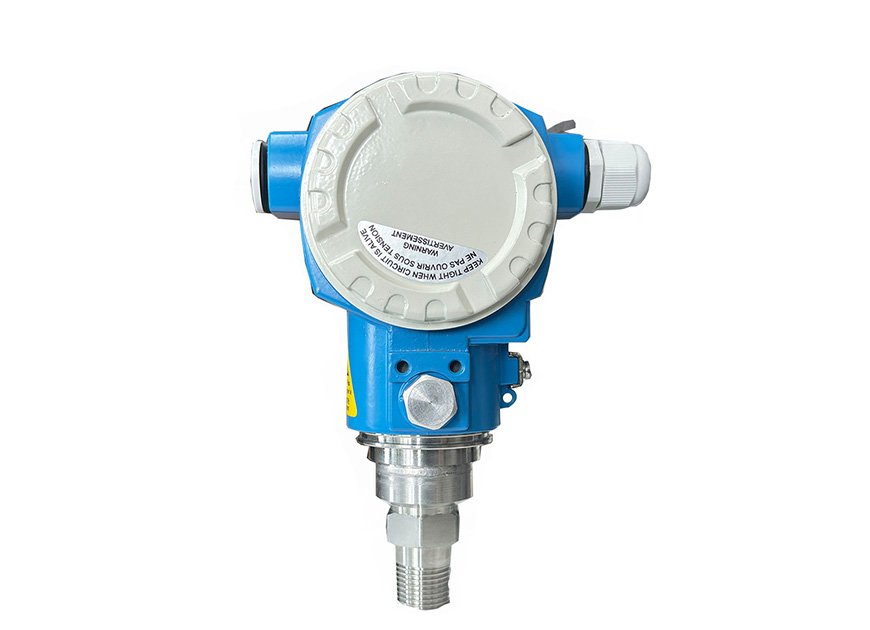

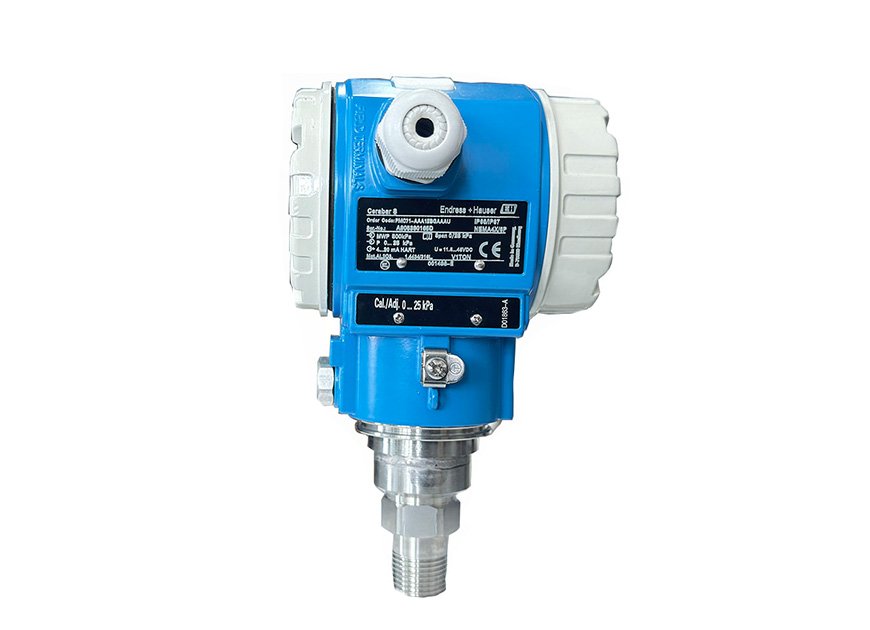

The Cerabar PMC71 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.
Item | valve |
Measuring principle | Absolute and gauge pressure |
Characteristic | Digital transmitter with capacitive sensor and ceramic membrane Modular transmitter Long term stability Enhanced safety via self diagnostic functions Secondary process barrier |
Supply voltage | 4...20 mA HART 10,5...45V DC (Non Ex): Ex ia: 10,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex) |
Reference Accuracy | Standard: 0.05% Platinum: up to 0.025% |
Long term stability | 0.05 % of URL/ year 0.08 % of URL/ 5 years 0.1 % of URL/ 10 years |
Process temperature | -20°C...150°C (-4°F...257°F) |
Ambient temperature | -40°C...85°C (-40°F...185°F) |
Measuring cell | 100 mbar...40 bar (1.5 psi...600 psi) relative/ absolute |
Smallest calibratable span | 5 mbar (0.075 psi) |
Vacuum resistance | 0 mbar ABS |
Max. Turn down | 100:1 |
Process connection | Thread: G1/2...G2, R1/2, MNPT1/2...MNPT2 Flange: DN25...DN80, ASME 1"...4", JIS 10K |
Packaging: Original cardboard box packaging
