Deltabar S
PMD75, FMD77, FMD78
Differential pressure measurement
Differential pressure transmitter with metal sensors
Nominal value [mbar (psi)] | Maximum measuring range | Smallest calibratable measuring span | MWP | OPL | Vacuum resistance | Option PN160 | ||
lower (LRL) | upper (URL) | On one side | on both sides | Silicone oil/Inert oil | ||||
[mbar (psi)] | [mbar (psi)] | [mbar (psi)] | [bar (psi)] | [bar (psi)] | [bar (psi)] | [Mbar (psi)] | ||
FMD77, FMD78, PMD75: Option PN 160/ 16 MPa/2400 Psi | ||||||||
10(0.15) | -10(0.15) | 10(0.15) | 0.25 (0.00375) | 160(2400) | 160(2400) | 240(3600) | 0.1(0.0015)) | 7B |
30(0.45) | -30(0.45) | 30(0.45) | 1/5(0.015/0.075) | 7C | ||||
100(1.5) | -100(1.5) | 100(1.5) | 5(0.075) | 160(2400) | 7D | |||
500(7.5) | -500(7.5) | 500(7.5) | 30(0.45)) | 7F | ||||
1000(15) | -1000(15) | 1000(15) | 50(0.75) | 7H | ||||
16000(240) | -16000(240) | 16000(240) | 160(2.4) | 7L | ||||
40000(600) | -40000(600) | 40000(600) | 400(6) | "+"side:160(2400) | 7M | |||
100(1.5) | -100(1.5) | 100(1.5) | 1/5(0.015/0.075) | 420(6300) | 420(6300) | 630(9450) | 0.1(0.0015) | 8D |
500(7.5) | -500(7.5) | 500(7.5) | 30(0.45)) | 8F | ||||
1000(15) | -1000(15) | 1000(15) | 50(0.75) | 8H | ||||
16000(240) | -16000(240) | 16000(240) | 160(2.4) | 8L | ||||
40000(600) | -40000(600) | 40000(600) | 400(6) | "+"side:420(6300) | 8M | |||
The device is used for the following measuring tasks:
• Flow measurement (volume flow or mass flow) in conjunction with differential pressure sensors in gases, vapors and liquids.
• Level, volume or mass measurements in liquids.
• High process temperatures up to 400 °C (752 °F) possible with diaphragm seal mount.
• Very good reproducibility and long-term stability
• High reference accuracy up to 0.035 %
• Turn down up to 100:1, higher on request
• Used for flow and differential pressure monitoring up to SIL3, certified to IEC 61508 by TÜV SÜD
• High level of safety during operation thanks to function monitoring from the measuring cell to the electronics
• The patented TempC membrane for the diaphragm seal reduces measured errors caused by environmental and process temperature influences to a minimum
• Easy electronic replacement guaranteed with HistoROM®/M-DAT
• Uniform platform for differential pressure, hydrostatics and pressure (Deltabar S – Deltapilot S – Cerabar S)
• Practical user navigation for quick and easy commissioning
• Extensive diagnostic functions
• Cost-effective installation with Deltabar S FMD77, capillary on low-pressure side

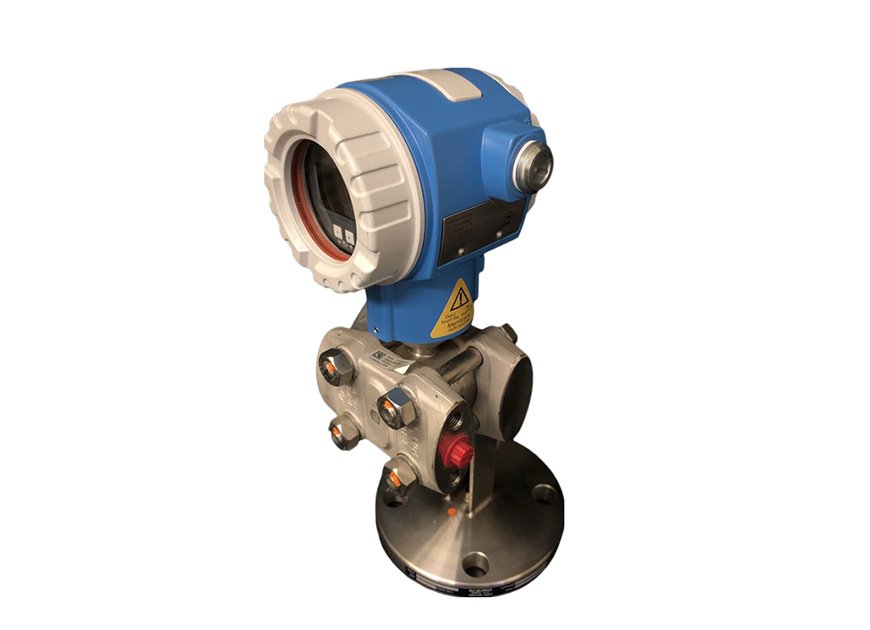

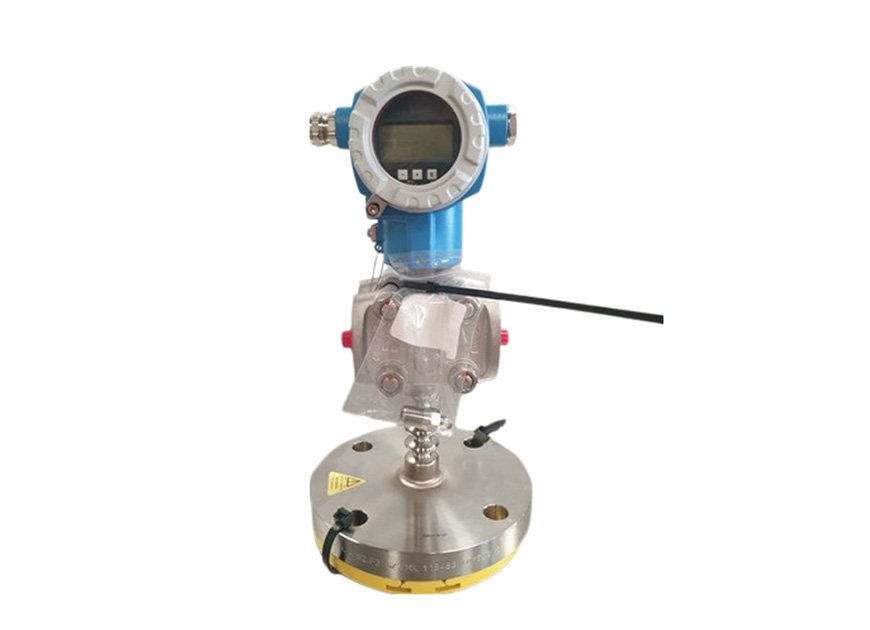

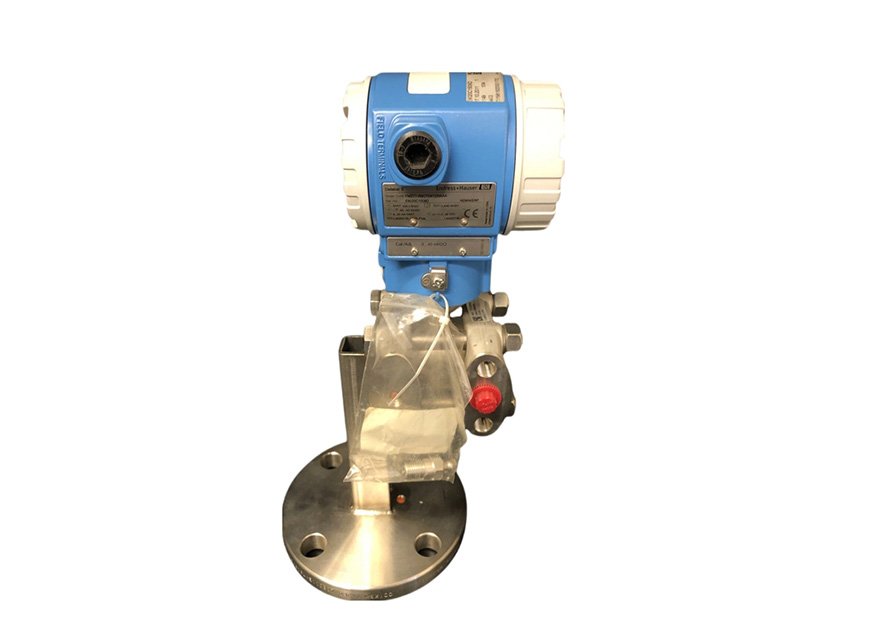

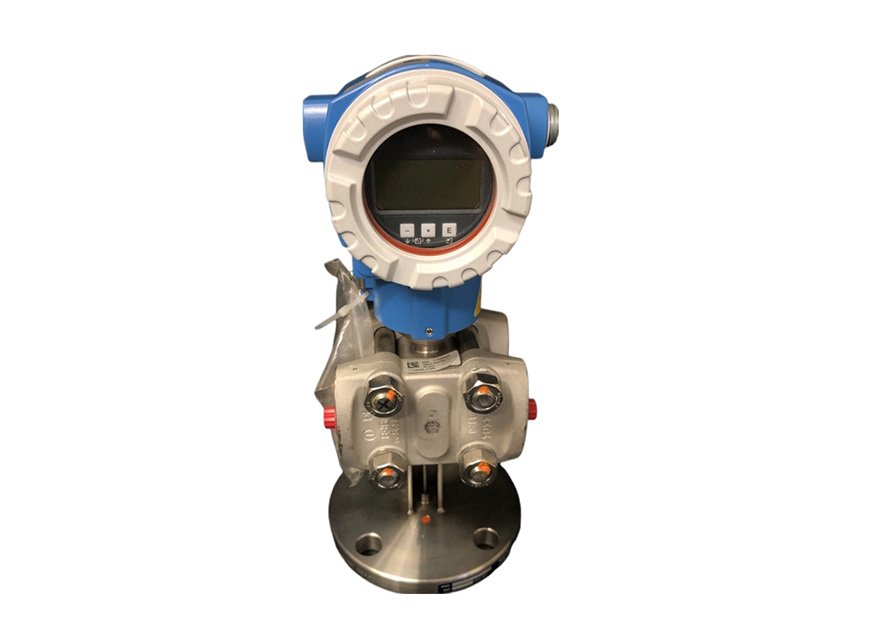

The Deltabar FMD77 differential pressure transmitter with metal sensor uses a one-sided diaphragm seal or diaphragm seals on both sides with a capillary on the low pressure side. Typically used in the process industry for continuous level measurement in liquids. The integrated HistoROM data module makes the management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety applications.
For level, volume or mass measurement in liquids.
Process connections: Threads and flanges
Temperature: -70 to +400°C (-94 to +752°F)
Measuring ranges: +100mbar to +16bar (+1.5 to +240psi)
Accuracy: ±0.075%
International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL
Item | valve |
Measuring principle | Differential pressure |
Characteristic | Digital transmitter with metallic measuring diaphragms diaphragm seals and capillaries Modular transmitter Long-term stability Secondary process barrier enhanced safety via self diagnostic functions. |
Supply voltage | 4...20 mA HART 10,5...45V DC (Non Ex): Ex ia: 10,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex) |
Reference Accuracy | 0,075% + influence of diaphragm seal |
Long term stability | 0.08 % of URL/ year 0.14 % of URL/ 5 years 0.27 % of URL/ 10 years |
Process temperature | -40°C...400°C (-40°F...752°F) |
Ambient temperature | -50°C...85°C(-58°F...185°F) |
Measuring cell | 100 mbar...16 bar (40 inH20...240 psi) |
Smallest calibratable span | 5 mbar (0.075 psi) |
Vacuum resistance | 50 mbar (0.73 psi) |
Max. Turn down | 100:1 |
Process connection | Low pressure side: 1/4-18NPT RC1/4" High pressure side: Flanges (DIN, ASME, JIS) |
Cerabar M -Product family | PMD75 | FMD77 | FMD78 | ||
Field of applicatlion | Flow. Level Differential pressure | Level Differential pressure | Level Differential pressure | ||
Process connections | 1/4-18NPT RC1/4 | Low-pressure side (-): 1/4-18NPT RC1/4 Alternatively available with capillary and diaphragm seal High-pressure side (+): DN 50-DN100 ASME NPS 2" -4 | Wide range of diaphragm seals | ||
Measuring ranges | from -10 to +10 mbar (-0.15 to +0.15psi)to-40 to+40 bar (-600to+600 psi) | from -100 to +100 mbar (-1.5 to +1.5 psi)to -16 bar to +16 bar (-240to +240 psi) | from -100 to +100 mbar (-1.5 to +1.5 psi)to-40to+40 bar(-600to +600 psi) | ||
OPL | on one side:up to 420 bar (6 300 psi)on both sides: up to 630 bar (9 450 psi) | on one side: up to 160 bar (2400 psi)on both sides: up to 240 bar (3 600 psi) | on one side:up to 160 bar (2400 psi)on both sides: up to 240 bar (3 600 psi) | ||
Process temperature range | -40to+85C(-40to+185F) | -70to+400C(-94to+752F) (depends on filling oil) | -70to+400C(-94to+752F) (depends on filling oil) | ||
Ambient temperature range | Without LCD display: -40 to +85 C (-40 to +185F) With LCD display. -20 to +70'C (-4 to +158'F) (extended temperature application range (-40 to 85'C(-40 to 185'F)) with restrictions in optical properties such as display speed and contrast) Separate housing: -20 to +60C(-4 to +140'F) Diaphragm seal systems depending on the version | ||||
Reference accuracy | Up to 0.035 % of the set span | Up to 0.075 % of the set span | |||
Supply voltage | 11.5 to 45 V DC (versions with plug-in connection 35 V DC)For intrinsically safe device versions: 11.5 to 30 V DC | ||||
Output | 4to 20mAHART:10.5to 45 VDC PROFIBUS PA and FOUNDATION Fieldbus: 9 to 32 V DC | ||||
Supply voltage Exia | 10.5 to 30VDC | ||||
Options | High-pressure version up to Ptar 700 bar (10 500 psi) HistoROMe/M-DAT memory chip | ||||
Specialties | Pstar up to 420 bar (6 300 psi) Process isolating diaphragm: antalum | For high media temperatures | Wide range of diaphragm seals | ||
Packaging: Original cardboard box packaging
