Differential pressure, level and flow measurement in liquids or gases

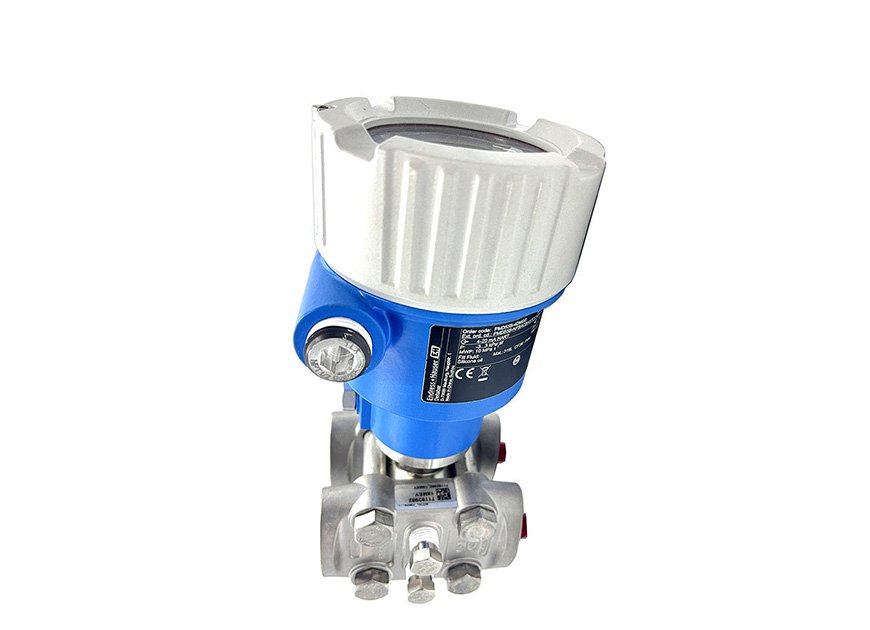

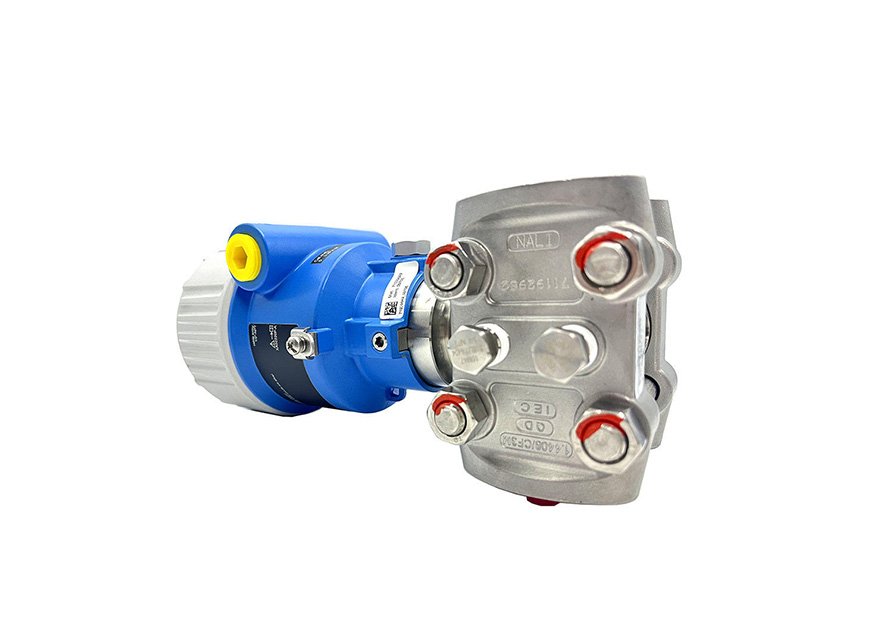

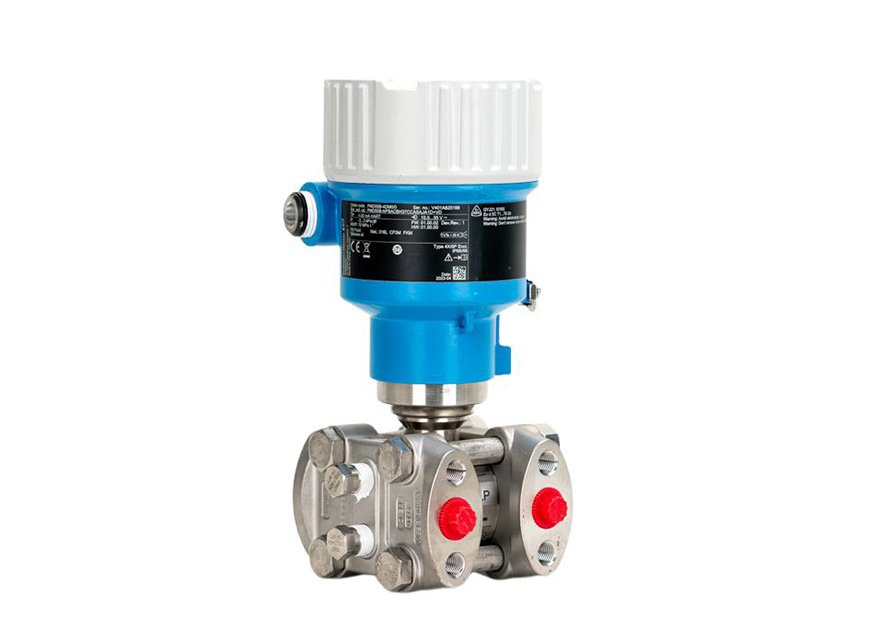

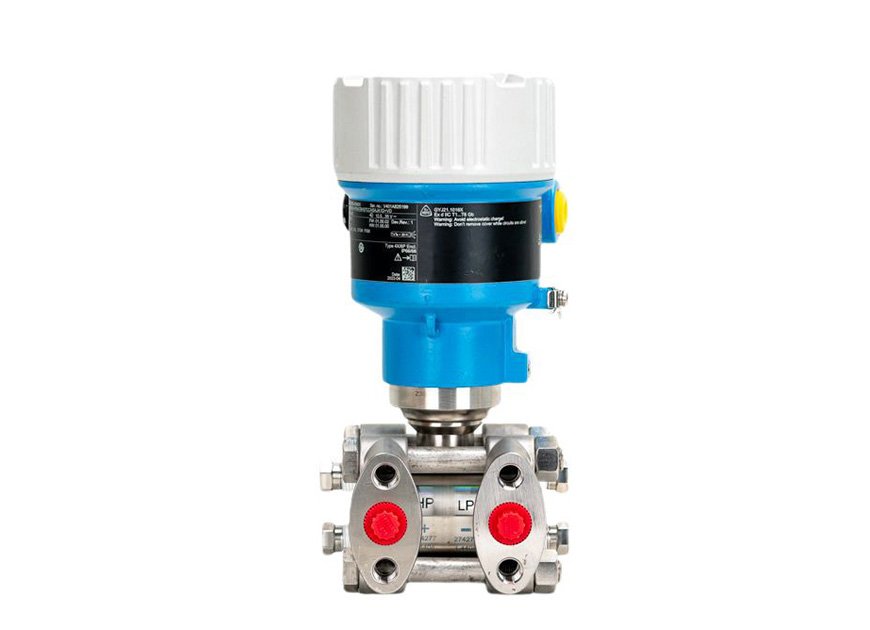

Digital differential pressure transmitter with metal
process membrane
Measuring cell[mbar (psi)] | Maximum measuring range | Smallest calibratable measuring span | MWP | OPL | Burst pressure | ||
lower (LRL) | upper (URL) | on one side | on both sides | ||||
[mbar (psi)] | [mbar (psi)] | [mbar (psi)] | [bar (psi)] | [bar (psi)] | [bar (psi)] | [bar(psi] | |
30(0.45) | -30(0.45) | 30(0.45) | 0.3(0.0045) | 100(1500) | 150(2250) | 150(2250) | 690(10005) |
100(1.5) | -100(1.5) | 100(1.5) | 1(0.015) | 160(2400) | 160(2400) | 240(3600) | 690(10005) |
500(7.5) | -500(7.5) | 500(7.5) | 5 (0.075) | 160(2400) | 160(2400) | 240(3600) | 690(10005) |
3000(45) | -3000(45) | 3000(45) | 30(0.45) | 160(2400) | 160(2400) | 240(3600) | 690(10005) |
16000(240) | -16000(240) | 16000(240) | 160(2.4) | 160(2400) | 160(2400) | 240(3600) | 690(10005) |
40000(600) | -40000(600) | 40000(600) | 400(6) | 160(2400) | "+"side:160(2400)-side:100(1500) | 240(3600) | 690(10005) |
• Pressure measuring ranges: up to 40 bar (600 psi)
• Static pressure: up to 250 bar (3750 psi)
• Accuracy: up to ±0.055%
The new Deltabar generation introduces a robust pressure transmitter that combines numerous benefits: Easiest local or remote operation, allows condition-based maintenance and offers smart safety in processes. The firmware is designed to ensure extremely easy handling. Intuitive and clear wizard navigation guides the user through the commissioning and verification of the device. The Bluetooth connectivity provides safe and remote operation. The large display guarantees excellent readability.
This transmitter belongs to the new Deltabar generation. It is robust and easy to operate either locally or remotely. The transmitter can be controlled wireless via app on a mobile device using a secure Bluetooth connection. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly.
The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.
Pressure measuring range: up to 40 bar (600 psi)
Static pressure up to 250bar (3750psi)
Accuracy: up to +/-0.055%
Item | valve |
Measuring principle | Differential pressure |
Characteristic | Transmitter with metal membrane for differential pressure monitoring in liquids or gases. Intuitive and clear wizard for commissioning |
Supply / Communication | Ex d, Ex e, non-Ex:: 10.5...35V DC Ex i: 10.5...30V DC |
Reference Accuracy | Standard: up to 0.075 % Platinum: up to 0.055 % |
Long term stability | 0.05% of URL/ year 0.13% of URL/ 5 years 0.23% of URL/ 10 years |
Process temperature | -40°C...+110°C (-40°F...+230°F) |
Ambient temperature | -40°C...+85°C (-40°F...+185°F) |
Process pressure / max. overpressure limit | 250 bar (3750 psi) |
Pressure measuring range | 10 mbar.... 40 bar (0.15 psi... 600 psi) |
Main wetted parts | 316L, AlloyC |
Process connection | NPT 1/4-18, RC1/4" |
Communication
| 4...20 mA HART PROFINET with Ethernet-APL Bluetooth® wireless technology and app (optional) |
Certificates / Approvals | ATEX, CSA, IECEx, JPN Ex, KC, INMETRO, NEPSI, UK Ex |
Packaging: Original cardboard box packaging
