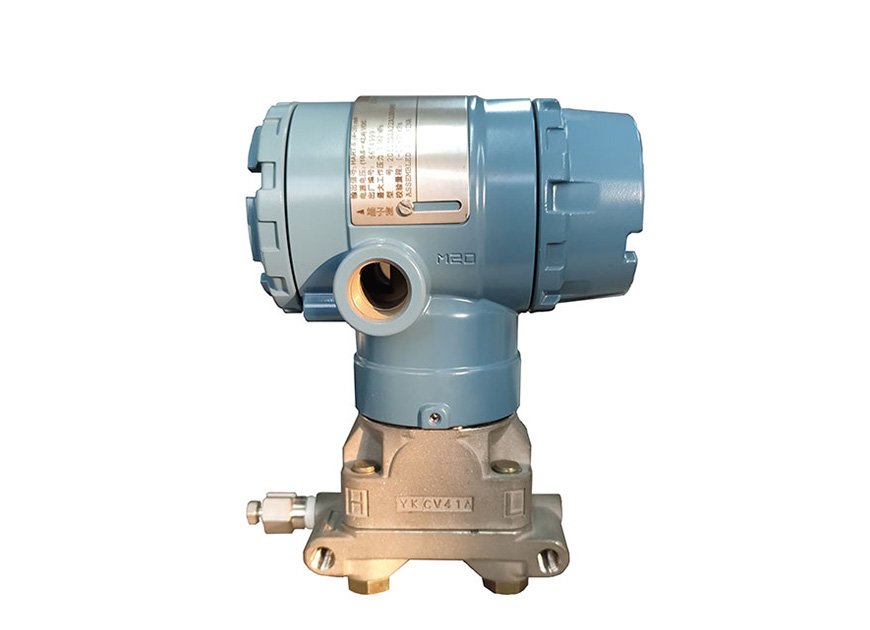

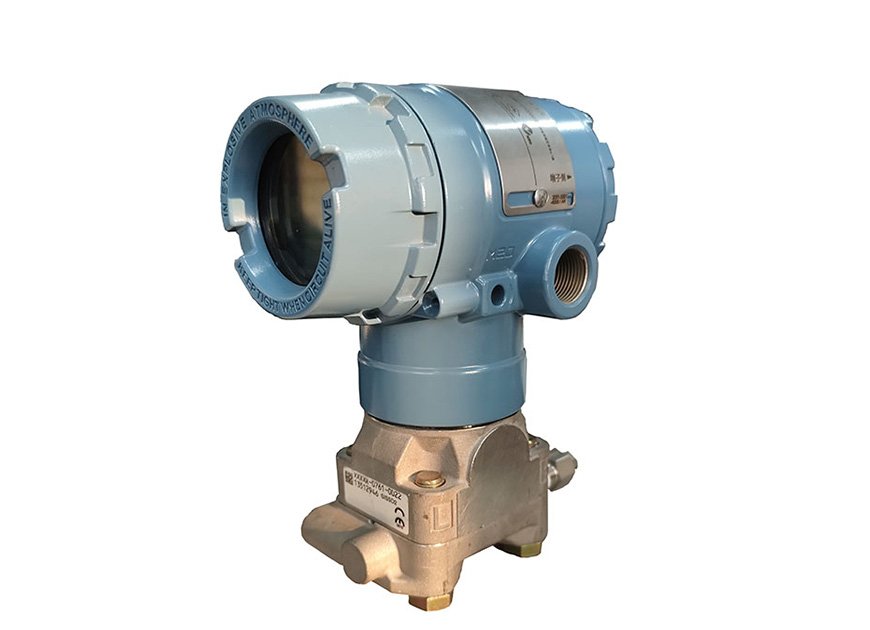

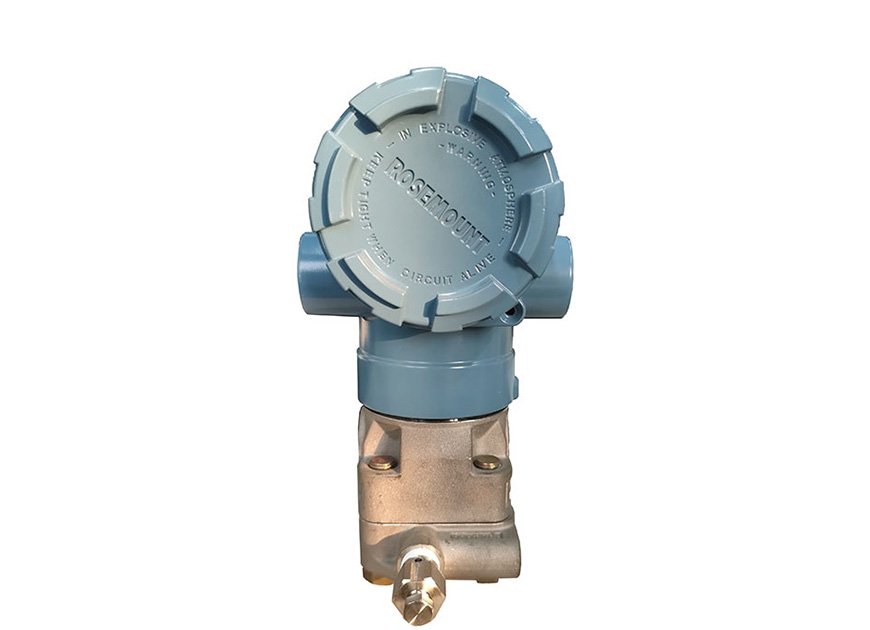

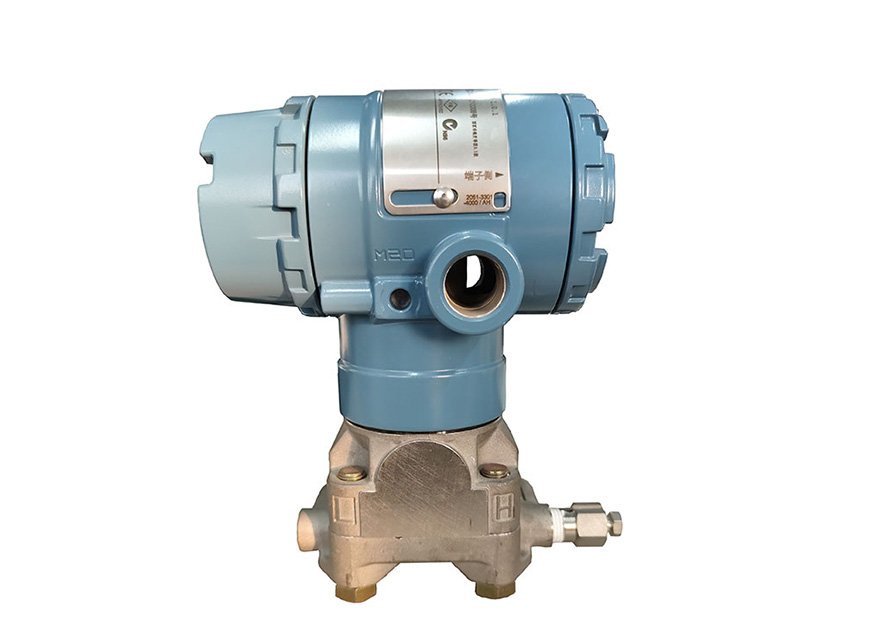

The Rosemount 2051CD Differential Pressure Transmitter is a reliable choice for industrial automation applications, suitable for a wide range of pressure, level, and flow measurement tasks. Its coplanar design ensures easy installation and seamless integration, helping you improve production efficiency, reduce operational costs, and ensure process safety and stability.
■ Best-in-class performance with up to 0.05 percent high accuracy option
■ IEC 62591 (WirelessHART® ) enables cost effective installations
■ Local Operator Interface (LOI) offers easy to use configuration capabilities at the transmitter
■ Protocols available include 4–20 mA HART® , FOUNDATION™ Fieldbus, and PROFIBUS® PA
■ Selectable HART Revision prepares your plant for the latest HART capabilities while ensuring seamless integration with today's systems
■ SIL2/3 safety certification to IEC 61508 is available with the full 4–20 mA HART offering to simplify compliance
■ Performance up to 0.05% of span accuracy
■ Patented coplanar technology allows direct mounting to pressure, flow or level solutions for installation flexibility
■ Delivered fully assembled to manifolds, diaphragm seals or primary flow elements for straightforward installation
■ Local Operator Interface offers easy-to-use menus and built-in configuration buttons for streamline commissioning
■ SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
2051CD | 2051CG | |
1 | -25 to 25 inH2O (-62.16 to 62.16 mbar) | -25 to 25 inH2O (-62.16 to 62.16 mbar) |
2 | –250 to 250 inH2O (-621.60 to 621.60 mbar) | –250 to 250 inH2O (-621.60 to 621.60 mbar) |
3 | -1000 to 1000 inH2O (-2.48 to 2.48 bar) | -393 to 1000 inH2O (-0.97 to 2.48 bar) |
4 | 300 to 300 psi (-20.68 to 20.68 bar) | -14.2 to 300 psi (-0.97 to 20.68 bar) |
5 | -2000 to 2000 psi (-137.89 to 137.89 bar) | -14.2 to 2000 psi (-0.97 to 137.89 bar) |
Parameter | Description |
Measurement Range | Up to 2000 psi (137.89 bar) differential pressure |
Accuracy | 0.04% of span (reference) |
Long-Term Stability | 0.2% URL over 10 years |
Process Wetted Materials | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-Plated 316L SST, Gold-Plated Alloy 400 |
Power Module Life | Up to 10 years, field replaceable |
Wireless Update Rate | 1 second to 60 minutes, user selectable |
Wireless Range | Internal antenna, up to 225 meters |
Operating Temperature | -40°C to 85°C (ambient) |
Protection Rating | IP66 / IP67 |
Packaging: Original cardboard box packaging
