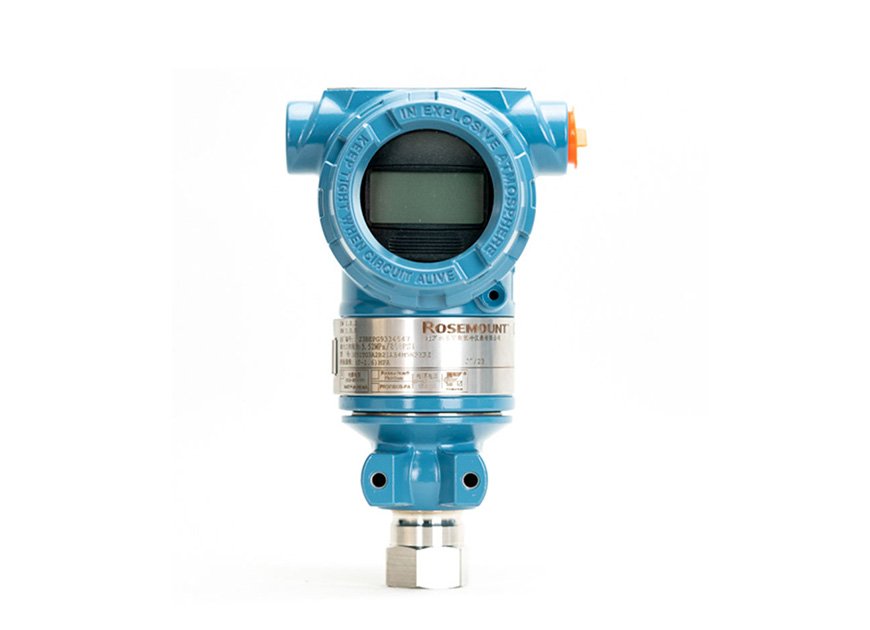

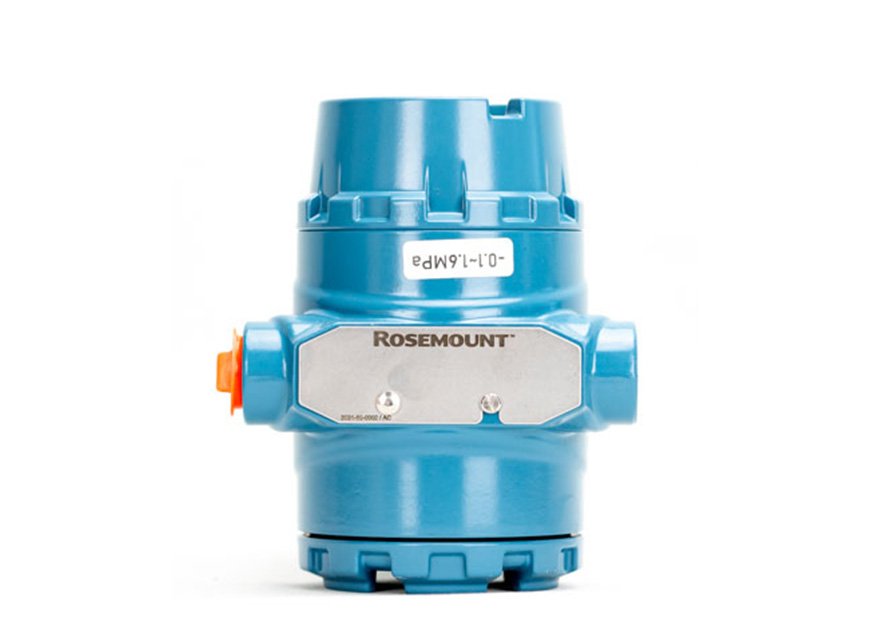

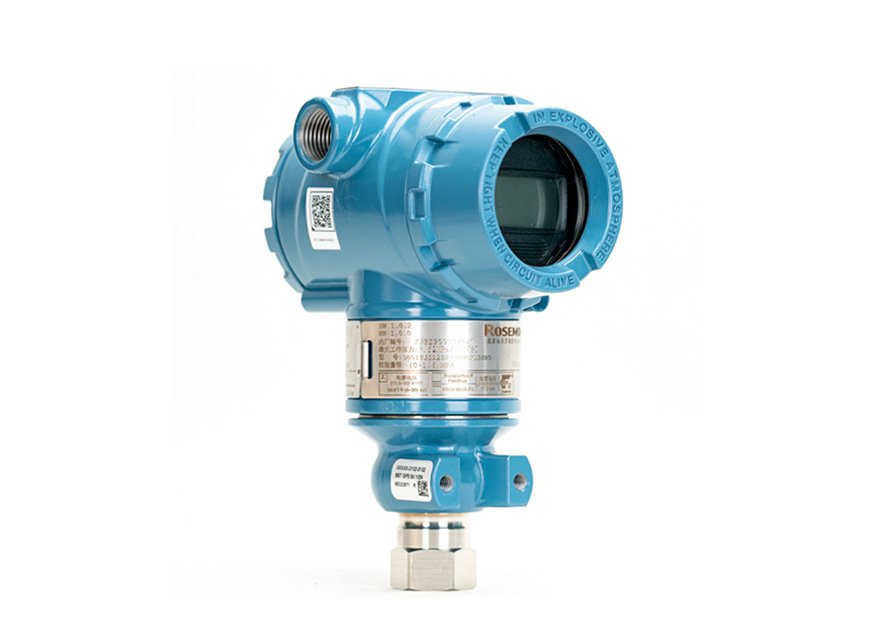

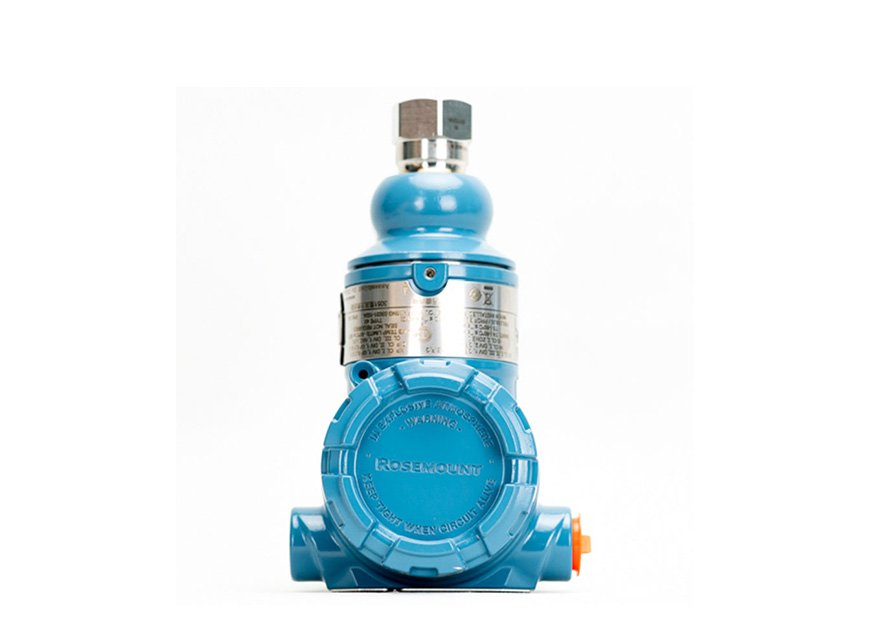

Emerson Rosemount 3051 In-Line Pressure Transmitter

Emerson Rosemount 3051 In-Line Pressure Transmitter

Inquiry Now Add To The Cart

PRODUCT DESCRIPTION

The Rosemount 3051 Pressure Transmitter allows more control over your plant. You will:

■ reduce product variation and complexity

■ reduce total cost of ownership by leveraging one device across a number of pressure, level, and flow applications

■ access information to diagnose, correct, and even prevent issues With unparalleled reliability and experience, the 3051 assists global competitiveness by being the industry standard enabling higher levels of efficiency and safety

Rosemount 3051T In-Line Pressure Transmitters are the industry standard for gage and absolute pressure measurement. The in-line, compact design allows the transmitter to be connected directly to a process for quick, easy and cost effective installation.

■ Loop Integrity and Plugged Impulse Line Diagnostics detect issues that might compromise the integrity of the output signal (code DA1).

■ Bluetooth® Connectivity enables efficient, reliable, and safe configuration and maintenance (code BLE).

■ Back-lit Graphical Display with Local Language Capability (code M6).

■ Safety certification and proof testing (code QT and T9).

Technical parameters:

Overall performance: ± 0.15% FS

Accuracy: ± 0.075% FS

Pressure: calibration range from 0.3 to 10000 psi

Gauge pressure: calibration range from 0.3 to 10000 psi

Stainless steel and Hastelloy CR process isolation diaphragm

Single diaphragm design

Filling fluid: silicone oil and inert oil

Optional din and autoclave compatible process connections

Product model:

3051TG1A 3051TG2A 305ATG3A 3051TG4A 3051TG5A.
Benefit from industry-leading capabilities and trusted performance with the Rosemount 3051 Pressure Transmitter. With over 10 million devices installed, this pressure transmitter family offers an all-in-one solution for pressure, level and flow measurement.The 3051TG Rosemount pressure transmitter is designed for high reliability, long-term stability and easy maintenance. Rosemount pressure transmitters provide optimal measurement concepts from design to installation, maintenance to operation.

Rosemount 3051tg / Ta pressure transmitter typical models:

3051TG1A2B21AB4M5K5 0-207KPa with LCD display, mounting bracket, intrinsically safe and flameproof
3051TG2A2B21AB4M5K5 0-1034KPa with LCD display, mounting bracket, intrinsically safe and flameproof
3051TG3A2B21AB4M5K5 0-5516KPa with LCD, mounting bracket, intrinsically safe and flameproof
3051TG4A2B21AB4M5K5 0-27.58MPa with LCD display, mounting bracket, intrinsically safe and flameproof
3051TG5A2B21AB4M5K5 0-68.9MPa with LCD display, mounting bracket, intrinsically safe and flameproof

Product Parameters

code	3051TG	3051TA
0	-5 to 5 psi (-344.74 to 344.74 mbar)	N/A
1	-14.7 to 30 psi (-1.01 to 2.06 bar)	0 to 30 psia (0 to 2.06 bar)
2	-14.7 to 150 psi (-1.01 to 10.34 bar)	0 to 150 psia (0 to 10.34 bar)
3	14.7 to 800 psi (-1.01 to 55.15 bar)	0 to 800 psia (0 to 55.15 bar)
4	-14.7 to 4000 psi (-1.01 to 275.79 bar)	0 to 4000 psia (0 to 275.79 bar)
5	-14.7 to 10000 psi (-1.01 to 689.47 bar)	0 to 10000 psia (0 to 689.47 bar)
6	-14.7 to 20000 psi (-1.01 to 1378.95 bar)	0 to 20000 psia (0 to 1378.95 bar)

Packaging: Original cardboard box packaging

COMPANY PROFILE

Esito (weifang) Automation Equipment Co., Ltd. specializes in industrial automation instrument development, production and sales, technical services, and supporting equipment supply of specialized companies. The main products are flow meters, level meters, temperature meters, pressure meters, electrical meters, thermal intelligent meters, programmable controllers (PLC), DCS distributed control systems, and eight series of more than 1,000 specifications. Its products and technologies are widely used in electric power, metallurgy, petrochemicals, environmental protection, plastics, food, printing, tobacco, textile, dyeing, and other fields.
We can offer rosemount, Endress+Hauser, yokogawa, Siemens, ABB,Fisher,Koso, Samson, Abzil, NELES,UE etc, Brands.

If you need anything please feel free to contact me.

FAQ

Q: How long will you give me the reply?
A: We will reply to you as soon as we see the information

Q: What is the delivery time?
A:The products in stock will be shipped after receiving the payment, and the products that need to be ordered are subject to the factory time.

Q: How about your package?
A: Do not worry about the package, we have rich experience in packing.

Q: How about the payment terms?
A:You can choose T/T.

Q: What is the MOQ?
A:1PC.

Q: Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.

Q:After sales and warranty?
A: We provide one year warranty lifetime technical support services.
