■ reduce product variation and complexity
■ reduce total cost of ownership by leveraging one device across a number of pressure, level, and flow applications
■ access information to diagnose, correct, and even prevent issues With unparalleled reliability and experience, the 3051 assists global competitiveness by being the industry standard enabling higher levels of efficiency and safety
■ Loop Integrity and Plugged Impulse Line Diagnostics detect issues that might compromise the integrity of the output signal (code DA1).
■ Bluetooth® connectivity enables efficient, reliable, and safe configuration and maintenance (code BLE).
■ Back-lit graphical display with local language capability (code M6).
■ Safety certification and proof testing (code QT and T9)
■ More than ten million installed
■ Reference accuracy 0.04 percent of span
■ Installed total performance of 0.14 percent of span
■ 10-year stability of 0.2 percent of URL
■ SIL 2/3 certified (IEC 61508)
3051CD | 3051CG | 3051CA | |
0 | -3 to 3 inH2O (-7.46 to 7.46 mbar) | Not applicable | Not applicable |
1 | -25 to 25 inH2O (-62.16 to 62.16 mbar) | -25 to 25 inH2O (-62.16 to 62.16 mbar) | 0 to 30 psia (0 to 2.06 bar) |
2 | –250 to 250 inH2O (-621.60 to 621.60 mbar) | –250 to 250 inH2O (-621.60 to 621.60 mbar) | 0 to 150 psia (0 to 10.34 bar) |
3 | -1000 to 1000 inH2O (-2.48 to 2.48 bar) | -393 to 1000 inH2O (-0.97 to 2.48 bar) | 0 to 800 psia (0 to 55.15 bar) |
4 | 300 to 300 psi (-20.68 to 20.68 bar) | -14.2 to 300 psi (-0.97 to 20.68 bar) | 0 to 4000 psia (0 to 275.79 bar) |
5 | -2000 to 2000 psi (-137.89 to 137.89 bar) | -14.2 to 2000 psi (-0.97 to 137.89 bar) | Not applicable |
Item | value |
Warranty | Other |
Customized support | OEM, ODM, OBM |
Place of Origin | United States |
Brand Name | ROSEMOUNT |

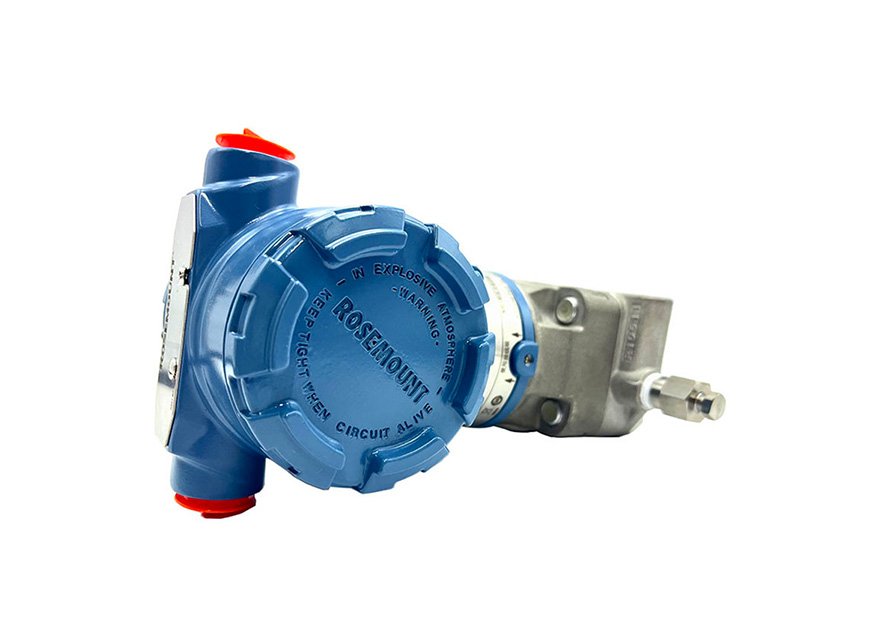

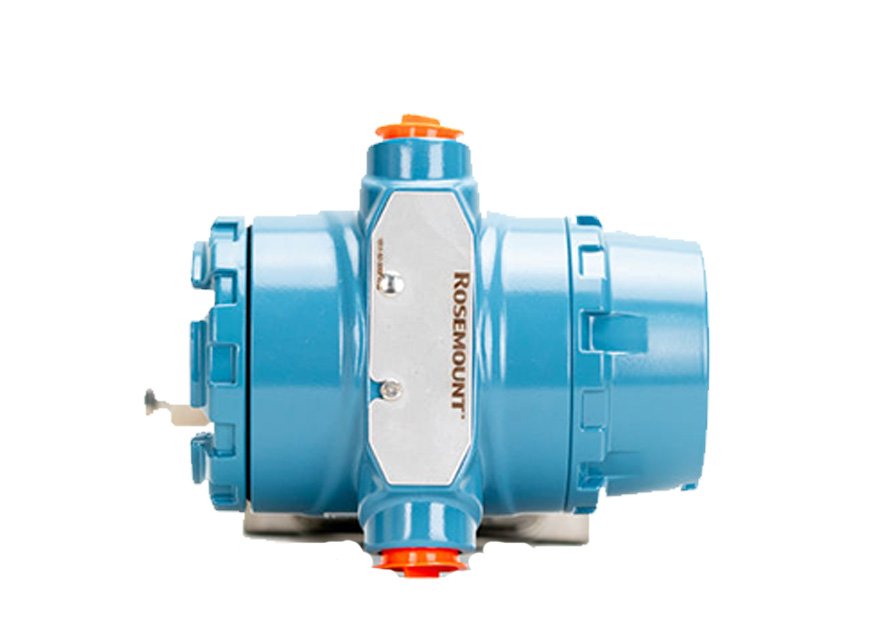

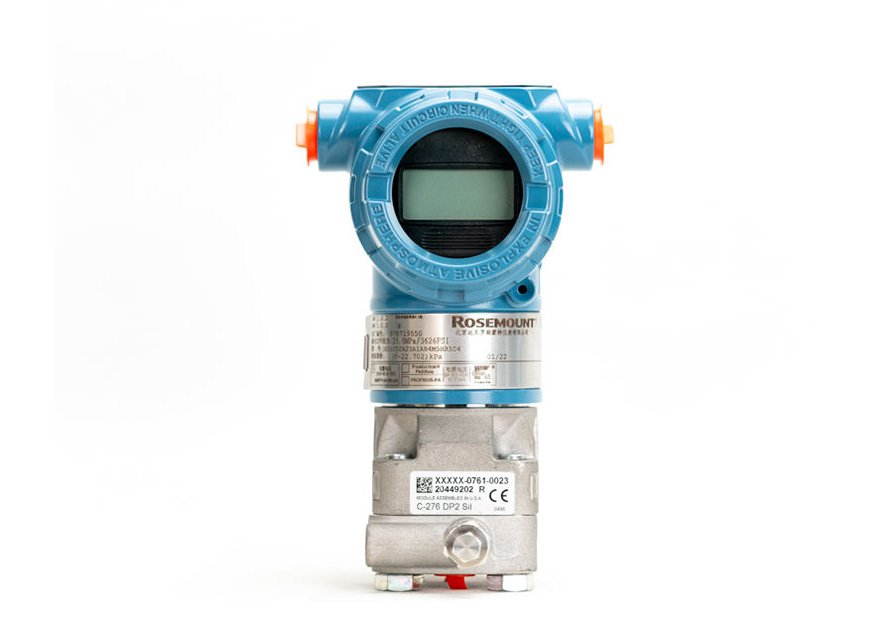

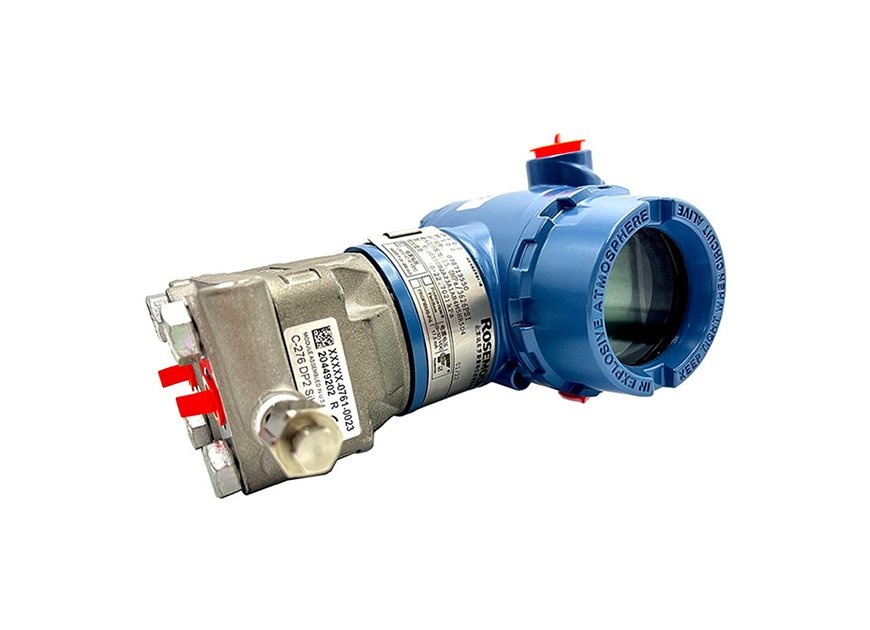

Model Number | 3051 |
Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400 |
Warranty | Up to 5-year limited warranty |
Rangedown | Up to 150:1 |
Communication Protocol | 4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART® |
Measurement Range | Up to 2000 psi (137,89 bar) differential |
Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400 |
Diagnostics | Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics |
Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications |
Wireless Update Rate | 1 sec. to 60 min., user selectable |
Power Module Life | Up to 10-year life, field replaceable (order separately) |
Wireless Range | Internal antenna (225 m) |
Packaging: Original cardboard box packaging
