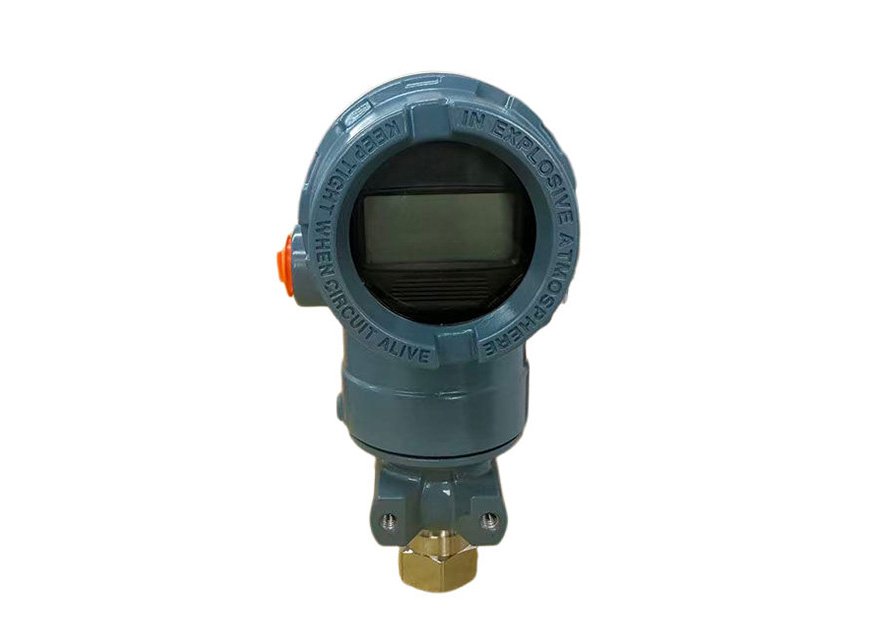

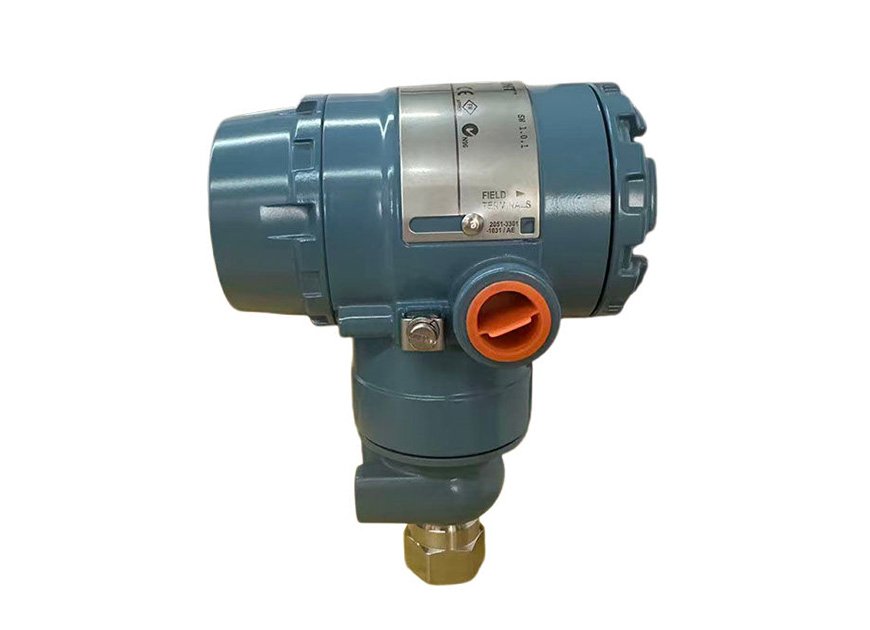

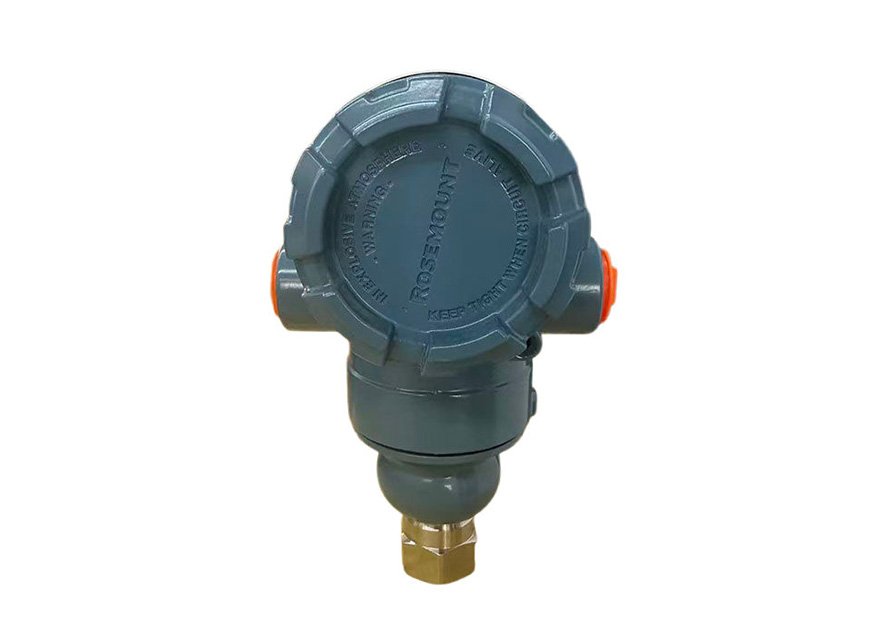

Product Overview
Designed with advanced in-line technology, the Rosemount 2051TG supports both gauge and absolute pressure measurements, with a maximum measurable pressure of up to 10,000 psi (approximately 689.5 bar) . Its compact and intelligent design enables seamless integration into both new and existing installation systems, eliminating the need for additional impulse lines and simplifying on-site deployment. Whether for basic pressure monitoring or complex process control, this transmitter provides consistent performance that industrial operators can trust.
The Rosemount 2051TG, a flagship in-line pressure transmitter under Emerson's Rosemount brand, stands out for its exceptional precision, long-term stability, and versatile adaptability. Engineered to meet the rigorous demands of modern industrial processes, this device delivers reliable gauge or absolute pressure measurements, making it a preferred choice across diverse industrial sectors.
2051TG | 2051TA | |
0 | –5 to +5 psi (–344.74 to +344.74 mbar) | N/A |
1 | –14.7 to +30 psi (–1.0 to +2.1 bar) | 0 to 30 psia (0 to 2.1 bar) |
2 | –14.7 to +150 psi (–1.0 to +10.3 bar) | 0 to 150 psi (0 to 10.3 bar) |
3 | –14.7 to +800 psi (–1.0 to +55 bar) | 0 to 150 psi (0 to 10.3 bar) |
4 | –14.7 to +4000 psi (–1.0 to +276 bar) | 0 to 4000 psi (0 to 276 bar) |
5 | –14.7 to +10000 psi (–1.0 to +689 bar) | 0 to 10000 psi (0 to 689 bar) |
The Rosemount 2051TG is widely applied in oil & gas, chemical processing, power generation, metallurgy, water & wastewater treatment, and other industrial sectors . It is ideal for measuring pipeline pressure, vessel pressure, and liquid level, providing accurate and reliable pressure data to optimize process control, ensure operational safety, and reduce energy consumption. Its compliance with global industry standards (AGA, ASME, ISO, API, DIN) makes it suitable for both standard and custom process requirements .
Item | details |
Pressure Range | - 14.7 to 30 psi (- 1.0 to 2.1 bar) |
Output Signal | 4 - 20 mA with digital signal based on HART protocol. Other options include Foundation Fieldbus and 1 - 5 VDC HART low power. |
Process Wetted Parts | 316L stainless steel, Hastelloy C - 276, Tantalum (for special applications) |
O - ring | Glass - filled PTFE, graphite - filled PTFE |
Sensor Fill Fluid | Silicone inert (for differential and gauge only) |
Housing Material | Aluminum (1/2 - 14 NPT or M20 × 1.5), stainless steel (1/2 - 14 NPT or M20 × 1.5) |
Accuracy | Standard: 0.075%, optional enhanced: 0.065% |
Stability | Two - year stability of 0.10%, optional five - year stability |
Rangeability | 100:1 |
Packaging: Original cardboard box packaging
