Up to 1.80% volumetric flow accuracy at 8:1 turndown n
Available with HART®, FOUNDATION™ fieldbus, and Profibus Protocols n
5-year stability n
100 millisecond Response Time n
Installation Flexibility-Coplanar Platform

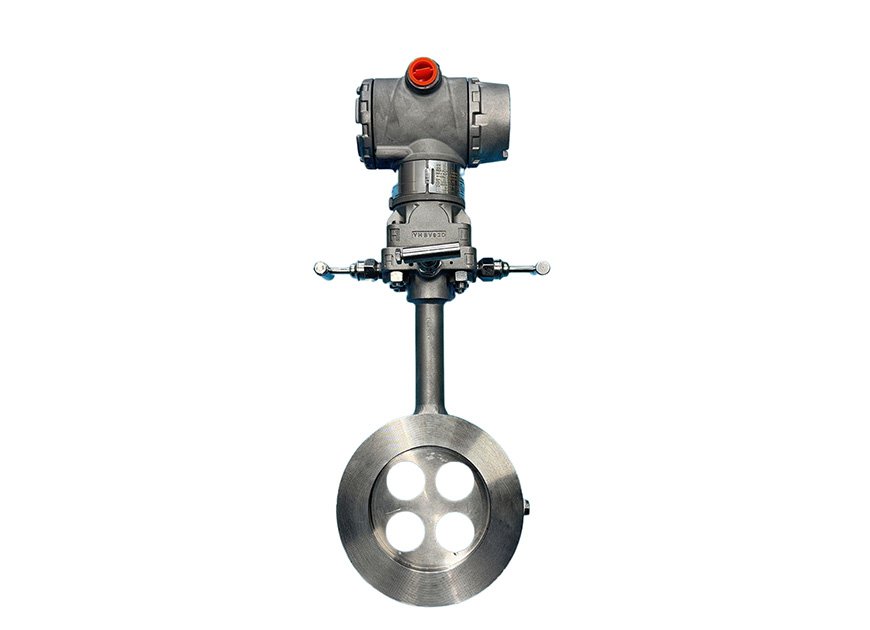

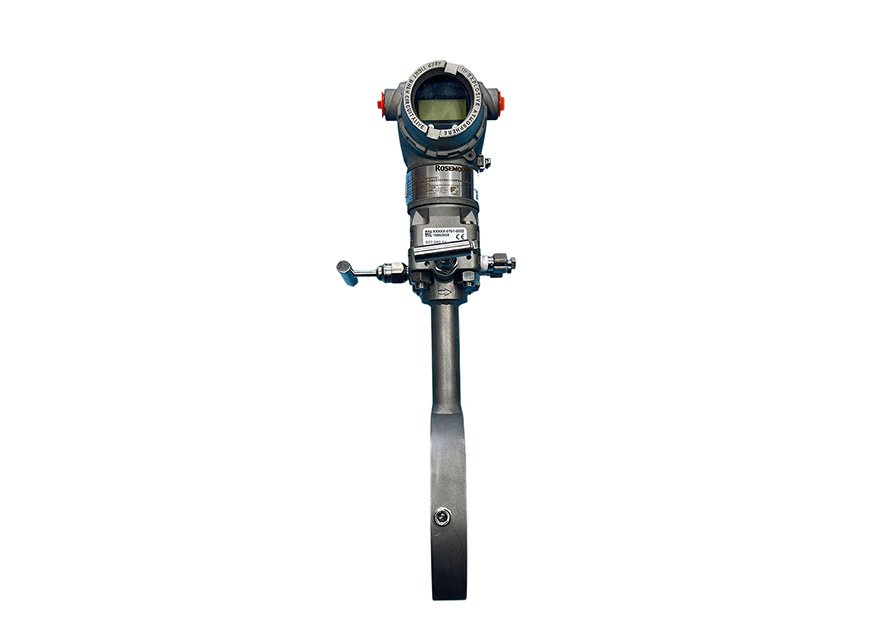

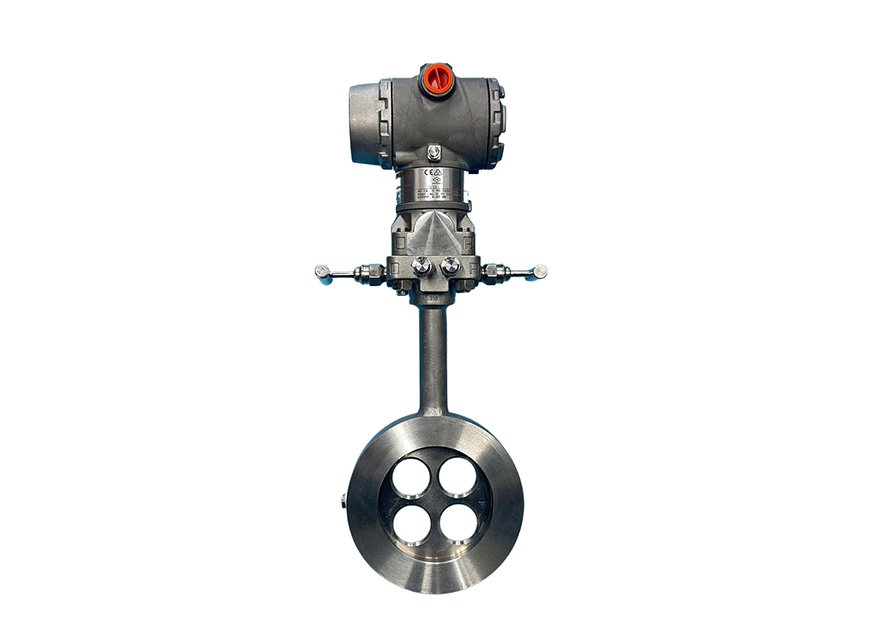

Rosemount 3051CFC Compact Flowmeter Compact Conditioning flowmeters reduce straight piping requirements to 2D upstream and 2D downstream from a flow disturbance Simple installation of Compact flowmeters between any existing raised-face flanges.
The Rosemount 3051CFC Series compact orifice flow meter is a complete flow monitoring system designed for closed loop control and general purpose monitoring applications. By integrating the 3051C pressure transmitter with the 405 Compact Orifice primary element, Rosemount has created a high performance, direct mount differential pressure flow meter lowering the installed cost by eliminating the need for fittings, impulse tubing, valves, adapters and manifolds by providing a single device packaged together for simplified installation.
Designed to be installed between any existing raised-face flanges, the 3051CFC provides straightforward and affordable installation in a complete system which arrives assembled, calibrated, pressure tested, and ready to install.
The Rosemount 3051CFC Series compact orifice flow meter is ideal for the volumetric measurement of relatively clean liquids, while also being suitable for gases and steam. Measurements are repeatable and accurate up to 1.65% at 8:1 turndown. A centering mechanism helps eliminate improper installation which can result in significant errors in readings. The 3051CFC is available for line sizes from 1/2 to 12 inches and pressures to 600# (PN 100). A wide range of options are available to customize the system to nearly any application
Feature | Details |
Warranty | Up to 5-year limited warranty |
Range | Up to 150:1 (8:1 flow turndown) |
Measurement Range | Up to 1000 inH2O (2.48 bar) differential |
Communication Protocol | 4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART® |
Line Size | 0.5 to 12 in. (15 to 300 mm) |
Process Wetted Material | 316L SST |
Diagnostics | Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics |
Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of certifications |
Wireless Update Rate | 1 sec. to 60 min., user selectable |
Power Module Life | Up to 10-year life, field replaceable (order separately) |
Wireless Range | Internal antenna (225 m) |
Packaging: Original cardboard box packaging
