iTEMP TMT71 temperature transmitter
Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals. The standardized 4 to 20 mA output signal is used for process measurement. Swift and easy commissioning, operation and maintenance via PC software or with integrated Bluetooth® technology and Endress+Hauser SmartBlue App.

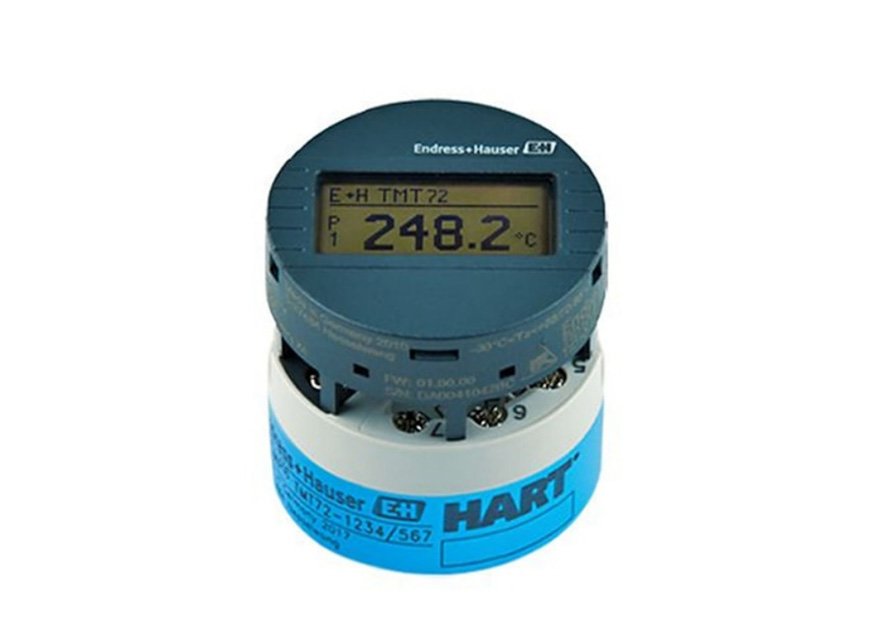

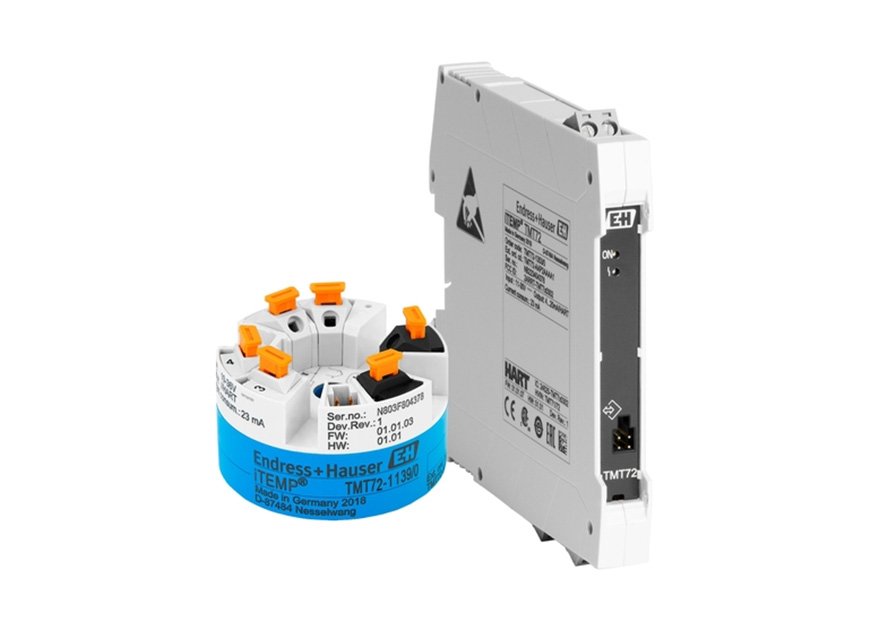

iTEMP TMT72 temperature transmitter
Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals using HART® communication. Diagnostics information according to NAMUR NE 107. Seamless integration into all major control and asset management systems. Integrated Bluetooth® interface for remote operation via Endress+Hauser SmartBlue App.
Specification | TMT71 (Analog 4–20 mA) | TMT72 (HART® 7 + Bluetooth®) |
Product Type | Single input head/DIN rail/field temperature transmitter (analog only) | Single input head/DIN rail/field temperature transmitter (HART 7 + Bluetooth) |
Communication Protocol | 4–20 mA analog (no digital) | HART® 7 (4–20 mA + digital) + Bluetooth® (SmartBlue App) |
Input Channels | 1 universal input (galvanically isolated) | 1 universal input (galvanically isolated) |
Sensor Compatibility | RTD (Pt100/200/500/1000, Ni, Cu), Thermocouple (J/K/E/T/N/B/R/S), Resistance (10–2000 Ω), Voltage (–20 to 100 mV) | Same as TMT71 |
Measuring Range (Pt100) | –200 to +850 °C (–328 to +1562 °F) | –200 to +850 °C |
Accuracy (Pt100, –50…+200 °C) | ≤ 0.1 K | ≤ 0.1 K |
Power Supply | 2 wire loop powered: 10–36 V DC (head); 12–36 V DC (DIN rail) | Same as TMT71 |
Galvanic Isolation | 2 kV AC (input/output) | 2 kV AC (input/output) |
Diagnostics | NAMUR NE 107, sensor open/short, corrosion detection (NE89), undervoltage detection | NAMUR NE 107, sensor diagnostics, corrosion monitoring, Bluetooth remote diagnostics |
Safety Rating | SIL 2 (option), ATEX/IECEx Ex ia IIC T6 | SIL 2, ATEX/IECEx Ex ia IIC T6 |
Ingress Protection | IP20 (head, screw); IP30 (head, push in); IP66/68 (field housing); IP20 (DIN rail) | Same as TMT71 |
Operating Temperature | –40 to +85 °C (–40 to +185 °F) | –40 to +85 °C |
Storage Temperature | Head: –50 to +100 °C; DIN rail: –40 to +100 °C | Same as TMT71 |
Key Features | 2 wire, analog only, universal input, SIL, NE107 diagnostics | HART 7, Bluetooth® (SmartBlue)plug‑on display TID10, remote configuration |
Packaging: Original bag and box
