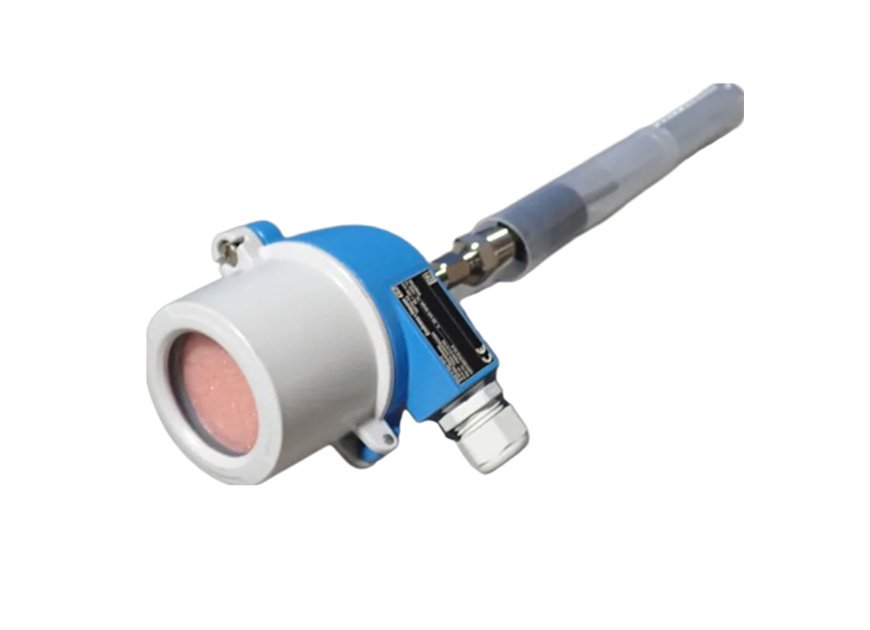

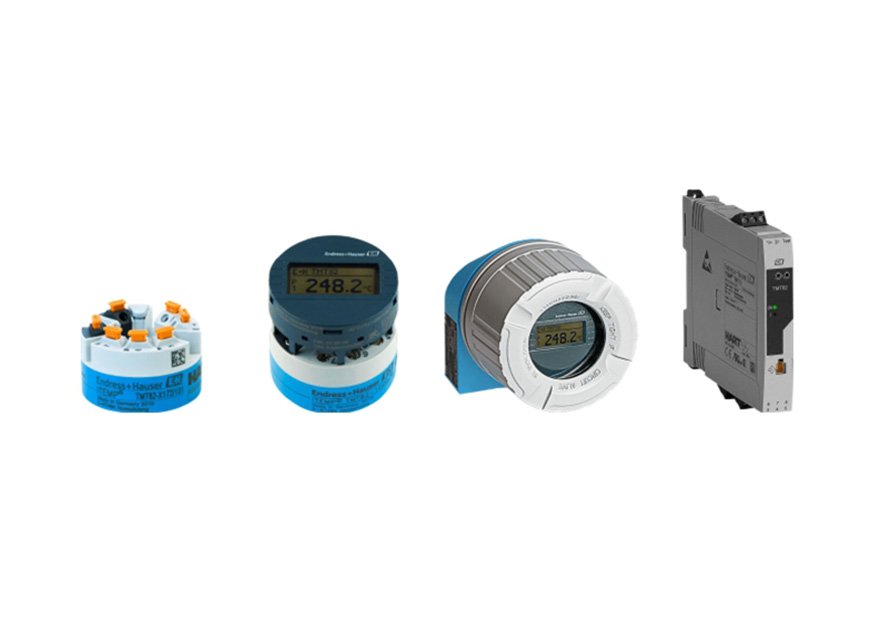

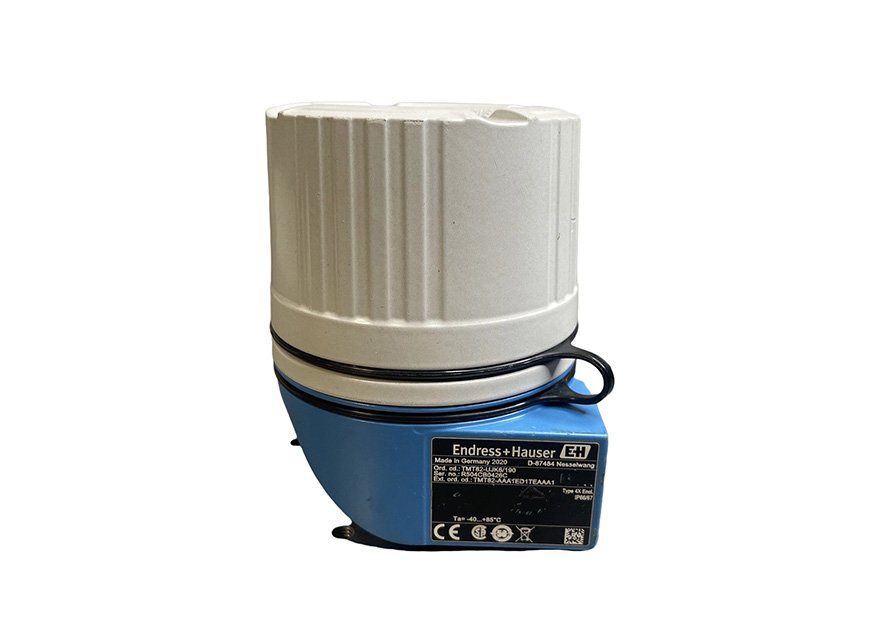

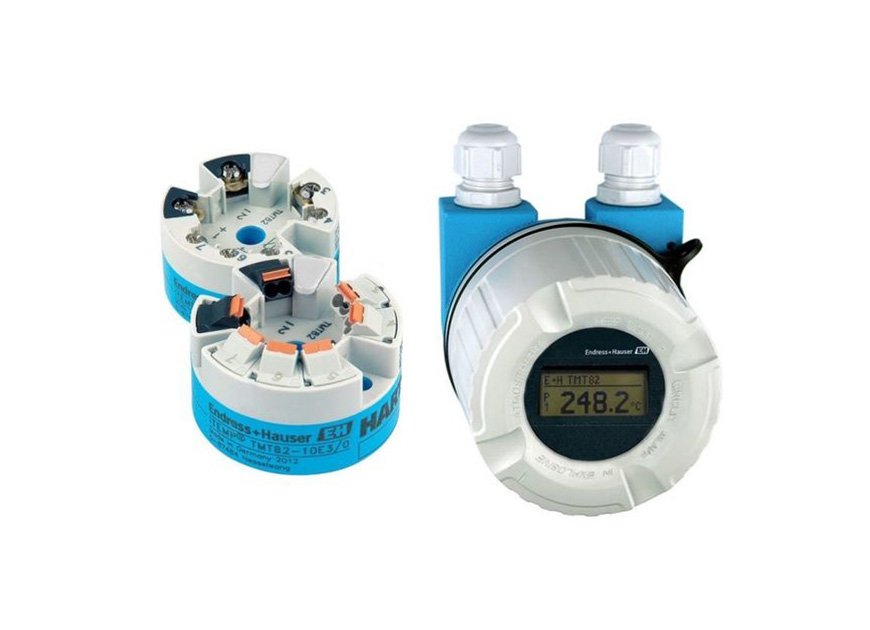

The iTEMP TMT82 is a highly reliable, accurate and long-term stable temperature transmitter for industrial processes requiring high availability.The versatile 2-channel device converts universal sensor inputs such as thermocouples or RTD into stable, scalable 4 to 20 mA output signals and HART® communication. With its built-in smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, the SIL 2, SC3 certified transmitter increases process safety and uptime.
iTEMP TMT84 Temperature Transmitter:Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers digital converted signals from RTD and TC sensors, it also transfers resistance and voltage signals using PROFIBUS® PA communication. High measurement point availability by means of sensor monitoring functions. Diagnostics information according to NAMUR NE 107. Optimization of the measurement accuracy by sensor-transmitter matching
iTEMP TMT85 Temperature Transmitter:Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers digital converted signals from RTD and TC sensors, it also transfers resistance and voltage signals using FOUNDATION Fieldbus™ communication. High measurement point availability by means of sensor monitoring functions and device hardware fault recognition. Optimization of the measurement accuracy by sensor-transmitter matching.
iTEMP TMT86 temperature transmitter:The iTEMP TMT86 is a reliable, intelligent and future proof dual-channel Ethernet-APL PROFINET temperature head transmitter for thermometers with terminal head form B and is suitable for use in hazardous areas. Beneficial diagnostic functions like corrosion monitoring of the sensor wires help to improve the plant up-time. The embedded webserver and the up-to-date FDI package simplifies the device configuration and integration.
Specification | TMT82 (HART® 7) | TMT84 (PROFIBUS® PA) | TMT85 (FOUNDATION Fieldbus™) | TMT86 (Ethernet APL / PROFINET®) |
Product Type | Dual input head/field/DIN rail temperature transmitter | Dual input head/field temperature transmitter | Dual input head temperature transmitter | Dual input head temperature transmitter |
Communication Protocol | HART® 7 (4–20 mA analog + digital) | PROFIBUS® PA (Profile 3.02) | FOUNDATION Fieldbus™ H1 | Ethernet APL (10BASE T1L) + PROFINET® |
Input Channels | 2 universal inputs (non galvanically isolated) | 2 universal inputs | 2 universal inputs | 2 universal inputs |
Sensor Compatibility | RTD (Pt100/200/500/1000), Thermocouple (J/K/E/T/N/B/R/S), Resistance (10–2000 Ω), Voltage (mV) | Same as TMT82 | Same as TMT82 | Same as TMT82 |
Measuring Range (Pt100) | –200 to +850 °C (–328 to +1562 °F) | –200 to +850 °C | –200 to +850 °C | –200 to +850 °C |
Accuracy (Pt100, –50…+200 °C) | ≤ 0.1 K (digital) + 0.03% of span | ≤ 0.1 K | ≤ 0.1 K | ≤ 0.1 K |
Power Supply | 11–42 V DC (2 wire) | 9.6–32 V DC (PROFIBUS PA) | 9–32 V DC (FF H1) | 10–36 V DC (Ethernet APL) |
Diagnostics | NAMUR NE 107, sensor monitoring, drift warning | NAMUR NE 107, sensor backup | NAMUR NE 107, sensor diagnostics | NAMUR NE 107, corrosion monitoring, web server |
Safety Rating | SIL 2/3 (option), ATEX/IECEx Ex ia IIC T6 | SIL 2, ATEX/IECEx Ex ia IIC T6 | SIL 2, ATEX/IECEx Ex ia IIC T6 | SIL 2, ATEX/IECEx Ex ia IIC T6 |
Ingress Protection | IP66/IP67 (field housing) | IP66/IP67 | IP66/IP67 | IP66/IP67 |
Operating Temperature | –40 to +70 °C (–40 to +158 °F) | –40 to +70 °C | –40 to +70 °C | –40 to +70 °C |
Key Features | 2 wire, HART 7, SIL, universal input | PROFIBUS PA, FISCO/FNICO, sensor matching | FF H1, redundant sensor support | Ethernet APL, PROFINET, embedded web server, FDI |

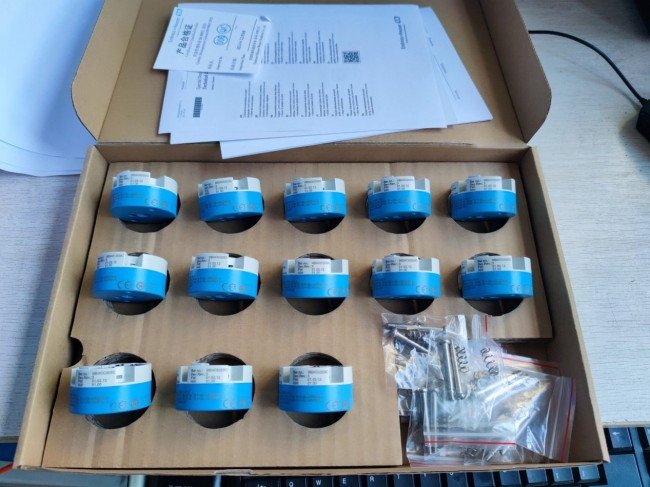

Packaging: Original bag and box
