HART®, FOUNDATION Fieldbus™ or PROFIBUS® temperature field transmitter with two universal sensor inputs suitable for use in hazardous areas and SIL 2.

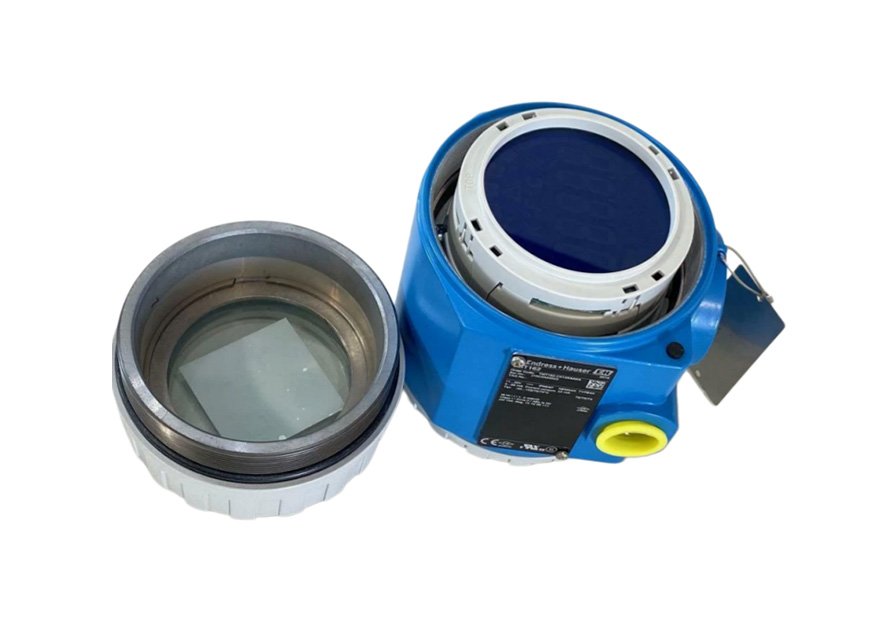

• Extremely reliable in harsh industrial environments thanks to dual-compartment housing and compact, fully encapsulated electronics
• Backlit display with large display of measured value, bar graph and status
• Two sensor inputs
• Diagnostics information according to NAMUR NE107
• Reliable operation thanks to sensor monitoring: failure information, sensor backup, drift alarm and corrosion detection
• International approvals such as FM, CSA (IS, NI, XP and DIP) and ATEX (Ex ia, Ex nA nL, Ex d and dust ignition-proof)
• Galvanic isolation 2 kV (sensor input/output)
• Universal input for resistance thermometer (RTD), thermocouple (TC), resistance transmitter (Ω), voltage transmitter (mV)
• Output:
– HART® protocol for converting different input signals to a scalable 4 to 20 mA analog output signal. Transmitter can be operated via the handheld terminals Field Xpert SFX100, DXR275/375/475 or via a PC
– FOUNDATION Fieldbus™ ITK 6.1.2
– PROFIBUS® PA Profile 3.02
Category | Specifications |
Product Overview | Two wire, dual input (optional) field temperature transmitter; supports HART®, FOUNDATION Fieldbus™, PROFIBUS® PA; universal input for RTD, TC, resistance, voltage signals |
Input Types & Ranges | • RTD: Pt100, Pt500, Pt1000, Cu10, Cu50, Cu100, Ni100, Ni120, Ni1000; 10–400 Ω / 10–2000 Ω • Thermocouple (TC): B, R, S, K, J, T, E, N, C, D, L, U; -270 to +1820 °C • Resistance: 10–400 Ω / 10–2000 Ω • Voltage: -20 to 100 mV (TC: -5 to 30 mV) |
Accuracy (Reference: +25 °C ±5 K) | • Pt100: ≤0.1 °C (0.18 °F) • Pt500: ≤0.3 °C (0.54 °F) • Pt1000/Cu50: ≤0.2 °C (0.36 °F) • TC (K/J/T/E): typ. 0.25 °C (0.45 °F • TC (S/B/R): typ. 1.0 °C (1.8 °F) • Resistance: ±0.04 Ω (10–400 Ω) / ±0.8 Ω (10–2000 Ω) • Voltage: ±10 μV |
Output | • HART: 4–20 mA analog + HART 5; min load 250 Ω • FOUNDATION Fieldbus™: H1, 31.25 kbit/s, MBPr • PROFIBUS® PA: Profile 3.02 |
Power Supply | • Standard/SIL: 11.5–42 VDC• Low voltage (no display): 8–11 VDC |
Isolation | Galvanic isolation: 2 kV AC (input/output) |
Response Time | Measured value update: <1 s per channel |
Long term Stability | ≤0.1 °C/year (≤0.18 °F/year) or ≤0.05%/year |
Ambient Temperature | -40 to +85 °C (-40 to +185 °F) |

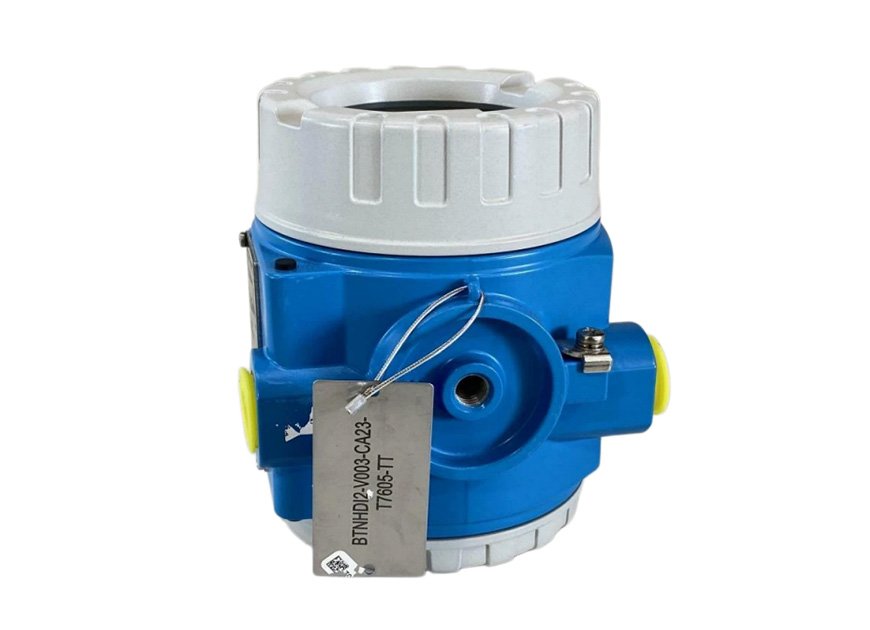

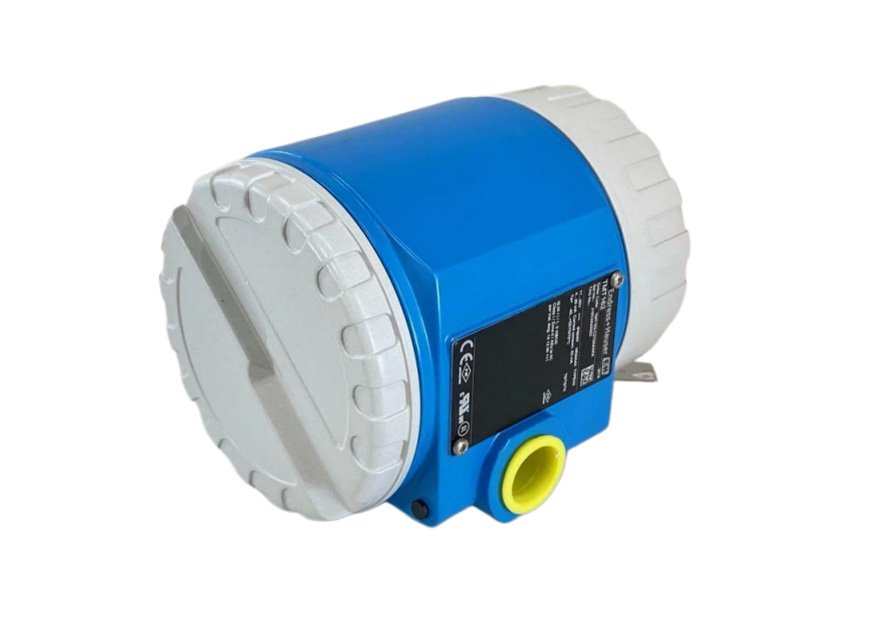

Housing | • Die cast aluminum (AlSi10Mg) – standard; weight ~1.4 kg • Stainless steel (316L) – optional; weight ~4.2 kg • T17 hygienic stainless steel – optional; weight ~1.25 kg |
Protection | IP67 |

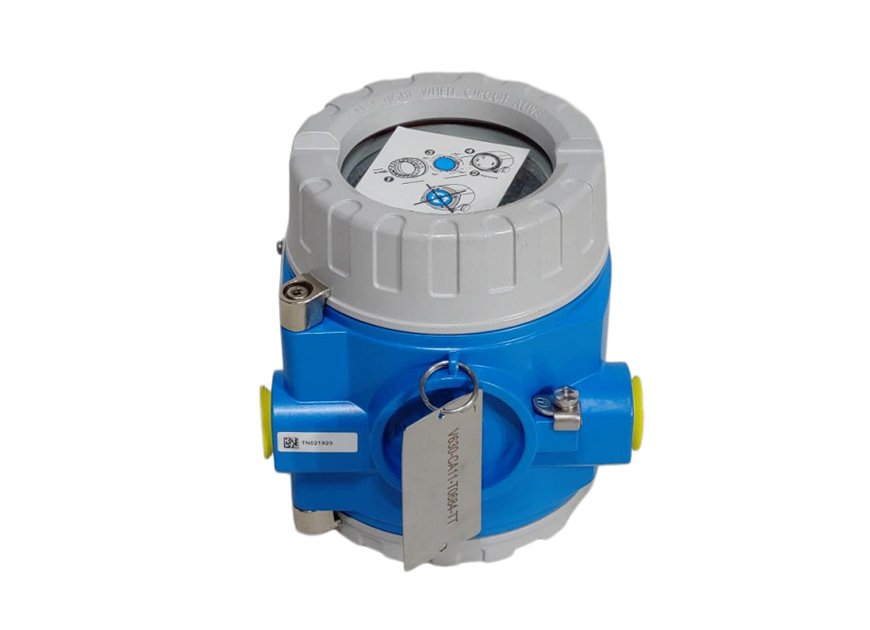

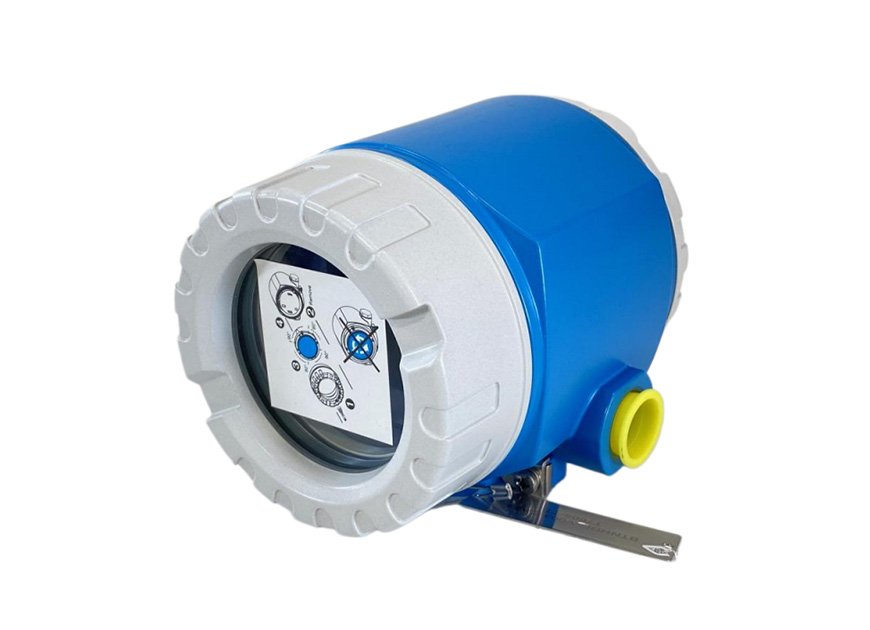

Display | Backlit LC; 20.5 mm digits; bar graph; status indication; rotatable 90° |
Diagnostics | NAMUR NE107 compliant; open/short circuit, wiring error, internal fault, over/underrange, ambient temp out of range, corrosion detection (NE89) |
Certifications | ATEX, FM, CSA, SIL 2 (IEC 61508:2010), CE |
MTBF | • HART: 147 years• FF/PA: 126 years (Siemens SN29500) |

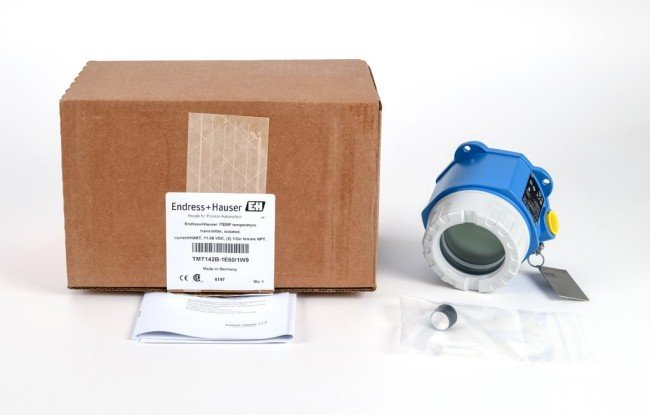

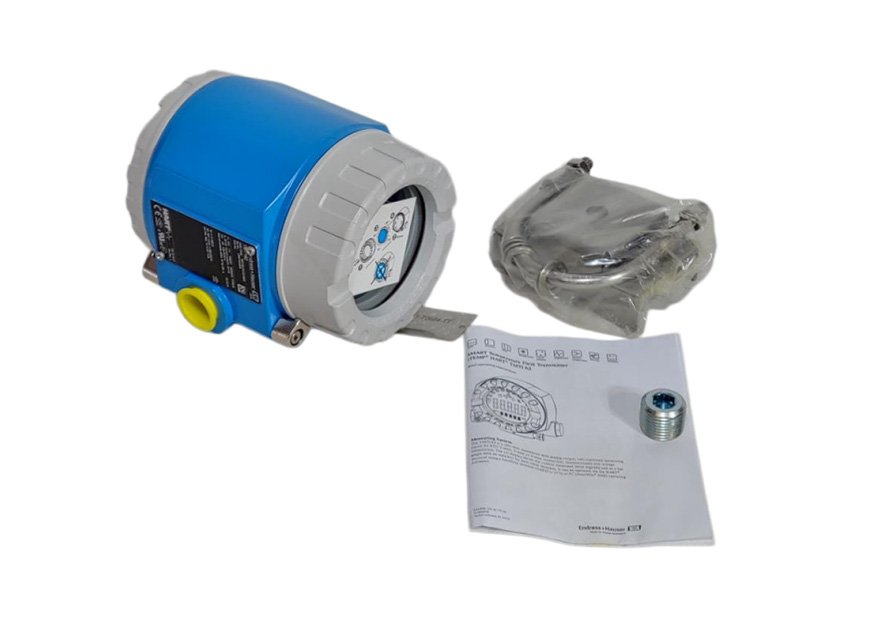

Packaging: Original bag and box
