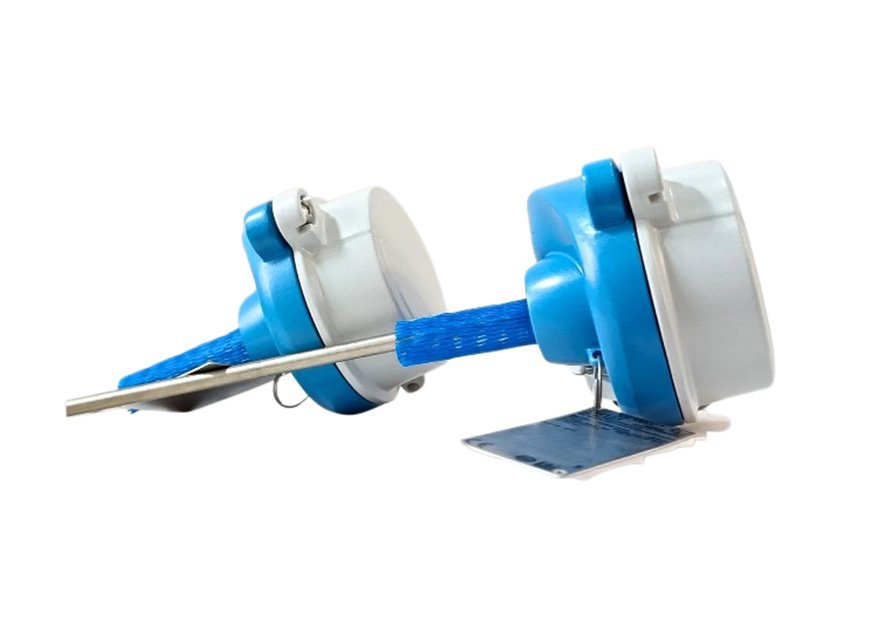

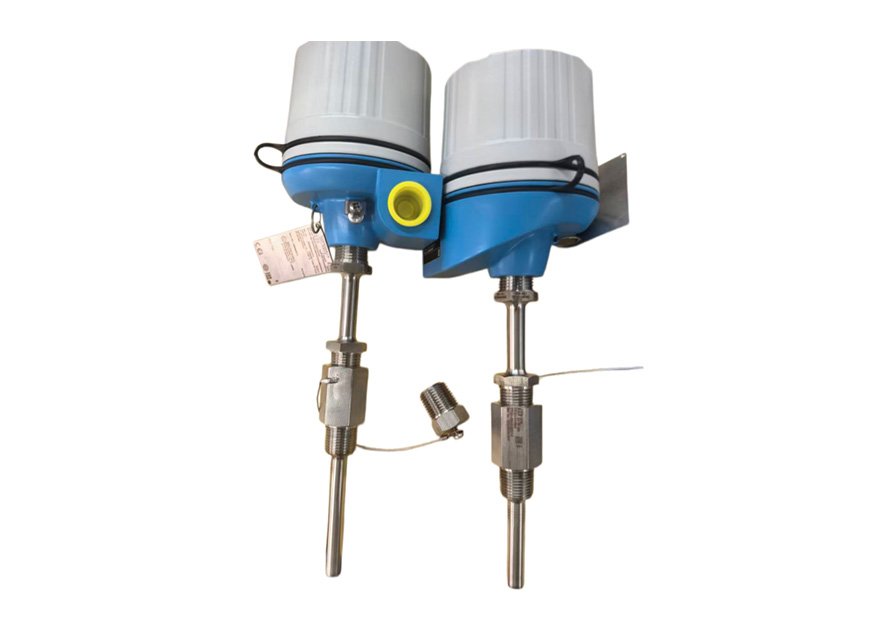

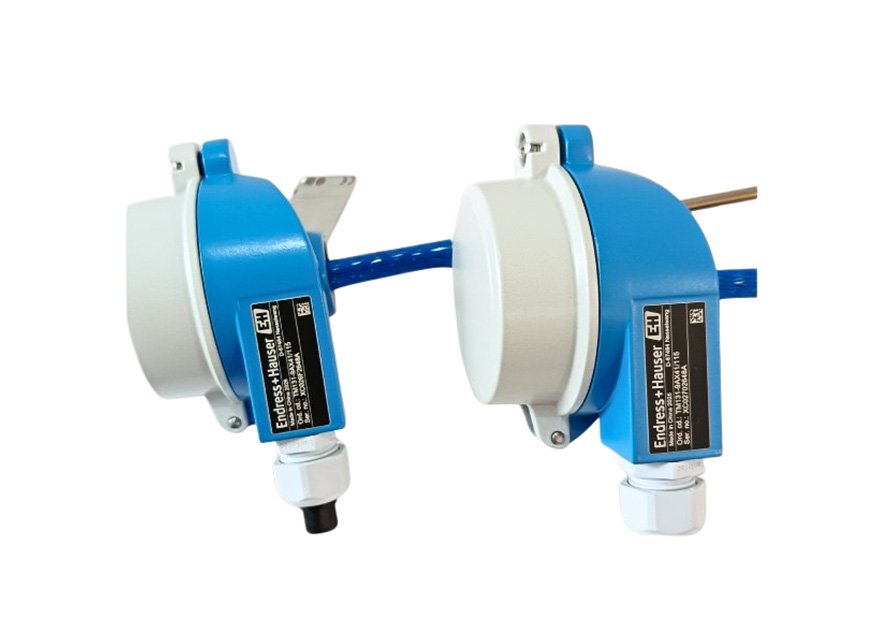

iTHERM ModuLine TM131 is a modular metric RTD or TC thermometer with protection tube or to be used with onsite thermowell. It is suitable for every application, from basic functionality to high-end performance across all industries.
l For universal use across all industries: From heavy industries (Power & Energy, Chemical, Oil & Gas) to utility applications.
l International certification: e.g. explosion protection according to ATEX, IECEx, CSA C/US and NEPSI.
l iTEMP temperature transmitter with all common communication protocols and optional Bluetooth® connectivity.
• Universal range of application
• Measuring range: –200 to +1100 °C (–328 to +2012 °F)
• Pressure range up to 100 bar (1450 psi)
• Vibration-resistant sensor elements up to 60g
• Improved ease of maintenance (sensor replacement without process shutdown), easy and safe recalibration of the measuring point
All Endress+Hauser transmitters are available with enhanced accuracy and reliability compared to directly wired sensors. Easy customizing by choosing the outputs and communication protocols:
• Analog output 4 to 20 mA, HART® HART® SIL transmitter, optional
• PROFIBUS® PA, FOUNDATION Fieldbus™
• Second process seal with failure indication offering valuable health status information
• iTHERM QuickSens: fastest response times of 1.5 s for optimum process control
• iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety
• iTHERM QuickNeck – cost and time savings thanks to simple, tool-free recalibration
• Bluetooth® connectivity (optional)
• International certification: explosion protection according to ATEX, IECEx, FM, CSA and NEPSI
Category | Specifications |
Product Overview | Modular industrial RTD/TC thermometer with welded thermowell; suitable for hazardous areas; Dual Seal second process barrier with fault indication; supports iTHERM QuickNeck (tool-free recalibration) & optional Bluetooth®Endress+Hauser. |
Measuring Principle | Resistance Temperature Detector (RTD) / Thermocouple (TC)Endress+Hauser. |
Accuracy | • RTD: Class AA/A/B per IEC 60751• TC: Class 1/2 per IEC 60584-2; Special/Standard per ASTM E230Endress+Hauser. |
Temperature Range | • PT100 TF StrongSens: -50 … +500 °C (-58 … 932 °F)• PT100 TF QuickSens: -50 … +200 °C (-58 … 392 °F)• PT100 WW: -200 … +600 °C (-328 … 1112 °F)• PT100 TF: -50 … +400 °C (-58 … 752 °F)• TC Type K/N: Max +1100 °C (2012 °F); Type J: Max +800 °C (1472 °F)Endress+Hauser. |
Max. Process Pressure | Up to 100 bar (1450 psi) (config-dependent)Endress+Hauser. |
Response Time | Fastest t90 < 10 s (with thermowell, config-dependent); QuickSens: ~1.5 sEndress+Hauser. |
Vibration Resistance | Sensor elements: Up to 60 gEndress+Hauser. |
Immersion Length | Max 4500.0 mm (177") (on request)Endress+Hauser. |
Thermowell/Sheath Materials | 316 (1.4401), 316L (1.4404), 316Ti (1.4571), Alloy 600 (2.4816), C276 (2.4819), 446 (1.4749), 321 (1.4541); PTFE/Tantalum sheath optionsEndress+Hauser. |
Process Connections | • Thread: G1/8–G3", NPT1/2–1", M14×1.5–M33×2• Flange: DN15–DN50 PN40, ASME 1"–2" 150/300 RF, etc.Endress+Hauser. |
Protection Degree | Up to IP68Endress+Hauser. |
Certifications | ATEX, IECEx, CSA C/US, NEPSI; SIL-capableEndress+Hauser. |
Key Benefits | • Tool-free recalibration (QuickNeck)• Vibration-resistant (StrongSens) & fast-response (QuickSens) designs• Dual Seal for process safety & health status monitoring• Hazardous area approval (Ex db/Ex ta)Endress+Hauser. |

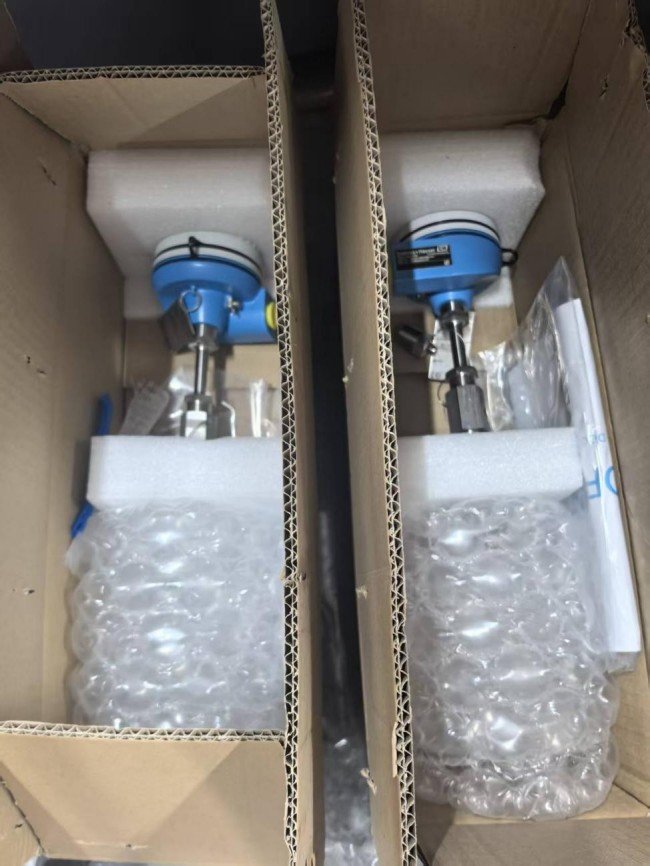

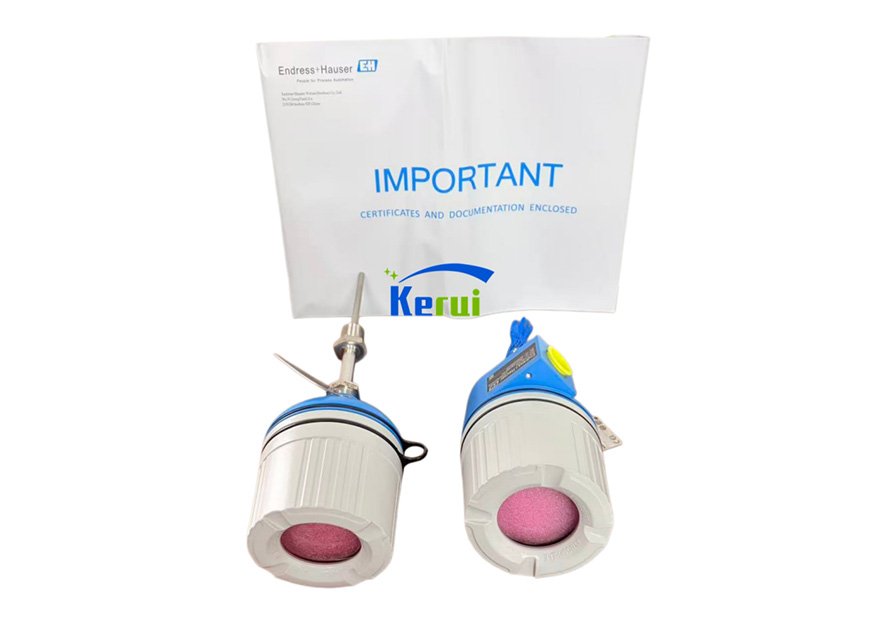

Packaging: Original bag and box
