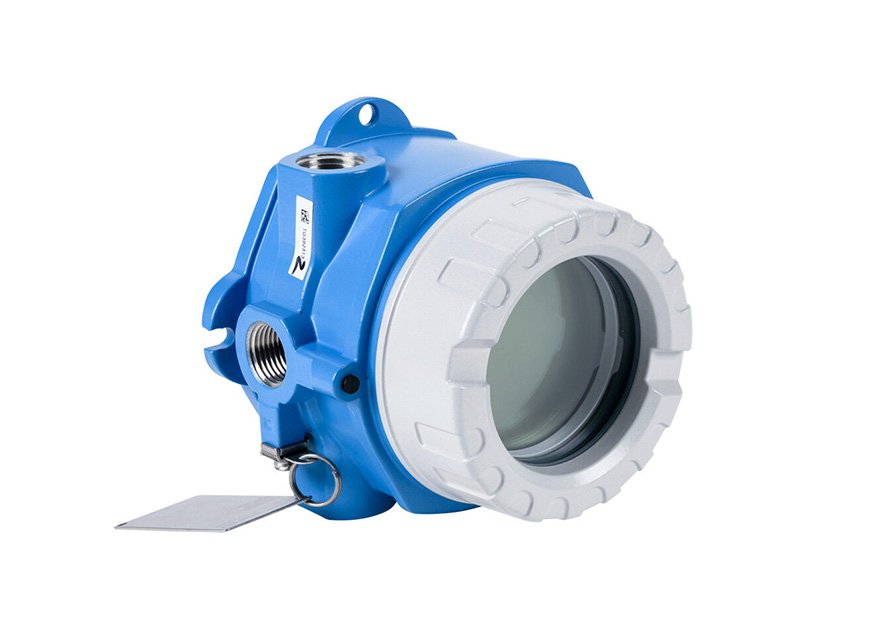

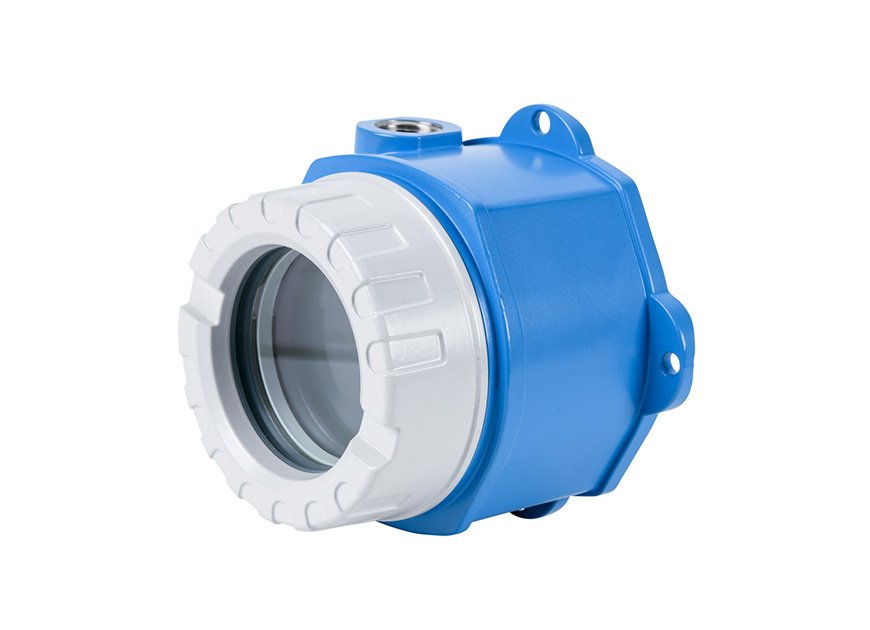

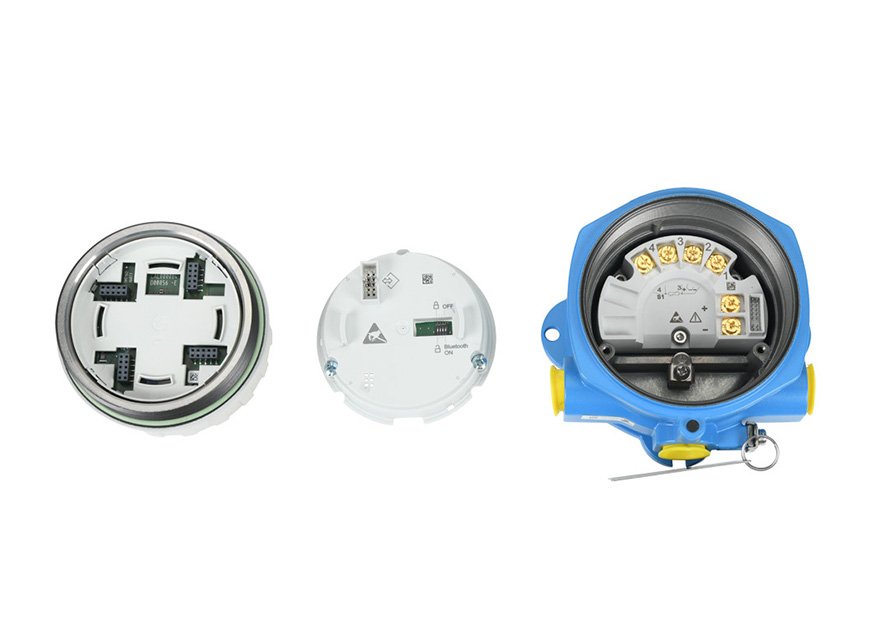

Endress+Hauser iTEMP TMT142B Temperature Transmitter

PRODUCT DESCRIPTION

Benefits

• Extremely reliable in harsh, industrial environments thanks to explosion-proof, single-chamber field housing and compact, fully encapsulated electronics

• Backlit display with large characters

• Diagnostics information according to NAMUR NE107

• Reliable operation thanks to sensor and device monitoring

• International approvals such as CSA (IS, NI, XP and DIP) and ATEX (Ex ia, Ex d and dust ignition-proof)

• Integrated Bluetooth® interface for the wireless display of measured values and configuration via Endress+Hauser SmartBlue (app), optional

Application:

• Universal temperature transmitter with HART® communication for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal• The iTEMP TMT142B is characterized by its reliability, longterm stability, high precision and advanced diagnostic function (important in critical processes).

• For the highest level of safety, reliability and risk reduction

• Universal input for resistance thermometers (RTD), thermocouples (TC), resistance transmitters (Ω), voltage transmitters (mV)

• Stainless steel housing for demanding environmental conditions, optional

Category	Specifications
Product Overview	Singlechannel field temperature transmitter; universal input; HART® 7 + Bluetooth® (SmartBlue app); backlit display; singlechamber pressureencapsulated housingEndress+Hauser
Input Types & Ranges	• RTD: Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50, Cu100, Ni100; -200 to +850 °C• Thermocouple (TC): B, R, S, K, J, T, E, N, C, D, L, U; -270 to +1820 °C• Resistance: 10–400 Ω / 10–2000 Ω• Voltage: -20 to 100 mV
Accuracy (Reference: +25 °C ±3 K)	• Pt100 (-50…+200 °C): ≤0.1 °C (0.18 °F)• Pt1000: ≤0.15 °C (0.27 °F)• TC (K/J/T/E): typ. 0.47 °C (0.85 °F)• TC (S/B/R): typ. 1.84 °C (3.31 °F)• Resistance: ±(0.06 °C + 0.006% × (MVLRV))• Voltage: ≤0.012% × MV or 4 µV
Output	• HART 7: 4–20 mA analog (invertible); FSK ±0.5 mA; min load 250 Ω; 1200 baud
Power Supply	• Standard: 11–36 VDC (reverse polarity protected)• Ex ia (hazardous area): 11–30 VDC• Current consumption: 3.6–23 mA; Multidrop: 4.0 mA
Isolation	Galvanic isolation: 2 kV AC (1 min) input/output
Response Time	≤1 s (RTD/TC/resistance/voltage)
Longterm Stability	≤0.1 °C/year (≤0.18 °F/year) or ≤0.05%/year
Ambient Temperature	• With display: -40 to +80 °C (-40 to +176 °F)• Without display: -40 to +85 °C (-40 to +185 °F)• Storage: -50 to +100 °C (without display)
Housing & Weight	• Diecast aluminum (AlSi10Mg): ~1.4 kg (with display)• Stainless steel (316L): ~4.2 kg (with display)• Protection: IP66/IP67, Type 4X

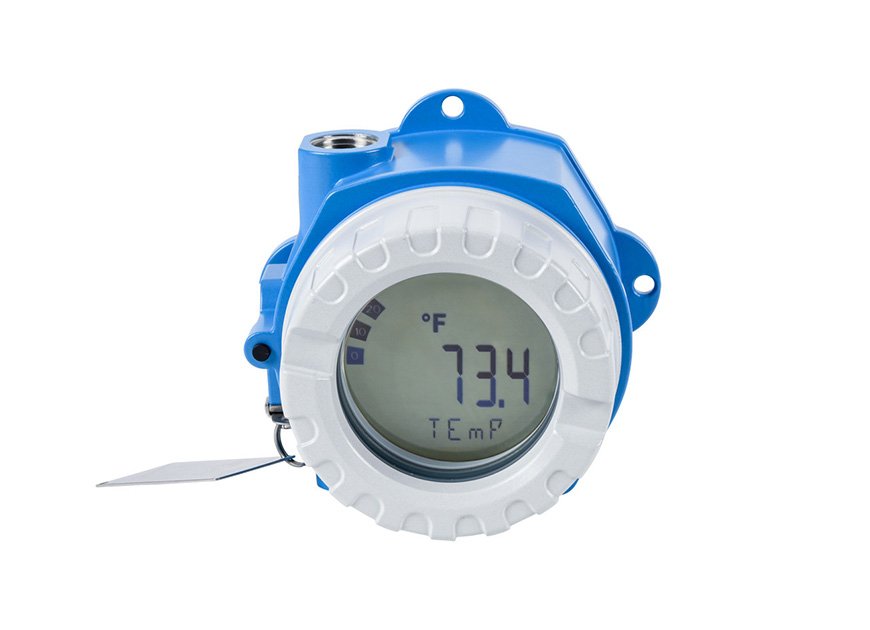

Display	Backlit LC; 20.5mm digits; bar graph; status; rotatable 90°
Bluetooth®	Encrypted (CPace); range: 25 m (with display), 10 m (without); configurable via SmartBlue app
Diagnostics	NAMUR NE107 compliant; open/short circuit, wiring error, internal fault, over/underrange, ambient temp outofrange, low voltage detection
Certifications	ATEX, CSA (IS/NI/XP/DIP), INMETRO, NEPSI (Ex ia/Ex d), CE, SILcapableEndress+Hauser
MTBF	~147 years (Siemens SN29500)
Startup	HART comm: ≤2 s; valid measured value: ≤7 s

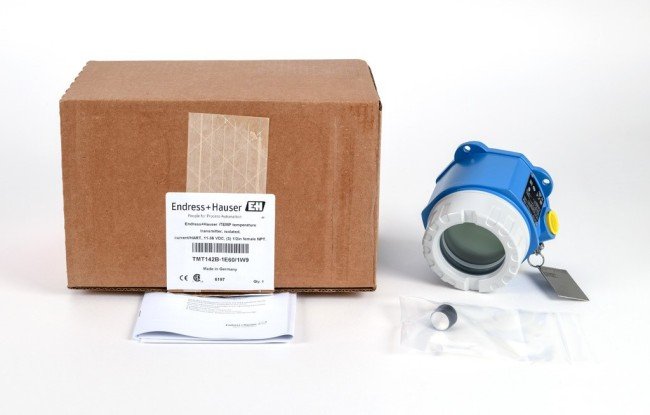

Packaging & Shipping

Packaging: Original bag and box
