Liner materials resistant to low concentrated chemicals
With extra isolation of electronics for use in high humidity areas
Flange: DN25…1200 / 1…48", max. PN40 / ASME Cl 300
4…20 mA, pulse, frequency, status, HART®, Modbus

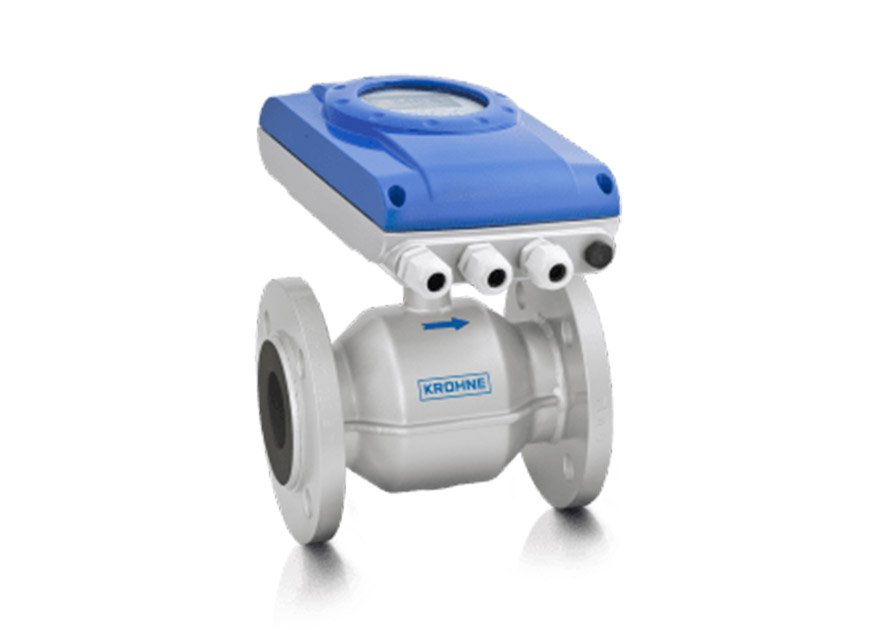

The OPTIFLUX 2050 is an electromagnetic flowmeter (EMF) for basic water and wastewater applications. It is suitable for all cost-effective measurements where extremely high accuracy, extensive diagnostics or a wide range of communication options are not a priority. The EMF has a wide diameter range (DN25…1200 / 1…48") and all drinking water approvals. The extra isolation of the electronic device and housing makes this EMF particularly suitable for use in areas with extreme humidity.
The OPTIFLUX 2050 features a full bore design with wear resistant liner materials. Installation in measurement chambers subject to (constant) flooding is possible with the IP68 / NEMA 6P rated version. The EMF comes with current output (incl. HART®) or active pulse/frequency output and Modbus. A full on-site verification of the OPTIFLUX 2050 without process interruption can be carried out using the OPTICHECK service tool.
· Bi-directional flow measurement over a wide dynamic range
· Tropicalized electronics for use in areas with extreme humidity and chances of flooding
· Standard wet calibration
· PP or hard rubber liner: excellent chemical resistance
· Also available in customer specific constructions
· Signal converter with display or as blind version
· Tamper proof
· Full bore design: No moving parts, no wear, no pressure loss
· Meets potable water standards: ACS, DVGW, NSF, TZW, WRAS etc.
· On-site verification of flowmeter with OPTICHECK service tool
Specification | Details |
Product Model | OPTIFLUX 2050 (Electromagnetic Flowmeter, EMF) |
Sensor / Converter | Sensor: OPTIFLUX 2000; Converter: IFC 050 |
Measurement Principle | Faraday's Law of Electromagnetic Induction |
Measured Media | Conductive liquids: water, wastewater, basic neutral slurries (≤10% solids) |
Minimum Conductivity | ≥ 5 µS/cm (≥ 20 µS/cm for pure water) |
Nominal Diameter (DN) | DN25 ~ DN1200 (1" ~ 48") |
Accuracy | ±0.5% of measured value (MV) or ±1 mm/s (whichever is greater) |
Repeatability | ±0.1% of measured value |
Rangeability (Turndown) | 1000:1 (bi-directional flow) |
Flow Velocity Range | 0 ~ 12 m/s (bi-directional) |
Process Temperature | • Hard rubber / PP liner: -20°C ~ +90°C • (Optional up to +120°C) |
Process Pressure | Max. 40 barg (PN40 / ASME Class 300) (depends on diameter) |
Liner Materials | Hard rubber, Polypropylene (PP) |
Electrode Materials | SS316L (Mo2Ti), Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum, Platinum-Iridium |
Electrode Types | Standard, RE (scraper), WE (replaceable) (≥ DN350) |
Wetted Body Material | Carbon Steel (standard) |

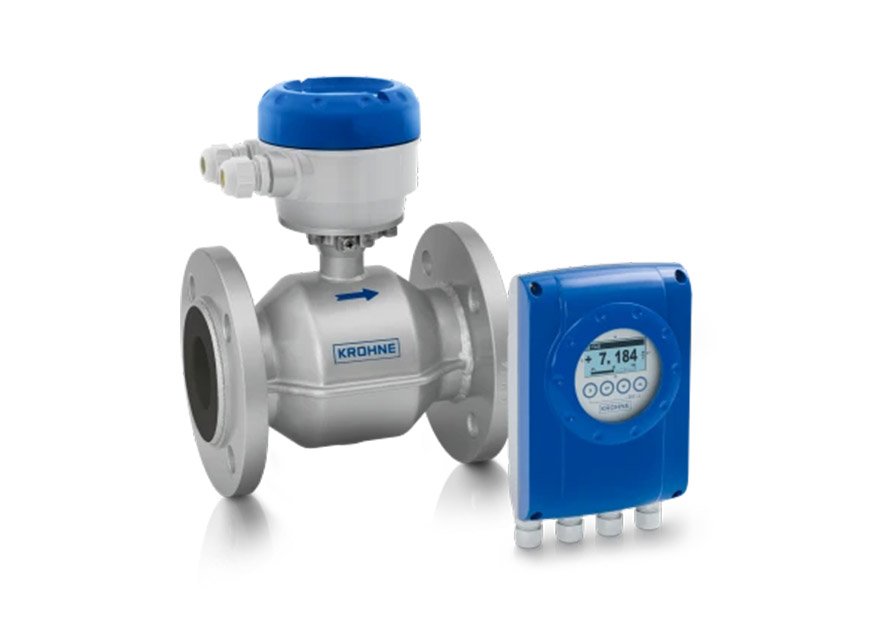

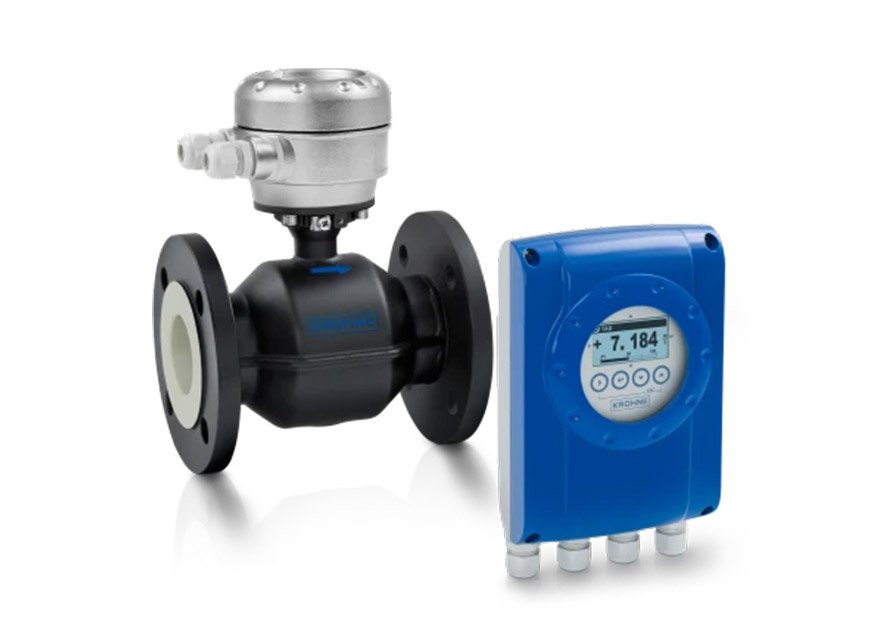

Mounting Type | C (Integral), W (Wall-mounted Remote) |
Power Supply | 100 ~ 240 VAC (50/60 Hz); 24 VDC (optional) |
Analog Output | 4 ~ 20 mA DC (galvanically isolated, HART® 7 compatible) |
Digital Communication | HART® 7, Modbus RTU (RS485) |
Discrete I/O | Active pulse / Frequency output, Status output |
Display | Multi-line backlit LCD (optional); blind version available |
Ambient Temperature | -40°C ~ +65°C |
Ambient Humidity | 5 ~ 100% RH (non-condensing) |
Enclosure Rating | • Integral (C): IP67• Remote (W): IP68 / NEMA 6P (submersible) |
Grounding | Virtual Reference (grounding rings optional) |
Self-Diagnostics | Basic diagnostics: empty pipe, air bubble detection |
Hazardous Area Approvals | ATEX, IECEx (optional) |
Potable Water Approvals | ACS, DVGW, NSF, TZW, KTW, WRAS, KIWA |
Key Features | Economical basic water/wastewater meter; IP68 submersible; high humidity resistant; full bore no pressure loss; tamper-proof; on-site verification via OPTICHECK tool |

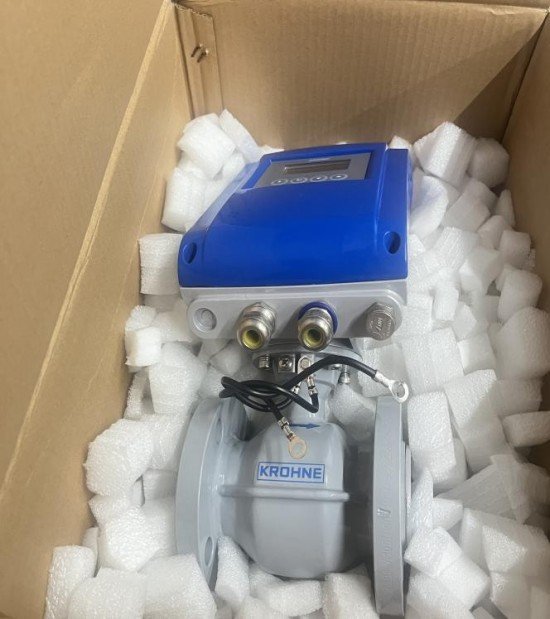

Packaging: Original box
