Chemically resistant liner materials
With extra isolation of electronics for use in high humidity areas
Flange: DN2.5…1200 / ⅒…48", max. PN40 / ASME Cl 600
4…20 mA, pulse, frequency, status, HART®, Modbus

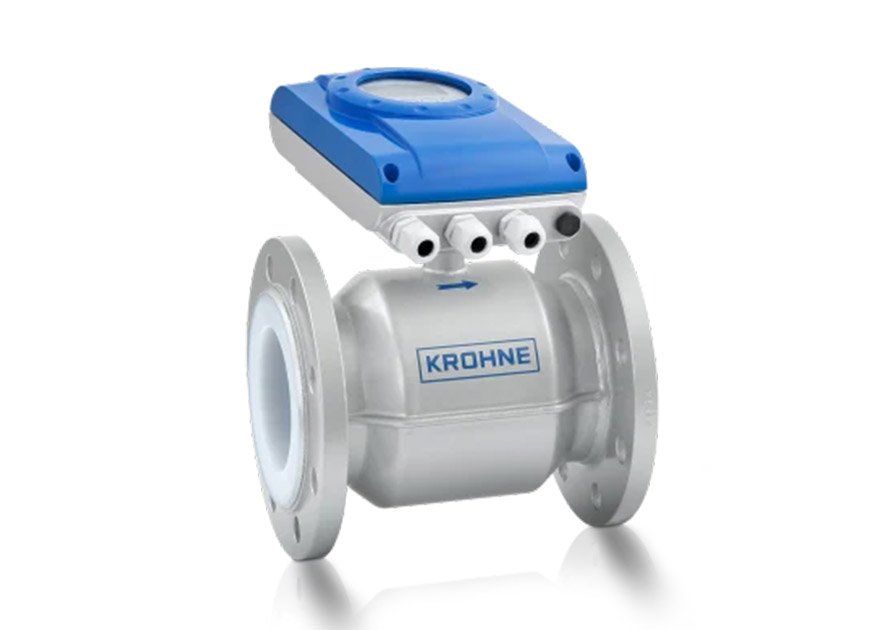

The OPTIFLUX 4050 is an electromagnetic flowmeter (EMF) for chemical applications in non-hazardous areas. It provides cost-effective measurements with good accuracy and standard diagnostics and communication options. The extra isolation of the electronic device and housing makes this EMF particularly suitable for use in areas with extreme humidity and chances of flooding.
The OPTIFLUX 4050 features a selection of chemically resistant liners and electrodes. Due to its full bore design without moving or intruding parts, there is no pressure loss and no maintenance required. The EMF comes with current output (incl. HART®) or active pulse/frequency output and Modbus. A full on-site verification of the EMF without process interruption can be carried out using the OPTICHECK service tool.
· Bi-directional flow measurement over a wide dynamic range (turn down ratio: 1000:1)
· Tropicalized electronics for use in areas with extreme humidity and chances of flooding
· Excellent price/performance ratio
· PTFE, PFA, ETFE, hard rubber, soft rubber or PU liner: excellent chemical and abrasion resistance
· Signal converter with display or as blind version
· Full bore design: No moving parts, no wear, no pressure loss
· On-site verification of flowmeter with OPTICHECK service tool
Specification | Details |
Product Model | OPTIFLUX 4050 (Electromagnetic Flowmeter, EMF) |
Sensor / Converter | Sensor: OPTIFLUX 4000 series; Converter: IFC050 |
Measurement Principle | Faraday's Law of Electromagnetic Induction |
Measured Media | Conductive liquids, abrasive / corrosive fluids, slurries (solid content ≤ 10%) |
Minimum Conductivity | ≥ 5 µS/cm (≥ 20 µS/cm for pure water) |
Nominal Diameter (DN) | DN2.5 ~ DN1200 (1/10" ~ 48") |
Accuracy | ±0.5% of measured value (MV) or ±1 mm/s (whichever is greater) (DN10 ~ DN1200) |
Repeatability | ±0.1% of measured value |
Rangeability (Turndown) | 1000:1 (bi-directional flow) |
Flow Velocity Range | -12 ~ +12 m/s (bi-directional) |
Process Temperature | • Integral (C-type): -40°C ~ +130°C • Remote (W-type): -40°C ~ +180°C |
Process Pressure | Max. 40 barg (580 psig) (PN40 / ASME Class 600) |
Liner Materials | PTFE, PFA, ETFE, Hard Rubber, Soft Rubber, Polyurethane (PU) |
Electrode Materials | SS316L (Mo2Ti), Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum, Platinum-Iridium |
Electrode Types | Standard, RE (scraper), WE (replaceable) (RE/WE ≥ DN350) |
Wetted Body Material | Carbon Steel (standard), Stainless Steel (optional) |

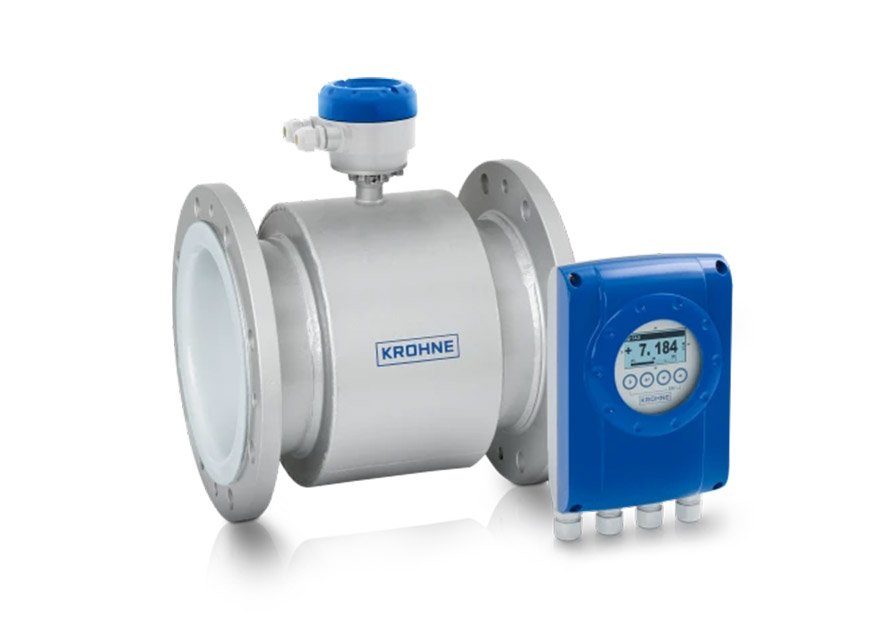

Mounting Type | C (Integral), W (Wall-mounted Remote) |
Power Supply | 100 ~ 240 VAC (50/60 Hz); 24 VDC (optional) |
Analog Output | 4 ~ 20 mA DC (galvanically isolated, HART® 7 compatible) |
Digital Communication | HART® 7, Modbus RTU (RS485) |
Discrete I/O | Pulse / Frequency output, Status output |
Display | Multi-line backlit LCD (optional; blind version available) |
Ambient Temperature | -40°C ~ +65°C |
Ambient Humidity | 5 ~ 100% RH (non-condensing) |
Enclosure Rating | IP67 (standard), IP68 / NEMA 6P (submersible) |
Grounding | Virtual Reference (grounding rings optional) |
Self-Diagnostics | Empty pipe, air bubble, electrode fault, conductivity monitoring |
Hazardous Area | Non-hazardous areas only |
Key Features | Cost-effective; Tropicalized electronics for high humidity / flooding; Full-bore (no moving parts, no pressure loss); On-site verification via OPTICHECK tool |
Packaging: Original box
