Chemically resistant, for liquids (>5 μS/cm) with solid content (≤10%)
Up to +180°C / +356°F
Flange: DN2.5…1200 / ⅒…48", max. PN40 / ASME Cl 600
4…20 mA, pulse, frequency, status, HART

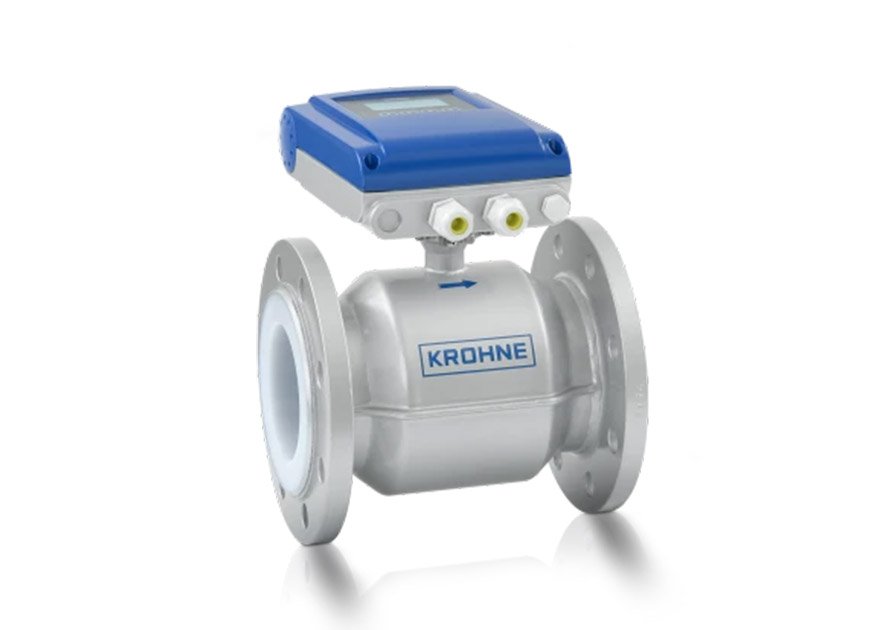

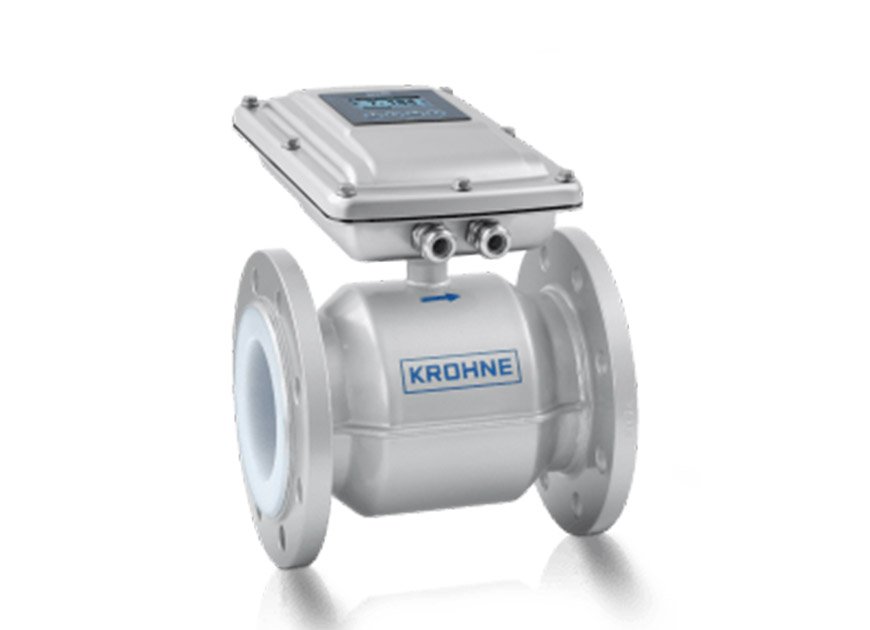

The OPTIFLUX 4100 is an electromagnetic flowmeter (EMF) for a wide range of standard process applications with aggressive and abrasive liquids. It enables reliable flow measurement even under harsh process conditions with temperatures up to +180°C / +356°F, low conductivity (≥5 µS/cm) and solid content (up to 10%). This makes the flowmeter particularly suitable for applications involving corrosive chemicals, sewage and drilling mud or mining sludge. Installation in measurement chambers subject to (constant) flooding is also possible using the optional IP68 / NEMA 6P rated version.
Unlike the basic version OPTIFLUX 4050, the OPTIFLUX 4100 features higher accuracy. It comes with a selection of chemically resistant liners and electrodes. Due to its full bore design without moving or intruding parts, there is no pressure loss and no maintenance required. A full on-site verification of the flowmeter without process interruption can be carried out using the OPTICHECK service tool.
· Bi-directional flow measurement over a wide dynamic range (turndown ratio: 1000:1)
· PTFE, PFA, ETFE, hard rubber, soft rubber or PU liner: excellent chemical and abrasion resistance
· Wide range of electrode materials
· Special designs, sizes, inner diameters and liner thicknesses on request
· Standard measurement accuracy: ±0.3% or ±1mm/s of measured value (MV)
· Optional external coatings for offshore or subsoil installation (also acc. to ISO 12944)
· Diagnostics incl. conductivity, electrode error, ambient and process temperature etc.
· Full bore design: No moving parts, no wear, no pressure loss
· For hazardous areas: ATEX, IECEx, FM, CSA
· On-site verification of flowmeter with OPTICHECK service tool
Specification | Details |
Product Model | OPTIFLUX 4100 (Electromagnetic Flowmeter, EMF) |
Measurement Principle | Faraday's Law of Electromagnetic Induction |
Measured Fluids | Conductive liquids, abrasive / corrosive fluids, slurries (solid content ≤ 10%) |
Minimum Conductivity | ≥ 5 µS/cm |
Nominal Diameter (DN) | DN2.5 ~ DN1200 (1/10" ~ 48") |
Accuracy | Standard: ±0.3% of measured value (MV) or ±1 mm/s (whichever is greater) |
Repeatability | ±0.1% of measured value |
Rangeability (Turndown) | 1000:1 (bi-directional flow) |
Flow Velocity Range | 0 ~ 12 m/s (bi-directional) |
Process Temperature | • Integral type: ≤ 130°C Remote type: -25°C ~ +180°C (rubber liner ≤ 80°C) |
Process Pressure | Max. 40 barg (PN40 / ASME Class 600) |
Liner Materials | PTFE, PFA, ETFE, Hard Rubber, Soft Rubber, Polyurethane (PU) |
Electrode Materials | SS316L, Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum, Platinum-Iridium |
Electrode Types | Standard, RE (scraper), WE (replaceable) |
Wetted Body Material | Carbon Steel (standard), Stainless Steel (optional) |
Power Supply | • 100 ~ 230 VAC (50/60 Hz)• 24 VDC (optional) |
Analog Output | 4 ~ 20 mA DC (galvanically isolated, HART® 7 compatible) |
Digital Communication | HART® 7, Modbus RTU (RS485), FOUNDATION Fieldbus, PROFIBUS PA/DP |
Discrete I/O | Pulse / Frequency output, Status output, Limit switch inputs |
Display | Multi-line backlit LCD (instantaneous flow, totalizer, diagnostics) |
Ambient Temperature | -25°C ~ +60°C (standard) |
Ambient Humidity | 5 ~ 100% RH (non-condensing) |
Enclosure Rating | IP67 (standard), IP68 / NEMA 6P (submersible, optional) |
Grounding | Virtual Reference (grounding rings optional) |
Self-Diagnostics | NE 107 compliant: conductivity monitoring, electrode fault, empty pipe, ambient/process temp, air bubble detection |
Hazardous Area Approvals | ATEX, IECEx, FM, CSA, EAC |
Custody Transfer Certifications | OIML R49, OIML R117, MID MI-001, ISO 4064 |
Key Features | Full-bore (no moving parts, no pressure loss); On-site verification with OPTICHECK tool; High chemical & abrasion resistance; Suitable for offshore/underground installation (ISO 12944 coating optional) |

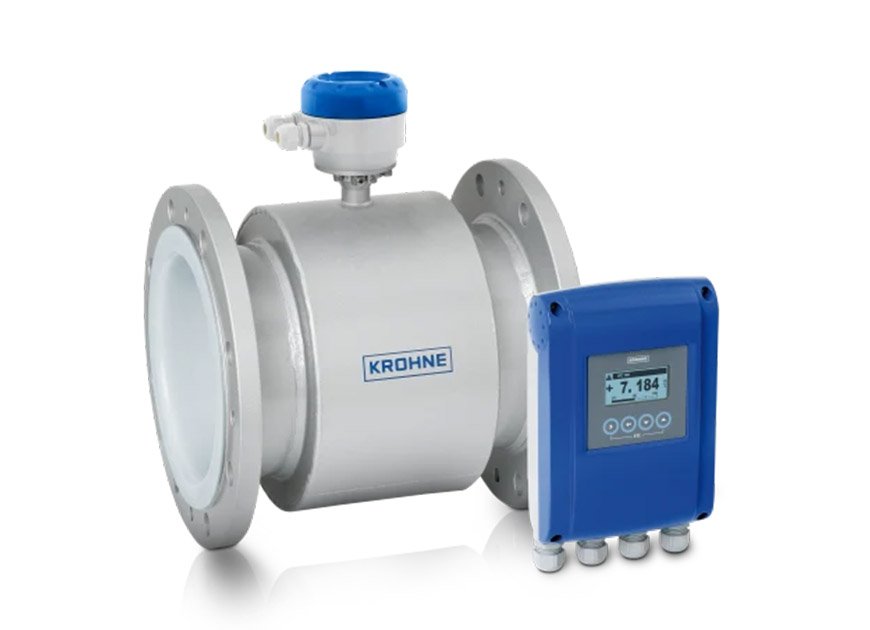

Mounting | Integral (C-type) / Remote (F-type) |
Packaging: Original box
