High accuracy (±0.2%), certified for custody transfer
For low conductivity media (>1 μS/cm) and high solid contents (≤70%)
Flange: DN2.5…3000 / ⅒…120", max. PN40 / ASME Cl 600 (higher on request)
3 x 4…20 mA, HART®,Modbus, FF, Profibus-PA/DP, PROFINET

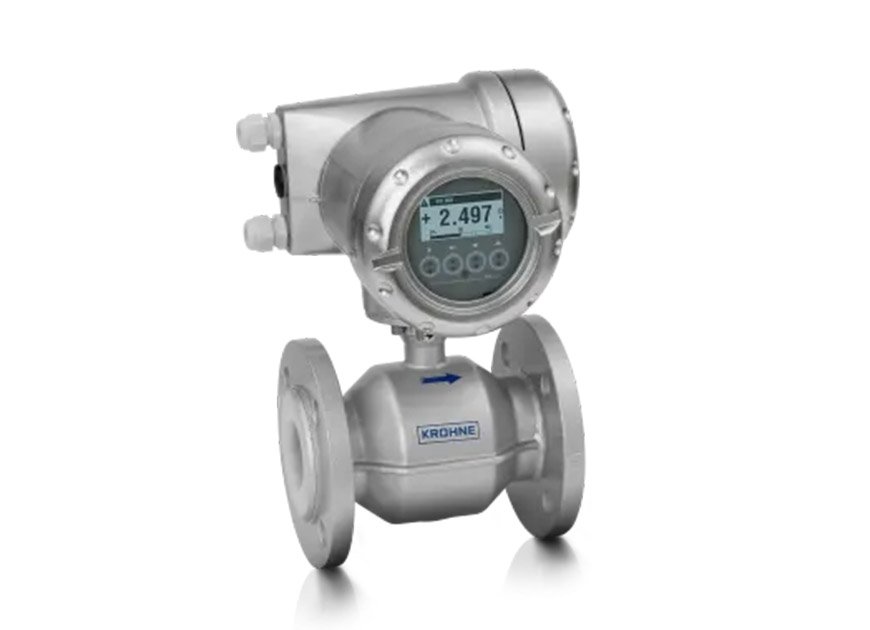

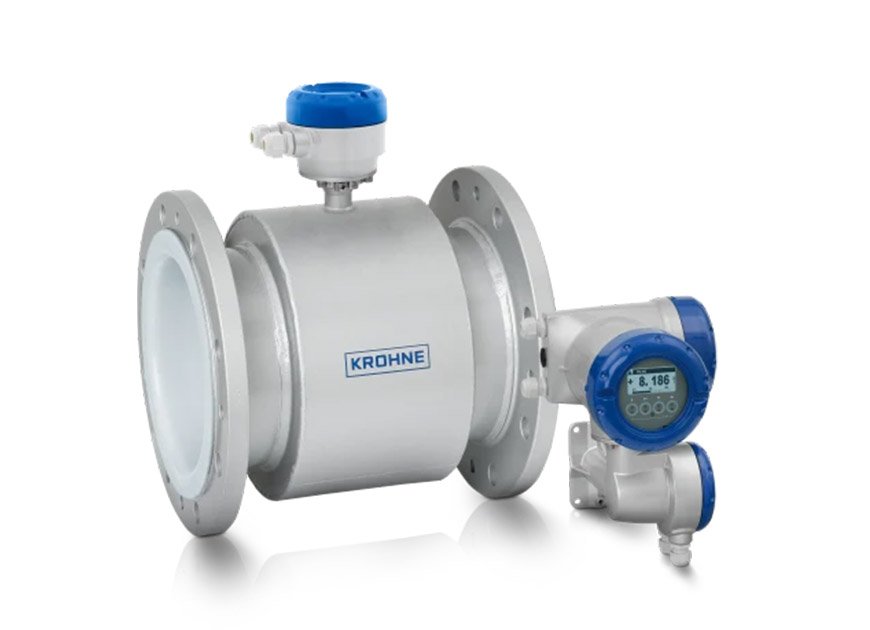

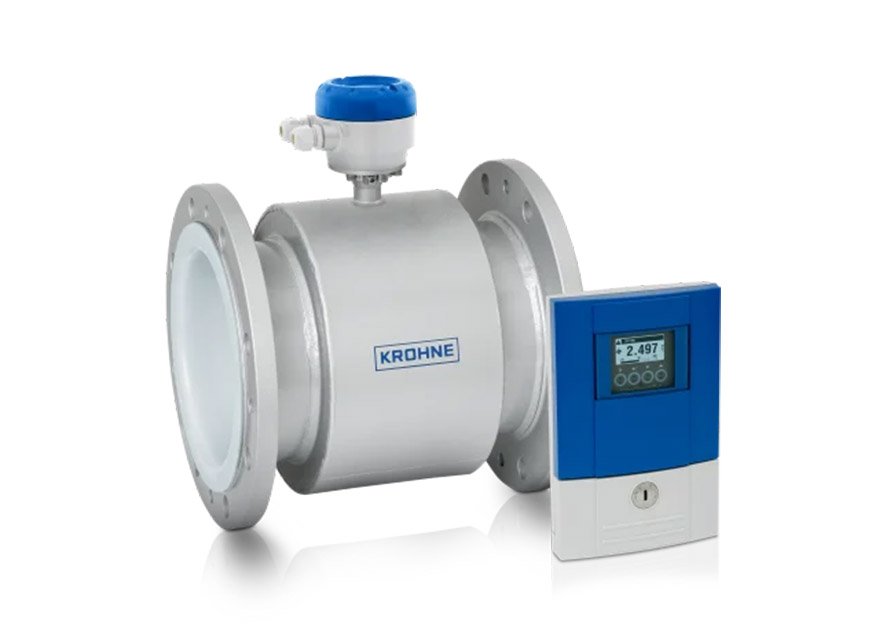

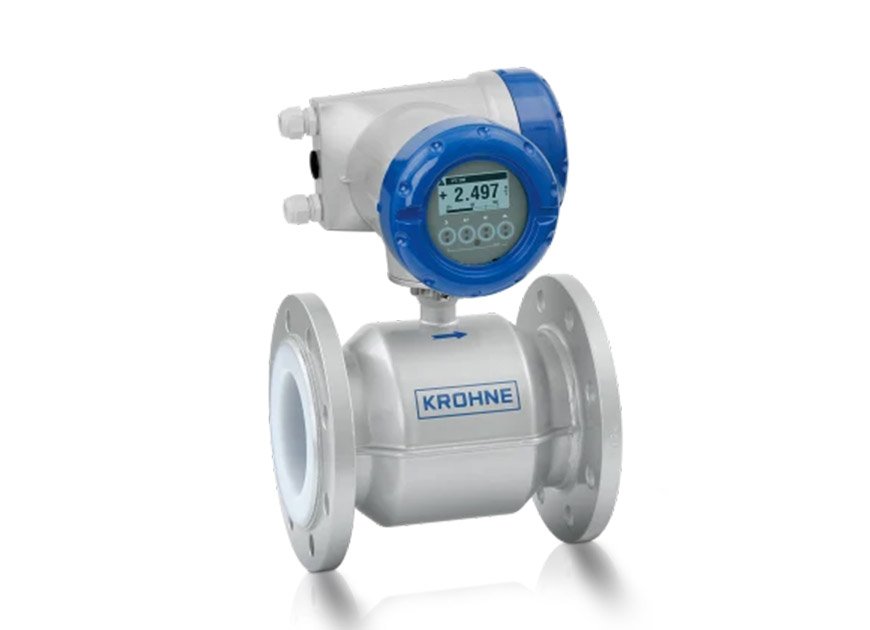

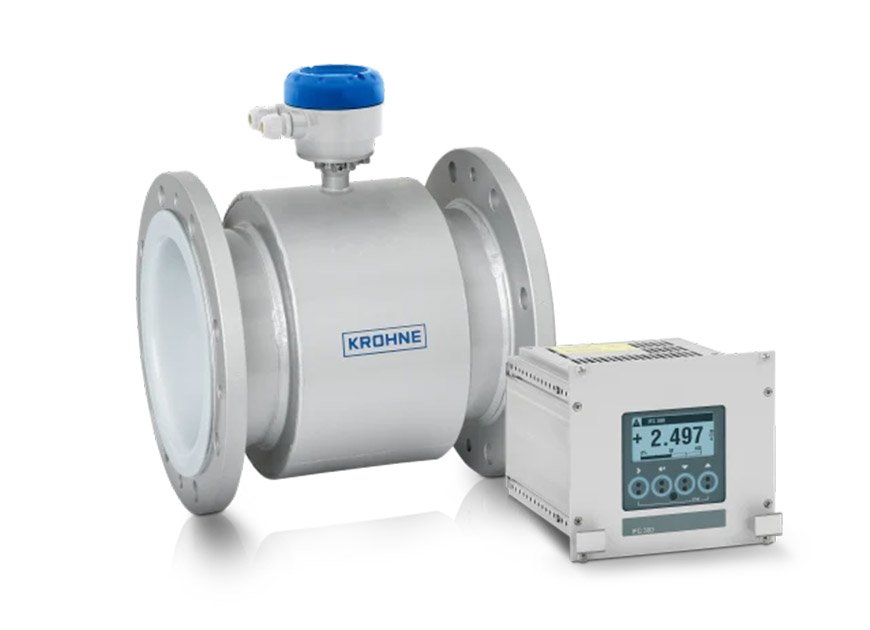

The OPTIFLUX 4300 is an electromagnetic flowmeter (EMF) for advanced process applications with aggressive liquids or abrasive media. The high-end flowmeter is particularly suitable for critical applications requiring high accuracy and many diagnostic functions. It enables reliable measurement even under very harsh process conditions with temperatures up to +180°C / +356°F, low conductivities (≥1 µS/cm), high solid contents (up to 70%) and high pressures (up to 1500 bar / 21751 psi). For custody transfer applications, the OPTIFLUX 4300 has a wide range of certifications including OIML R49 and R117 or MI-001 and MI-005. It can also be used for flow measurement in district heating networks requiring MI-004 approval.

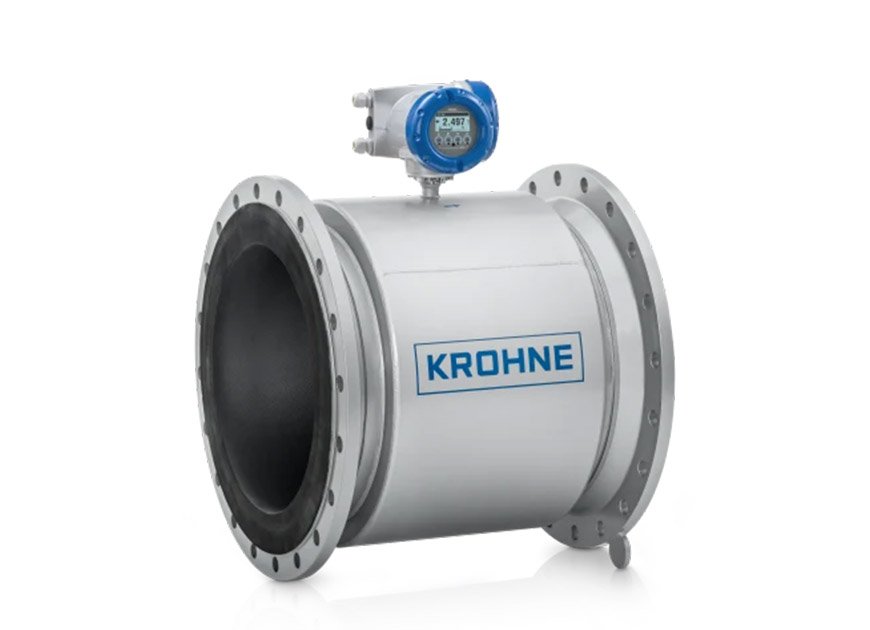

The OPTIFLUX 4300 is available in a wide diameter range up to DN3000 / 120". Its virtual reference option allows for a very cost-saving measuring mode without additional grounding rings – particularly when it comes to large diameters. Installation in measurement chambers subject to (constant) flooding is possible with the IP68 / NEMA 6P rated version. The meter is approved for use in hazardous areas and offers various digital communication options. A full on-site verification of the OPTIFLUX 4300 without process interruption can be carried out using the OPTICHECK service tool.
· Bi-directional flow measurement over a wide dynamic range (turn down ratio: 1000:1)
· Available with virtual reference grounding method: no grounding rings needed
· Extensive flowmeter and process diagnostics (incl. NE 107)
· For hazardous areas: ATEX, IECEx, NEPSI, FM, CSA, EAC, INMETRO
· Standard measurement accuracy: ±0.2% or ±1mm/s of measured value (MV)
· For custody transfer: OIML R49, OIML R-117; MI-001, MI-004, MI-005
· PTFE, PFA, ETFE, hard rubber, soft rubber or PU liner: excellent chemical and abrasion resistance
· Wide range of electrode materials
· Special designs, sizes, inner diameters and liner thicknesses on request
· Optional external coatings for offshore or subsoil installation (also acc. to ISO 12944)
· Full bore design: No moving parts, no wear, no pressure loss
· On-site verification of flowmeter with OPTICHECK service tool
Specification | Details |
Product Model | OPTIFLUX 4300 (Electromagnetic Flowmeter, EMF) |
Measurement Principle | Faraday's Law of Electromagnetic Induction |
Measured Media | Conductive liquids, slurries (solid content up to 70%), aggressive fluids |
Minimum Conductivity | ≥ 1 µS/cm |
Nominal Diameter (DN) | DN2.5 ~ DN3000 (1/10" ~ 120") |
Accuracy | ±0.2% of measured value (MV) or ±1 mm/s (whichever is greater) |
Rangeability / TurnDown | 1000:1 (bi-directional flow measurement) |
Flow Velocity Range | 0 ~ 10 m/s (bi-directional) |
Process Temperature | -40°C ~ +180°C (-40°F ~ 356°F) |
Process Pressure | Max. 40 barg (580 psig) (PN40 / Class 600); higher pressures on request |
Liner Materials | PTFE, PFA, ETFE, Hard Rubber, Soft Rubber, Polyurethane (PU) |
Electrode Materials | SS316L, Hastelloy C, Titanium, Tantalum, Platinum-Iridium, etc. |
Power Supply | 100 ~ 240 VAC (50/60 Hz); 20 ~ 36 VDC (optional) |
Analog Output | 3 × 4 ~ 20 mA DC (isolated, HART® 7 compatible) |
Digital Communication | HART® 7, Modbus RTU, FOUNDATION Fieldbus, Profibus-PA/DP, PROFINET |
Discrete I/O | Pulse / Frequency output, Status output, Limit switch inputs |
Display | Multi-line backlit LCD (instantaneous & total flow, diagnostics) |
Ambient Temperature | -40°C ~ +85°C |
Ambient Humidity | 5 ~ 100% RH (non-condensing) |
Enclosure Rating | IP67, IP68 (NEMA 6P, submersible) |
Grounding | Virtual Reference (grounding rings not required) |
Self-Diagnostics | Extensive NE 107 compliant diagnostics (empty pipe, air bubble, electrode fault, etc.) |
Approvals (Hazardous Area) | ATEX, IECEx, FM, CSA, NEPSI, EAC, INMETRO |
Custody Transfer Certifications | OIML R49, OIML R117, MI-001, MI-004, MI-005 |
Wetted Body Material | Carbon Steel, Stainless Steel (SS316L) |
Features | Full-bore (no moving parts, no pressure loss); On-site verification with OPTICHECK tool; High abrasion & chemical resistance |
Packaging: Original box
